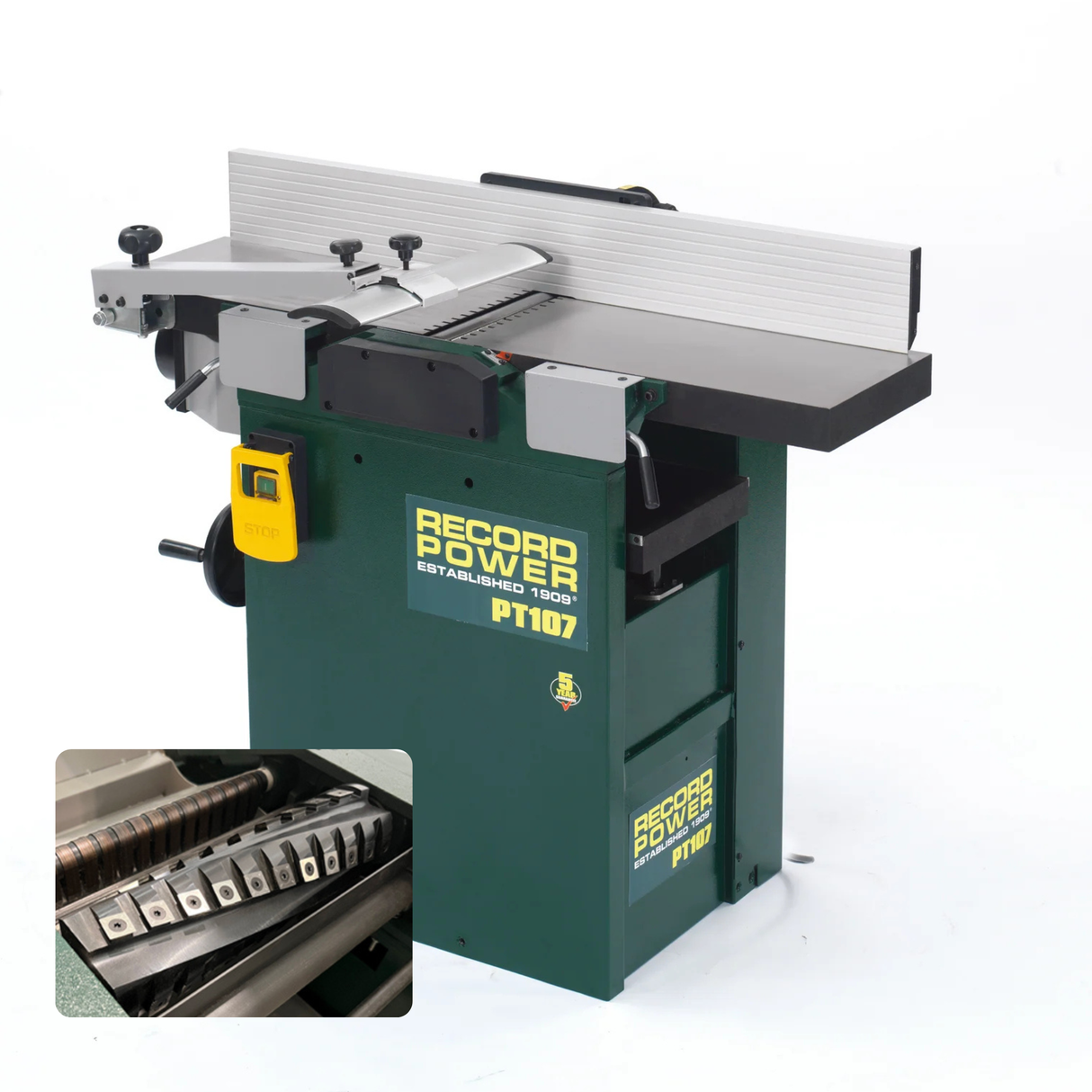

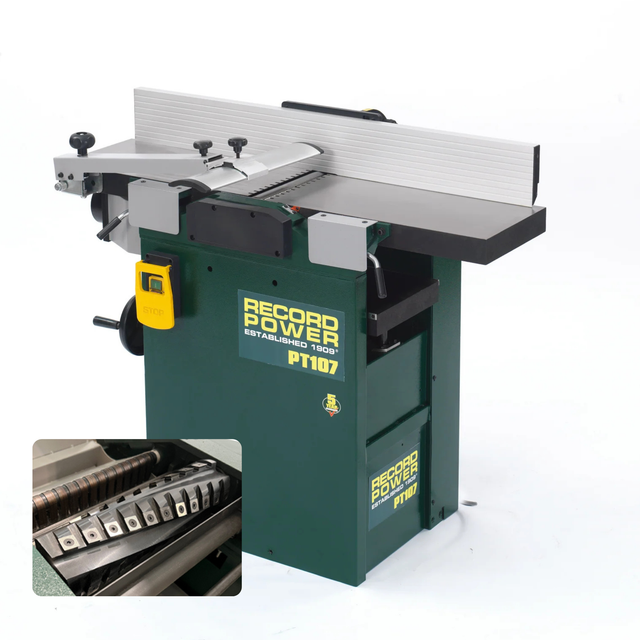

The Record Power PT107 Planer Thicknesser with Spiral Cutterblock is a professional planer thicknesser weighing 162 kg. Krollit, official Record Power distributor since 2007.
- Max. working width: 265 mm
- Planer bed: 1100 × 265 mm
- Thicknesser bed: 600 × 265 mm
- Max. thicknessing height: 190 mm
- Max. planing depth: 3 mm
- Max. thicknessing depth: 2 mm
Who uses the PT107 Planer Thicknesser with Spiral Cutterblock and for what
The PT107 Planer Thicknesser with Spiral Cutterblock is a professional planer thicknesser distributed by Krollit.
Its place in the Record Power range
The Record Power PT107 Planer Thicknesser with Spiral Cutterblock fits into the Record Power range of planer thicknessers, distributed in Italy by Krollit since 2007. The Record Power range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Record Power catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days for Southern Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer assistance in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the PT107 Planer Thicknesser with Spiral Cutterblock for?
The PT107 Planer Thicknesser with Spiral Cutterblock is recommended for the following professional profiles:
-
Professional joineries: planing and thicknessing of boards, battens, and solid wood with precise dimensional tolerance.
-
Furniture factories and window/door manufacturers: surface preparation and board calibration before subsequent assembly processes.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels damage the knives, consider sanders).
Working Capacity
| Max. working width |
265 mm |
| Thicknesser bed |
600 × 265 mm |

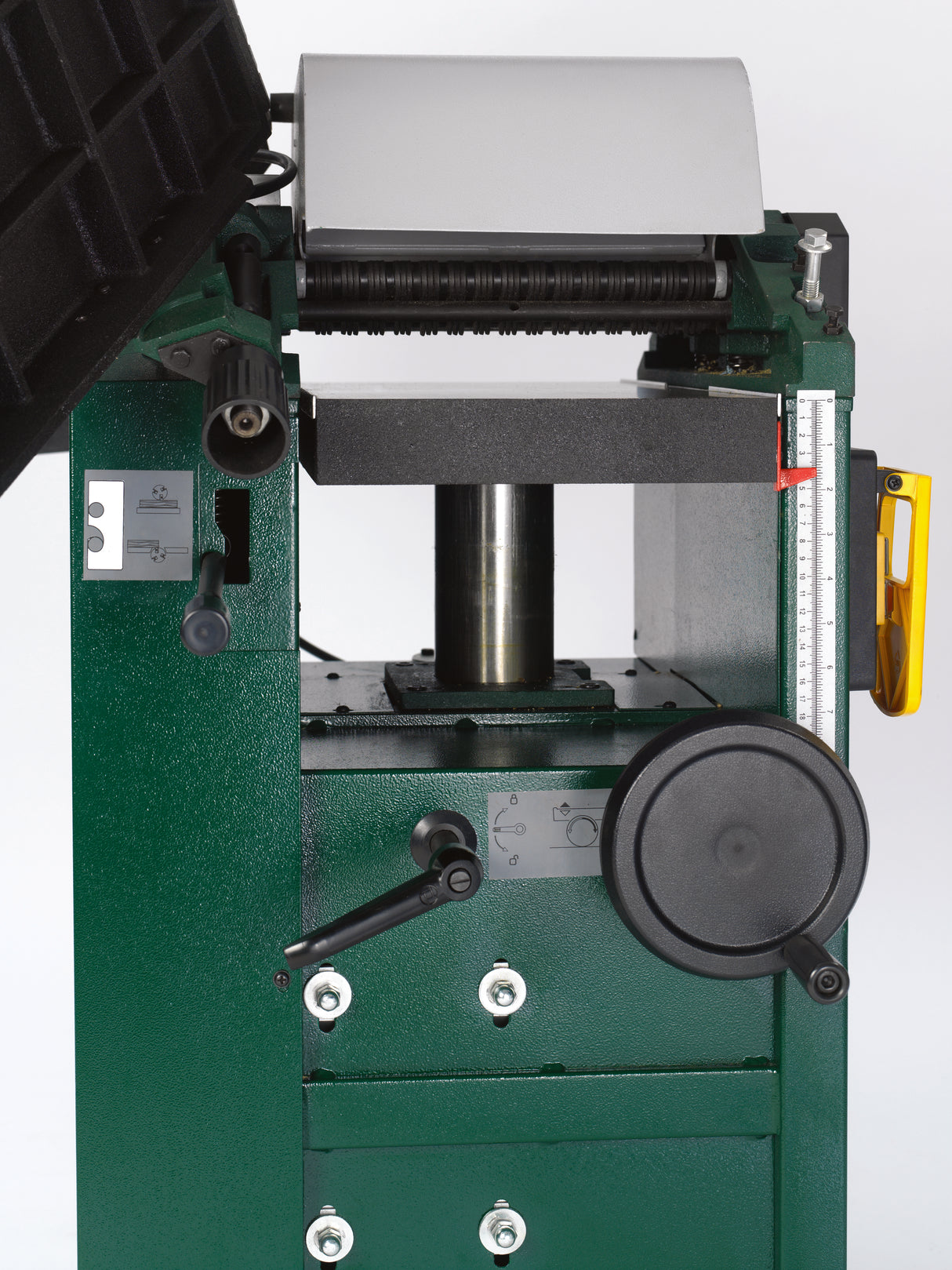

| Max. thicknessing height |
190 mm |
| Max. planing depth |
3 mm |
| Max. thicknessing depth |
2 mm |
| Thicknesser feed speed |
5 m/min |
Table, dimensions and geometry
| Planer bed |
1100 × 265 mm |
| Insert dimensions |
15 × 15 × 2.5 mm |
| Fence tilt |
90° – 45° |
| Weight |
162 kg |
Motor and power supply
| Motor |
230 V / 50 Hz / 3 HP |
| Sound power |
85 / 106 dB(A) (idle / load) |
| Sound pressure |
83 / 100 dB(A) (idle / load) |
Other specifications

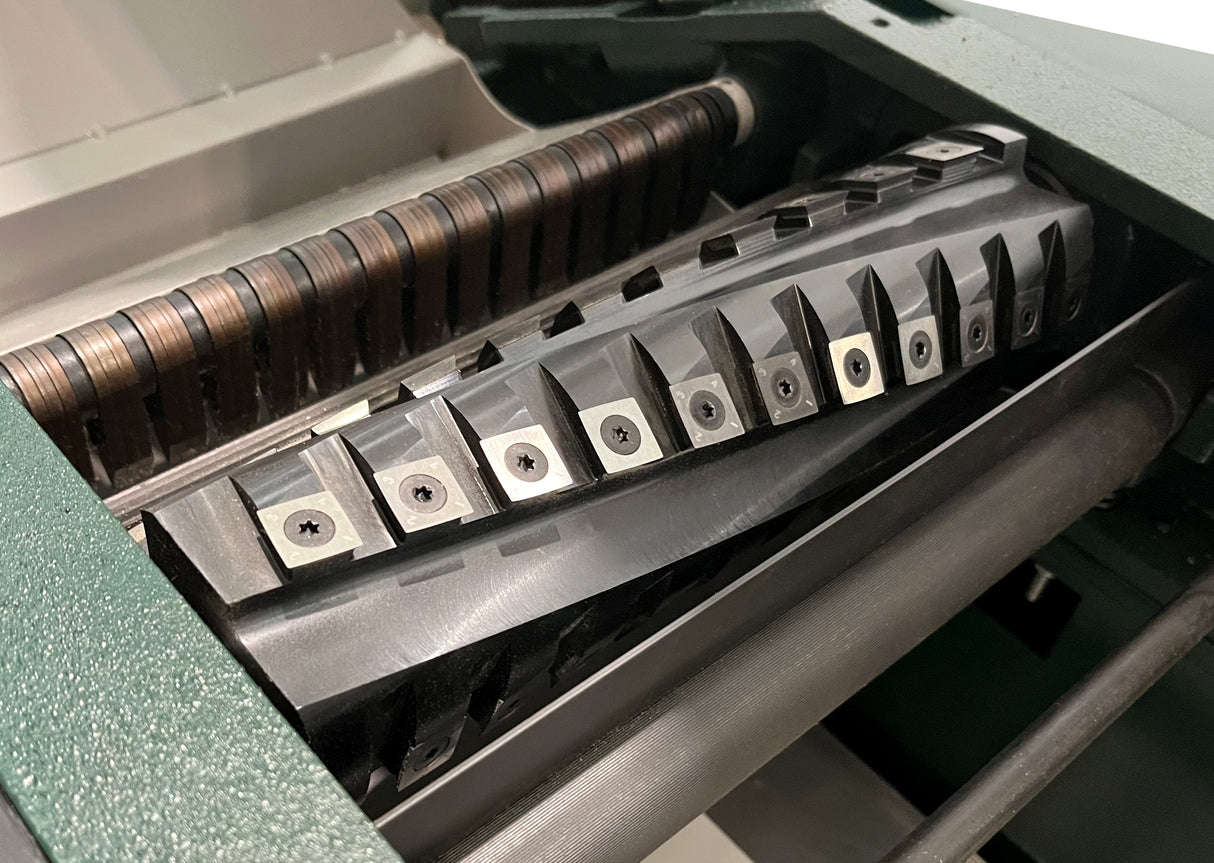

| Spiral cutter block diameter |
75 mm |
| Inserts |
26 or 44 |
| Insert rows |
2 ROWS: 26 / 4 ROWS: 44 |
| Insert screw |
Torx M6 × 16 mm |
| Fence |
1080 × 130 mm |
| Dust extraction |
Ø 100 mm |
| Cutter block speed |
4,000 rpm |
Frequently Asked Questions
What planing width does the PT107 Planer Thicknesser with Spiral Cutterblock offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum width of the board that can be worked in a single pass. For wider boards, a double pass or a larger machine is required.
Knife or spiral cutter block?
See the model: the "S" or "Spiral" version features a helical cutter block with HM inserts, while others feature standard HSS knives.

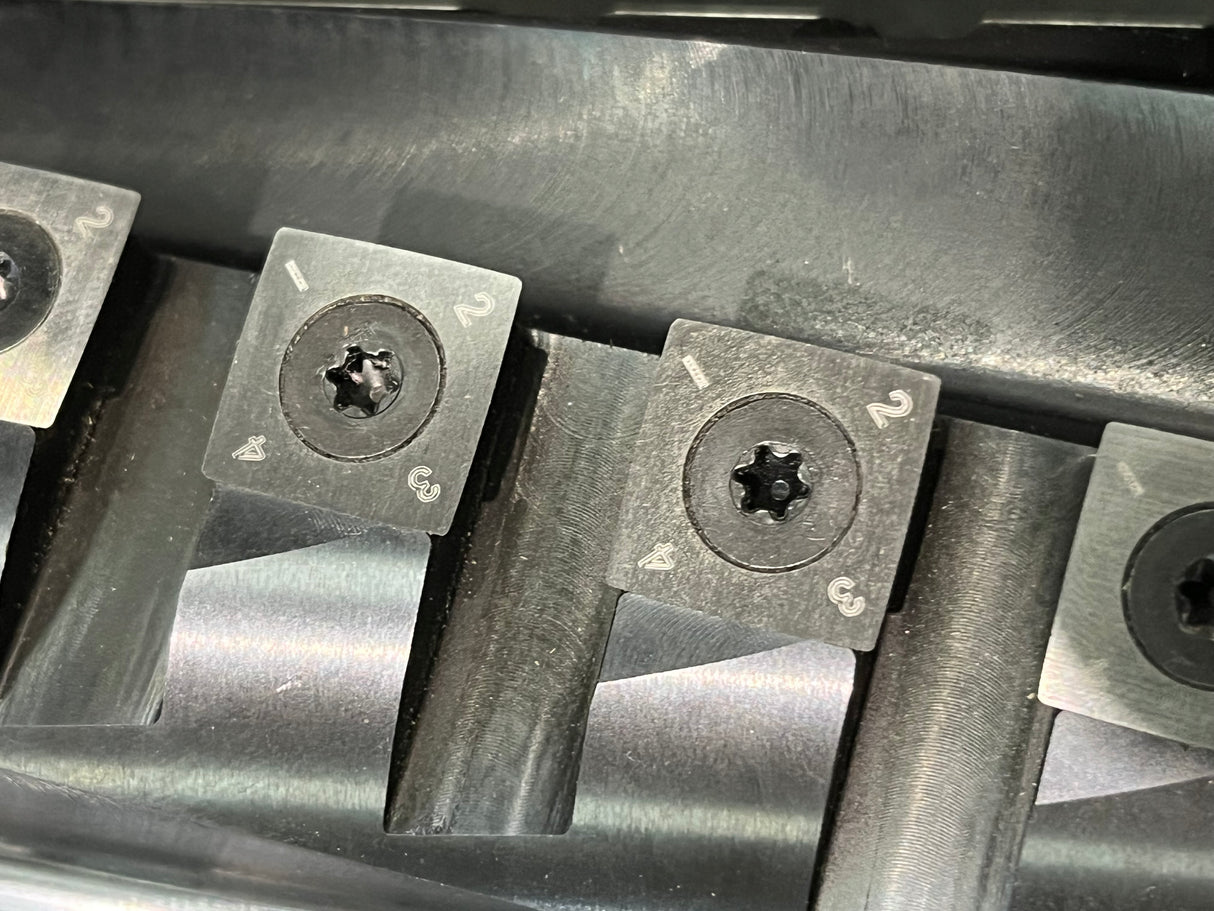

The spiral cutter block produces less noise, a better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually when worn.
Minimum and maximum working thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the thicknessing cutter block.

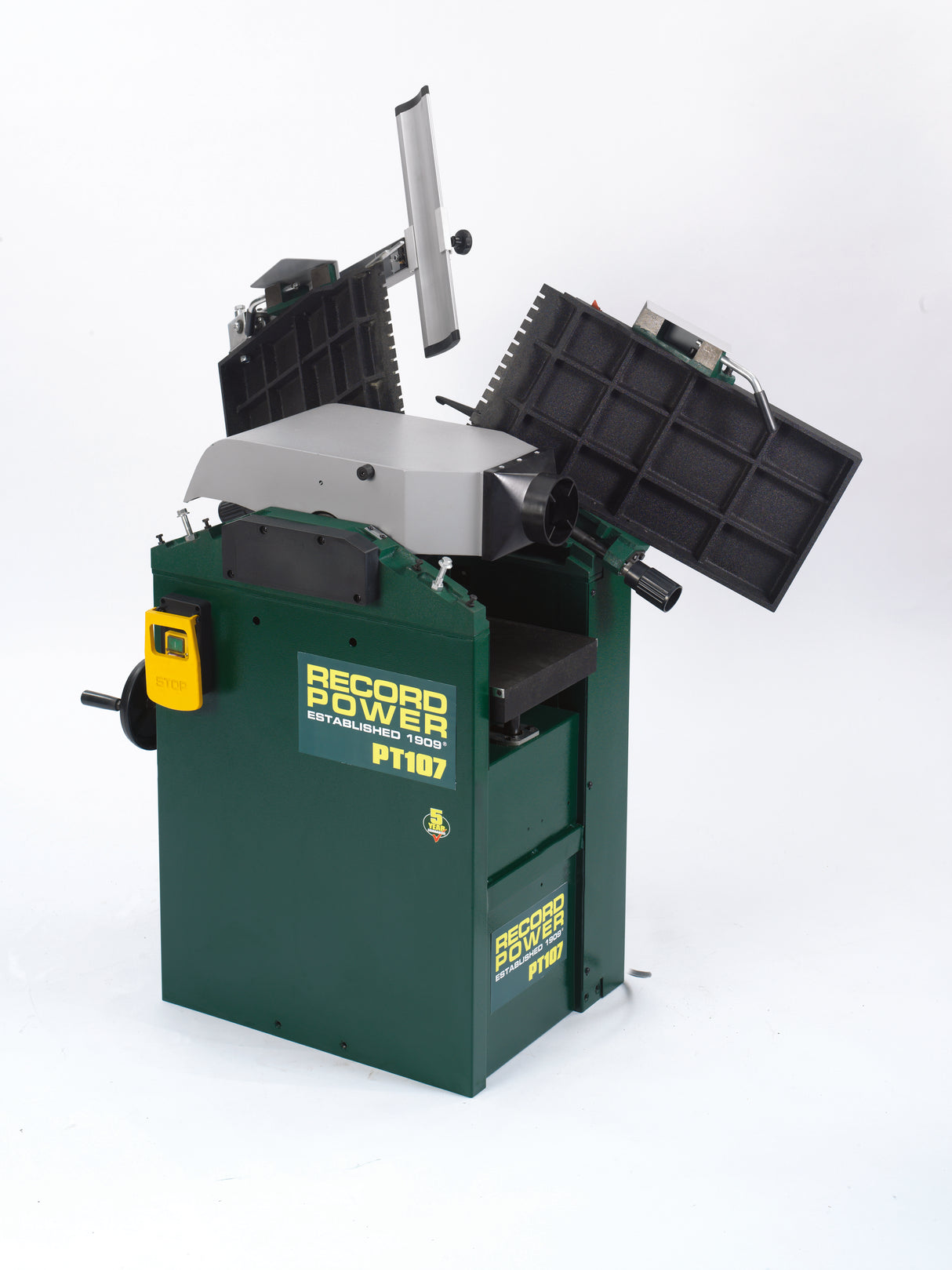

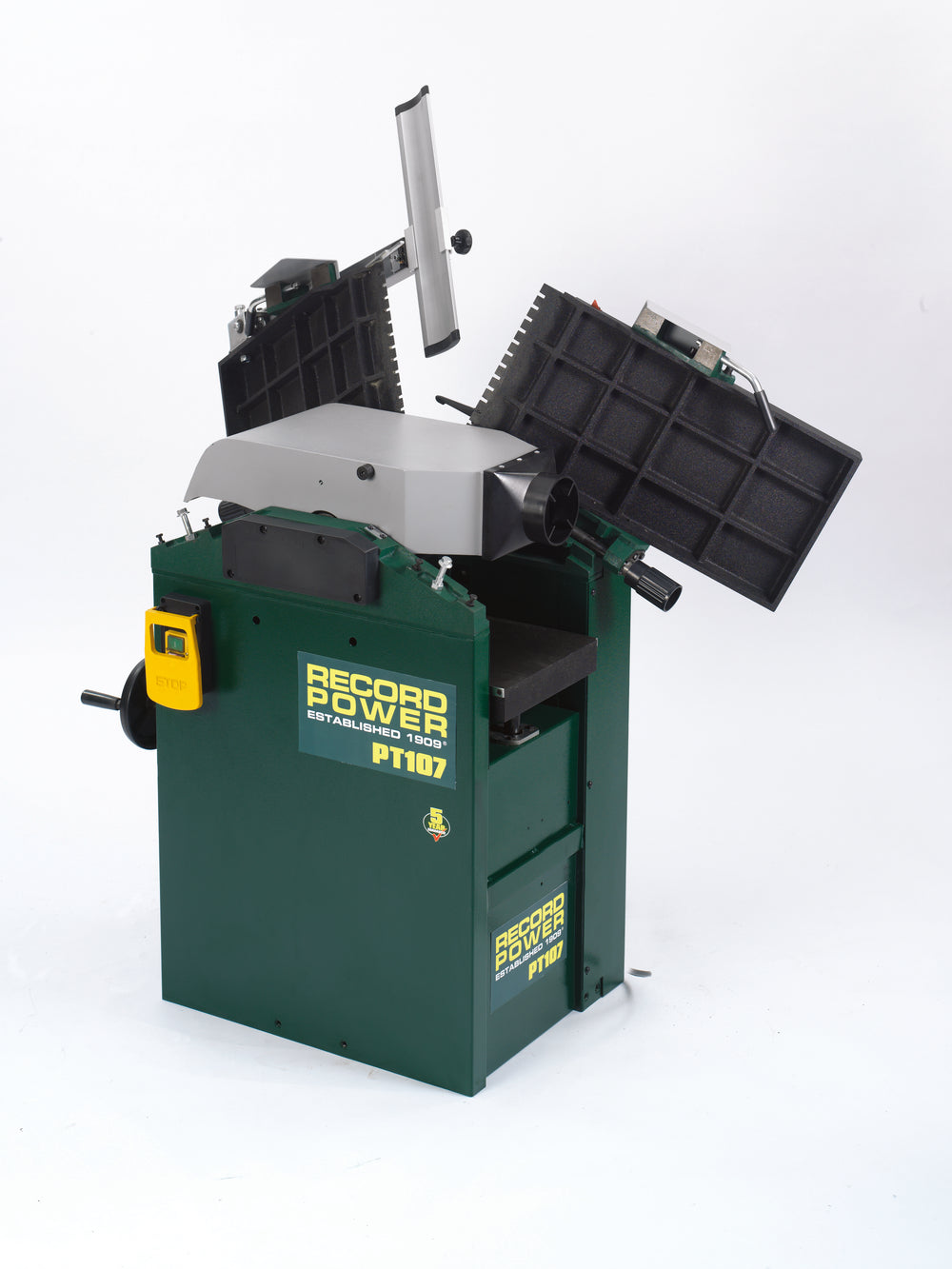

Does it have quick changeover between planing and thicknessing?
Professional models allow changing functions in seconds by tilting the tables.
Reduced setup time is beneficial for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Verify availability in your workshop before purchase.
