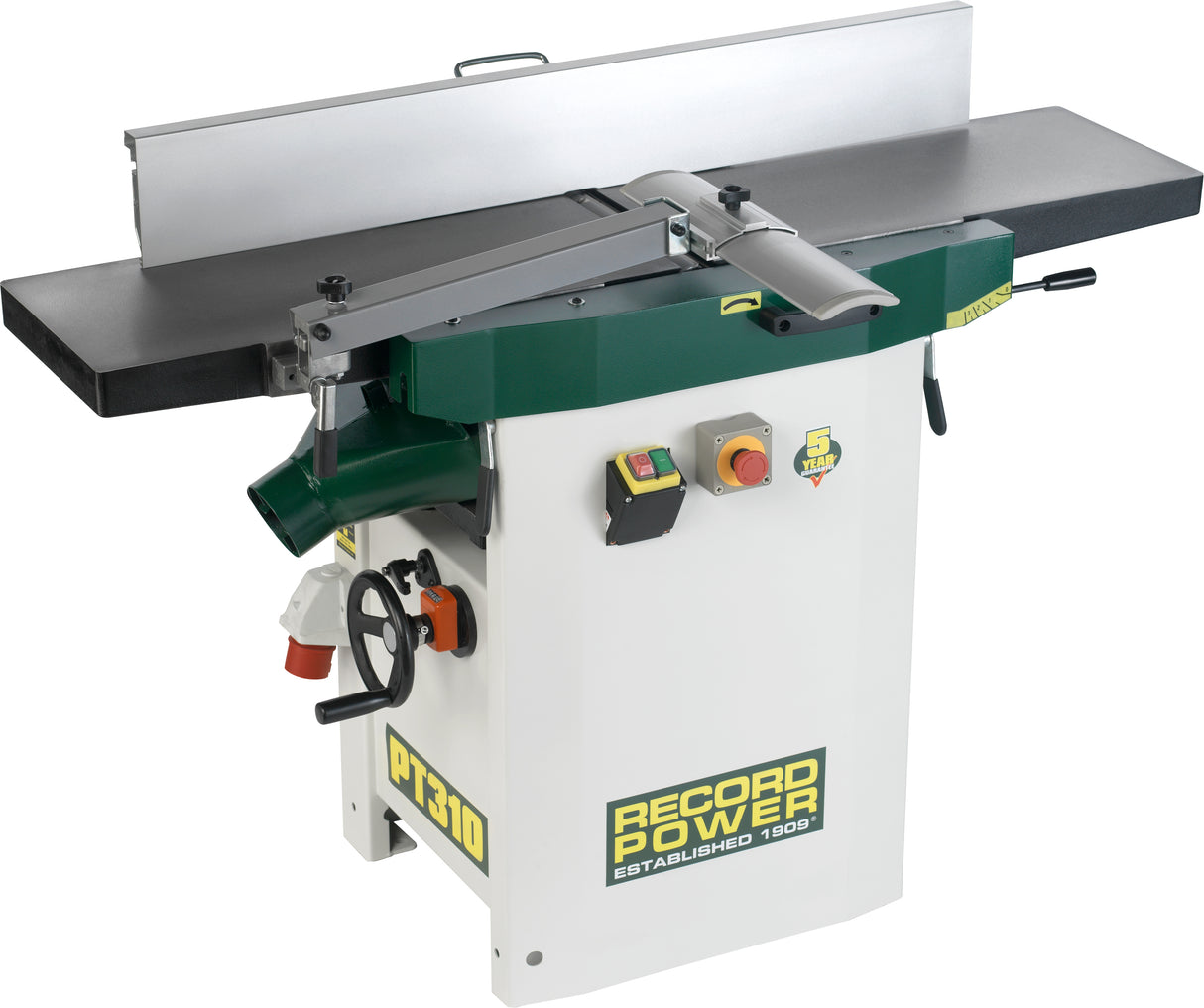

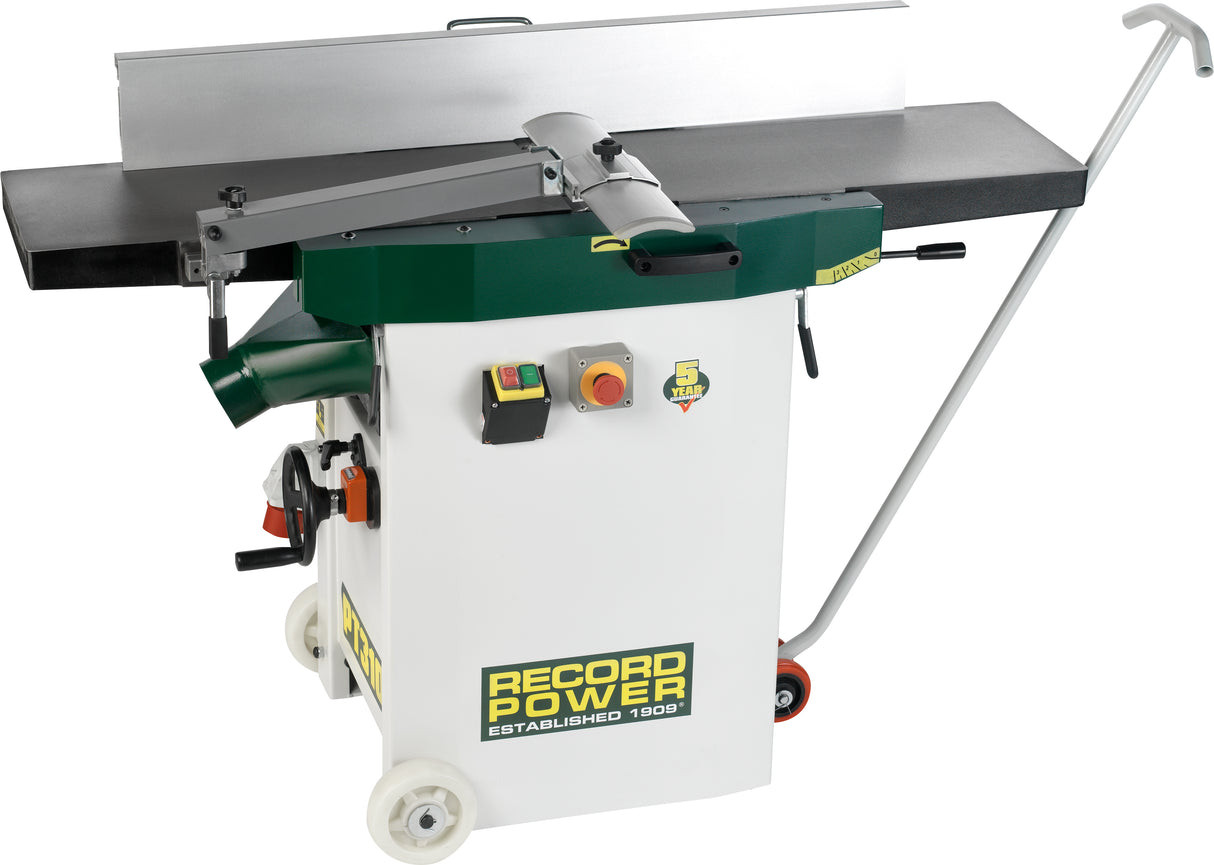

The Record Power PT310 is a professional planer thicknesser with a 2.75 kW motor and a weight of 202 kg. Krollit, official Record Power distributor since 2007.
- Max planing width: 310 mm
- Max thicknessing width: 310 mm
- Max planing depth: 3 mm
- Max thicknessing depth: 3 mm
- Thicknesser feed speed: 7 m/min
- Blades: 3
Who uses the PT310 and for what
The PT310 is a professional planer thicknesser distributed by Krollit.
Its place in the Record Power range
The Record Power PT310 is part of the Record Power planer thicknesser range, distributed in Italy by Krollit since 2007. The Record Power range includes models of various categories and performances: to choose the right machine for your use case, you can consult the Record Power catalog on Krollit or contact customer support for selection assistance.
Krollit Logistics and Support
Machine shipping in 5-9 working days (7 days to the South of Italy). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the PT310 for?
The PT310 is recommended for the following professional profiles:
-
Professional joinery workshops: planing and thicknessing of boards, battens, and solid wood with precise dimensional tolerance.
-
Furniture manufacturers and window/door production: surface preparation and board calibration before subsequent assembly operations.
Not suitable for: planing chipboard or MDF panels (machine for solid wood: composite panels damage the blades, consider calibrating machines).
Working Capacity
| Max planing width |
310 mm |
| Max thicknessing width |
310 mm |
| Max planing depth |
3 mm |
| Max thicknessing depth |
3 mm |
| Thicknesser feed speed |
7 m/min |
Motor and Power Supply
| Motor power P1 |
2.75 kW |
| Motor power P2 |
2.2 kW (230 V) |
| Power supply |
230 V single-phase |
| Frequency |
50 Hz |
| Absorbed current |
14 A (230 V) |
| Sound power level |
98 dB(a) idling / 107 dB(a) under load |
| Sound pressure level |
89 dB(a) idling / 98 dB(a) under load |
Other Specifications
| Blades |
3 |
| Shaft diameter |
70 mm |
| Dust extraction port diameter |
100 mm |
| Weight |
202 kg |
| Dimensions (L × W × H) |
1407 × 745 × 1005 mm |
Frequently Asked Questions
What planing width does the PT310 offer?
See "Planing width" in the technical table: typically from 250 to 410 mm.
The width determines the maximum width of the board that can be processed in a single pass. For wider boards, a double pass or a larger machine is required.

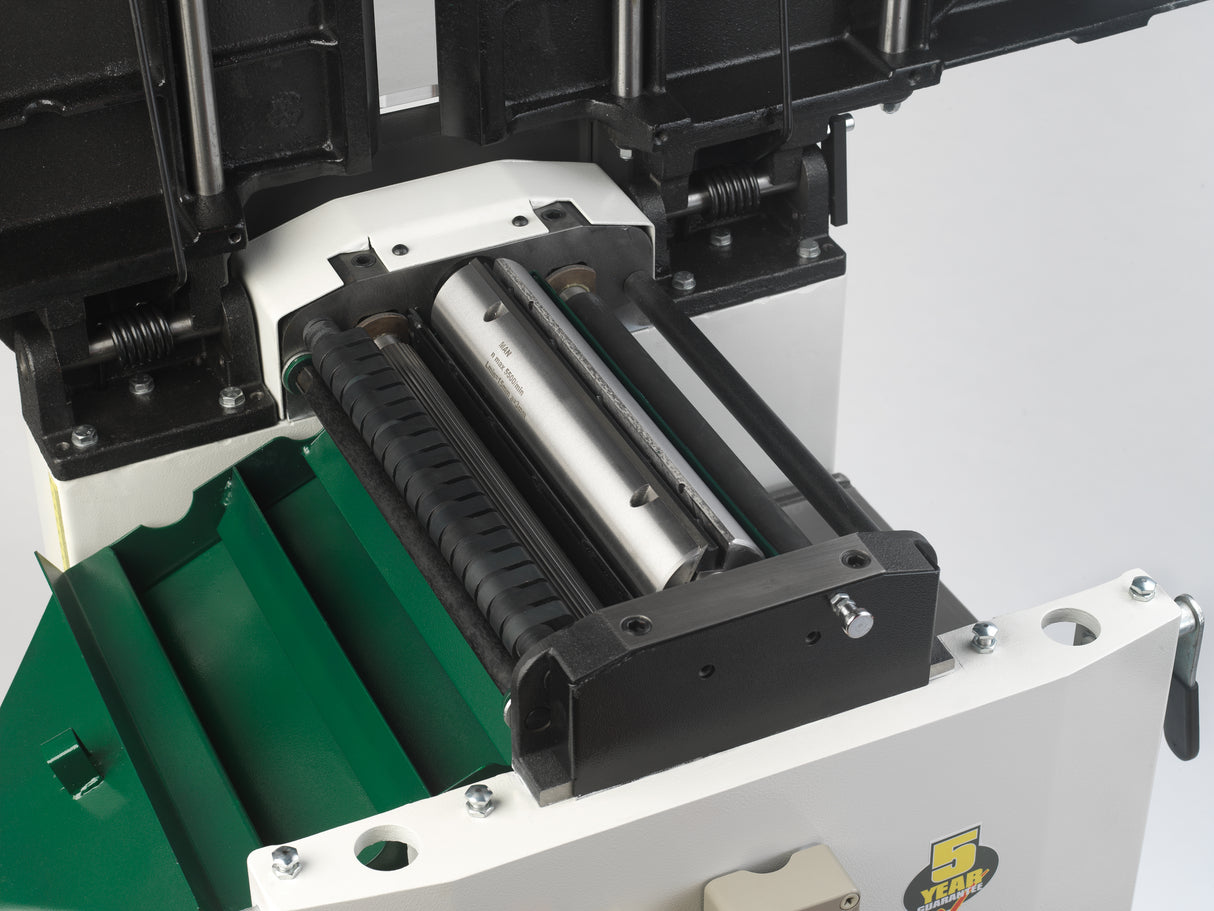

Blade or spiral cutter block?
See the model: the "S" or "Spiral" version features a helical cutter block with HM inserts, while others have standard HSS blades.
The spiral cutter block produces less noise, a better finish, and 5-10 times longer tool life, but it costs more. The inserts can be rotated individually as they wear.
Minimum and maximum working thickness?
See "Min/max thickness" in the technical table: typically from 4 mm to 230 mm in height.
The minimum thickness is limited by the safety of the protective devices; the maximum depends on the clearance under the thicknesser cutter block.

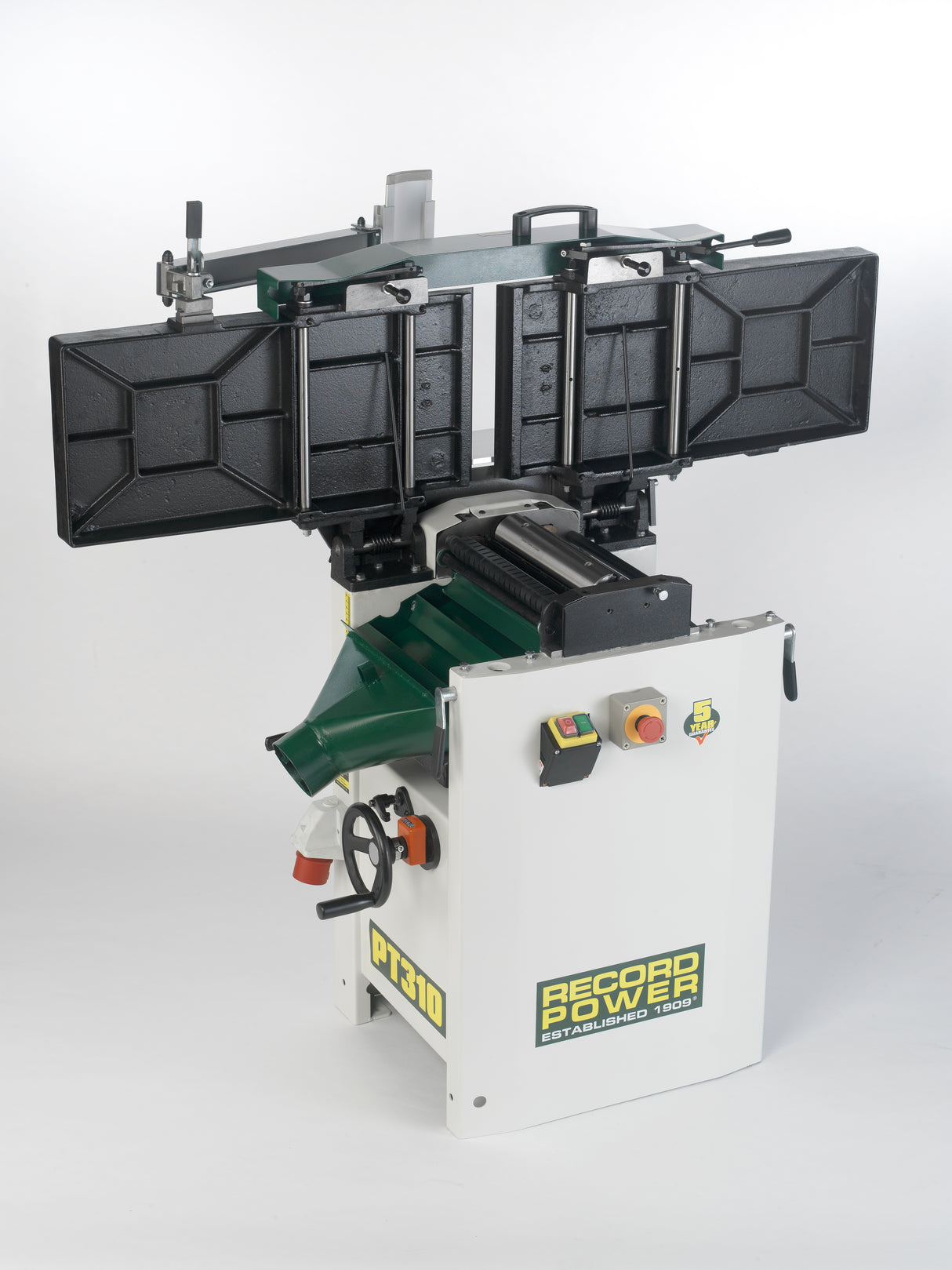

Does it have quick changeover between planing and thicknessing?
Professional models allow changing functions in a few seconds by tilting the tables.
The reduced setup time is convenient for those who frequently alternate between the two functions in series production.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional machines.
Models with motors over 2.2 kW require a three-phase line. Verify availability in your workshop before purchase.
