Bernardo BF 28 BDC Mill-Drill with 3-axis DRO ES-12 V and X-axis power feed AL 280 D
Bernardo BF 28 BDC Mill-Drill with 3-axis DRO ES-12 V and X-axis power feed AL 280 D is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Get the latest updates on all our new collections, sales, offers and product arrival dates.
-
Description
-
Product safety
-
Reviews
Description

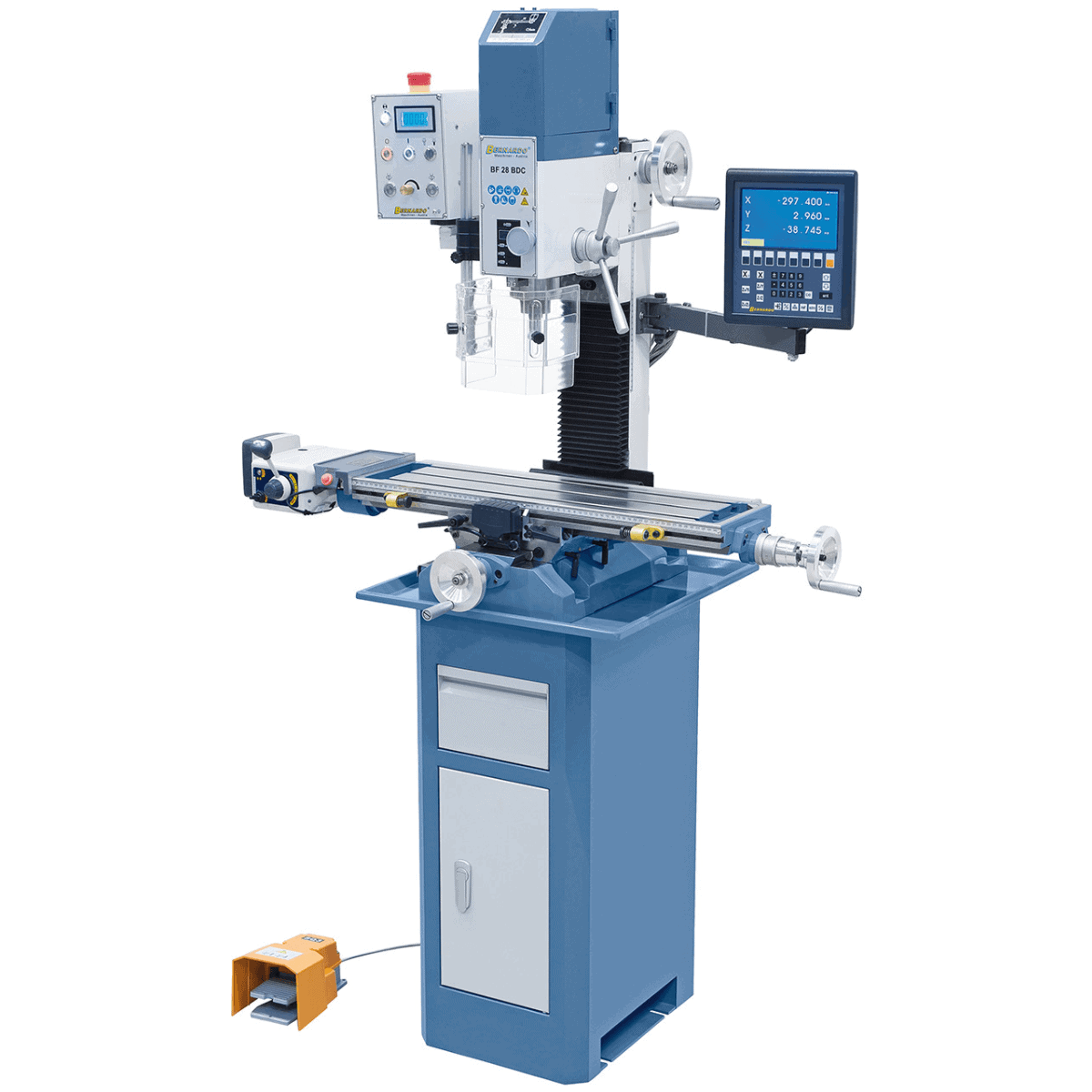

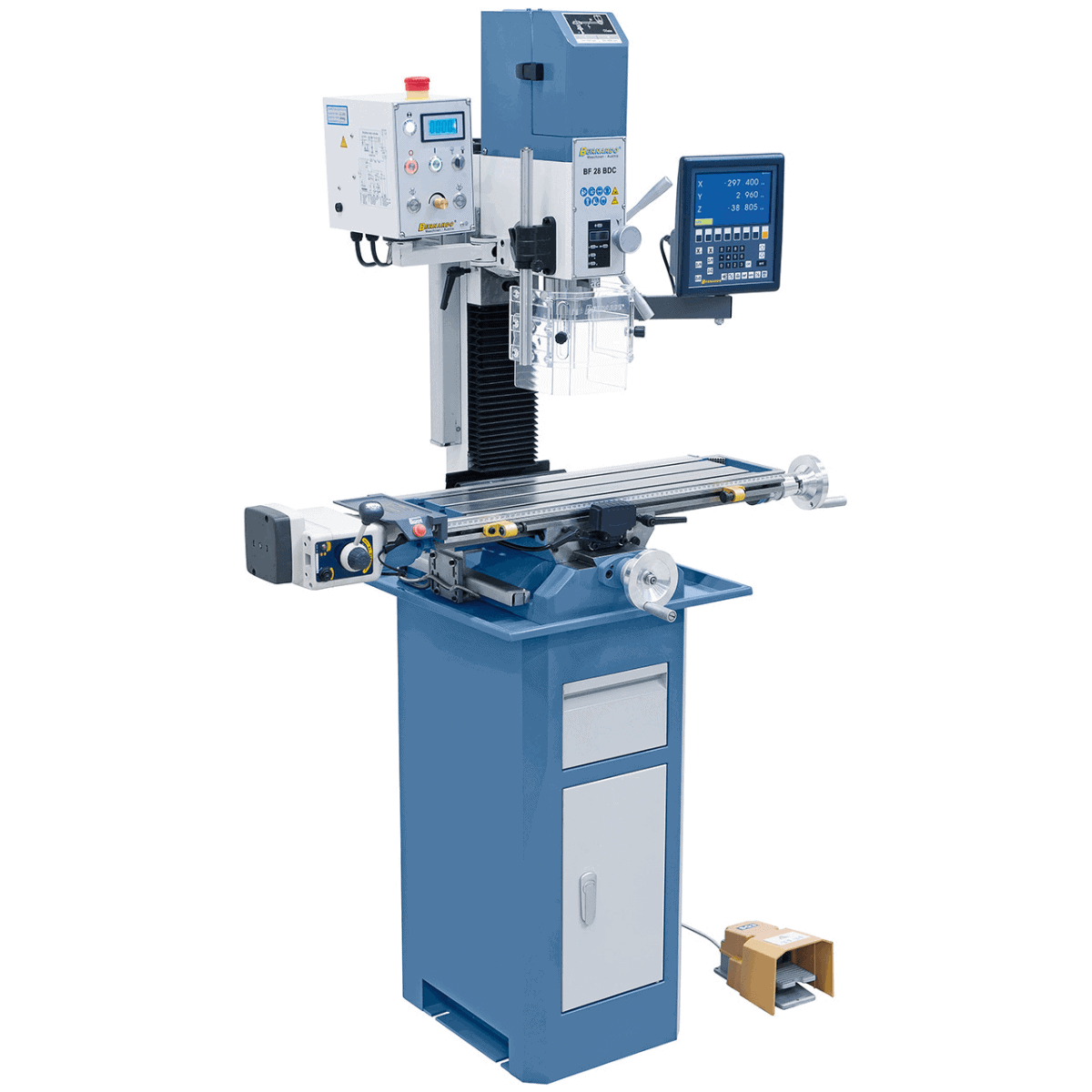

The Bernardo BF 28 BDC is a professional drill-mill machine with DRO ES-12 V for mechanical workshops, featuring steel drilling Ø28 mm, face milling Ø63 mm, tapping M12, Vario speed 100–1,500 / 200–3,000 rpm, 1.1 kW motor, MT 3 spindle taper, and AL 280 D automatic X-axis feed. Weight 130 kg. Krollit, official Bernardo distributor since 2007.
- Steel drilling Ø28 mm
- Max face milling Ø63 mm
- Max end milling Ø20 mm
- Tapping up to M12
- Spindle speed 100–1,500 / 200–3,000 rpm (Vario)
- Spindle taper MT 3, travel 67 mm
- Cross table 700 x 180 mm, X/Y travel 500 / 215 mm
- 3-axis digital readout ES-12 V included
- Automatic X-axis feed AL 280 D as standard

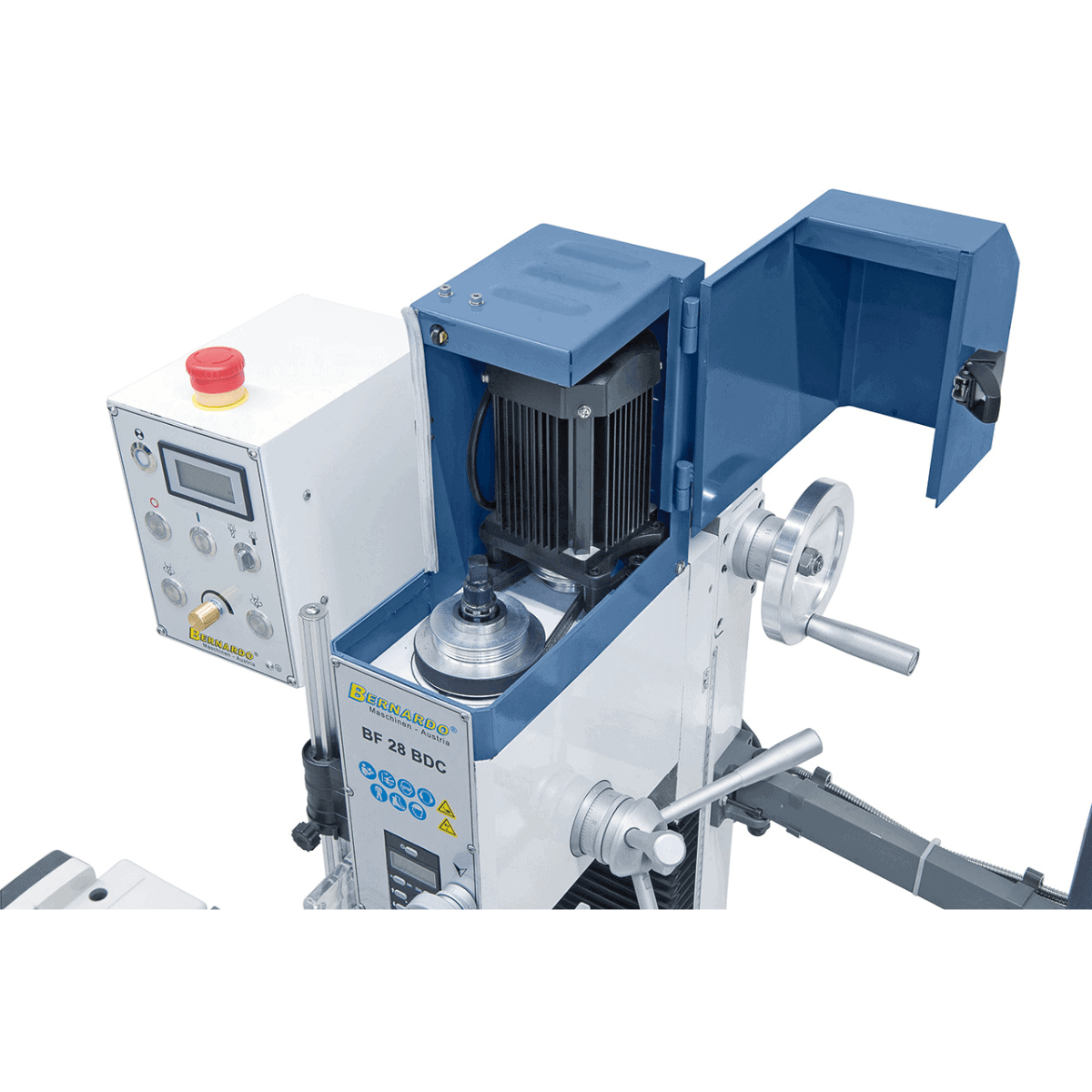

- Motor 0.75 kW (S1) / 1.1 kW (S6) 230 V
- Weight 130 kg
Who uses the BF 28 BDC and for what
Light fabrication workshops, repair shops, and mechanical laboratories use this drill-mill machine for small series production: drilling flanges and supports up to Ø28 mm, milling keyways on brackets, tapping up to M12 with a reverse pedal. On this machine, the DRO ES-12 V allows repeatable positioning on 3 axes, while the AL 280 D automatic X-axis feed reduces fatigue during long milling operations.
Its place in the Bernardo range
The Bernardo BF 28 BDC with DRO ES-12 V and AL 280 D automatic X-axis feed (top-of-the-range version) is positioned in the mid-high segment of Bernardo drill-mill machines. Above this machine, the range offers the BF 30 G with a 12-speed mechanical gearbox and the large BF 45 HSV / FM 45 HSV / FM 50 HSV for intensive work. Below the BF 28 BDC, the range offers models KF 25/26 and BF 25 Super with reduced drilling capacities (20-25 mm).
Krollit logistics and support
Bernardo shipping in 5-9 business days (7 days to Southern Italy). For original Bernardo spare parts, shipping in 3-5 business days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official Bernardo distributor since 2007.
Who is the BF 28 BDC for?
| Profile | Compatibility | Reason |
|---|---|---|
| Light fabrication and mechanical workshops | Suitable | Drilling Ø28 mm, milling Ø63 mm, tapping M12 with reverse pedal |
| Small series prototyping laboratories | Suitable | Table 700 x 180 mm, Vario speed 100–1,500 / 200–3,000 rpm, MT 3 spindle taper |
| Machining with repeatable positioning | Suitable | 3-axis DRO ES-12 V allows precise referencing on X, Y, and Z |
Not suitable for: intensive multi-shift production, machining high-strength hardened steels, continuous cycles in industrial workshops (for these uses, consider the BF 30 G with mechanical gearbox or the HSV range).
Working capacity
| Steel drilling | Ø28 mm |
| Max face milling | Ø63 mm |
| Max end milling | Ø20 mm |
| Max tapping | M12 |
Spindle and speed
| Spindle taper | MT 3 |
| Spindle travel | 67 mm |
| Spindle speed (Vario) | 100–1,500 / 200–3,000 rpm |
| Right/left rotation | Yes, standard for tapping |
Table and head

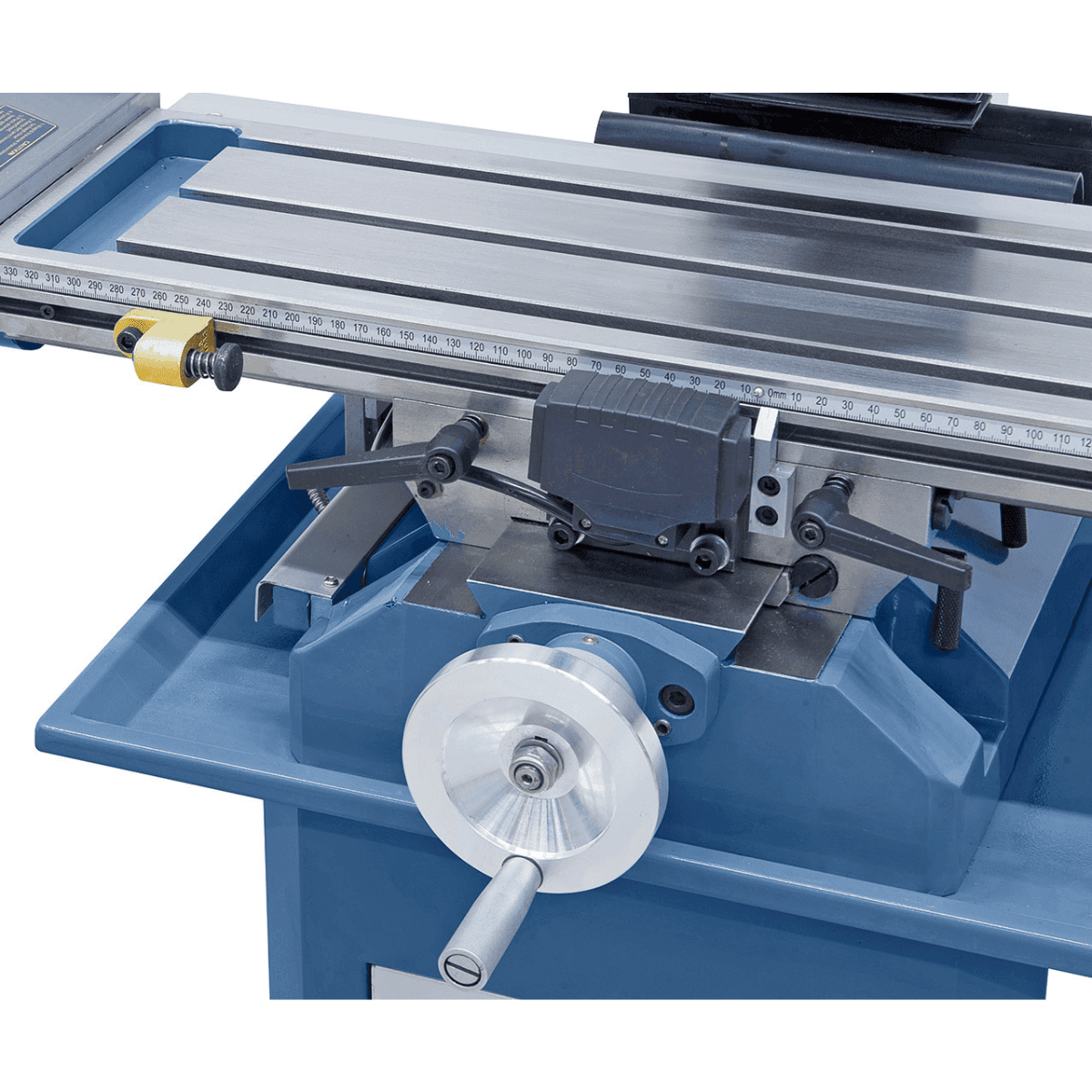

| Table dimensions | 700 x 180 mm |
| Table travel (X / Y) | 500 / 215 mm |
| T-slots | 12 mm |

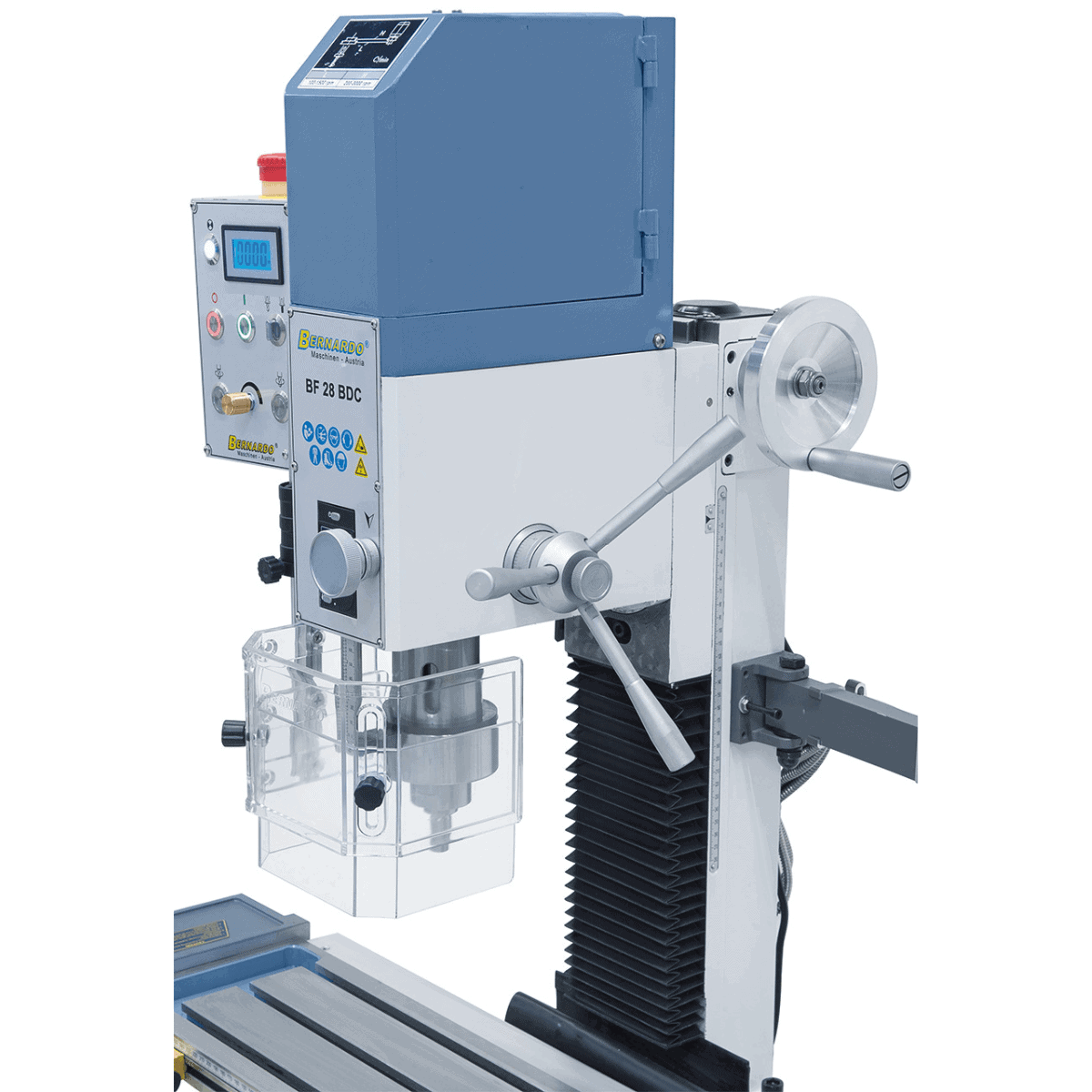

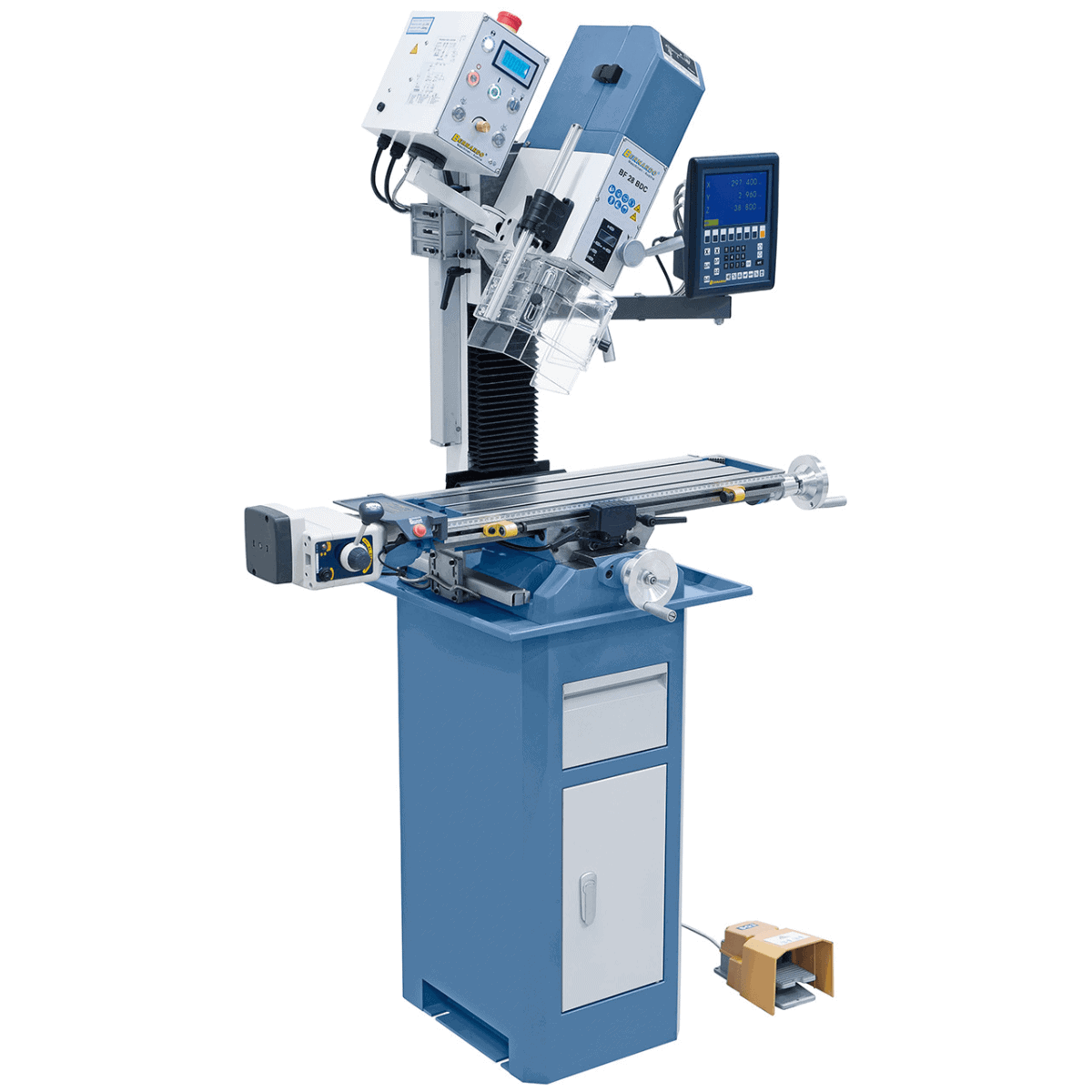

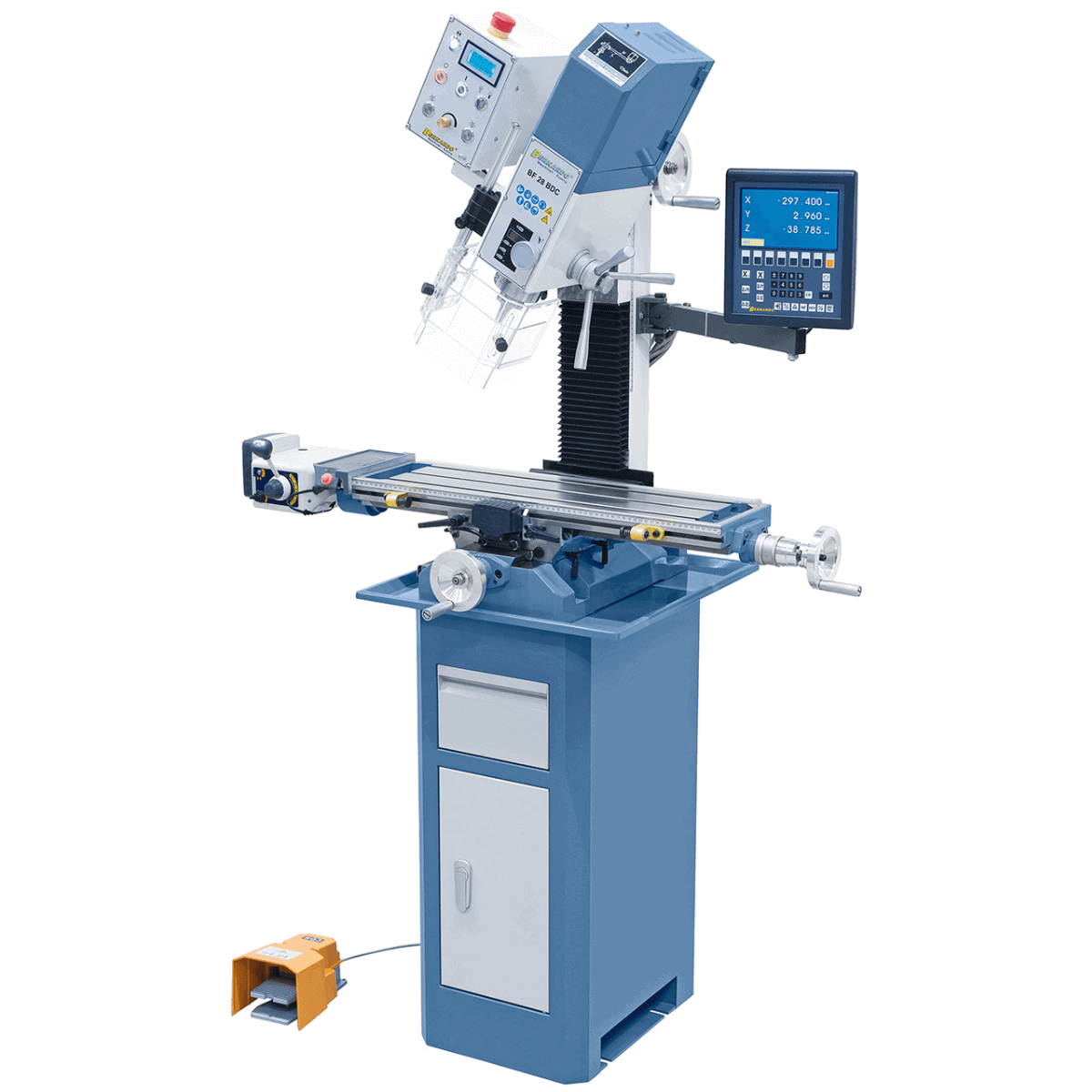

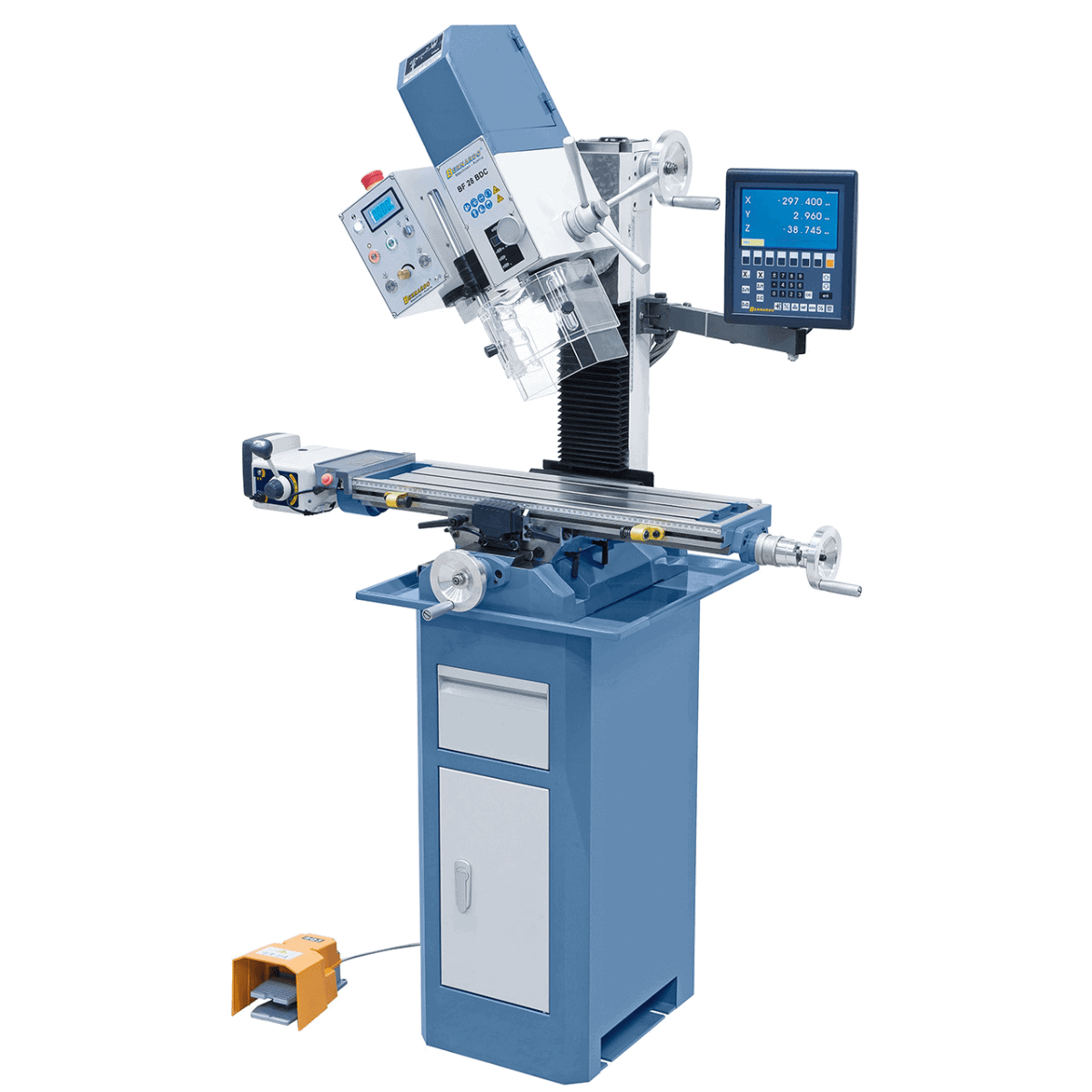

| Head tilt | ±90° |
| Head height adjustment | 290 mm |
| Spindle-to-column distance | 175 mm |
| Spindle-to-table distance | 75–365 mm |
Motor and dimensions
| Motor power S1 100% | 0.75 kW |
| Motor power S6 40% | 1.1 kW |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 970 x 605 x 1,040 mm |
| Weight | 130 kg |
Standard equipment
- Drill chuck 3-16 mm / B16
- Spindle arbor MT 3 / B16
- Drawbar M12

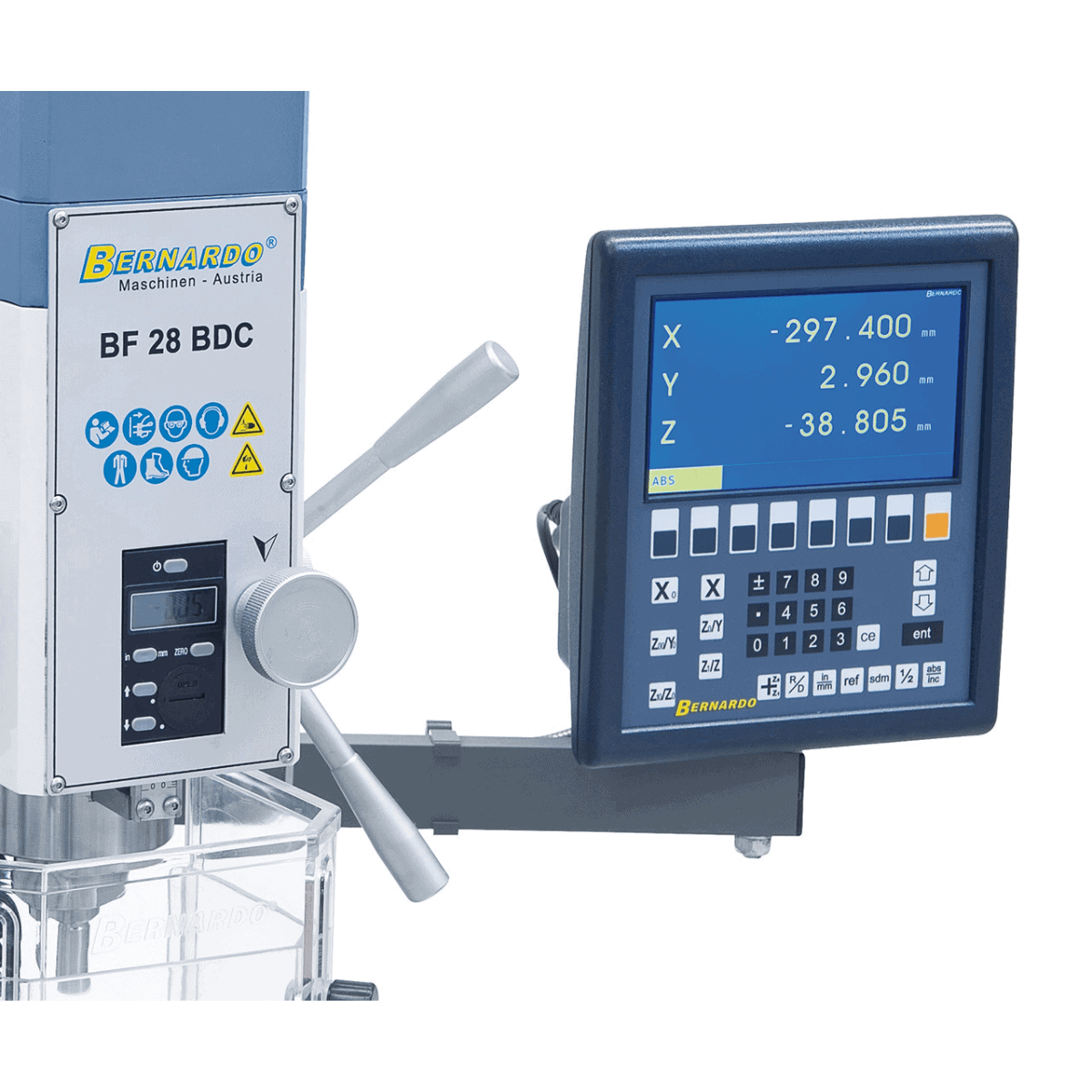

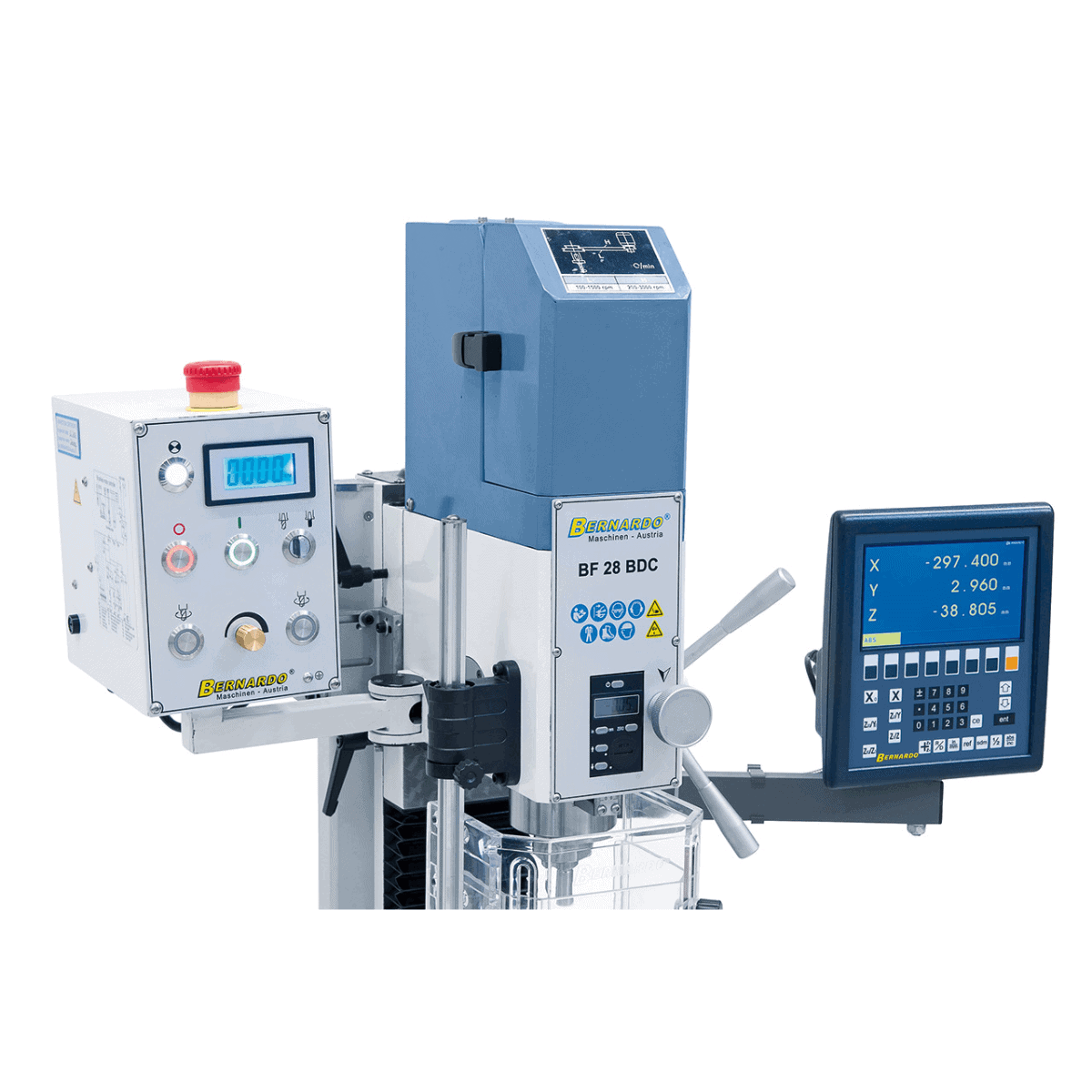

- 3-axis digital readout ES-12 V with LCD display

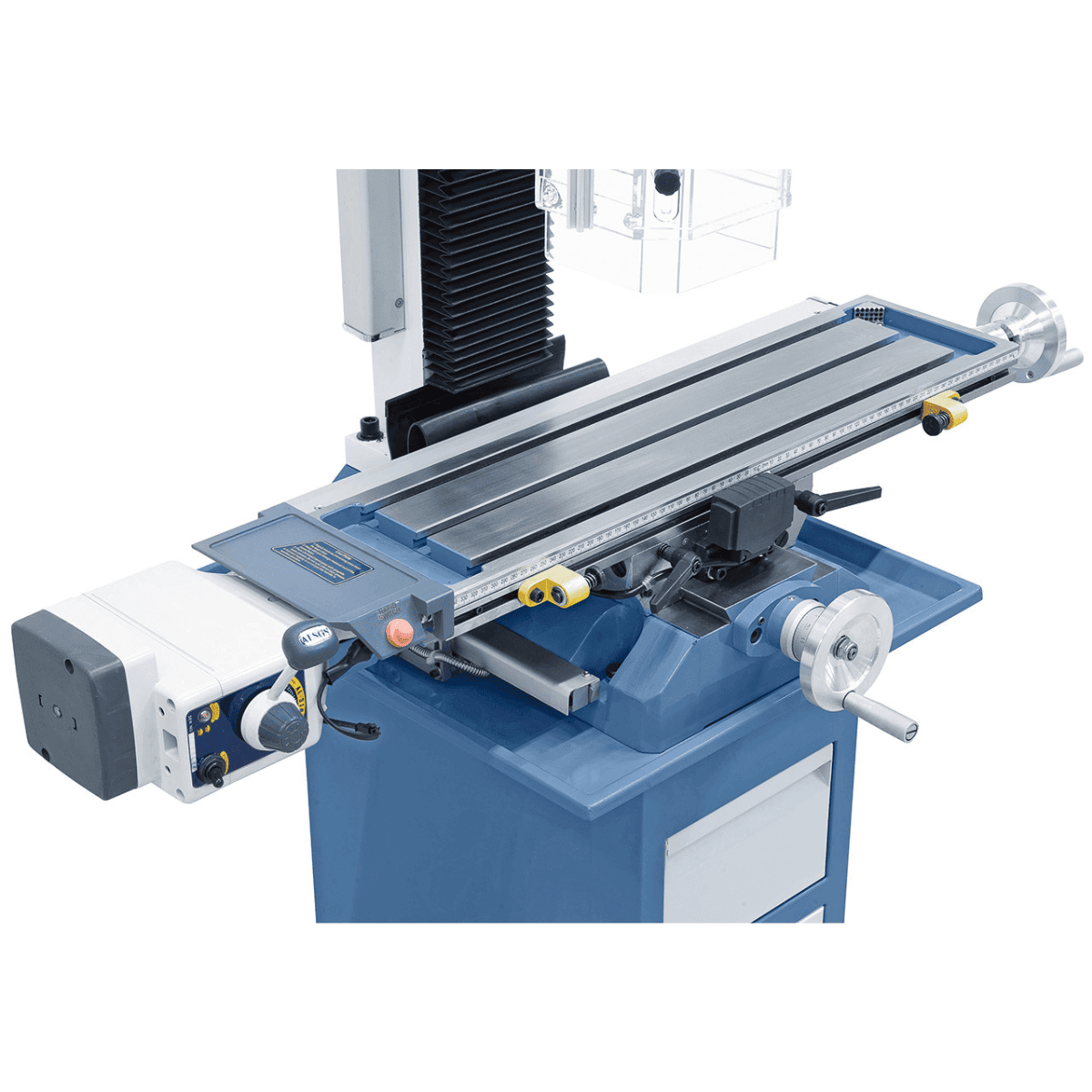

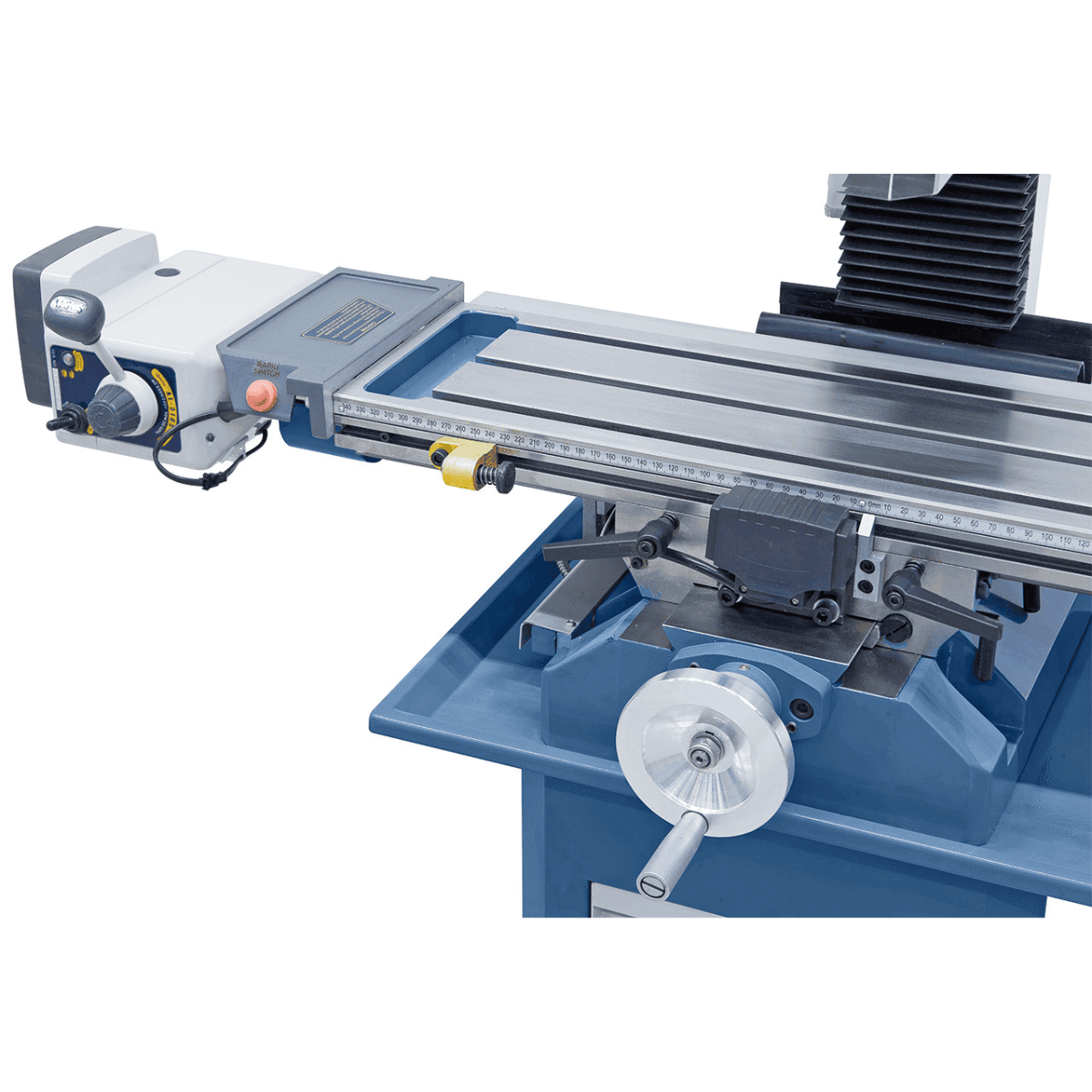

- Automatic X-axis feed AL 280 D
- Digital speed indicator

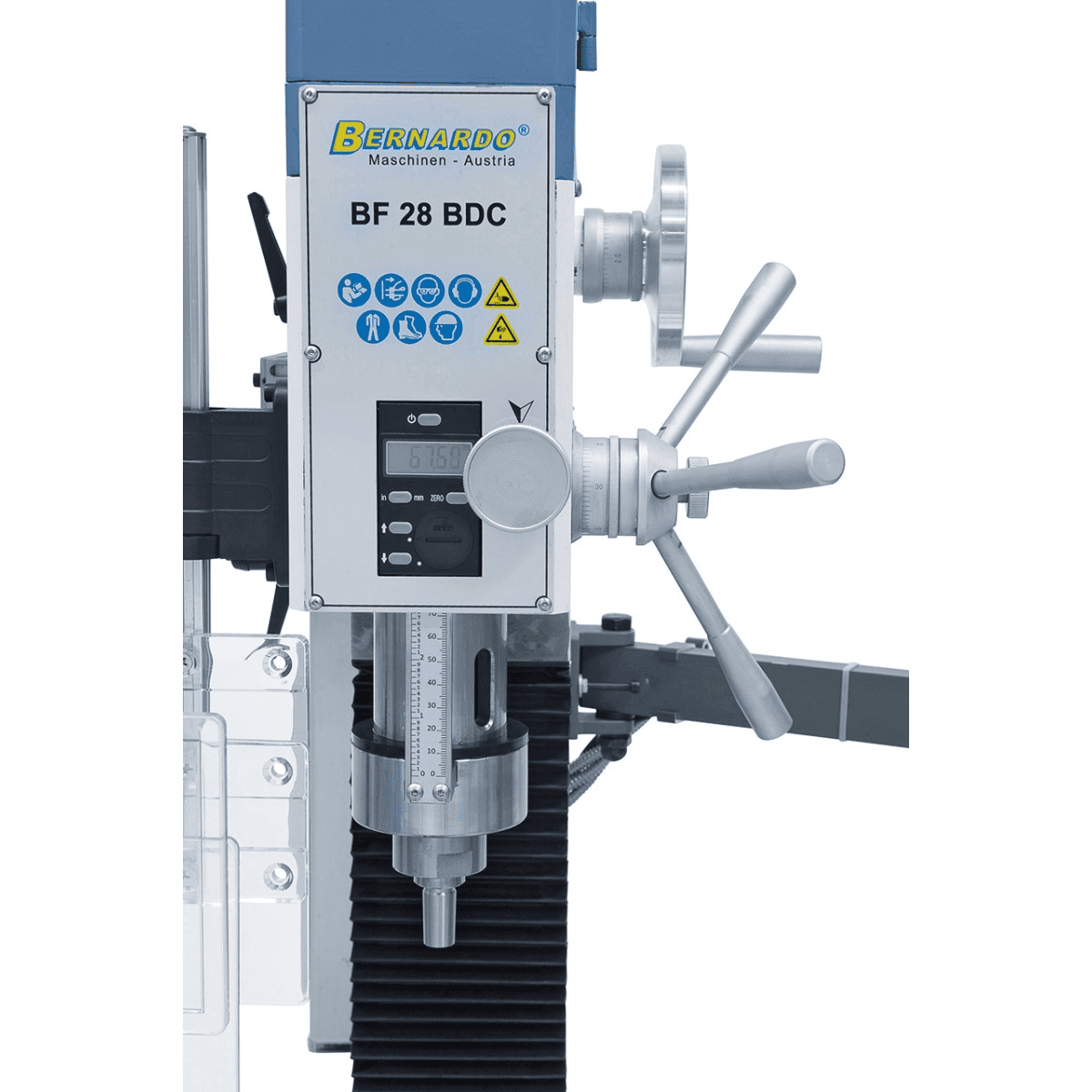

- Digital spindle travel indicator

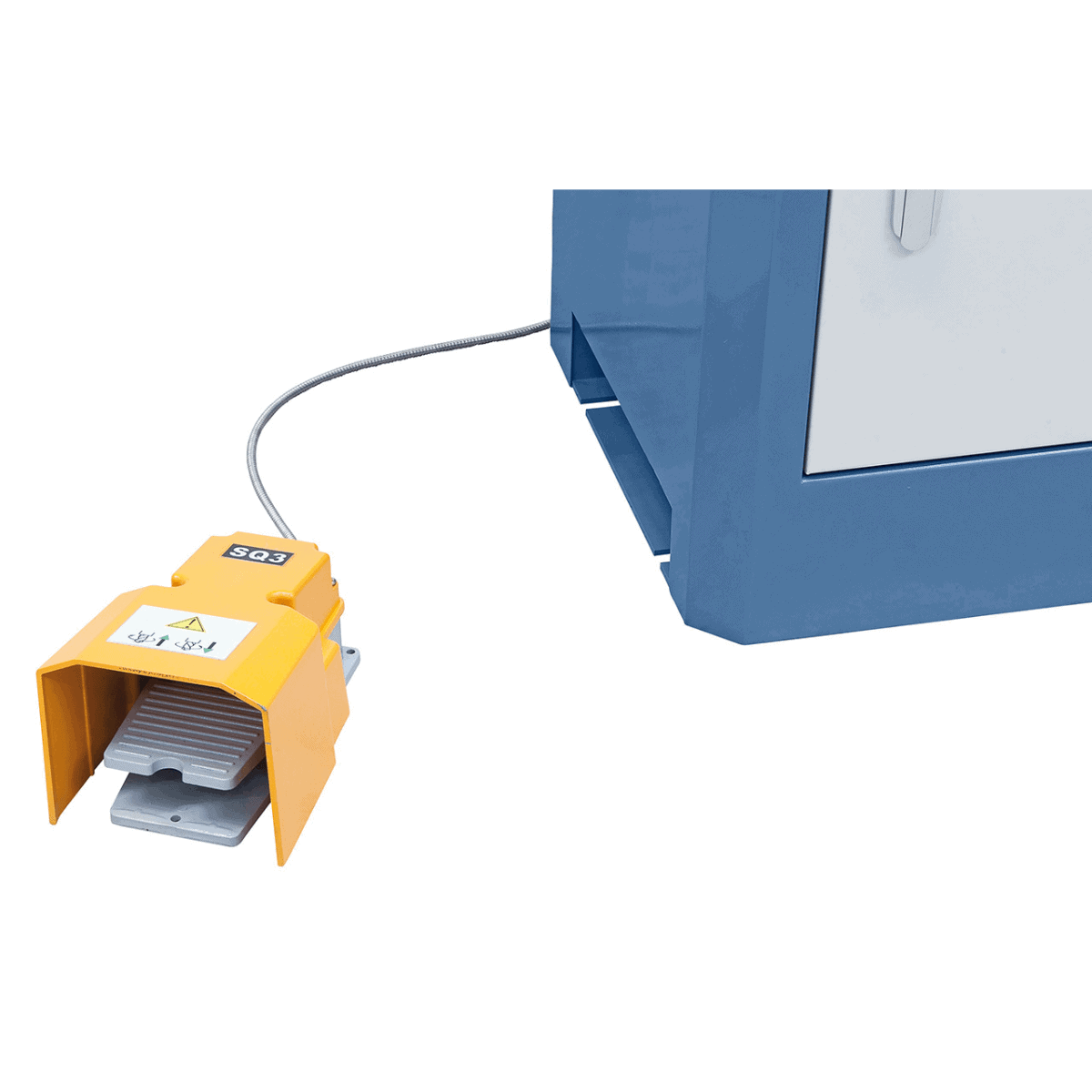

- Foot pedal for reversing direction of rotation
- Integrated tapping device
- EMC filter compliant with CE regulations
- Height-adjustable guard with microswitch
- Tool set
Frequently Asked Questions
What are the drilling and milling capacities of the BF 28 BDC?
Steel drilling up to Ø28 mm, face milling up to Ø63 mm, end milling up to Ø20 mm.
The stated capacities refer to standard unhardened steels (e.g., C40, S235). For harder materials or alloy steels, the actual capacity may be lower: in this case, it is advisable to reduce the rotation speed and feed rate to avoid stressing the spindle and tools.
How is the spindle speed adjusted on the BF 28 BDC?
The machine features Vario speed, continuously adjustable in the range of 100–1,500 / 200–3,000 rpm.

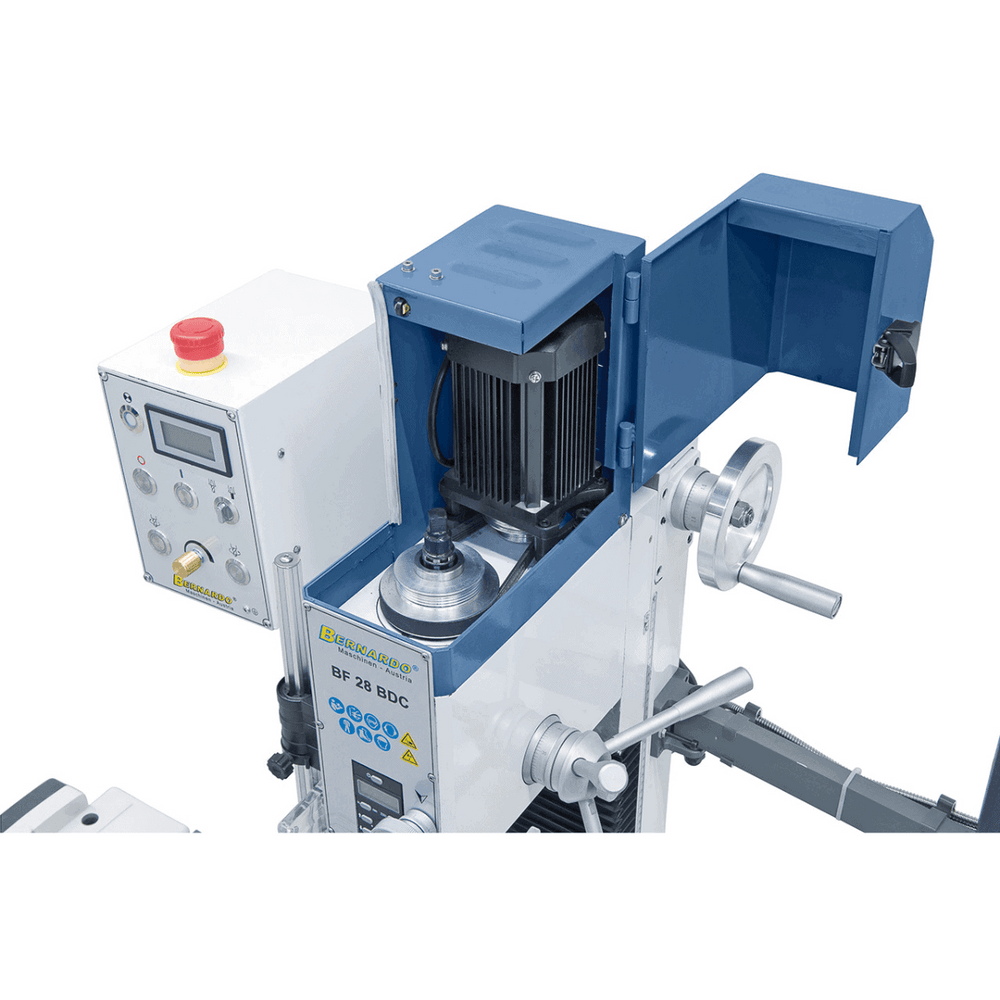

Vario adjustment allows fine tuning of the speed to the material and tool diameter without needing to change belts or gears. For face milling of mild steels, the lower range is typically used, while for small diameter holes on aluminum, the higher range is used.
What power supply and motor does the BF 28 BDC have?
0.75 kW motor (S1 continuous) / 1.1 kW (S6 intermittent) with 230 V power supply.
The motor operates with a standard 230 V single-phase power supply, available in all workshop and laboratory environments. The S6 40% rating indicates that the motor can deliver maximum power for intermittent cycles, while the S1 100% rating indicates the nominal power for continuous use.
What are the table dimensions, travel, and spindle taper of the BF 28 BDC?
Cross table 700 x 180 mm with X/Y travel of 500 / 215 mm, MT 3 spindle taper, 67 mm spindle travel.
The MT 3 spindle taper is an international standard: accessories (self-tightening chucks, milling arbor holders, reduction arbors) are commonly available. The table travels allow machining of workpieces within the effective useful dimensions (X/Y travels net of clamping obstructions).
How much does the BF 28 BDC weigh and what kind of installation does it require?
The machine weighs approximately 130 kg and is designed for installation on a rigid base (optional accessory) or a sturdy workbench, with a 230 V electrical connection.
For transport and positioning of a 130 kg machine, the use of a pallet truck or light crane is recommended. The support bench must be sized for the weight of the machine plus the workpiece, ensuring flatness to avoid compromising precision.
