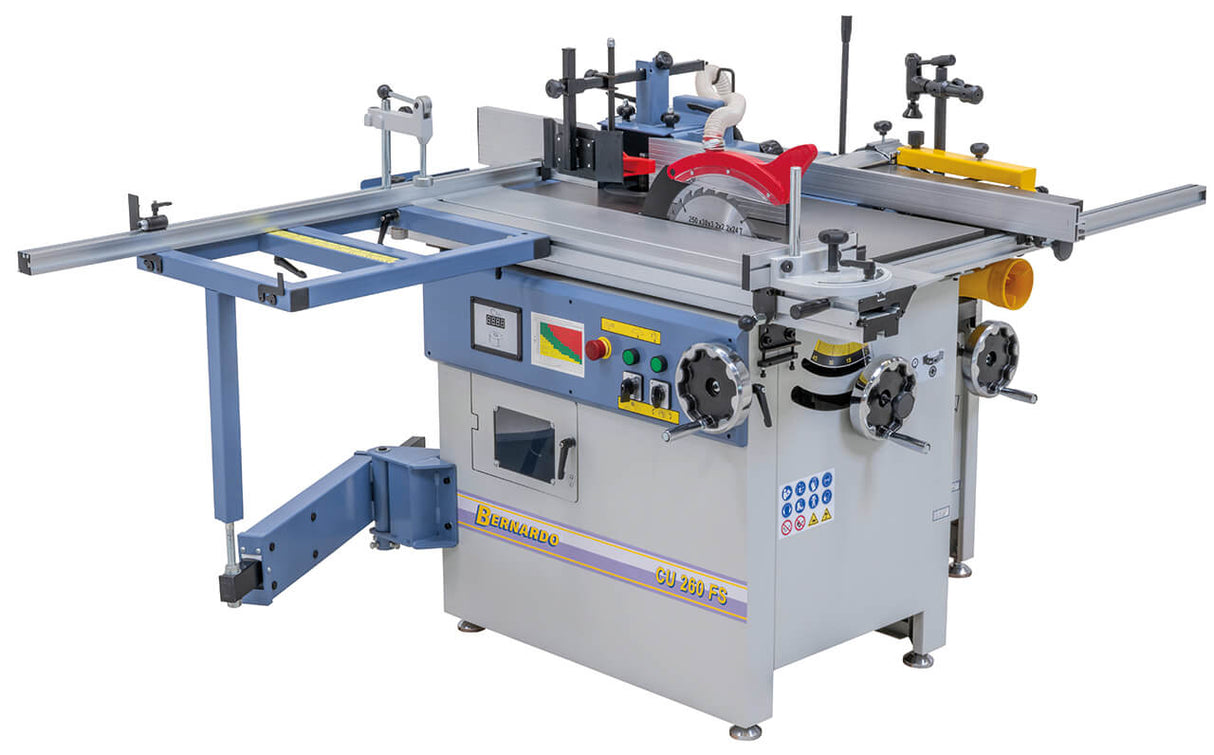

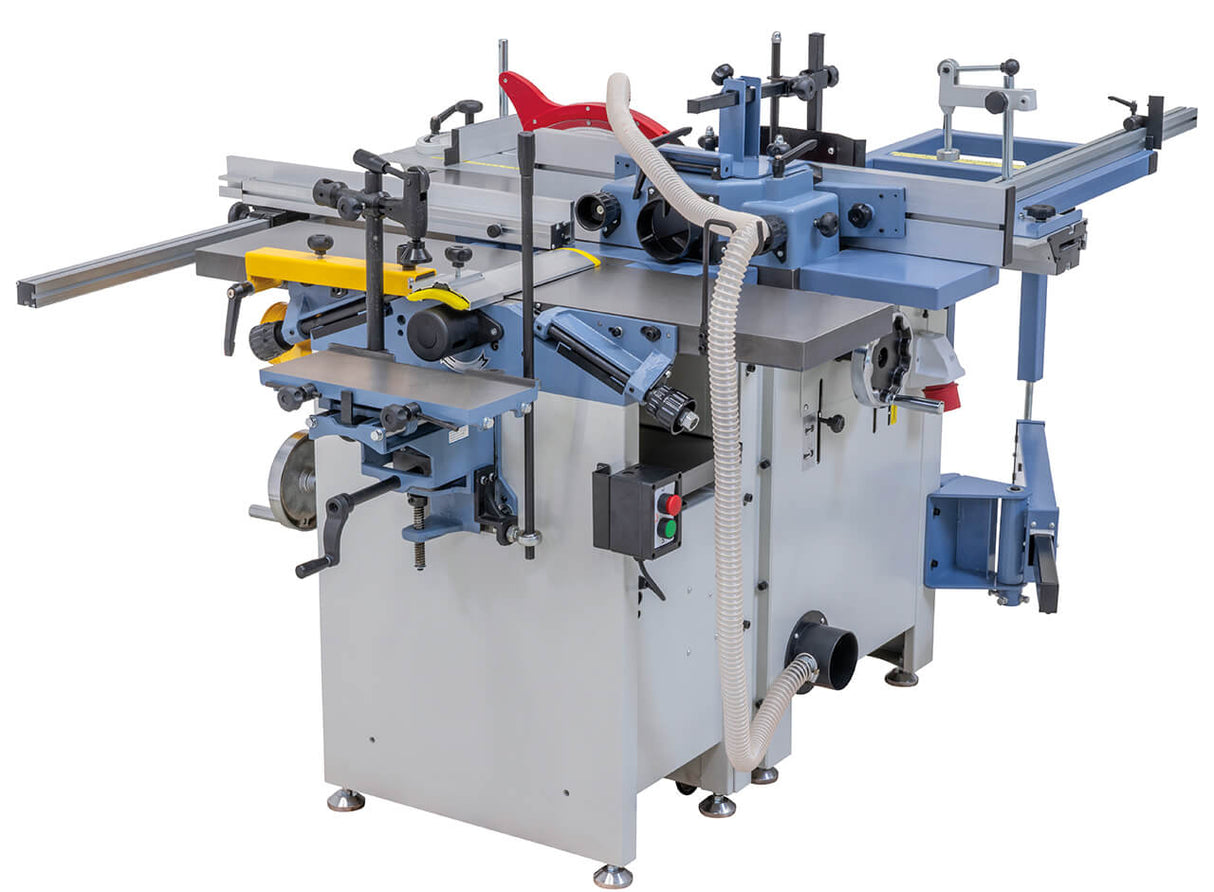

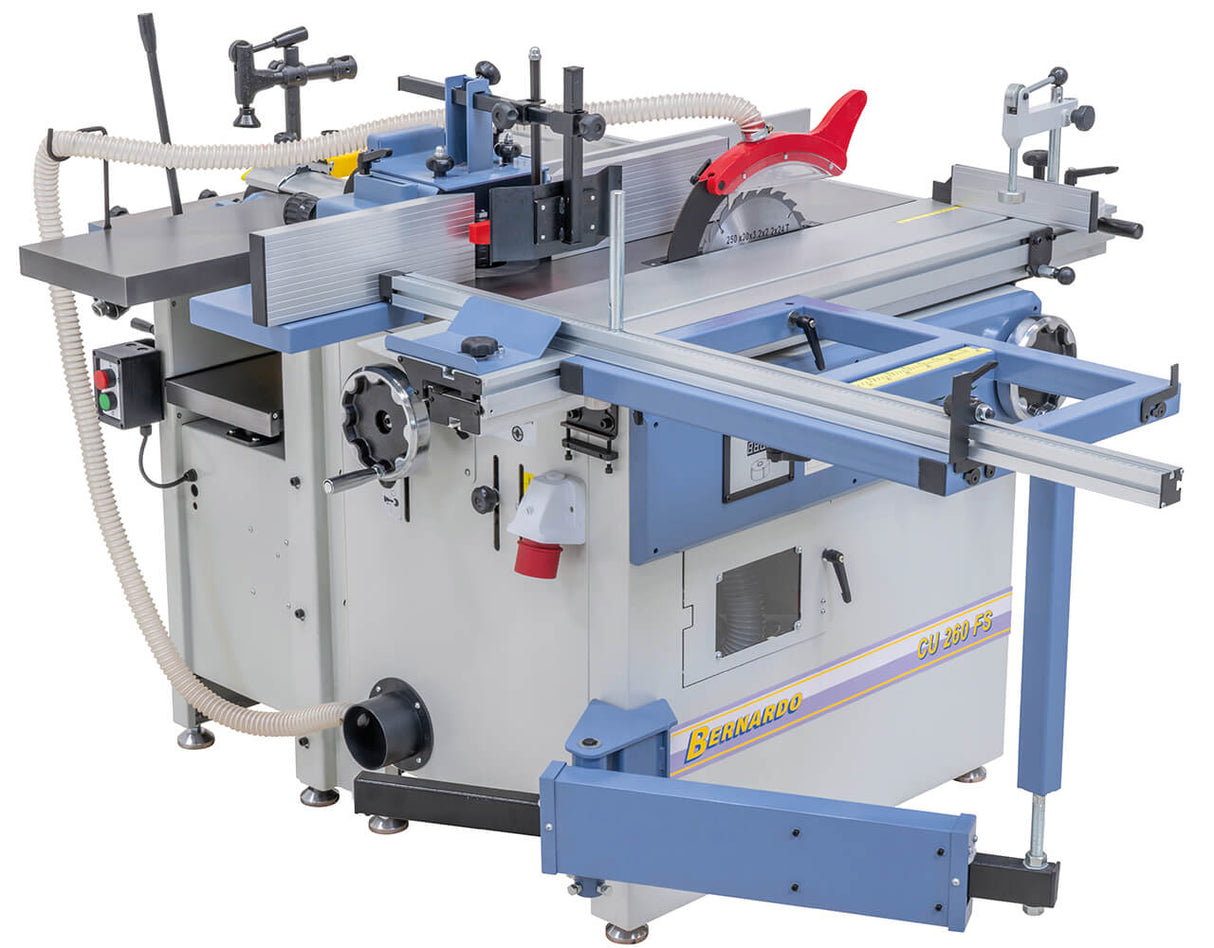

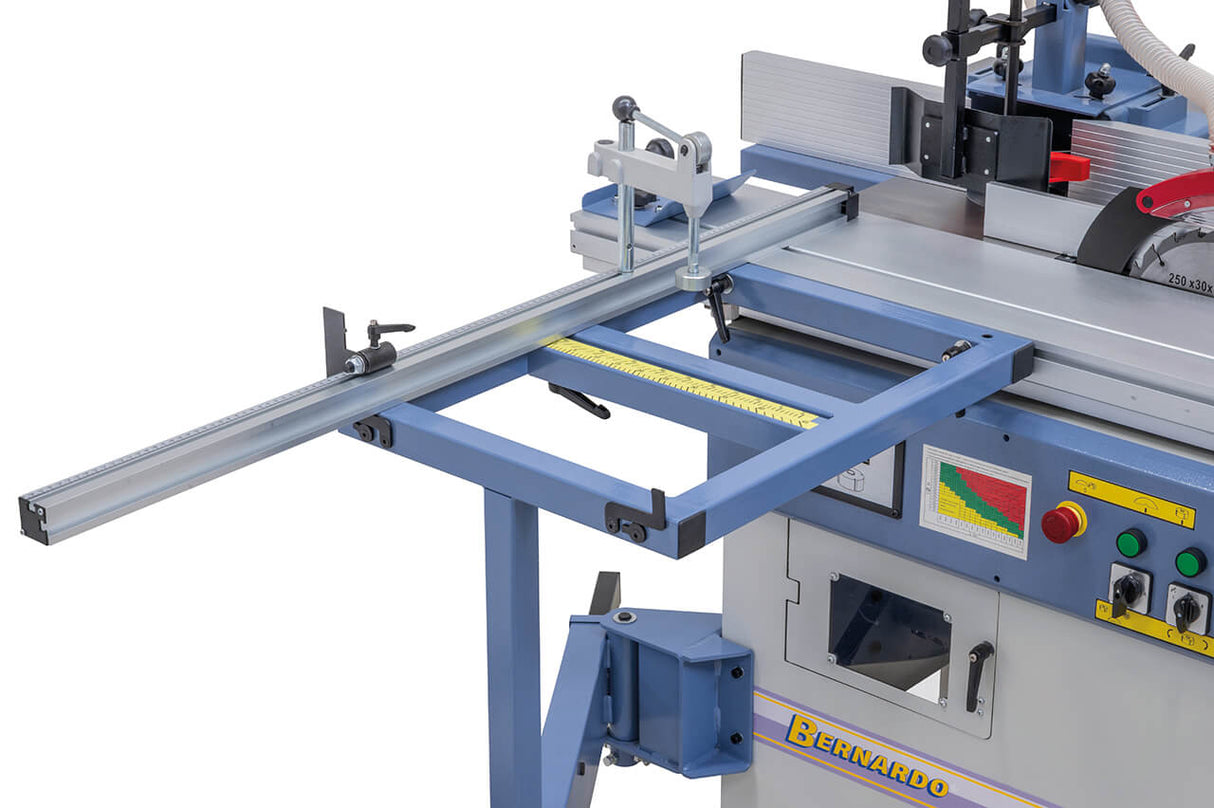

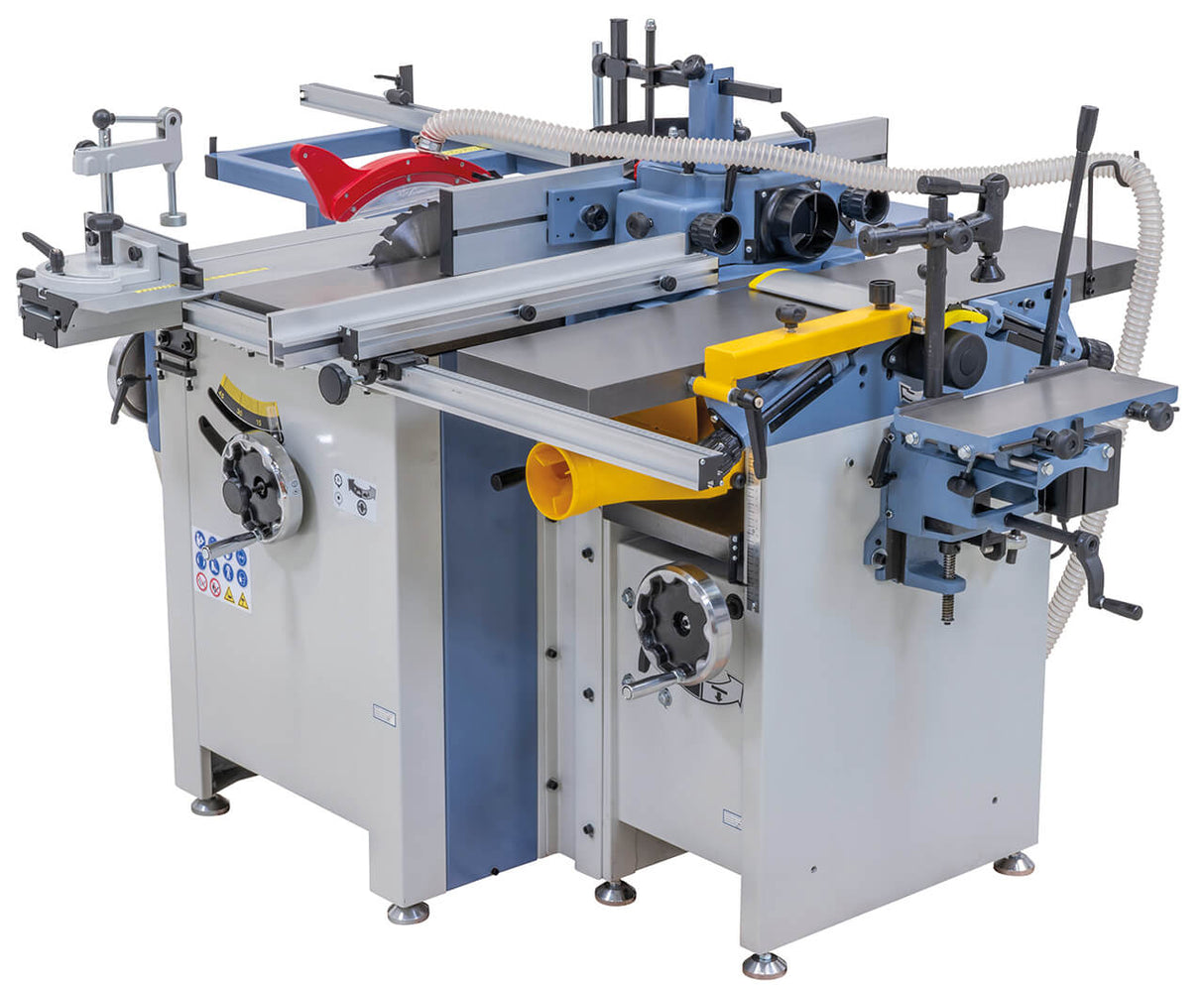

The Bernardo CU 260 FS / 400 V wood combined machine is a professional-grade wood combined machine available from Krollit, an official Bernardo distributor since 2007.
- Planing width: 250 mm
- Table length: 1090 mm
- Table height: 865 mm
- Spindle speed: 4000 rpm
- Planer shaft: Ø 75 mm
- Blades: 24 TCT blades
Who uses the CU 260 FS / 400 V Wood Combined Machine and for what
The CU 260 FS / 400 V Wood Combined Machine is a professional-grade wood combined machine distributed by Krollit.
Its place in the Bernardo range
The Bernardo CU 260 FS / 400 V Wood Combined Machine is part of Bernardo's range of wood combined machines, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product data sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the CU 260 FS / 400 V Wood Combined Machine for?
The CU 260 FS / 400 V wood combined machine is recommended for the following professional profiles:
-
Artisan joineries with limited space: multiple wood processing functions (saw, router, planer, drilling) integrated into a single machine to optimize footprint.
-
Restoration workshops and niche productions: versatility for mixed operations with a single investment and simplified training.
Not recommended for: high-intensity industrial series production (for intensive cycles and continuous production, consider dedicated machines for each function).
Processing capacity
| Max. depth of cut |
5 mm |
| Thicknessing table |
600 mm |

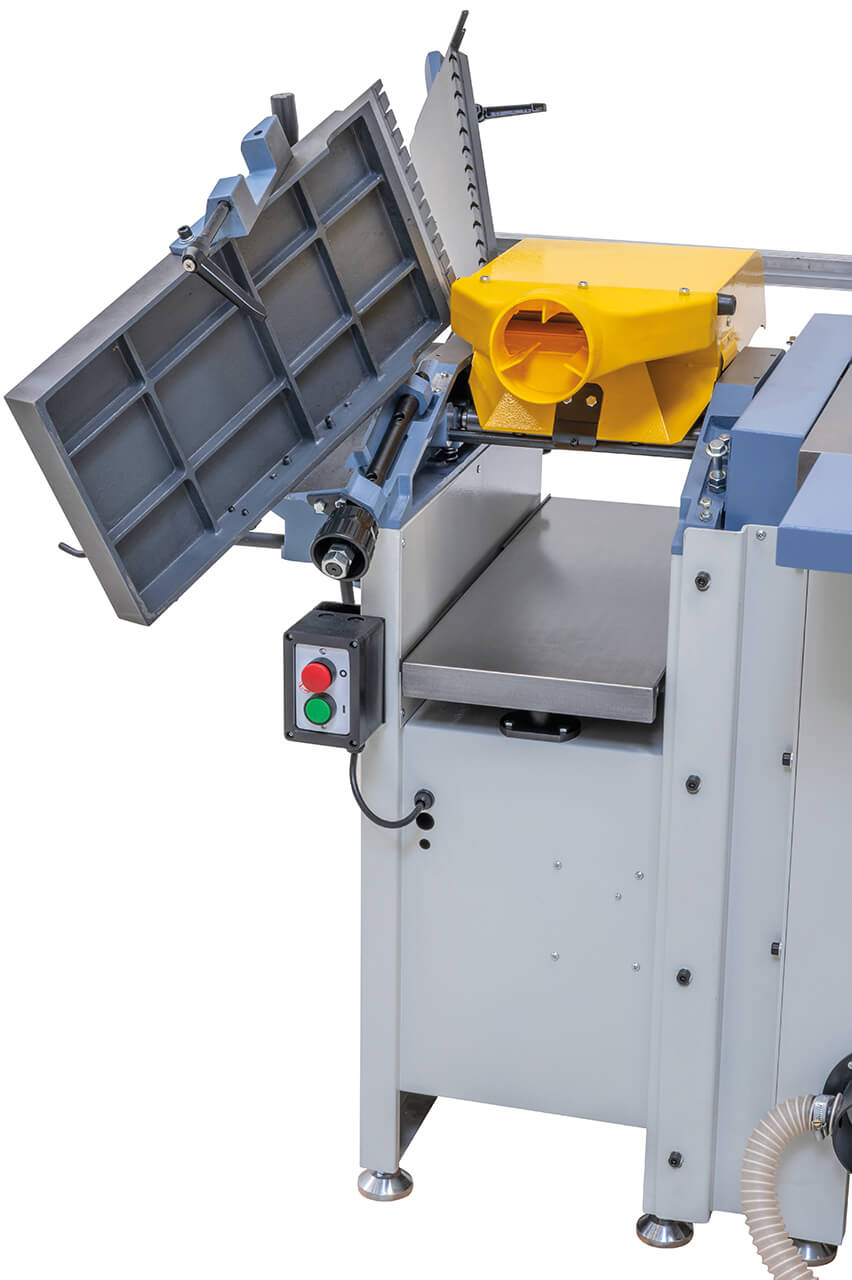

| Max. depth of cut |
1.8 mm |
| Max drilling depth |
90 mm |
| Max workpiece width |
160 mm |
| Max. cutting length |
1600 mm |
| Cutting height 90° / 45° |
80 / 60 mm |
| Cut on rip fence |
910 mm |
Spindle, tools, and speed
| Spindle speed |
4000 rpm |
| Dust extraction connection |
Ø 100 mm |
| Chuck |
0 – 16 mm |

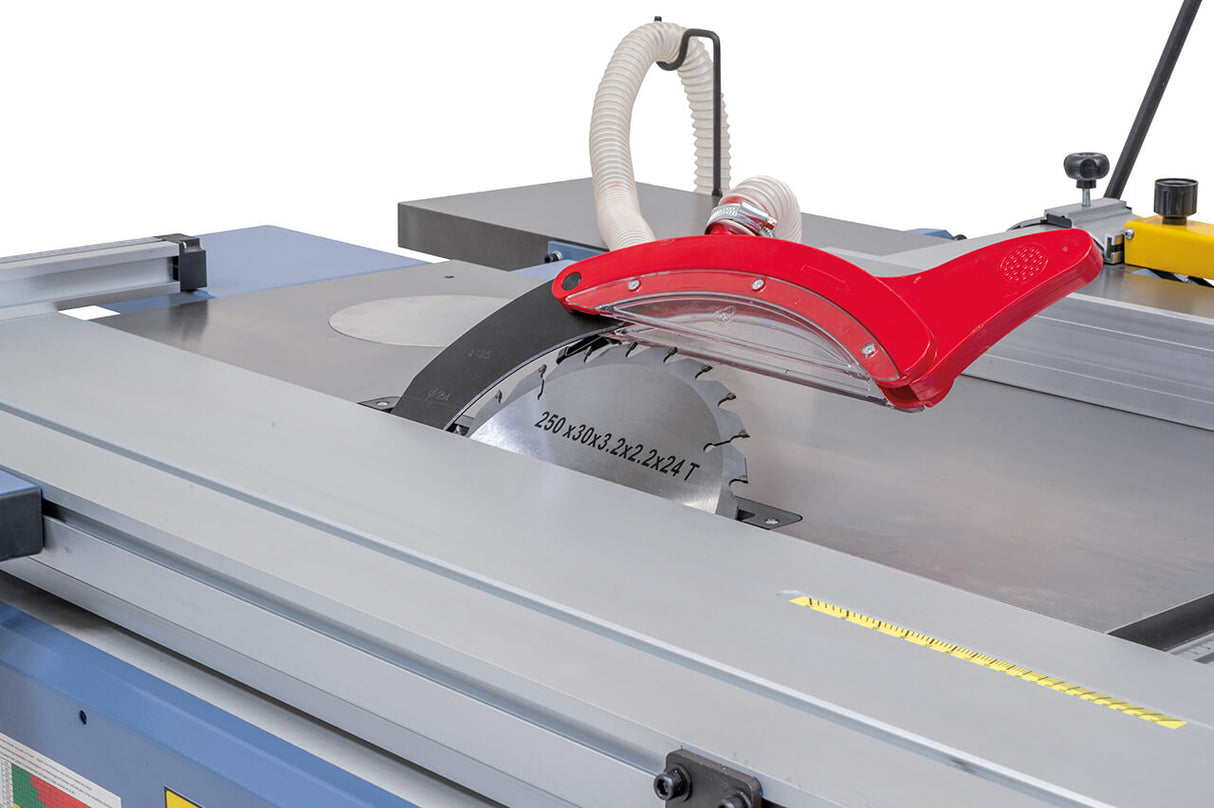

| Max. blade Ø |
250 x 30 mm |
| Blade speed |
4750 rpm |

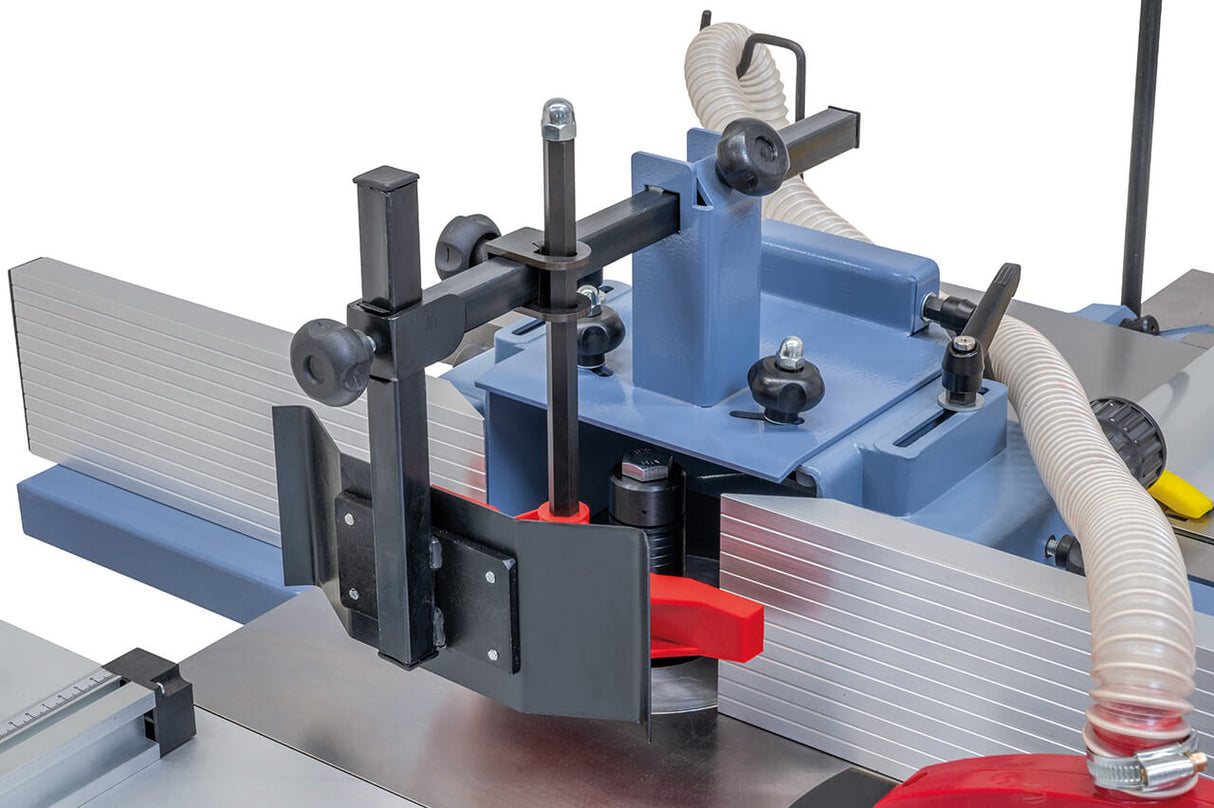

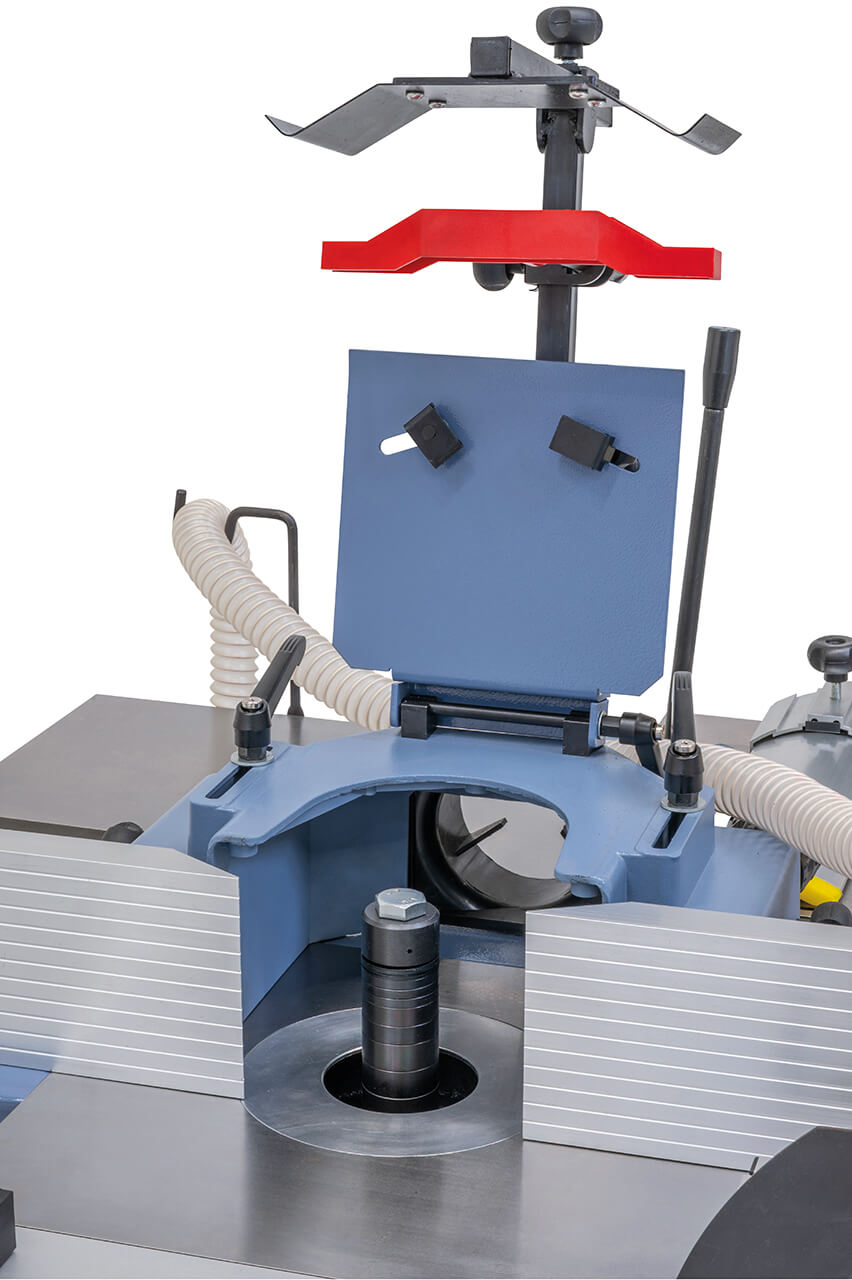

| Spindle diameter |
Ø 30 mm |
| Usable spindle length |
90 mm |
| Spindle speed |
1400 / 4000 / 6000 / 8000 rpm |
Table, dimensions and geometry
| Planing width |
250 mm |
| Table length |
1090 mm |
| Table height |
865 mm |
| Usable width |
250 mm |
| Min/max workpiece height |
5 – 185 mm |
| Height adjustment |
85 mm |
| Table dimensions |
900 x 345 mm |
| Table height |
865 mm |
| Adjustable height |
110 mm |
| Machine dimensions (L x W x H) |
1600 x 2340 x 1150 mm |
Motor and power supply
| Motor (S1 100%) |
2.0 kW (2.7 HP) |
| Motor (S6 40%) |
2.8 kW (3.8 HP) |
| Motor (S1 100%) |
2.2 kW (3.0 HP) |
| Motor (S6 40%) |
3.0 kW (4.0 HP) |
| Motor (S1 100%) |
1.5 kW (2.0 HP) |
| Motor (S6 40%) |
2.1 kW (2.8 HP) |
| Power supply |
400 V |
Other specifications

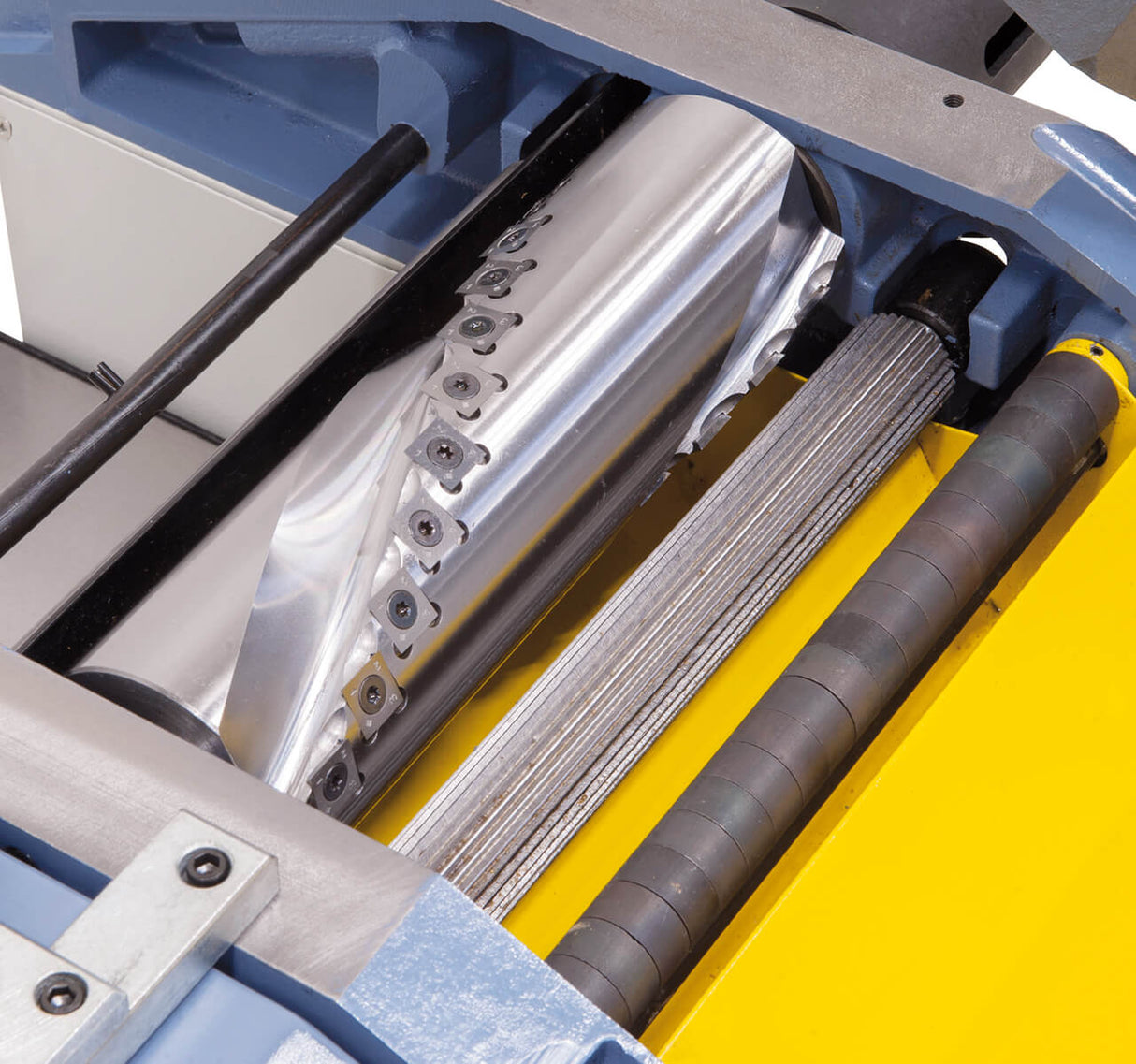

| Planer shaft |
Ø 75 mm |
| Blades |
24 TCT blades |
| Planer fence |
720 x 130 mm |
| Tilting fence |
90° – 45° |
| Feed rate |
8 m/min |
| Table |
370 x 150 mm |
| Squaring table |
600 x 460 mm |

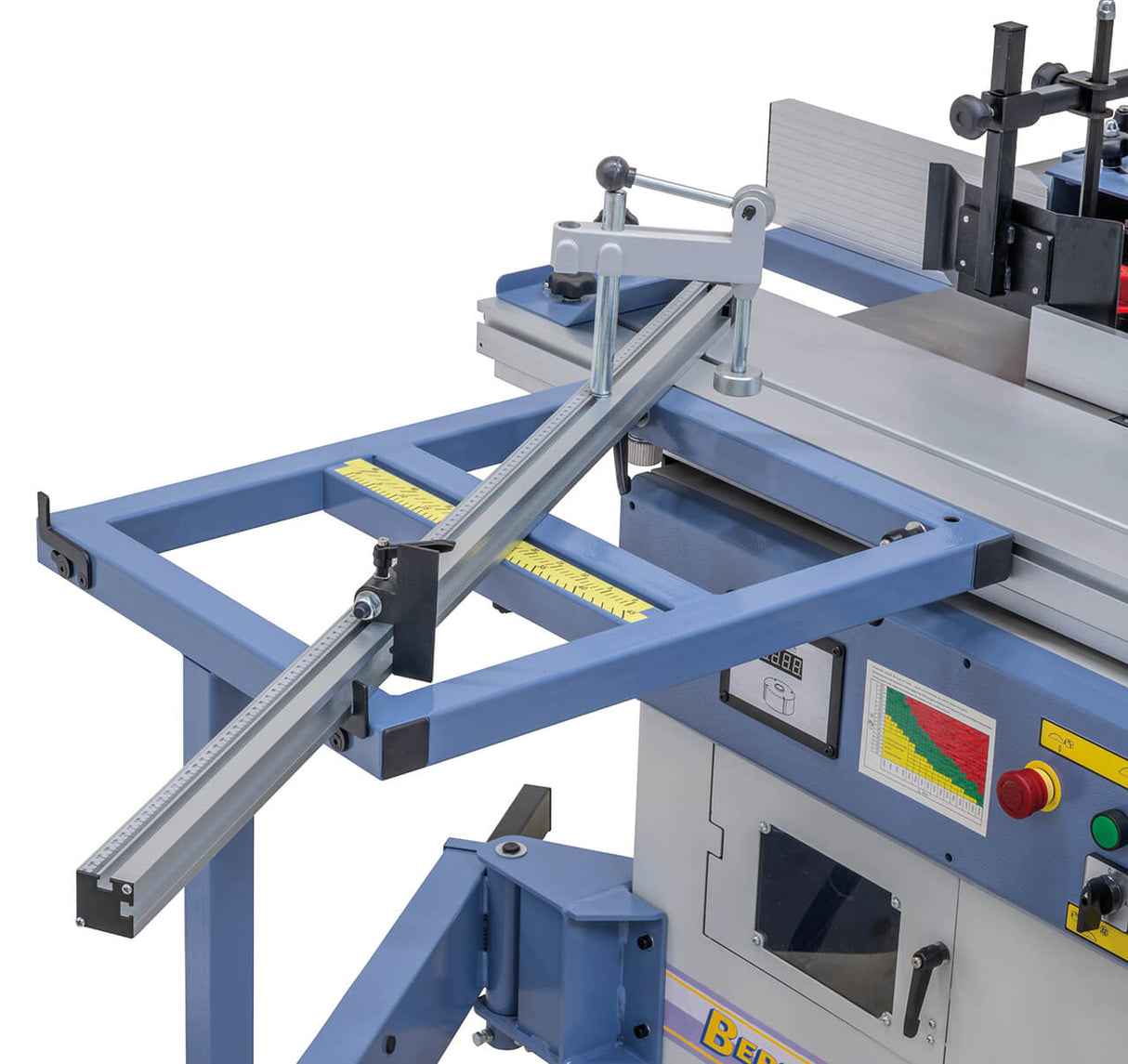

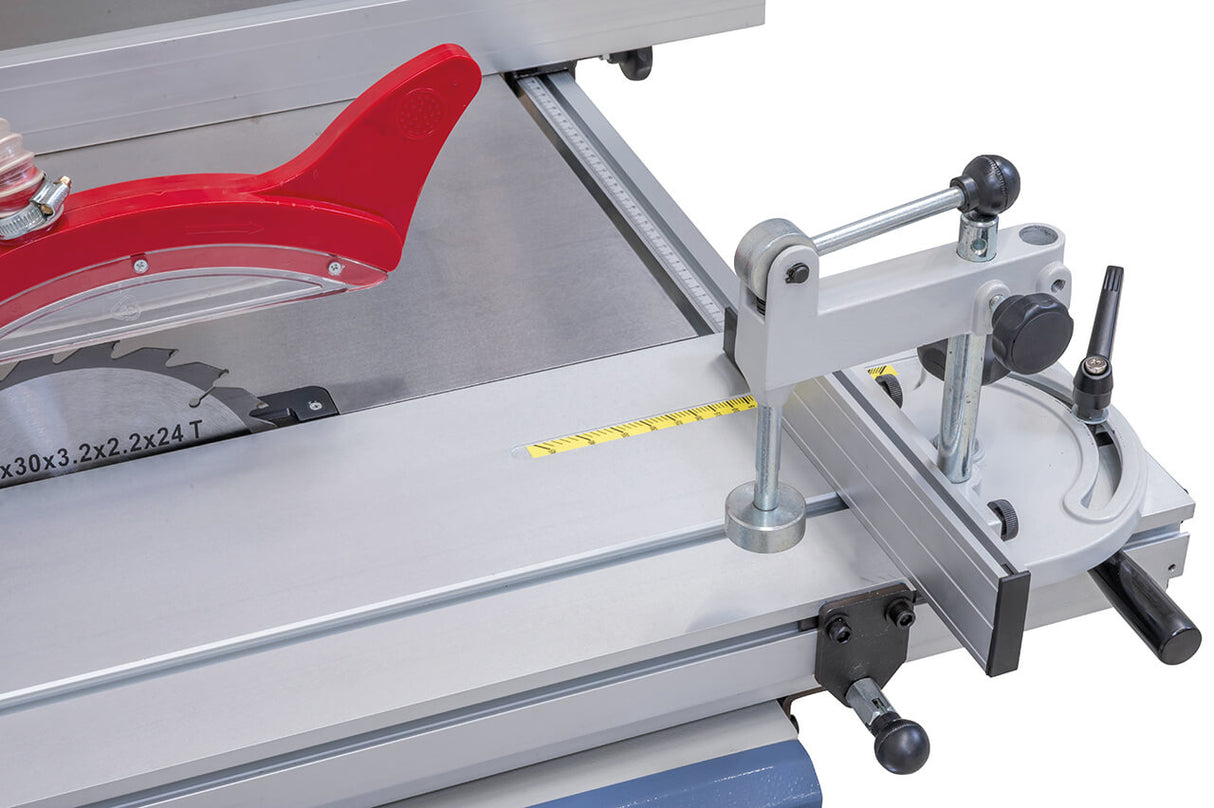

| Sliding carriage |
1600 x 240 mm |
| Table opening |
Ø 170 mm |
| Max tool diameter |
150 mm (profiling/tenoning) |
Frequently Asked Questions
What functions does the CU 260 FS / 400 V Wood Combined Machine offer?
Combined machine: integrates multiple woodworking operations (squaring, routing, planing, drilling) into a single machine.
Combined machines reduce bulk and costs compared to separate machines; switching between functions takes only a few minutes.
What is the working width/length?
See "Planing width" and "Sliding carriage length" in the technical table.
CU/FK models typically have a 1,600-2,500 mm carriage and 250-310 mm planing width.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional combined machines.
Models with motors over 3 kW require a three-phase line. Verify availability in your workshop before purchase.
Fast function change?
Professional models allow function change in a few minutes by flipping or replacing tables.
For series production with frequent function changes, consider dedicated squaring/routing machines to reduce setup times.
Are spare parts and assistance available?
Yes, original Bernardo spare parts are available with 3-5 day shipping. Italian-speaking customer support is available.
Krollit has been an official Bernardo distributor since 2007.
