Bernardo | SKU: 08-1274

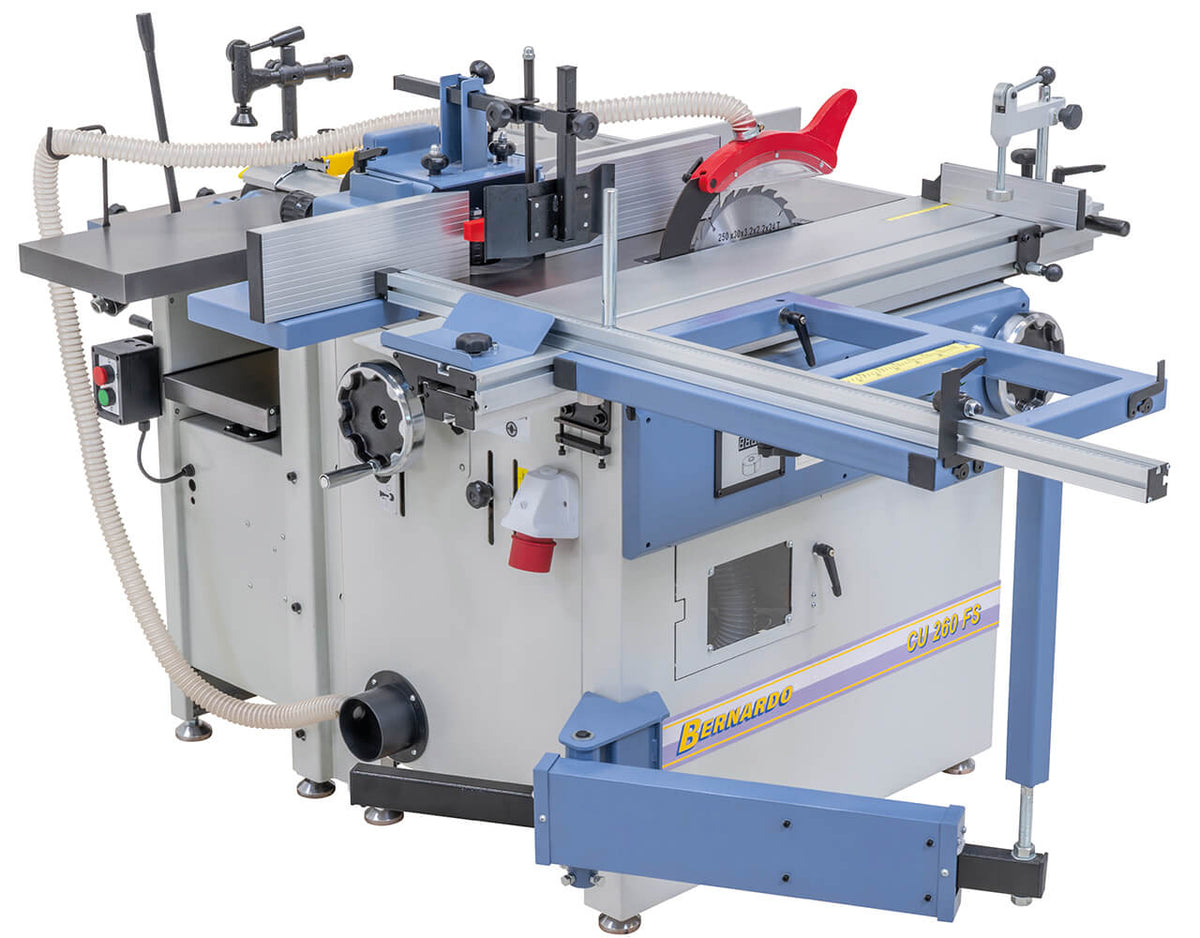

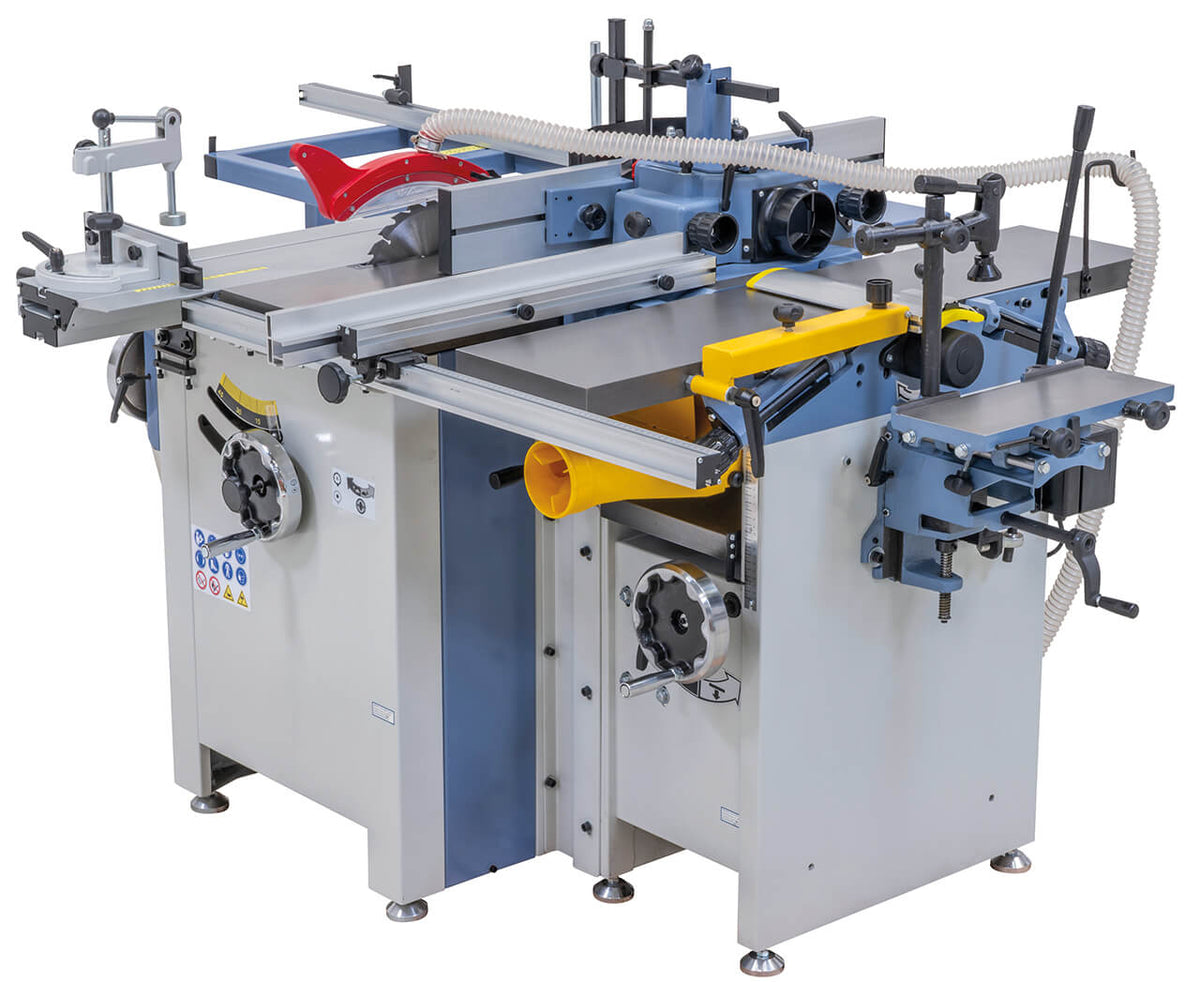

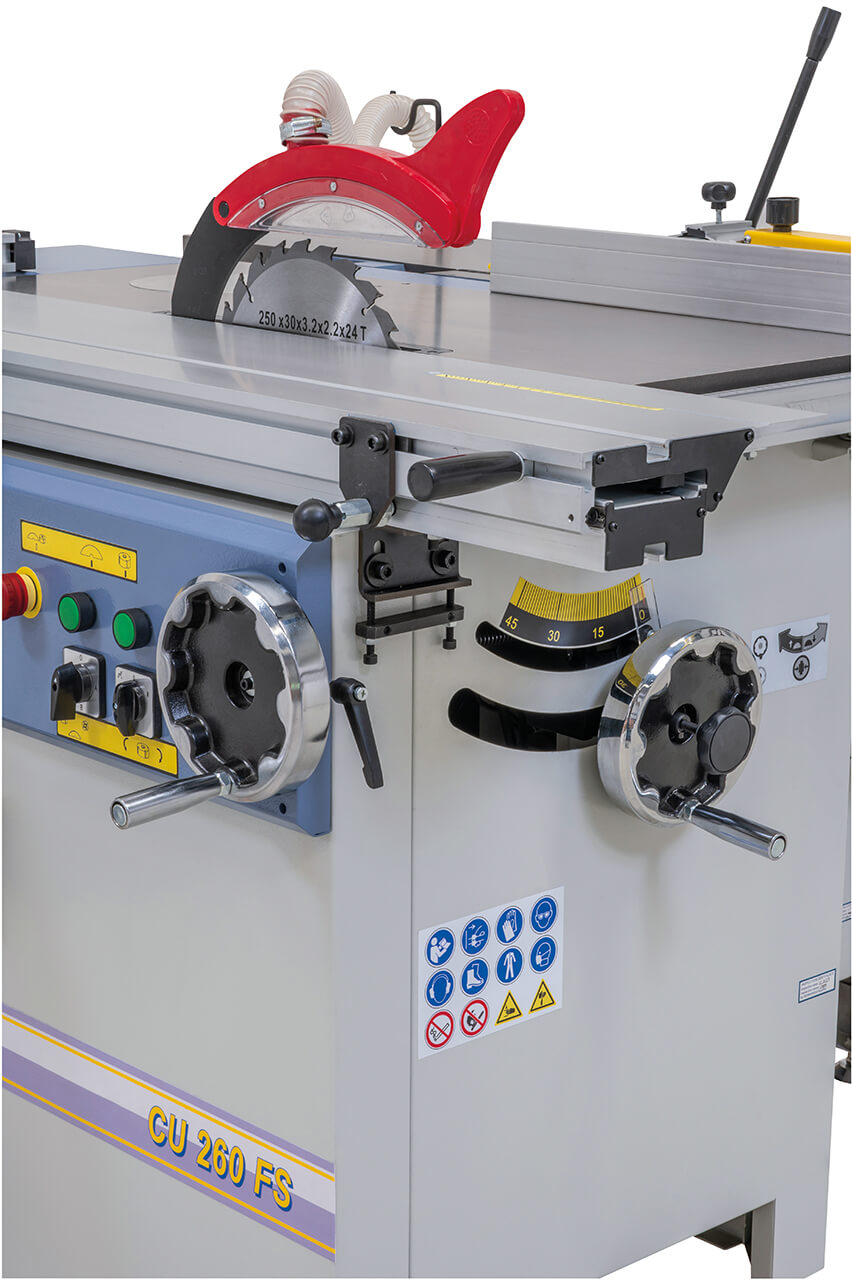

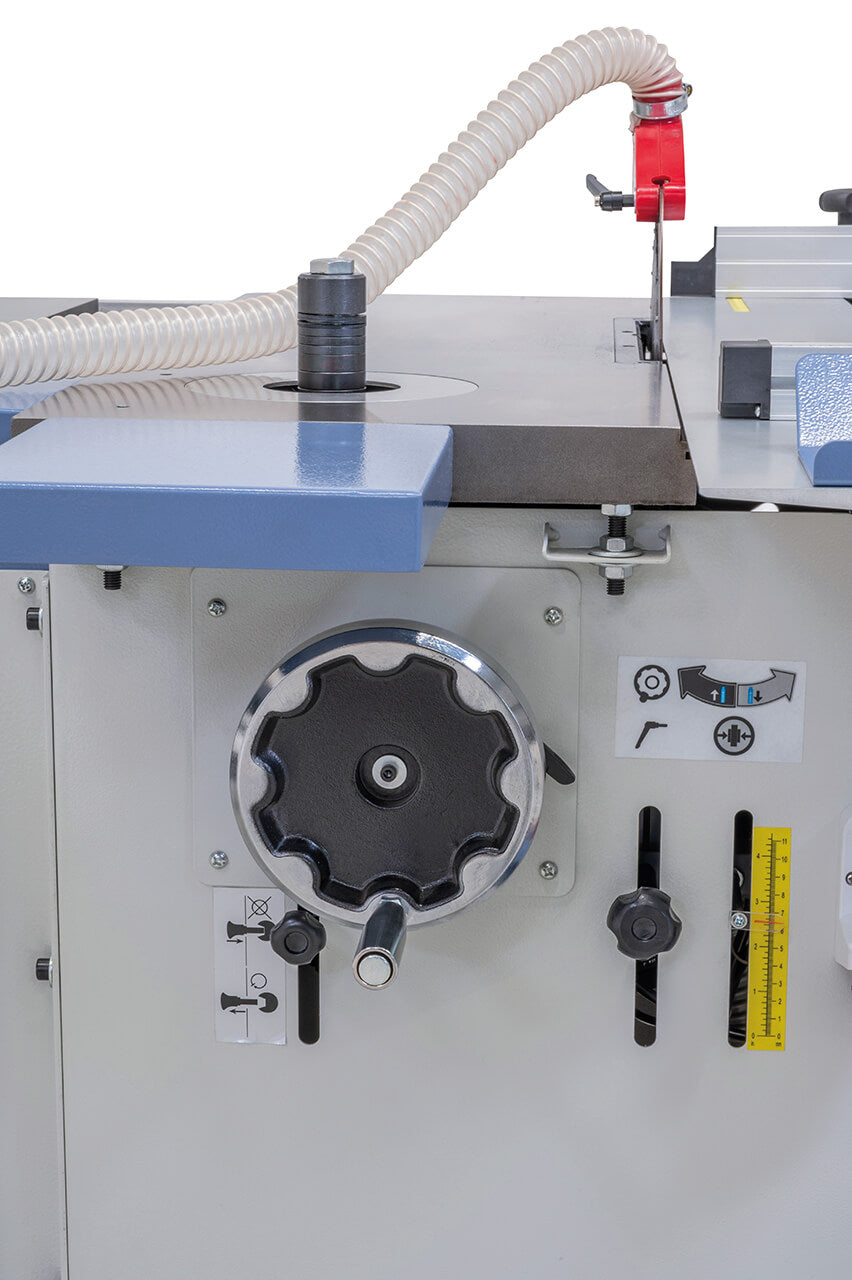

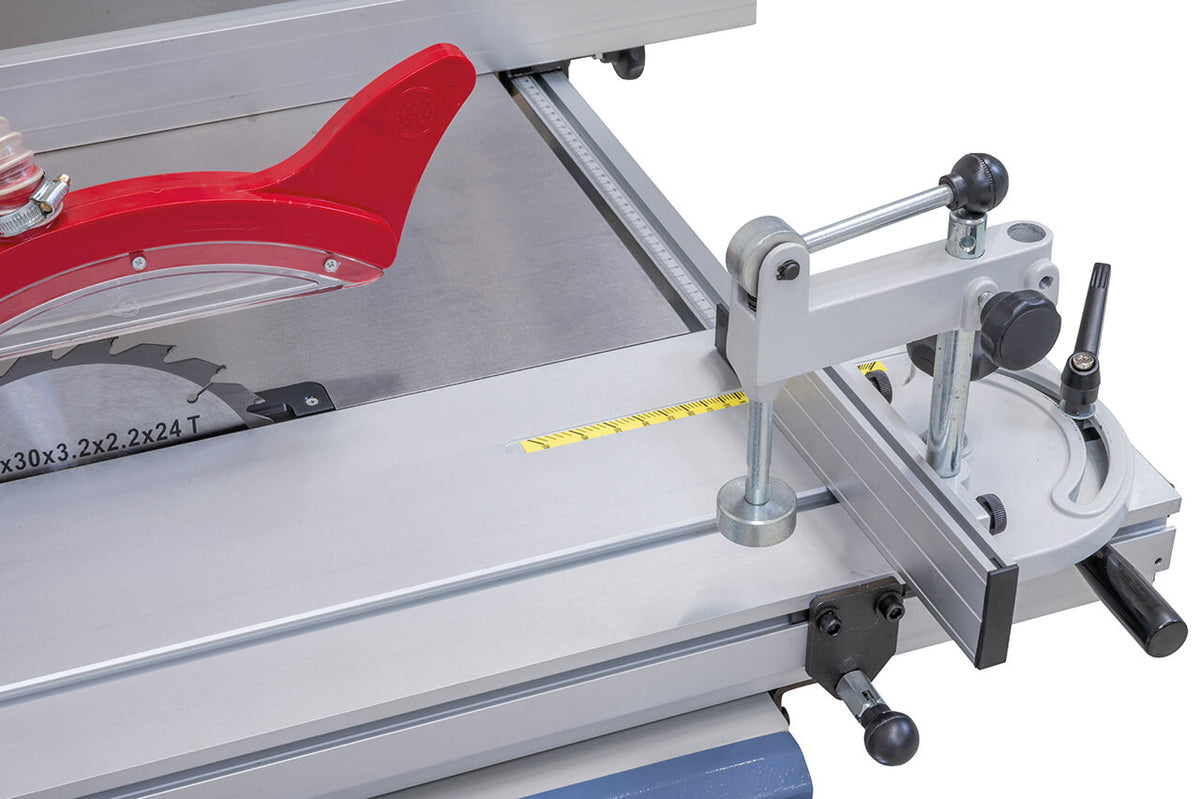

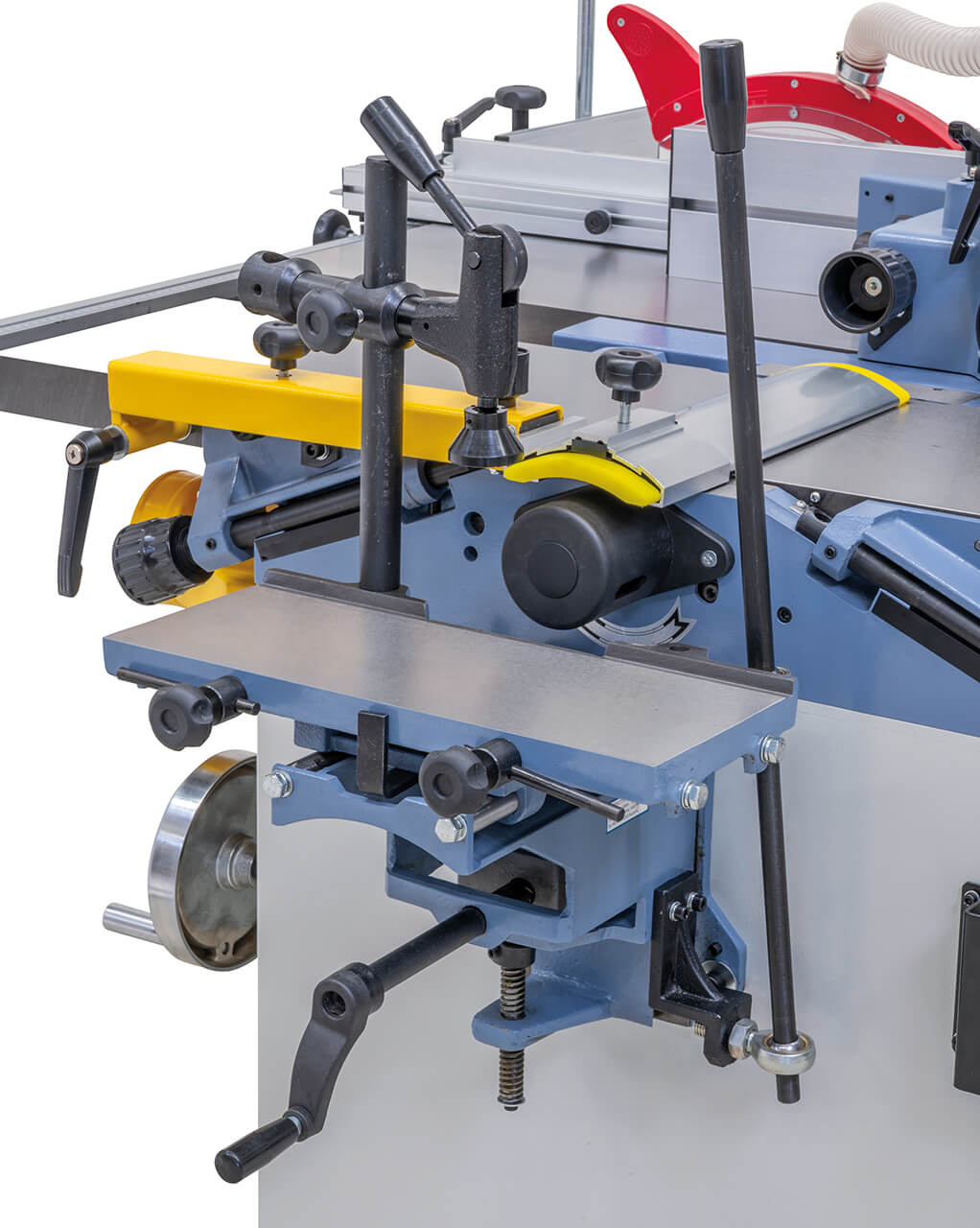

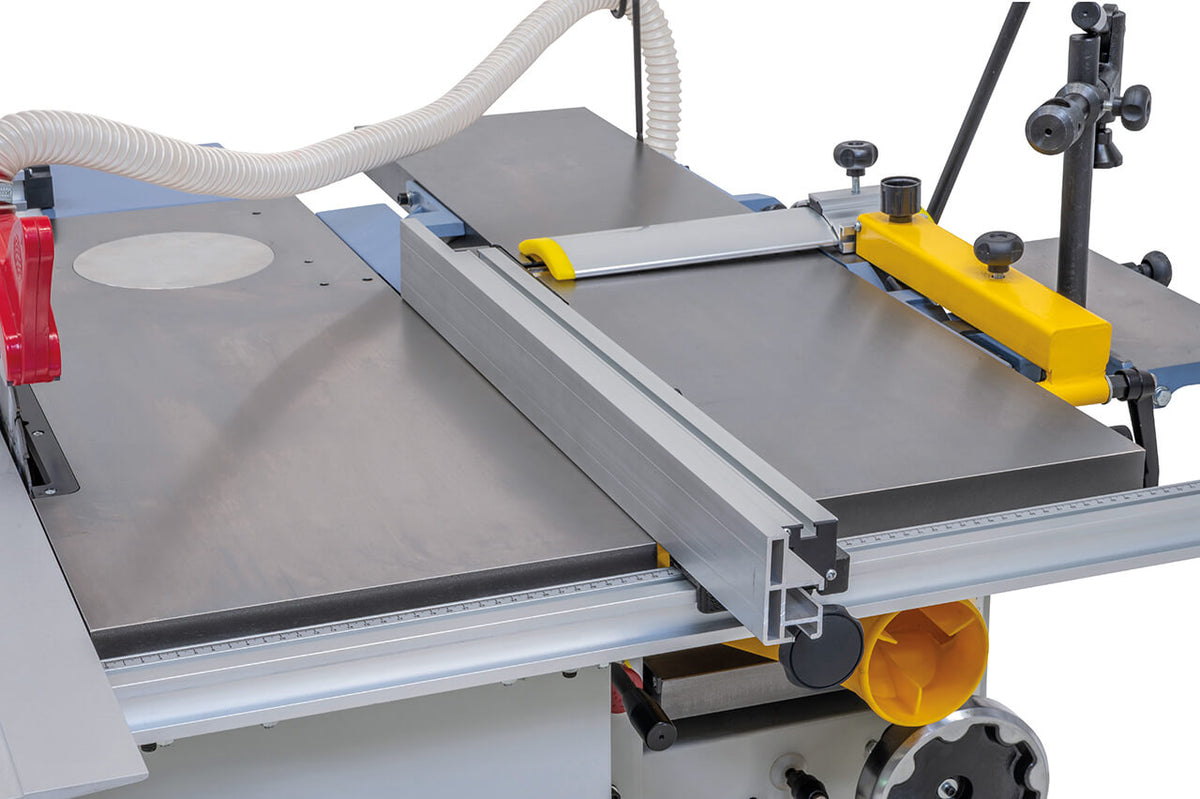

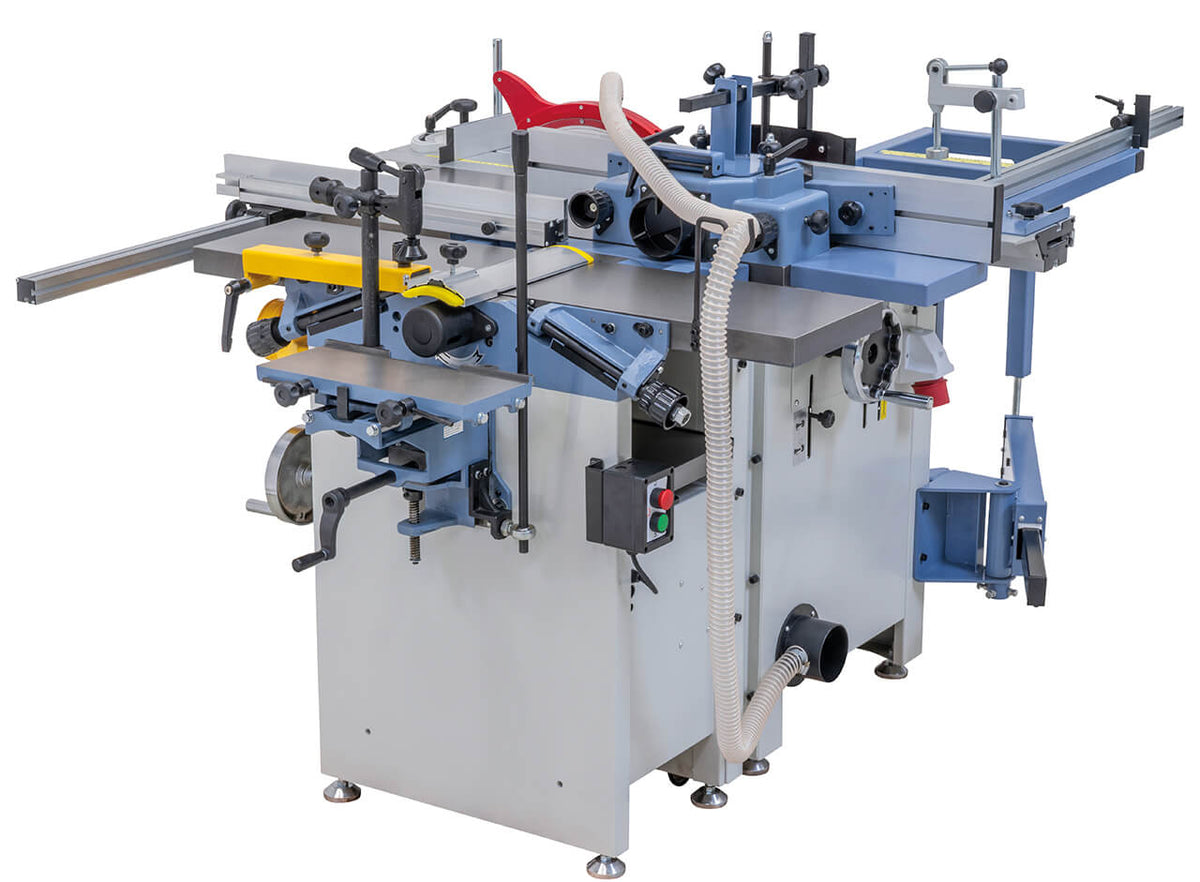

Bernardo Combination Woodworking Machine CU 260 FS / 400 V

Name: Bernardo Combination Woodworking Machine CU 260 FS / 400 V
Brand: Bernardo
SKU: 08-1274
Price: 4620.16 EUR
Availability: InStock

€4.620,16 (22% VAT incl.)

Delivery and Shipping

At Krollit, we guarantee a safe and reliable shipping process. Orders are handled with the utmost care and traceability until delivery.

For international shipments, please send your request via the dedicated contact form.

Upon delivery, always sign the delivery note with the words “subject to inspection” to allow for proper handling of any irregularities or discrepancies in the product.

Our goal is to ensure you receive prompt service and a worry-free shopping experience.

Description

The Bernardo CU 260 FS / 400 V wood combined machine is a professional-grade wood combined machine available from Krollit, an official Bernardo distributor since 2007.

Planing width: 250 mm
Table length: 1090 mm
Table height: 865 mm
Spindle speed: 4000 rpm
Planer shaft: Ø 75 mm
Blades: 24 TCT blades

Who uses the CU 260 FS / 400 V Wood Combined Machine and for what

The CU 260 FS / 400 V Wood Combined Machine is a professional-grade wood combined machine distributed by Krollit.

Its place in the Bernardo range

The Bernardo CU 260 FS / 400 V Wood Combined Machine is part of Bernardo's range of wood combined machines, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.

Krollit logistics and support

Machine shipping in 5-9 business days (7 days to the South). For spare parts and accessories, shipping in 3-5 business days from Krollit warehouse. Italian-speaking customer support available for technical documentation, product data sheets, and spare parts order management. Krollit has been an official distributor since 2007.

Who is the CU 260 FS / 400 V Wood Combined Machine for?

The CU 260 FS / 400 V wood combined machine is recommended for the following professional profiles:

Artisan joineries with limited space: multiple wood processing functions (saw, router, planer, drilling) integrated into a single machine to optimize footprint.
Restoration workshops and niche productions: versatility for mixed operations with a single investment and simplified training.

Not recommended for: high-intensity industrial series production (for intensive cycles and continuous production, consider dedicated machines for each function).

Technical specifications

Processing capacity

Max. depth of cut	5 mm

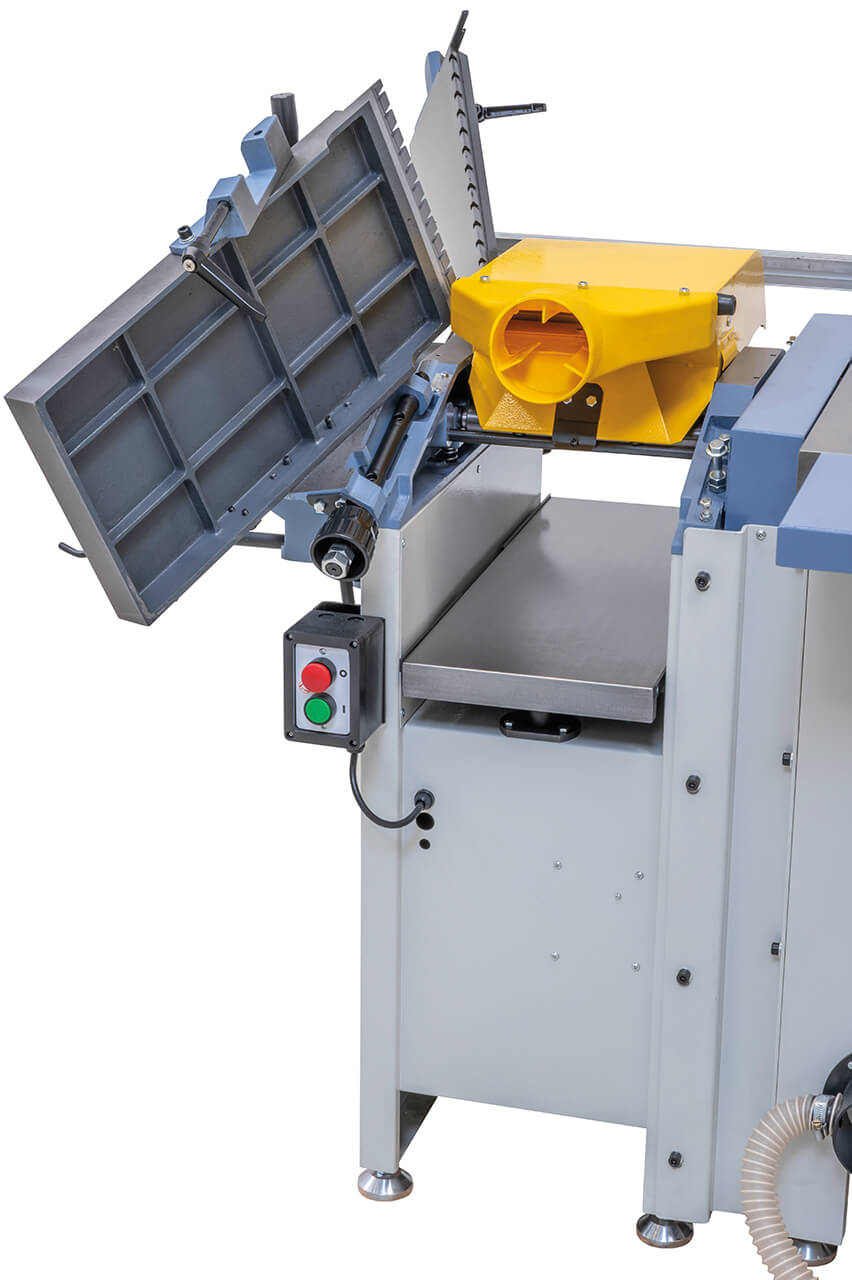

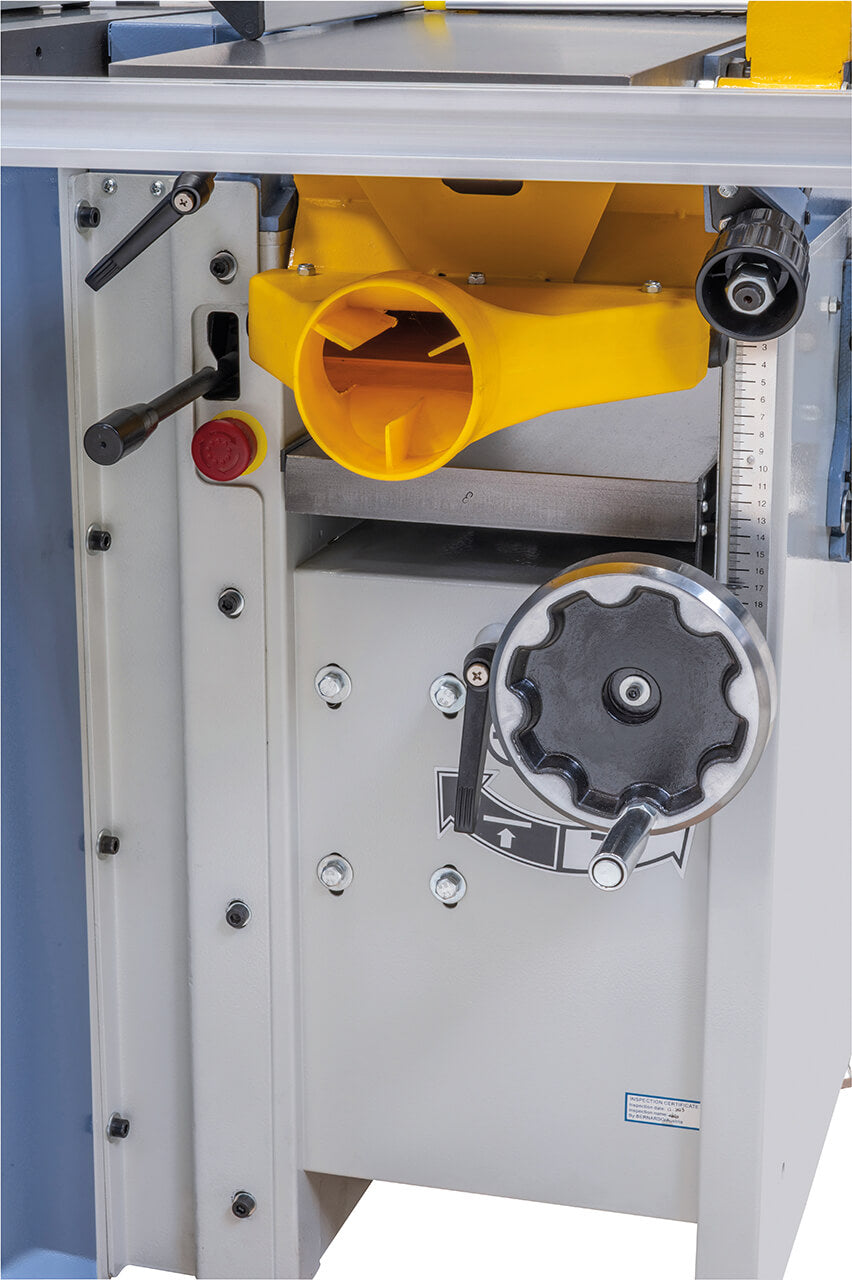

Thicknessing table	600 mm
Max. depth of cut	1.8 mm
Max drilling depth	90 mm
Max workpiece width	160 mm
Max. cutting length	1600 mm
Cutting height 90° / 45°	80 / 60 mm
Cut on rip fence	910 mm

Spindle, tools, and speed

Spindle speed	4000 rpm
Dust extraction connection	Ø 100 mm
Chuck	0 – 16 mm

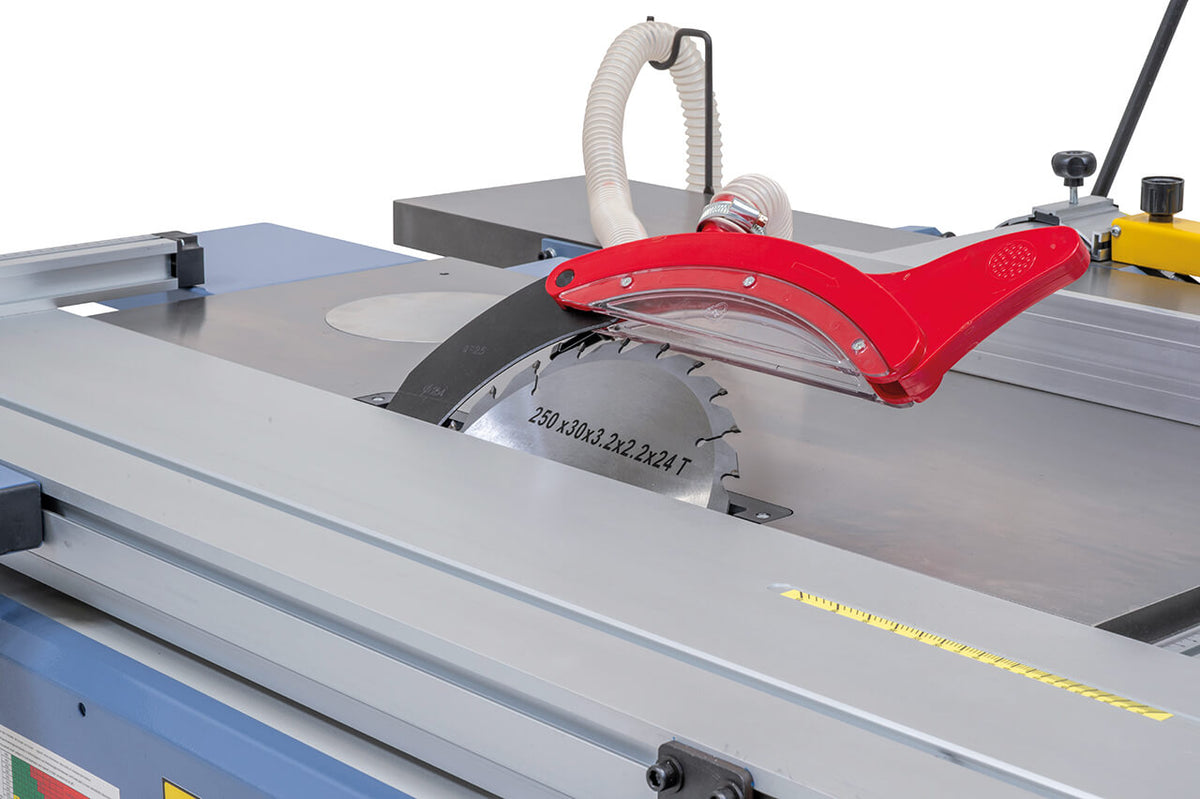

Max. blade Ø	250 x 30 mm
Blade speed	4750 rpm

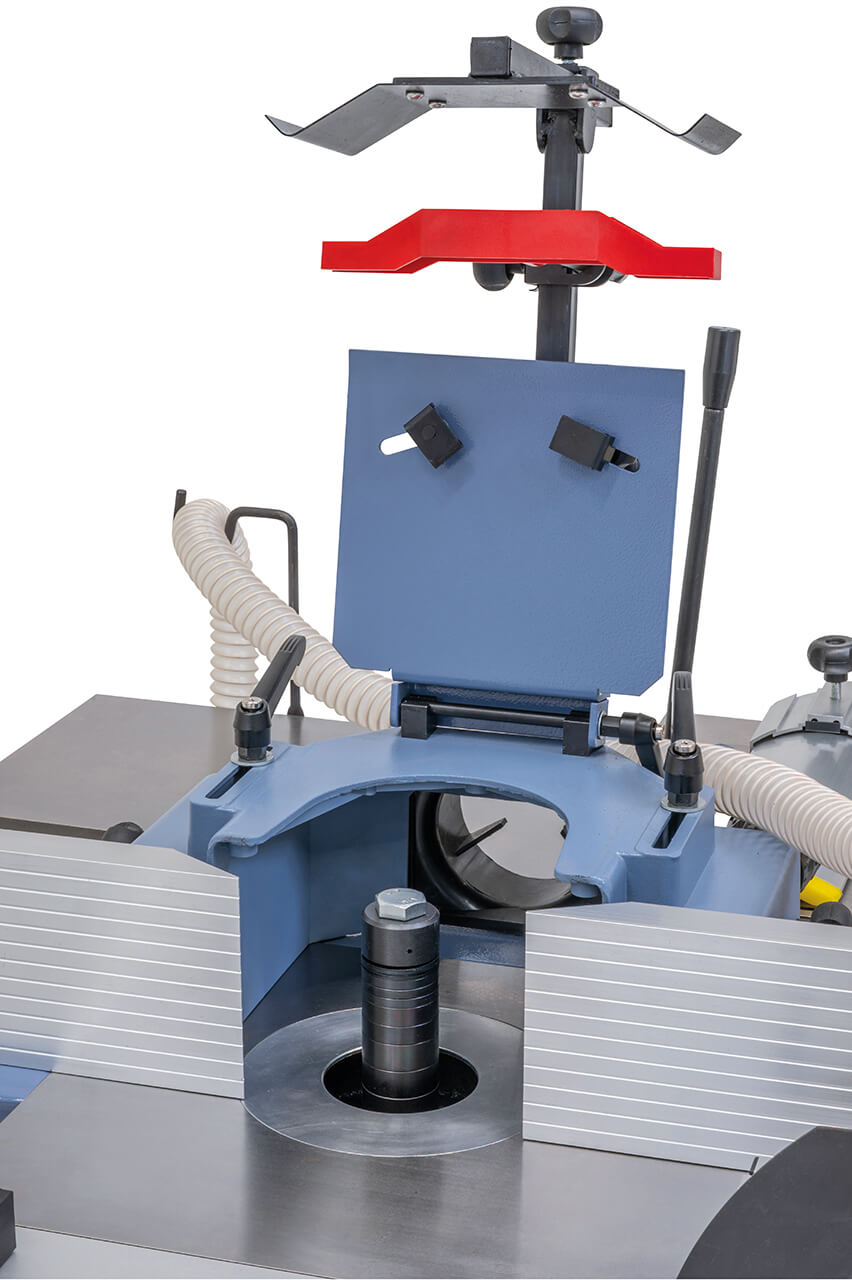

Spindle diameter	Ø 30 mm
Usable spindle length	90 mm
Spindle speed	1400 / 4000 / 6000 / 8000 rpm

Table, dimensions and geometry

Planing width	250 mm
Table length	1090 mm
Table height	865 mm
Usable width	250 mm
Min/max workpiece height	5 – 185 mm
Height adjustment	85 mm
Table dimensions	900 x 345 mm
Table height	865 mm
Adjustable height	110 mm
Machine dimensions (L x W x H)	1600 x 2340 x 1150 mm

Motor and power supply

Motor (S1 100%)	2.0 kW (2.7 HP)
Motor (S6 40%)	2.8 kW (3.8 HP)
Motor (S1 100%)	2.2 kW (3.0 HP)
Motor (S6 40%)	3.0 kW (4.0 HP)
Motor (S1 100%)	1.5 kW (2.0 HP)
Motor (S6 40%)	2.1 kW (2.8 HP)
Power supply	400 V

Other specifications

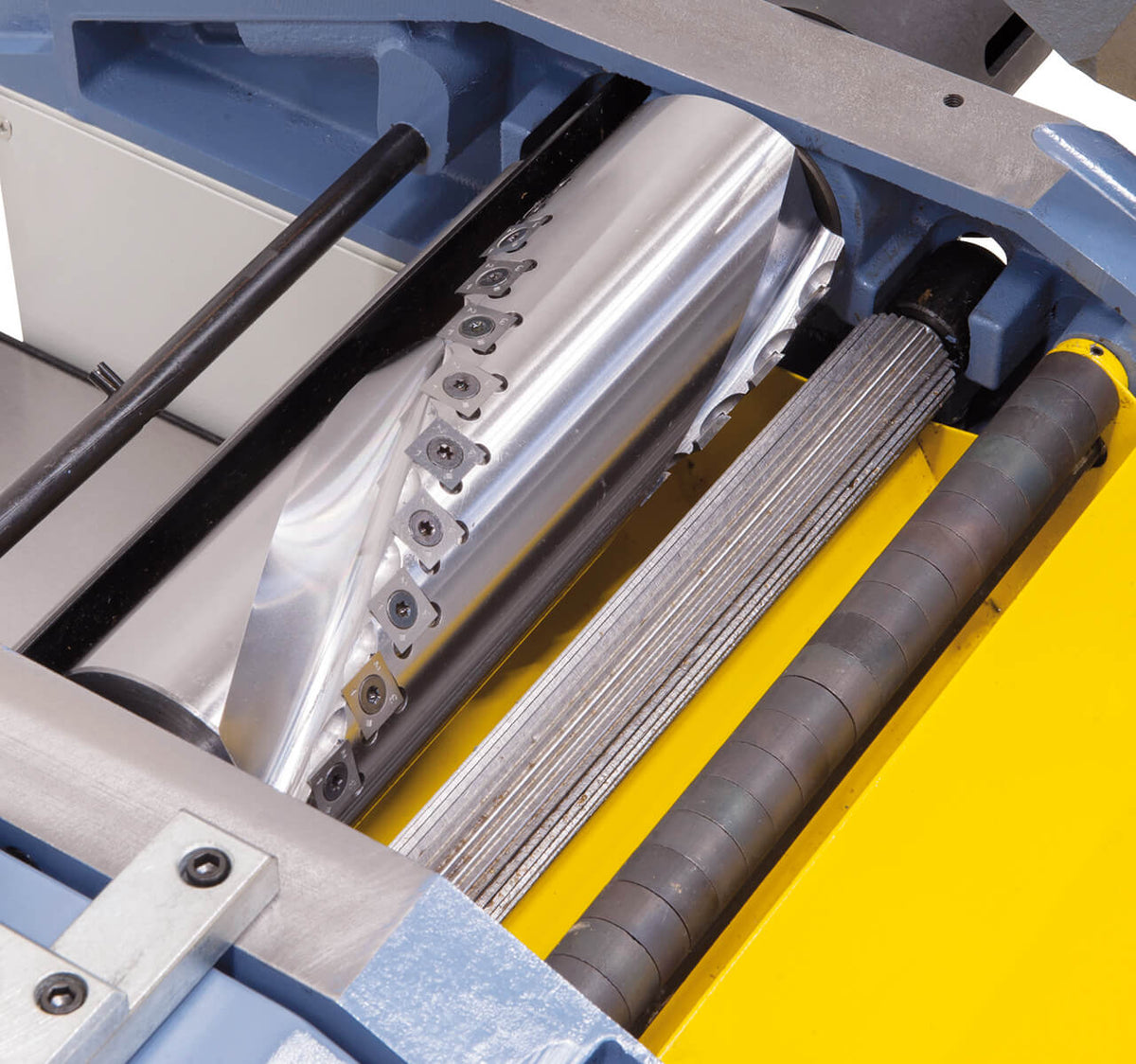

Planer shaft	Ø 75 mm
Blades	24 TCT blades
Planer fence	720 x 130 mm
Tilting fence	90° – 45°
Feed rate	8 m/min
Table	370 x 150 mm
Squaring table	600 x 460 mm

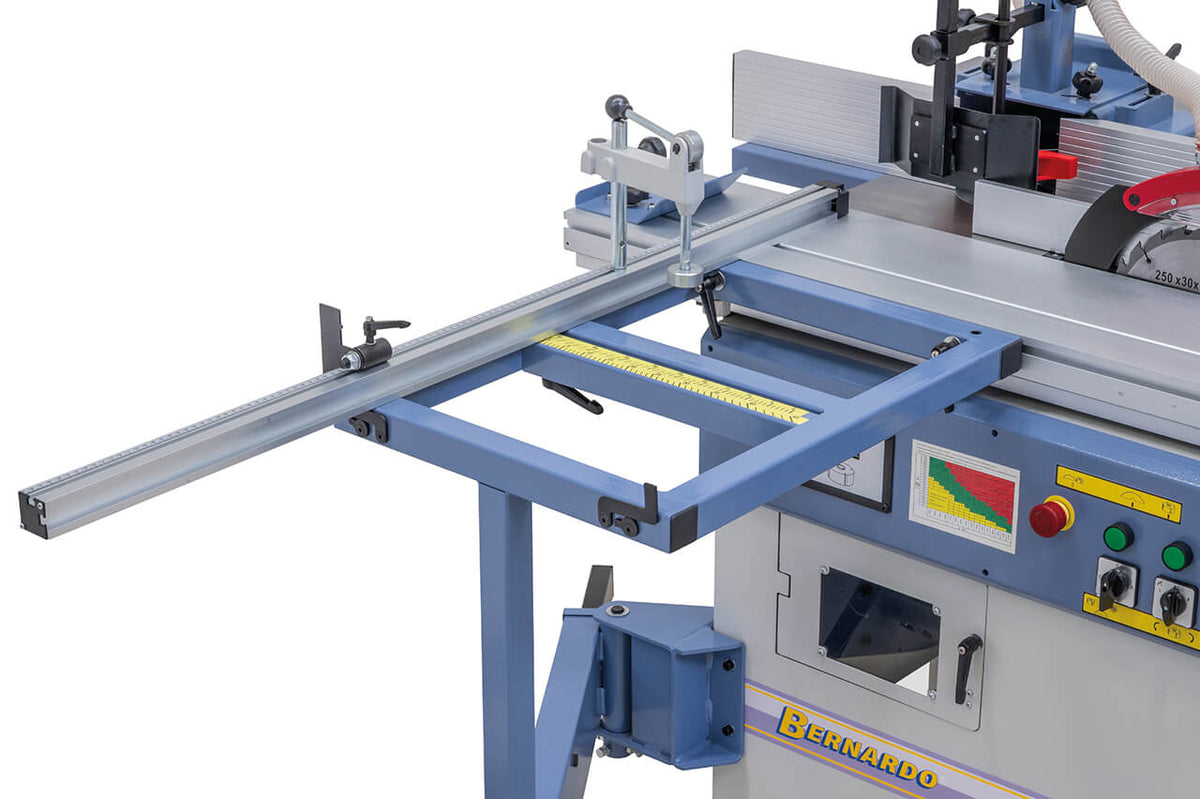

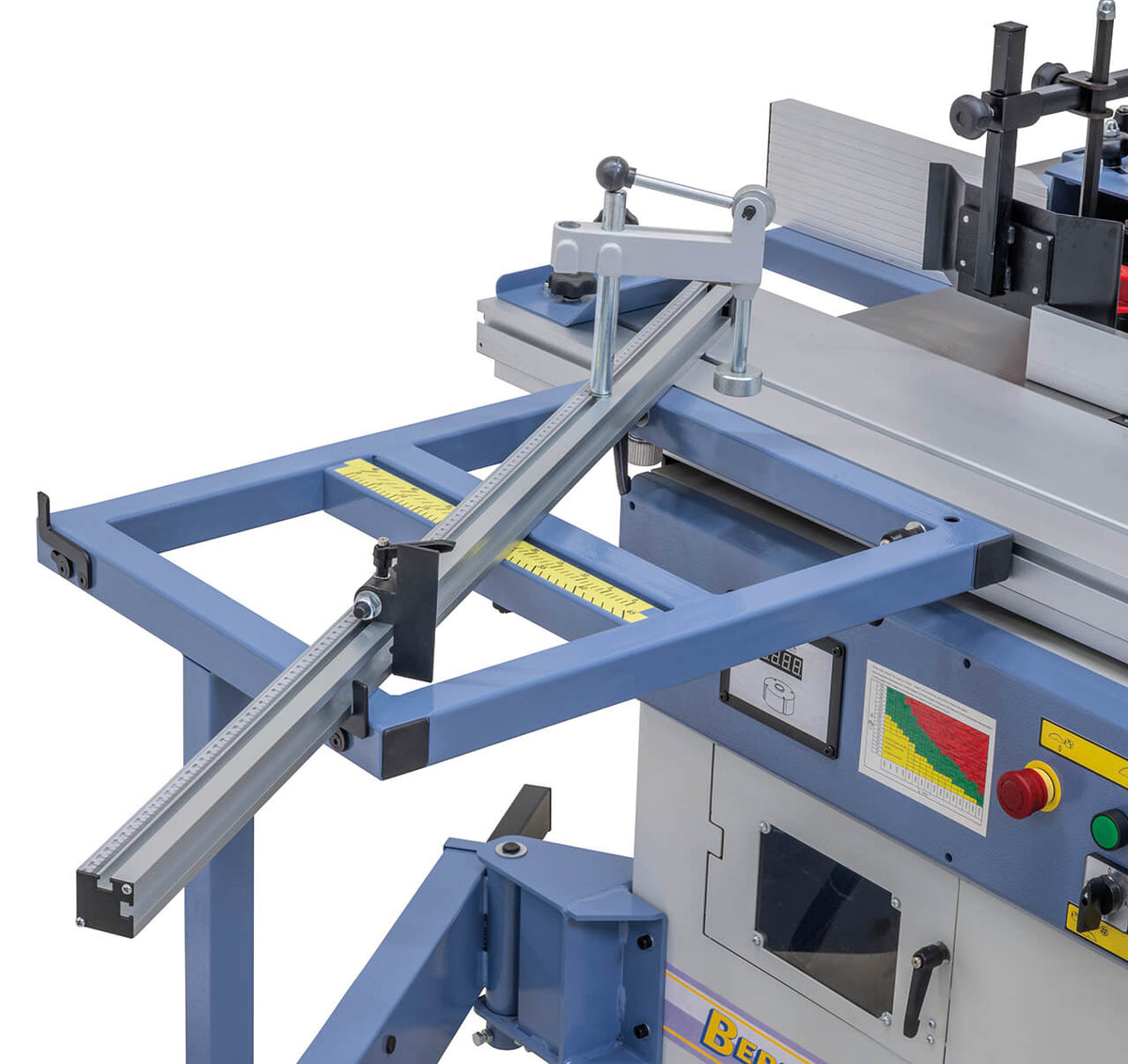

Sliding carriage	1600 x 240 mm
Table opening	Ø 170 mm
Max tool diameter	150 mm (profiling/tenoning)

Warranty

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

FAQ / Frequently asked questions

Frequently Asked Questions

What functions does the CU 260 FS / 400 V Wood Combined Machine offer?

Combined machine: integrates multiple woodworking operations (squaring, routing, planing, drilling) into a single machine.

Combined machines reduce bulk and costs compared to separate machines; switching between functions takes only a few minutes.

What is the working width/length?

See "Planing width" and "Sliding carriage length" in the technical table.

CU/FK models typically have a 1,600-2,500 mm carriage and 250-310 mm planing width.

What power supply does it require?

See "Voltage" in the table: typically 400 V three-phase for professional combined machines.

Models with motors over 3 kW require a three-phase line. Verify availability in your workshop before purchase.

Fast function change?

Professional models allow function change in a few minutes by flipping or replacing tables.

For series production with frequent function changes, consider dedicated squaring/routing machines to reduce setup times.

Are spare parts and assistance available?

Yes, original Bernardo spare parts are available with 3-5 day shipping. Italian-speaking customer support is available.

Krollit has been an official Bernardo distributor since 2007.
