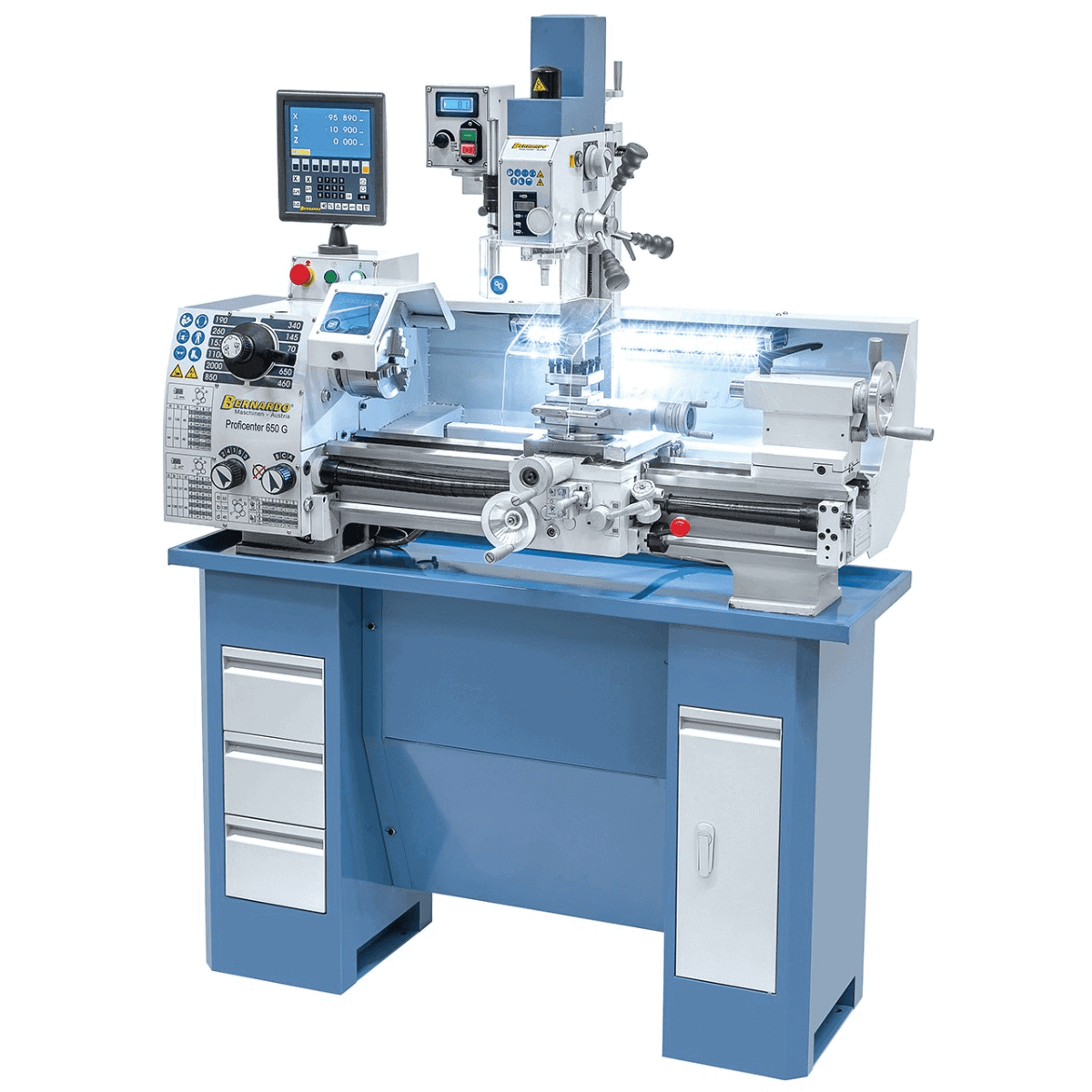

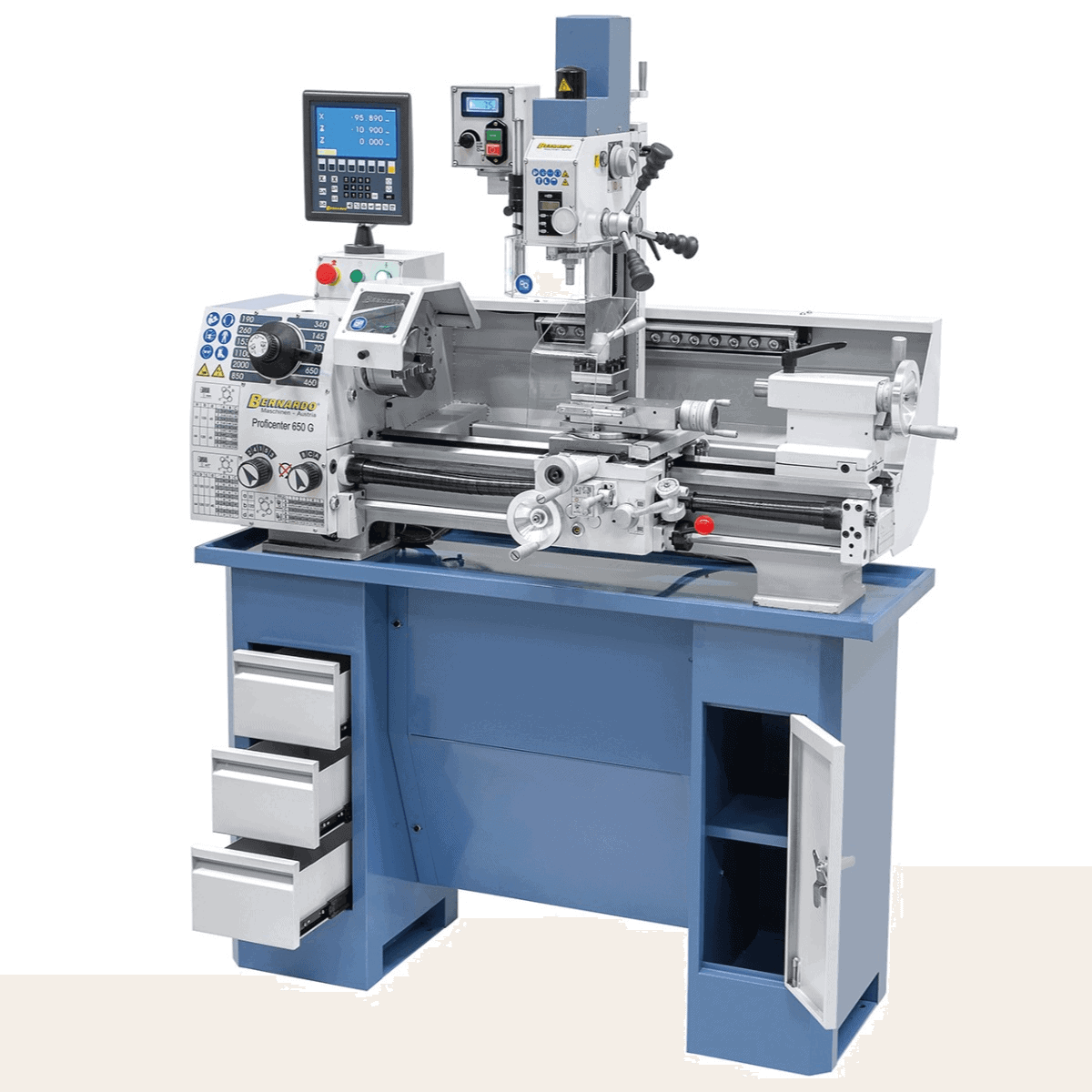

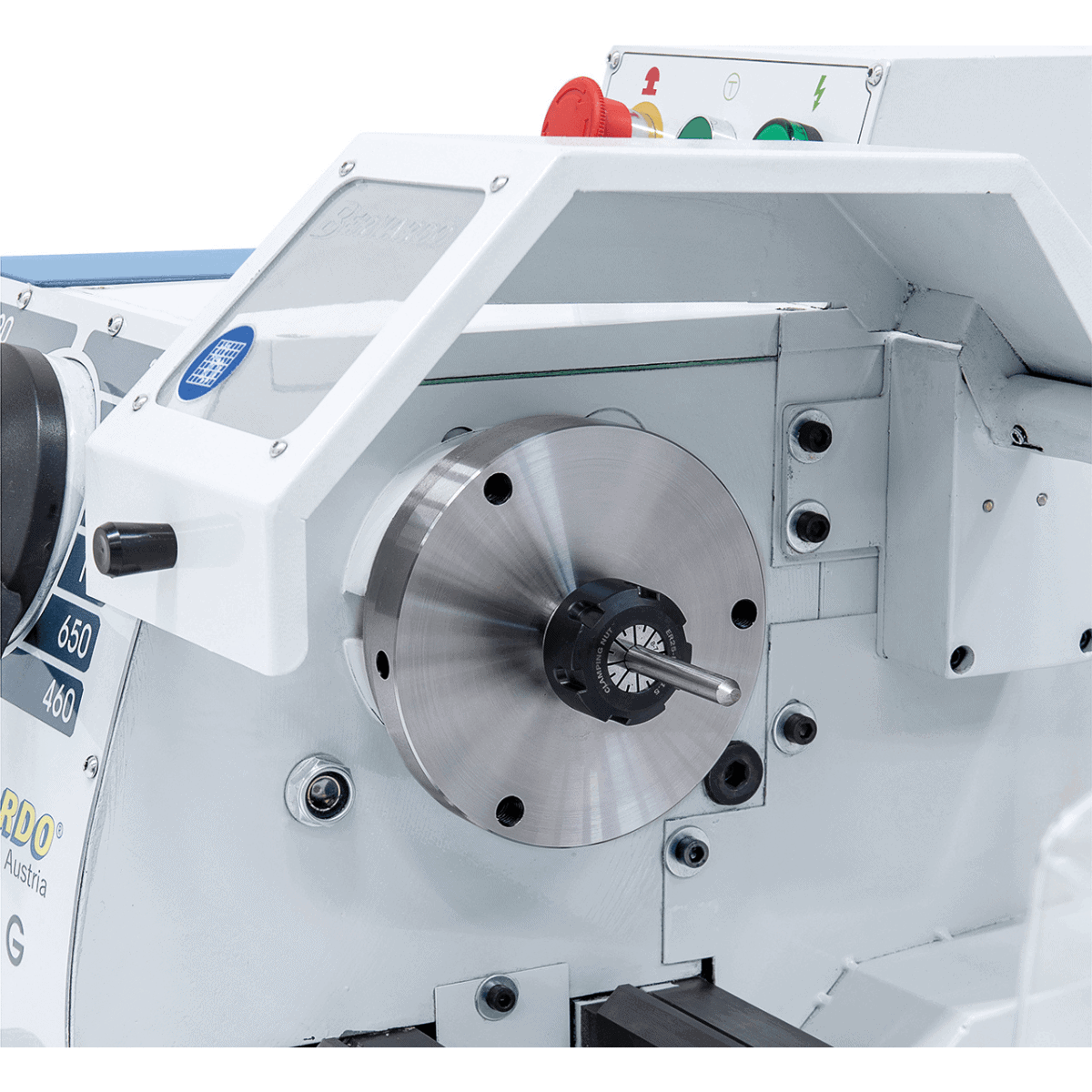

Bernardo Proficenter 650 G / 400 V Combined Lathe with Milling Machine and DRO
The Bernardo Proficenter 650 G / 400 V is a combined lathe-milling machine, suitable for workshops, schools, and businesses that need a versatile and precise machine. The lathe offers a distance between centers of 650 mm and a swing over bed of 280 mm, with speeds adjustable in 12 steps from 70 to 2000 rpm. The integrated milling machine, with a tiltable head of -90°/+90° and continuous speed up to 2250 rpm, allows drilling up to Ø 16 mm and milling up to Ø 50 mm. Equipped with two separate motors (0.75 kW three-phase for the lathe, 0.50 kW single-phase for the milling machine), it guarantees constant performance. The ES-12 V 2-axis digital readout facilitates precision machining. The extensive equipment includes a Ø 125 mm self-centering chuck, drill chuck, 4-way tool post, change gears, LED light, and CE guards.
Main Specifications
Lathe:
Distance between centers: 650 mm
Center height: 140 mm
Swing over bed: 280 mm
Bed width: 160 mm
Spindle bore: Ø 26 mm, MT4 taper
Speed range: 70 – 2000 rpm (12 steps)
Longitudinal feeds: 0.036 – 0.364 mm/rev (15)
Cross feeds: 0.019 – 0.188 mm/rev (15)
Metric threads: 0.25 – 5 mm (27 pitches)
Imperial threads: 6 – 96 TPI (20 pitches)
Tailstock quill: travel 105 mm, MT3 taper
Lathe motor: 0.75 kW (S1) / 1.0 kW (S6) – 400 V

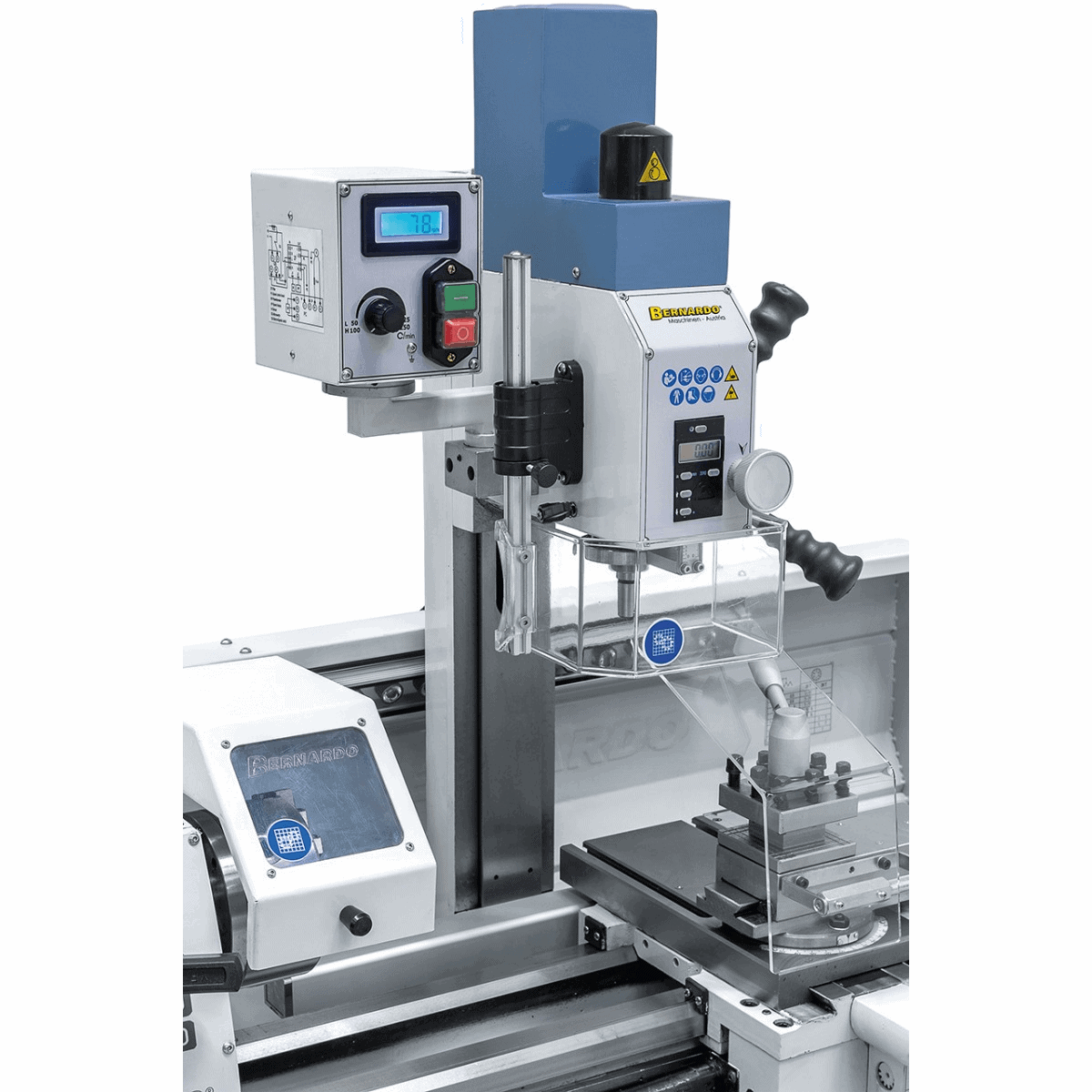

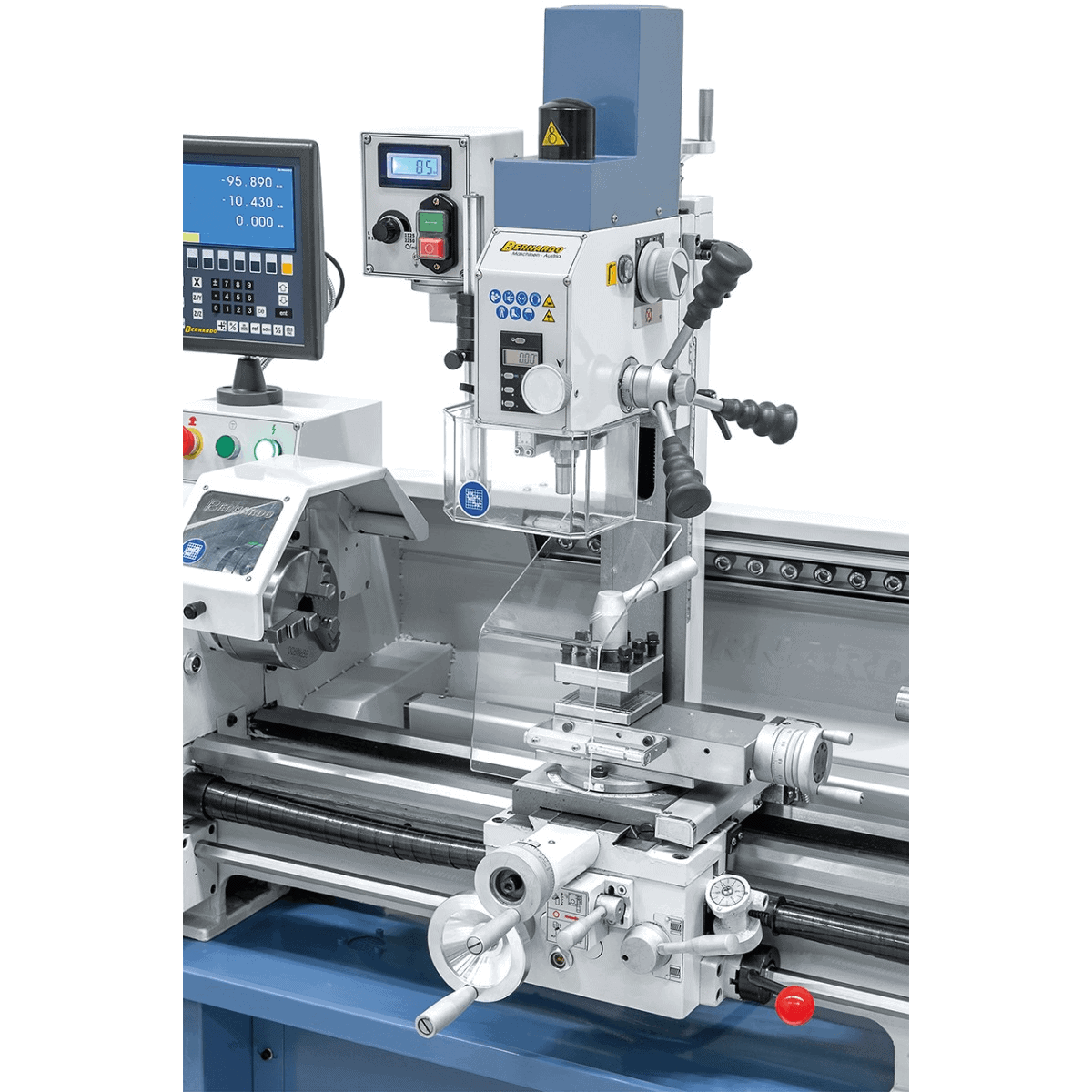

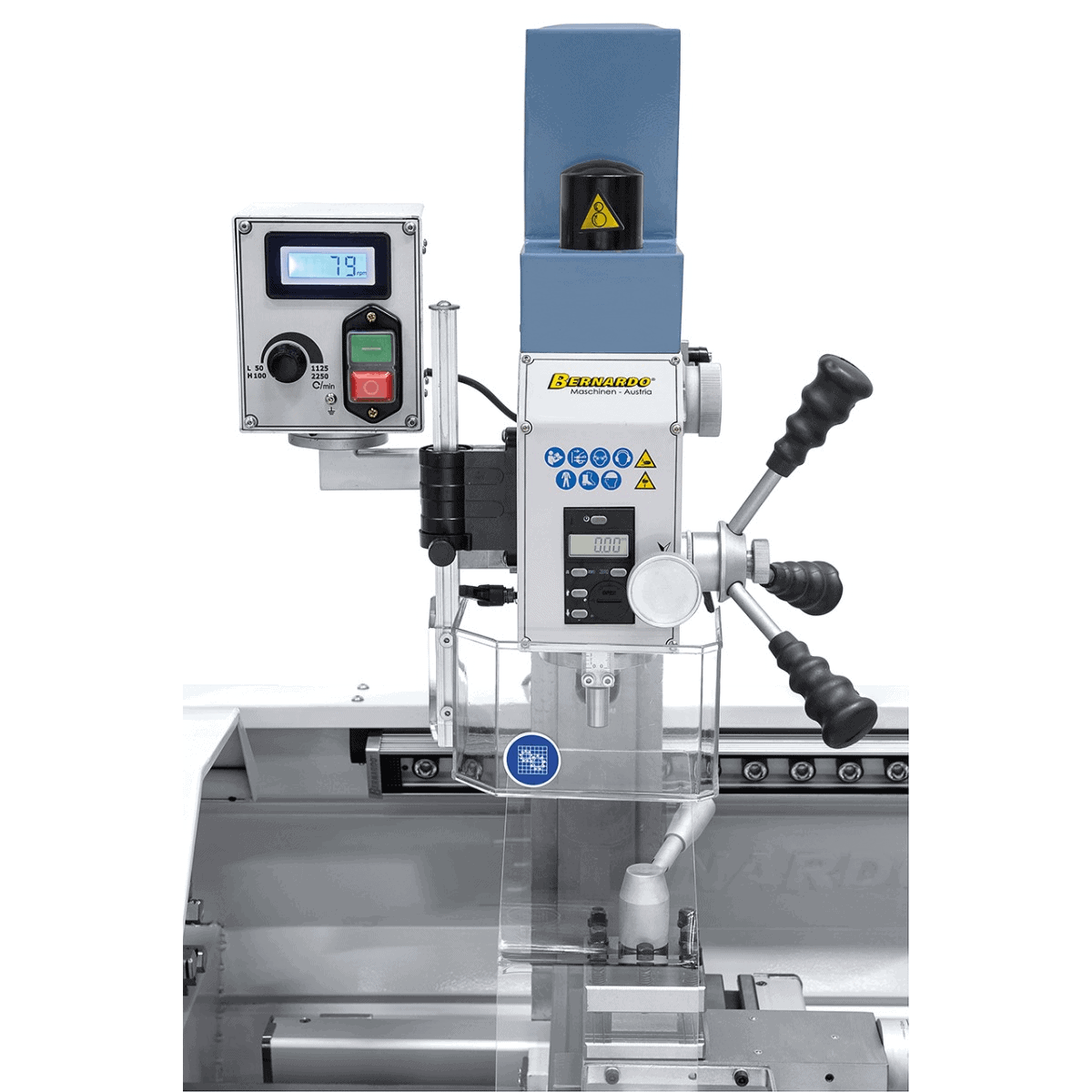

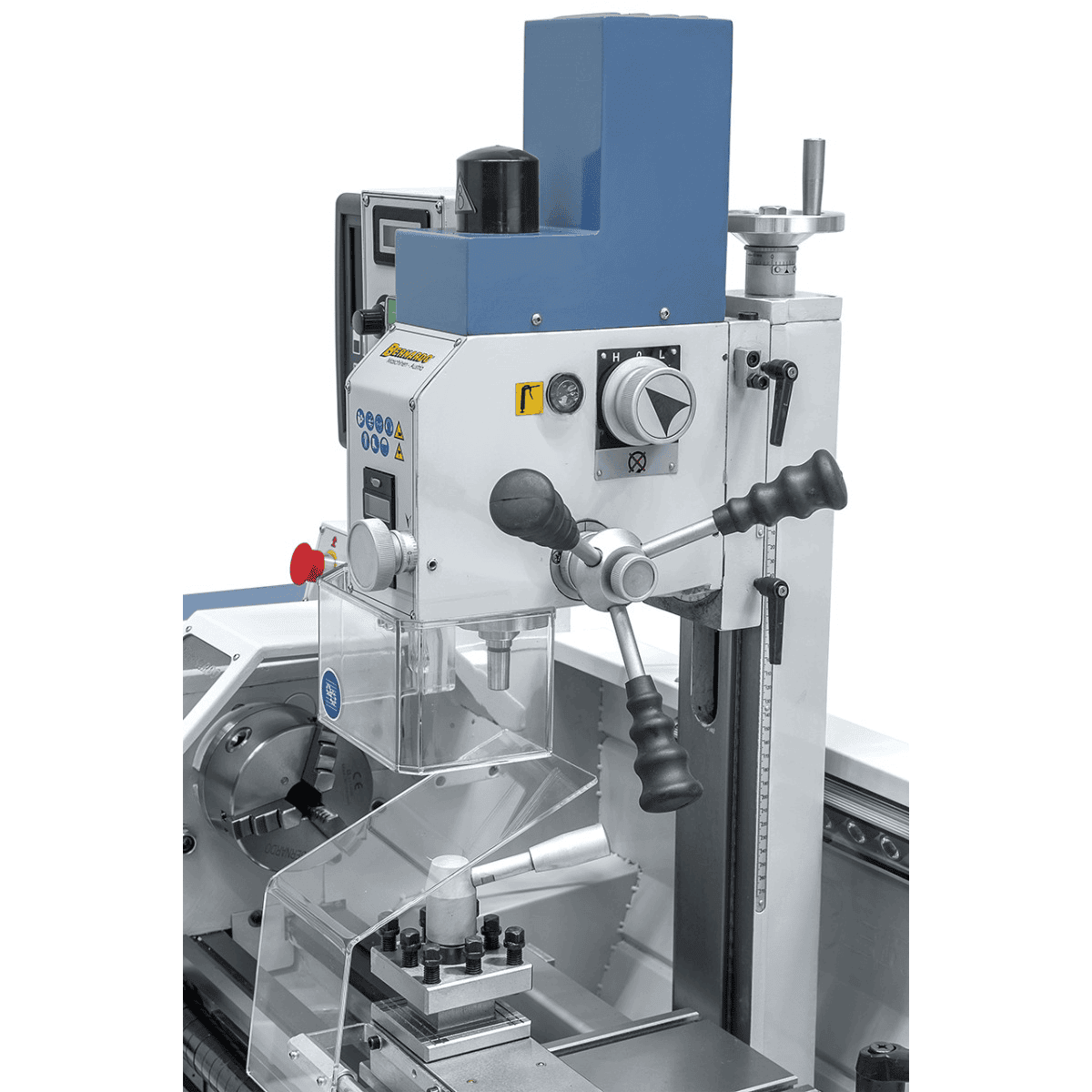

Milling Machine:
Drilling capacity in steel: 16 mm
End milling capacity: max. 16 mm
Face milling capacity: max. 50 mm
Spindle to column distance: 150 mm
Speed: 50 – 2250 rpm, continuous
Spindle taper: MT2

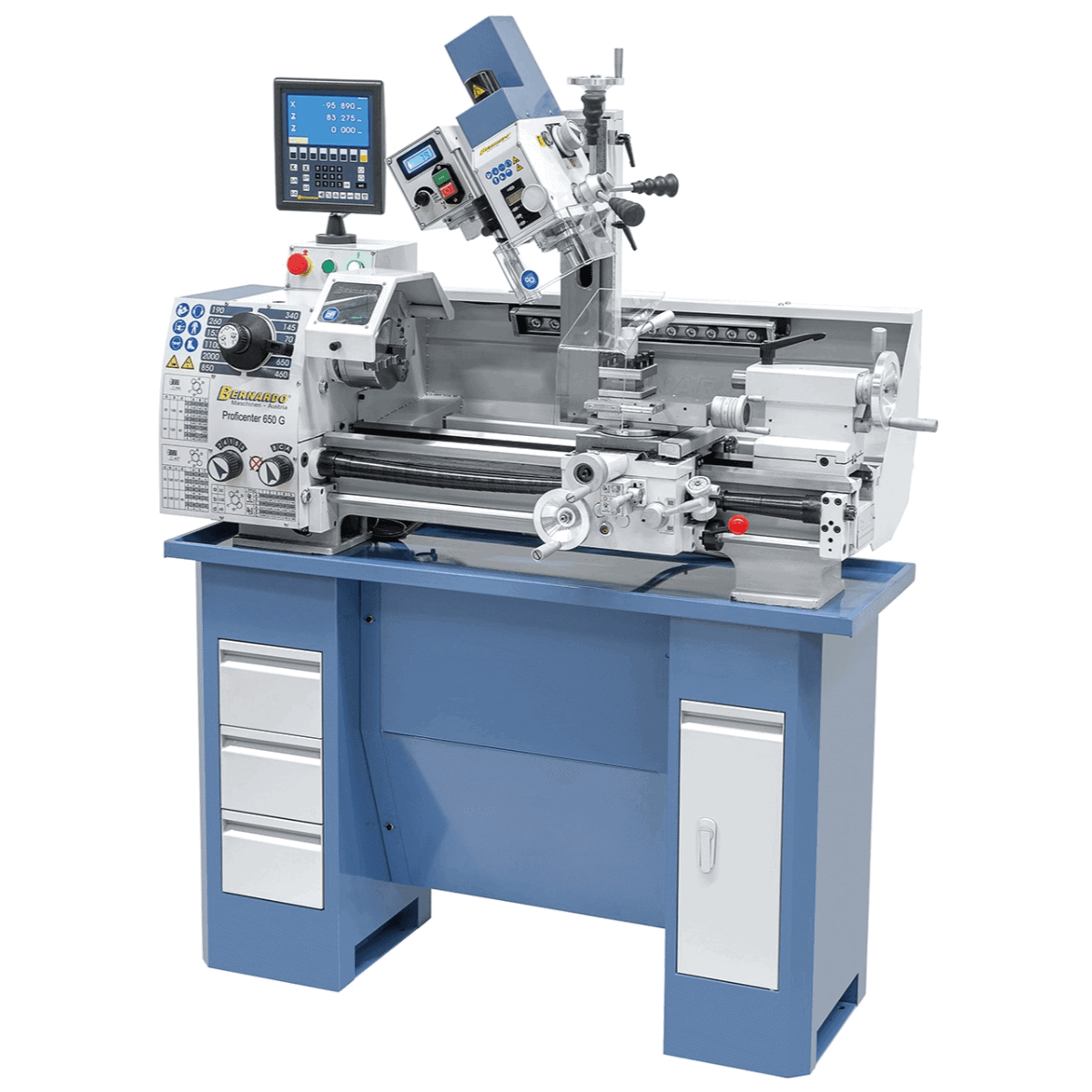

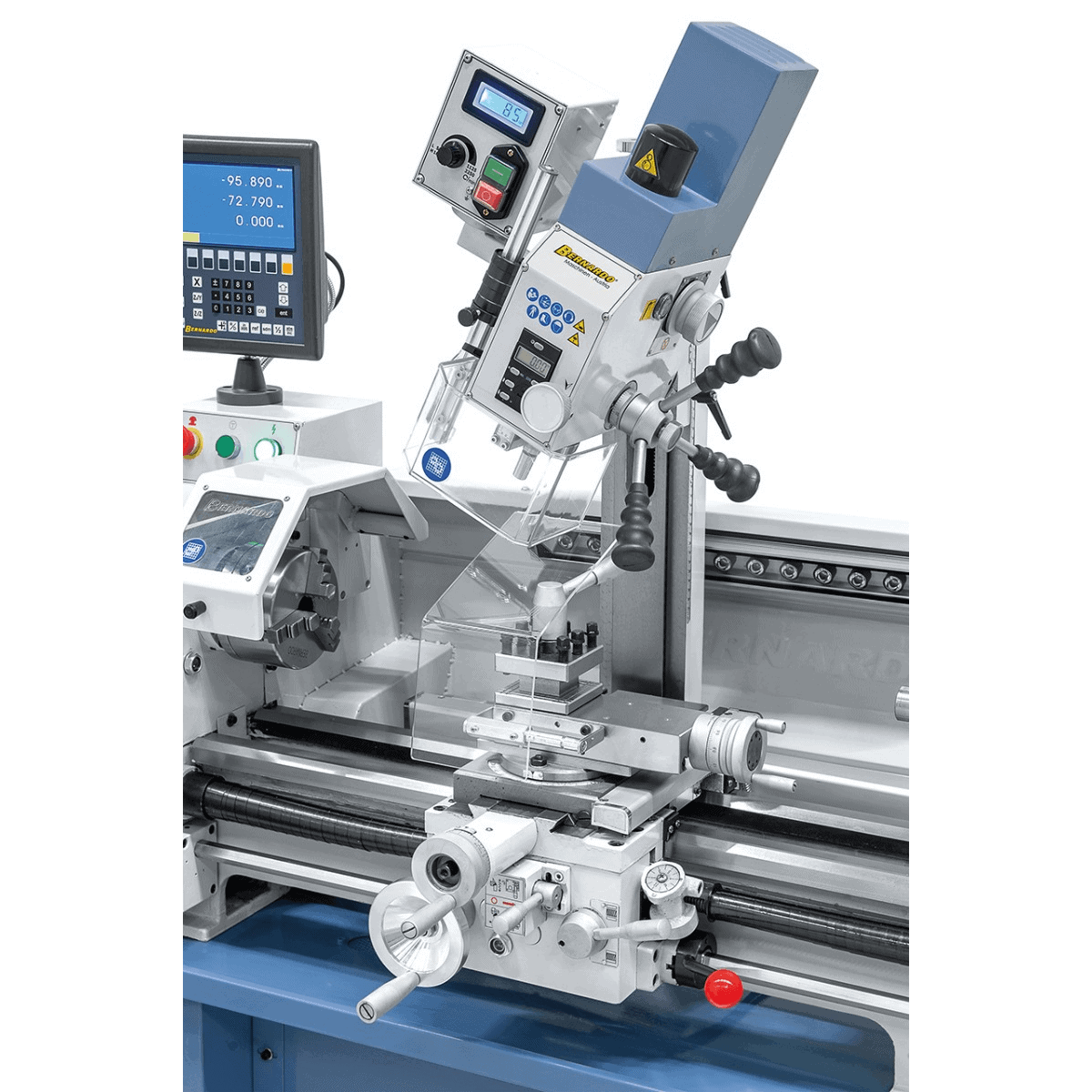

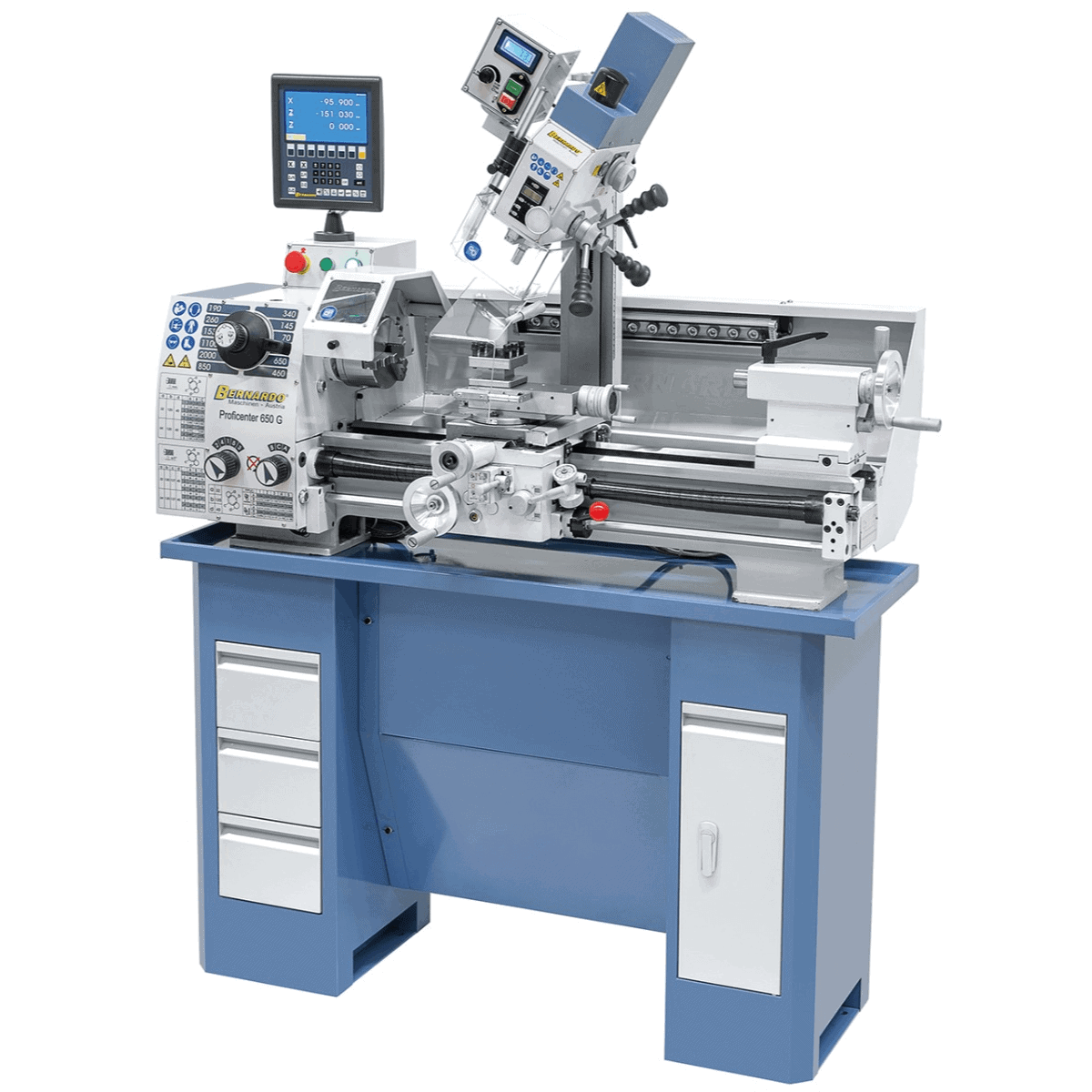

Tilting head: -90° / +90°
Vertical head travel: 195 mm
Milling motor: 0.50 kW (S1) / 0.75 kW (S6) – 230 V
General:
Dimensions: 1400 x 720 x 970 mm (without stand)
Weight: 256 kg
Technical Table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Proficenter 650 G / 400 V |
| Distance between centers |
650 mm |
| Center height |
140 mm |
| Swing over bed |
280 mm |
| Bed width |
160 mm |
| Spindle bore |
Ø 26 mm, MT4 |
| Lathe speed range |
70 – 2000 rpm (12 steps) |
| Longitudinal feeds |
0.036 – 0.364 mm/rev (15) |
| Cross feeds |
0.019 – 0.188 mm/rev (15) |
| Metric threads |
0.25 – 5 mm (27) |
| Imperial threads |
6 – 96 TPI (20) |
| Tailstock quill diameter |
105 mm |
| Tailstock taper |
MT3 |
| Lathe motor |
0.75 kW (S1) / 1.0 kW (S6) – 400 V |
| Drilling capacity in steel |
16 mm |
| Face milling capacity |
max. 50 mm |
| End milling capacity |
max. 16 mm |
| Milling machine speed |
50 – 2250 rpm, continuous |
| Milling spindle taper |
MT2 |
| Head tilt |
-90° / +90° |
| Vertical head travel |
195 mm |
| Milling motor |
0.50 kW (S1) / 0.75 kW (S6) – 230 V |
| Machine dimensions |
1400 x 720 x 970 mm* |
| Weight |
256 kg |
| Origin |
Europe |
| * |
without stand |
Package Contents:

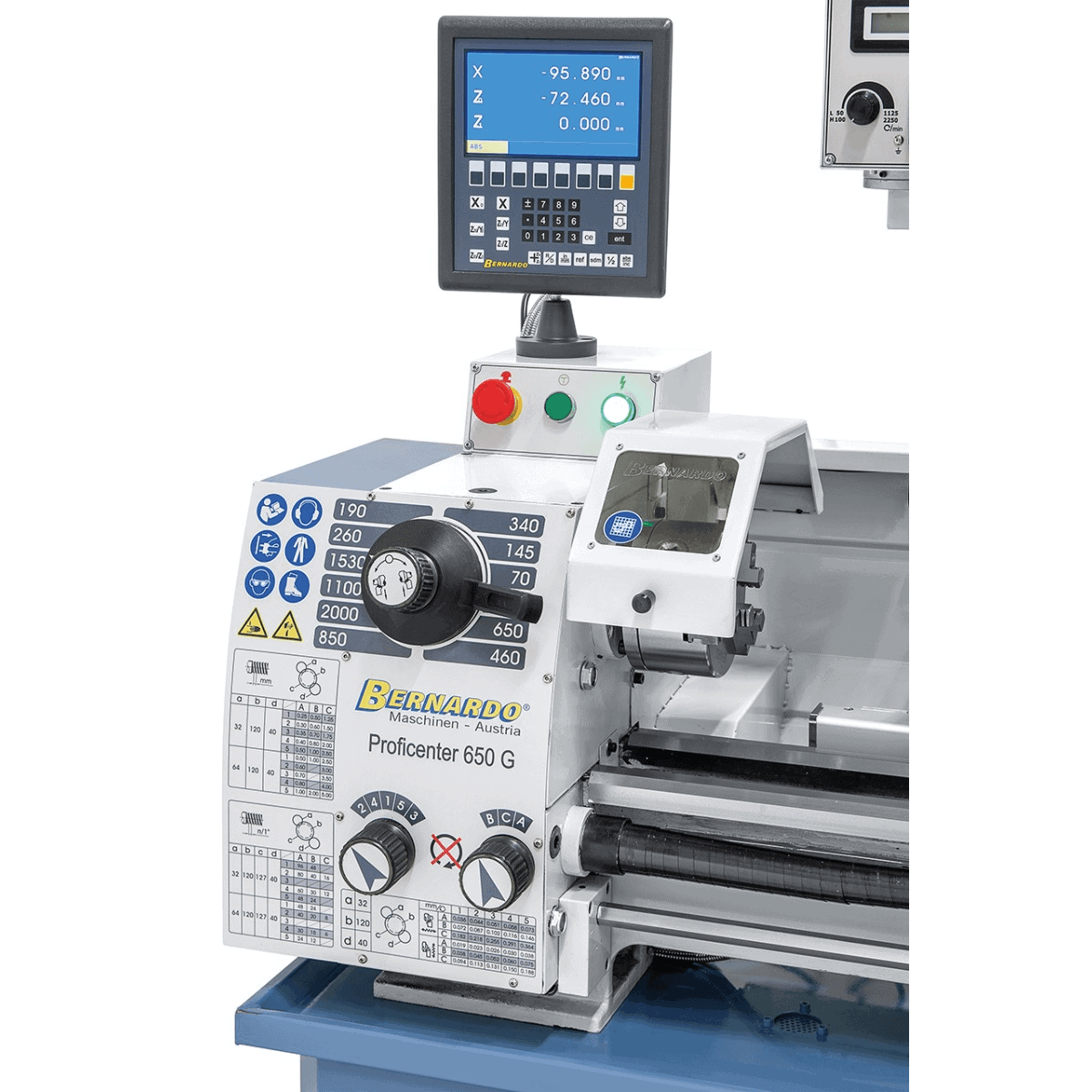

ES-12 V 2-axis digital readout with LCD
3-jaw self-centering chuck Ø 125 mm
Flange Ø 125 mm
Drill chuck 1–13 mm (B16) + MT2/B16 arbor

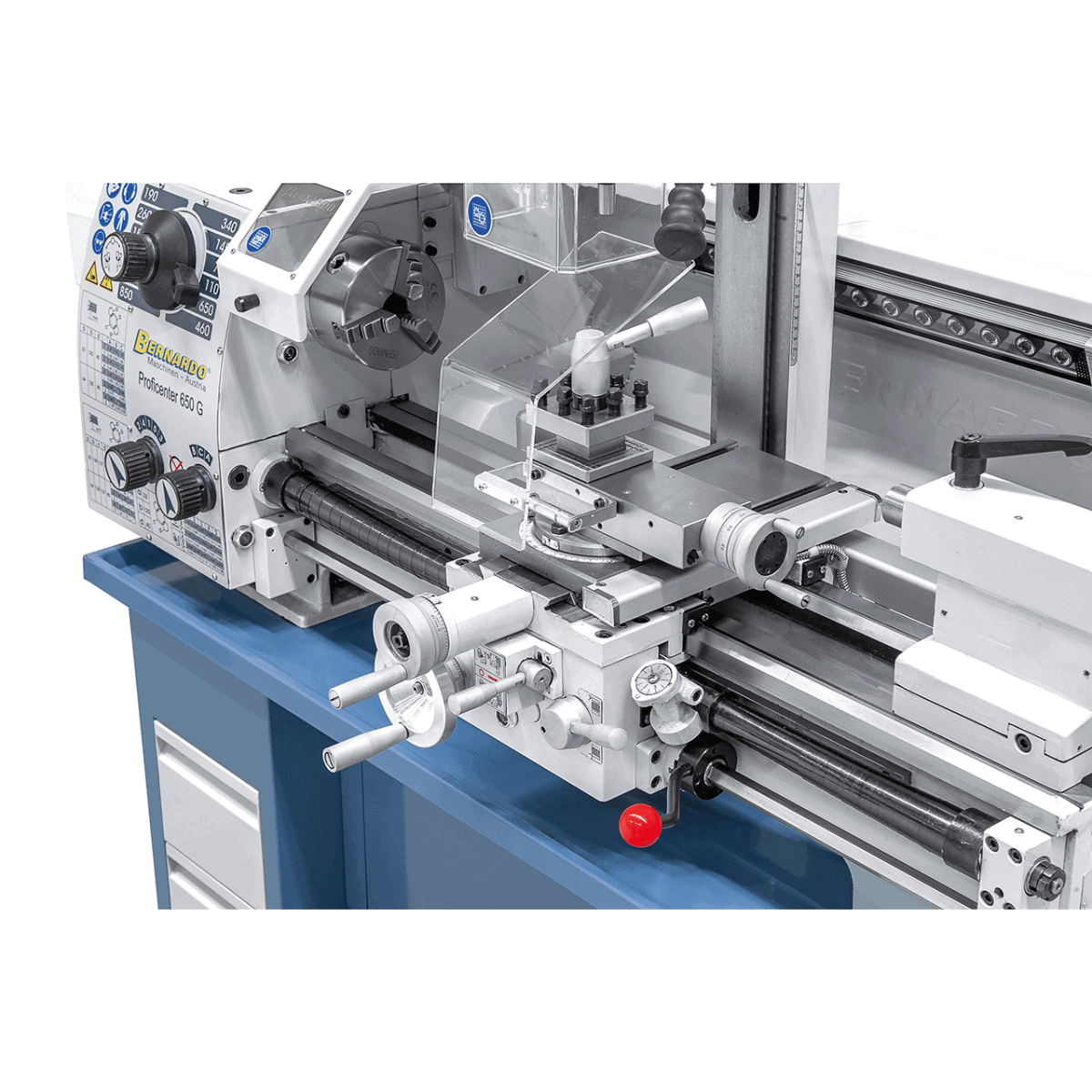

4-way tool post
Cross slide with top slide
Thread dial
Dead centers

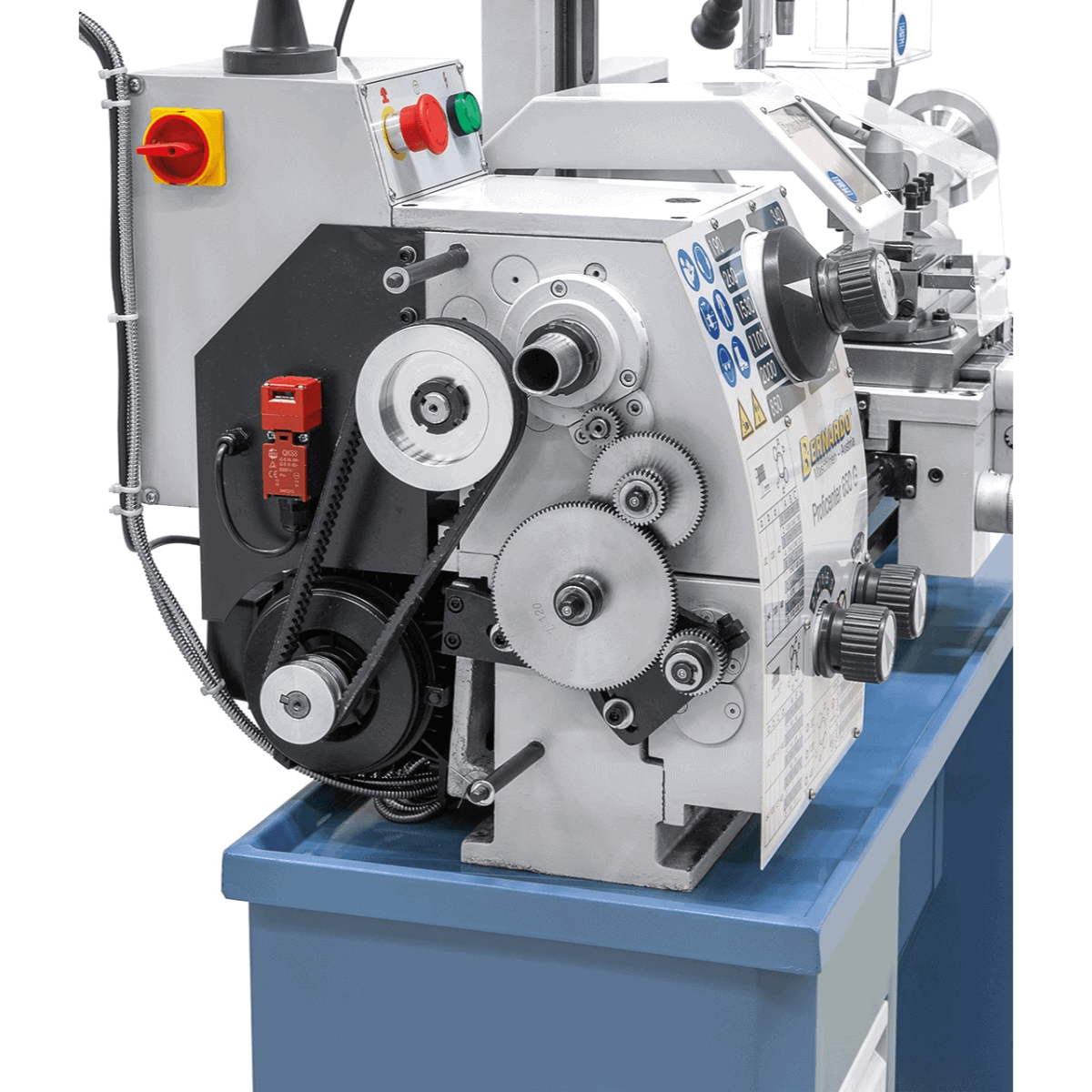

Change gears
Drawbar M10
Digital display for speed and spindle travel
LED machine light
CE guards: chuck guard, leadscrew cover, splash guard
Set of tools and accessories
Logistics
Bernardo shipping: 5–9 working days (7 days to Southern Italy). Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
Frequently Asked Questions
Does the Proficenter 650 G have a geared headstock (G) – how does it differ from Vario versions?
The geared headstock (Getriebe) delivers higher torque at low speeds compared to belt or electronic variable speed drives – essential for turning high-strength steels, large sections, and heavy roughing cuts. Speed changes are made from a standstill by turning an external lever without disassembling belts. Compared to the Vario, it is less convenient for frequent speed changes but more robust for continuous heavy use.
Does the integrated milling machine have the same travel as a dedicated milling machine?
No – the axis travel of the integrated milling machine in the Proficenter 650 G is more limited compared to a dedicated BF or FM milling machine. The advantage is versatility in a small space; the limitation is maximum travel and rigidity under high loads. For occasional milling operations on small-to-medium parts, it is adequate; for intensive milling on large parts, a dedicated milling machine is needed.
Is the ES-12 V 3-axis DRO included as standard?
Yes – in Proficenter 650 G models with DRO specification, the 3-axis digital readout is included as standard. It simultaneously reads X, Z, and W axes with 0.001 mm resolution – eliminating vernier readings and reducing measurement errors in complex lathe + milling setups.
Are spare parts and support available?
Original spare parts available with 3–5 working day shipping. Customer support in Italian available.
