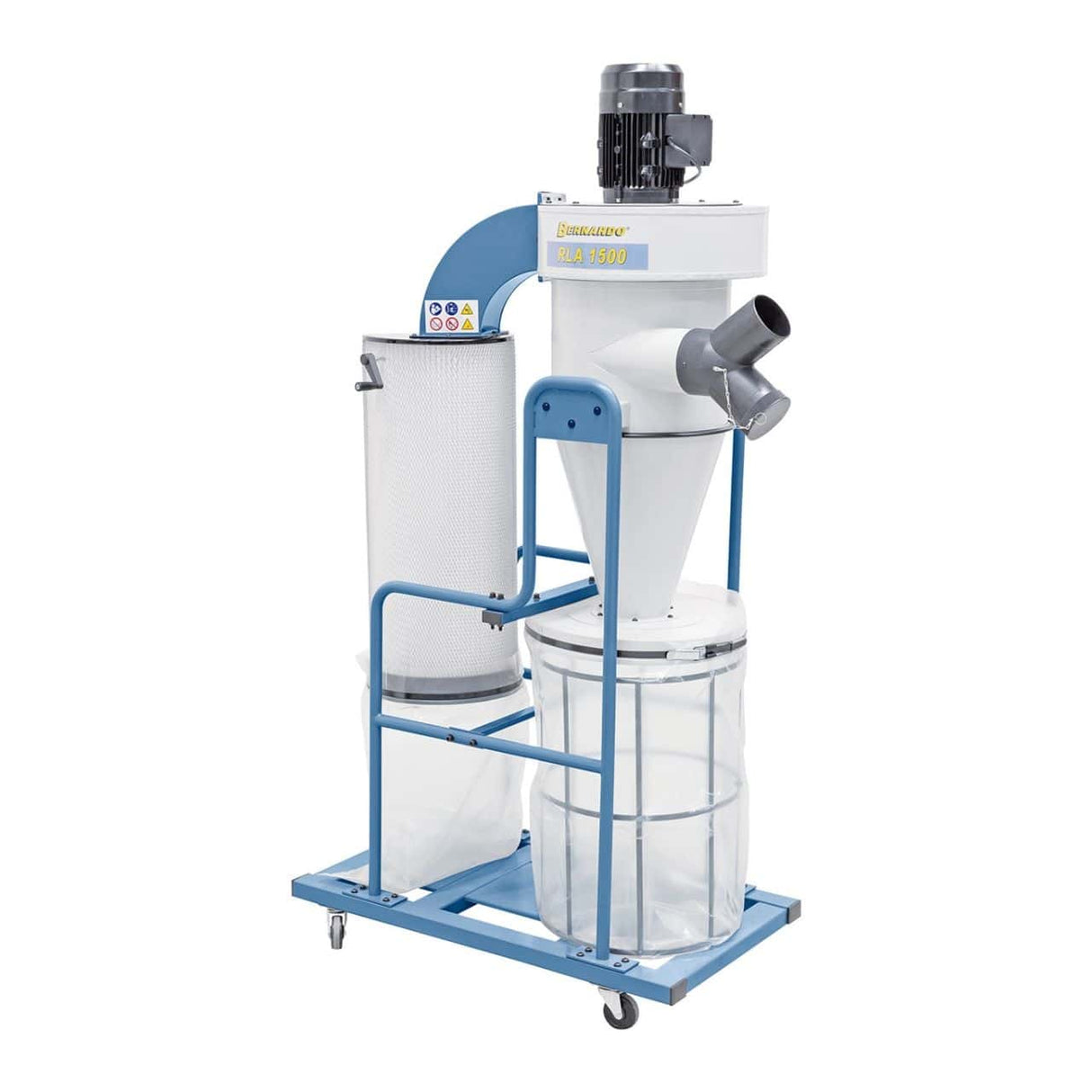

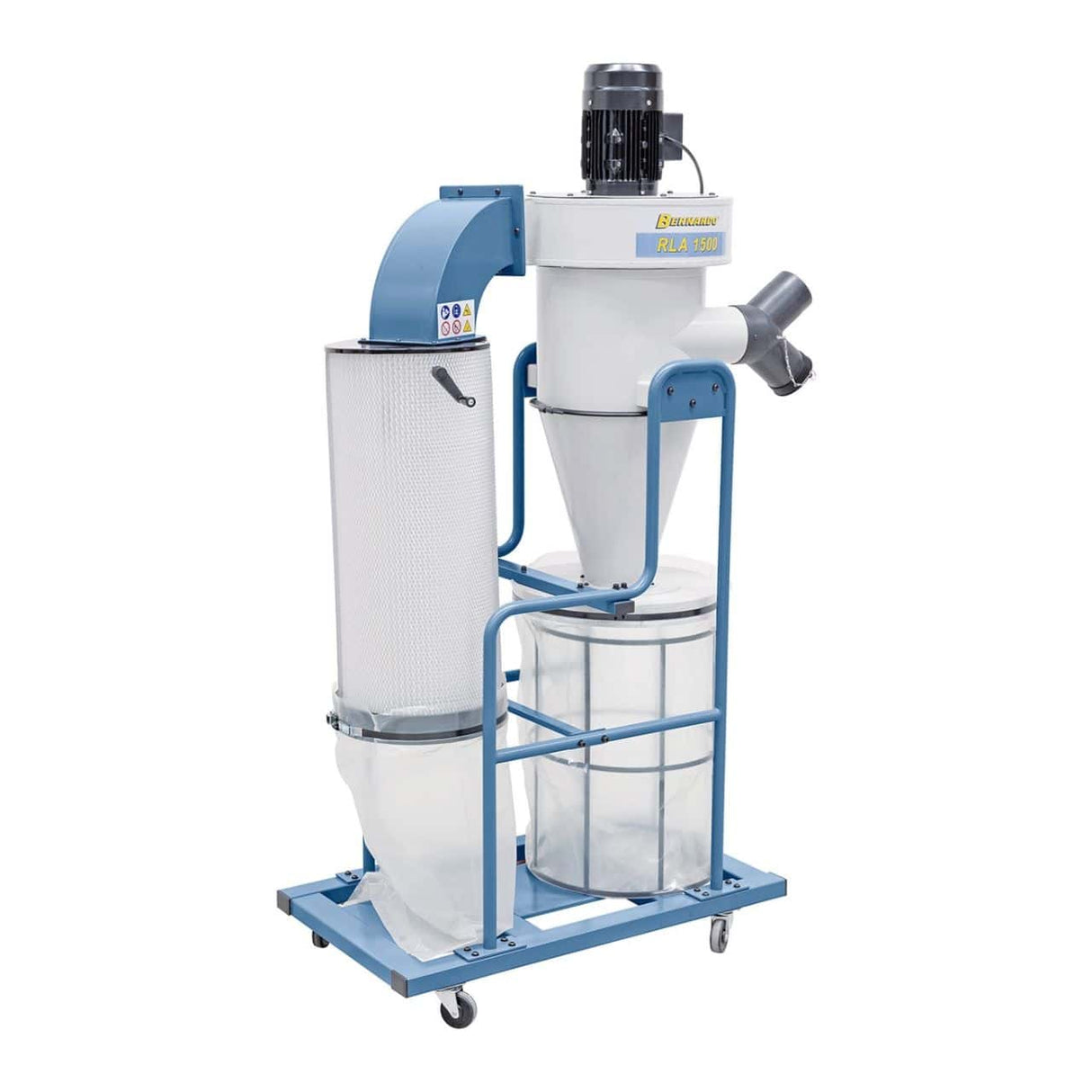

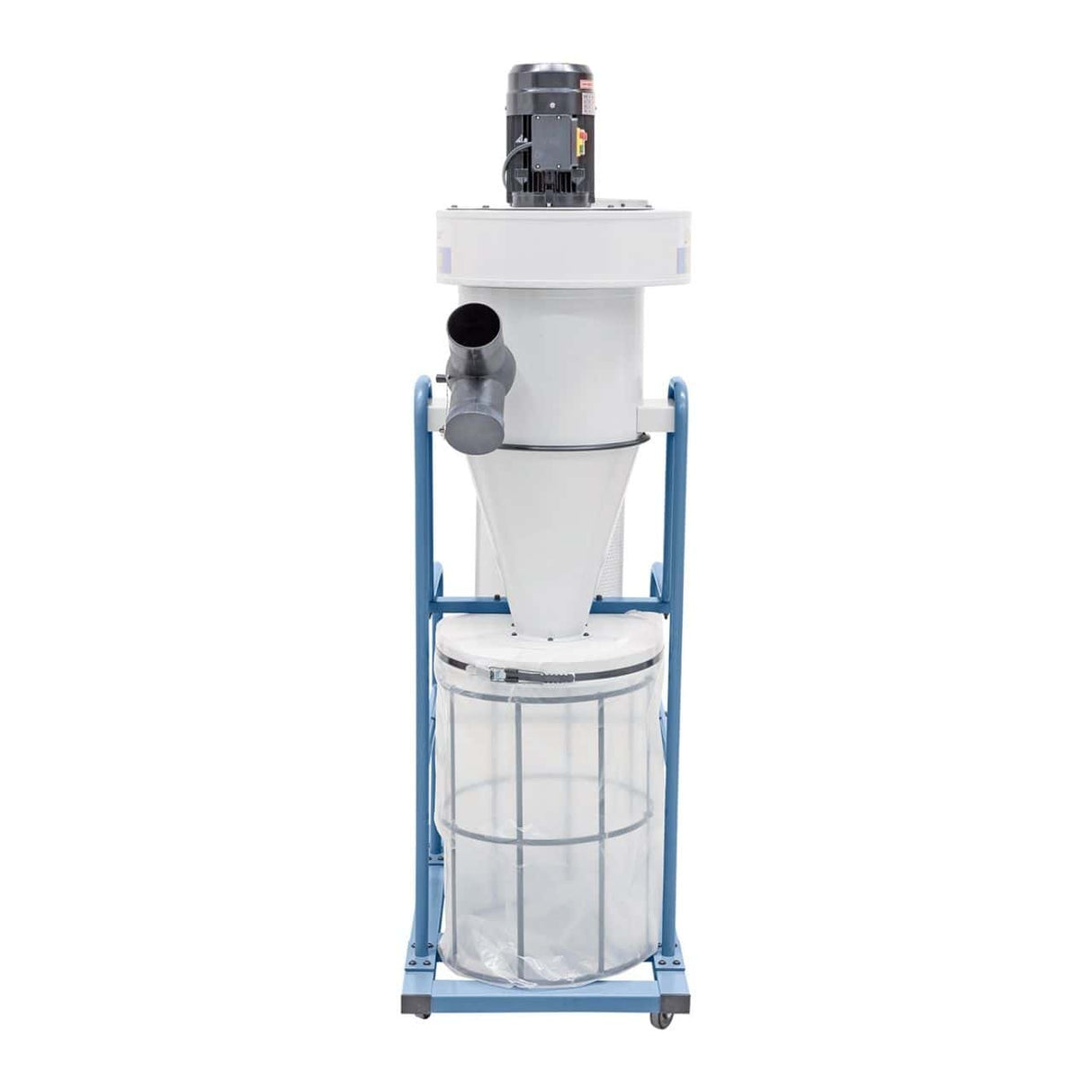

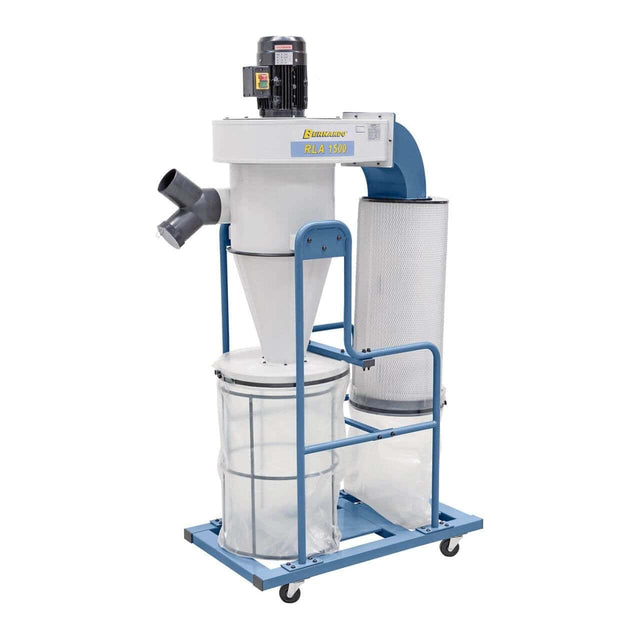

Bernardo RLA 1500 Cyclonic Extractor – 400 V
The Bernardo RLA 1500 cyclonic extractor is a compact and professional extraction system for small to medium-sized workshops, laboratories, and joineries. With an airflow of 950 m³/h and a maximum pressure of 2600 Pa, it ensures constant suction and high dust separation efficiency. The polyester cartridge filter with a dust residue of only 0.1 mg/m³ guarantees clean air and a safer working environment. The aerodynamic steel impeller is resistant to the suction of small wood pieces, while the integrated brushes allow for quick and automatic filter cleaning. The integrated trolley and powder-coated steel structure ensure mobility, durability, and resistance, suitable for simultaneous connection of up to two machine tools.
Key Specifications
• Mobile cyclonic extractor with flow rate up to 950 m³/h
• Maximum pressure of 2600 Pa for powerful and constant suction
• Polyester cartridge filter with 0.1 mg/m³ dust residue
• Filter cleaning with integrated brushes for fine dust removal
• Solid steel structure with scratch-resistant powder coating
• Aerodynamic steel impeller resistant to small chips
• Integrated mobile trolley for easy movement
• Can connect up to 2 machines simultaneously

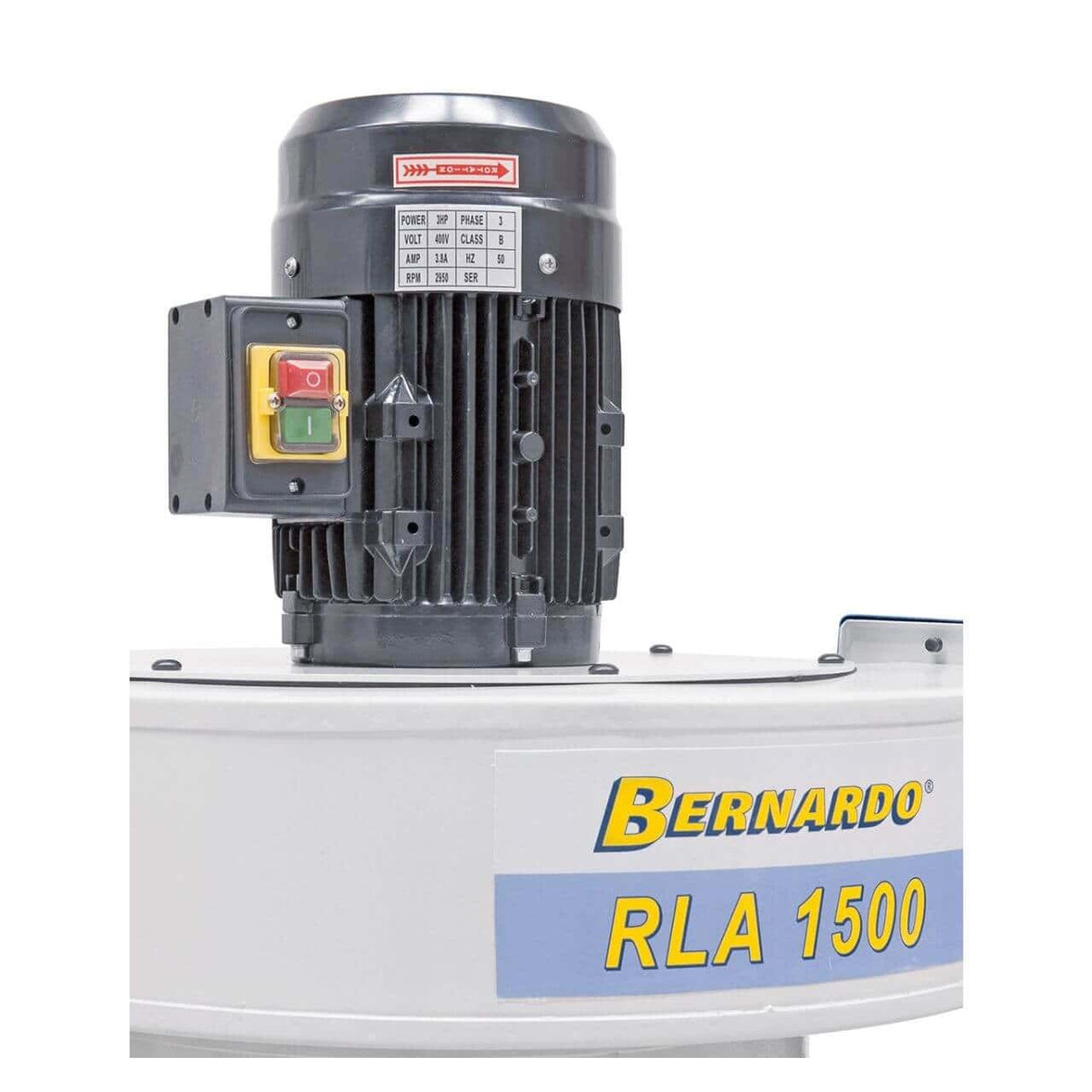

• 2.2 kW (3 HP) three-phase 400 V motor for prolonged use
Technical Table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
RLA 1500 |
| Suction Capacity |
950 m³/h |
| Filter Surface Area |
3.5 m² |
| Max. Negative Pressure |
2600 Pa |
| Inlet Diameter |

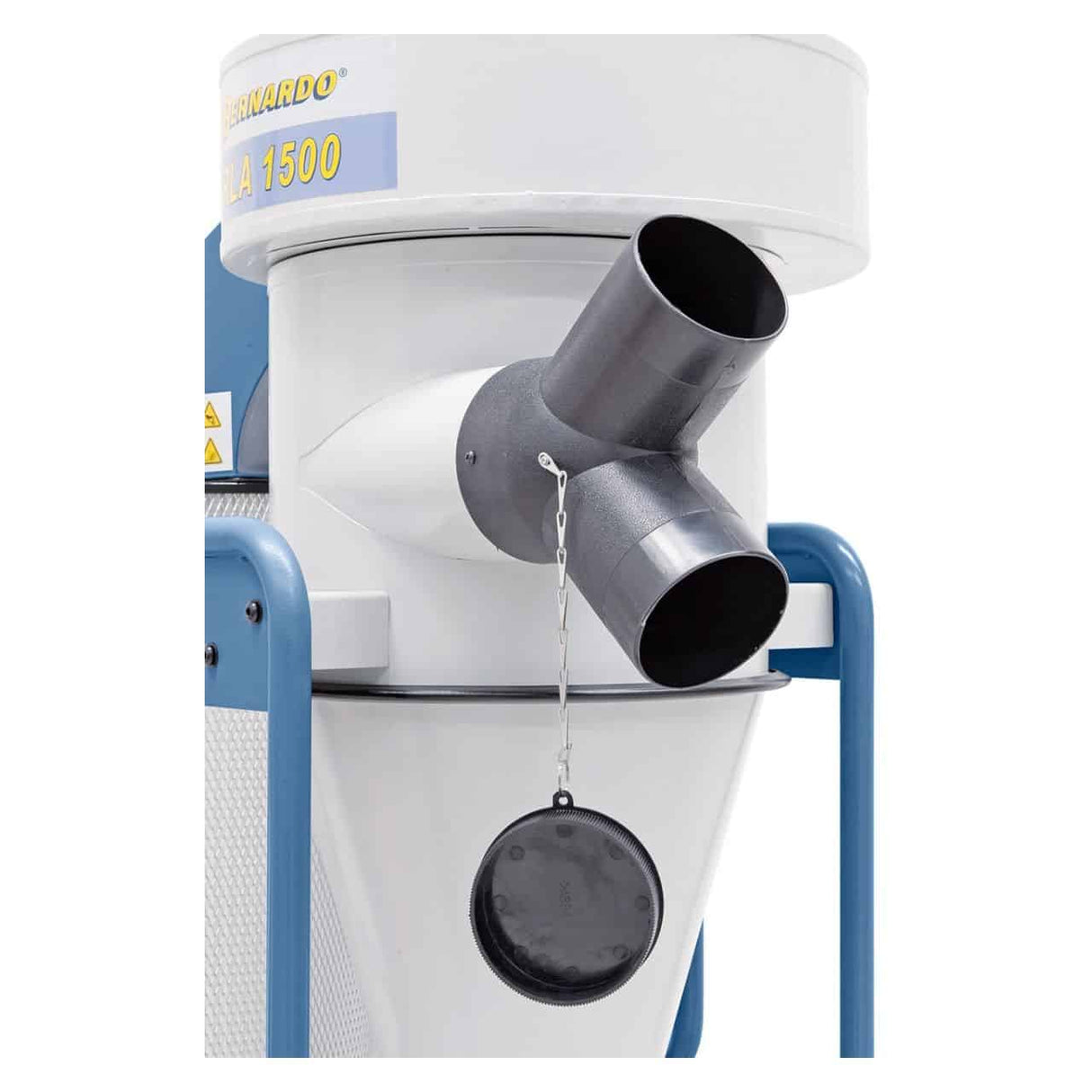

1 × 125 mm / 2 × 100 mm |
| Collection Bag Size |
Ø 370 × 500 mm |
| Collection Bag Volume |
45 liters |
| Dust Container Volume |
130 liters |
| No-load Speed |
2850 rpm |
| Sound Level |
80 dB |
| Motor Power (S1 100%) |
2.2 kW (3.0 HP) / 400 V |
| Motor Power (S6 40%) |
3.0 kW (4.2 HP) / 400 V |
| Dimensions (L × W × H) |
1020 × 580 × 1940 mm |
| Weight |
80 kg |
Package Contents:
• Bernardo RLA 1500 cyclonic extractor
• Polyester cartridge filter with cleaning brushes

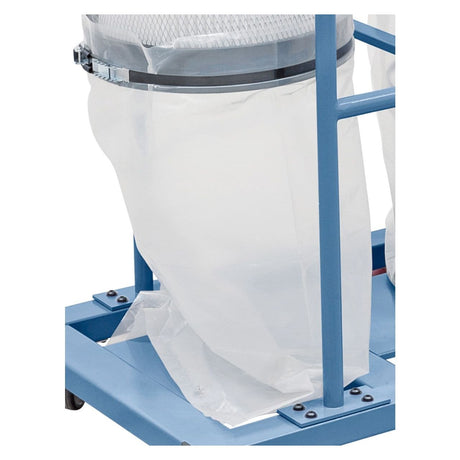

• 45-liter collection bag
• 130-liter dust container
• Transport trolley
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Frequently Asked Questions
How does a cyclonic extractor work and why does it reduce maintenance?

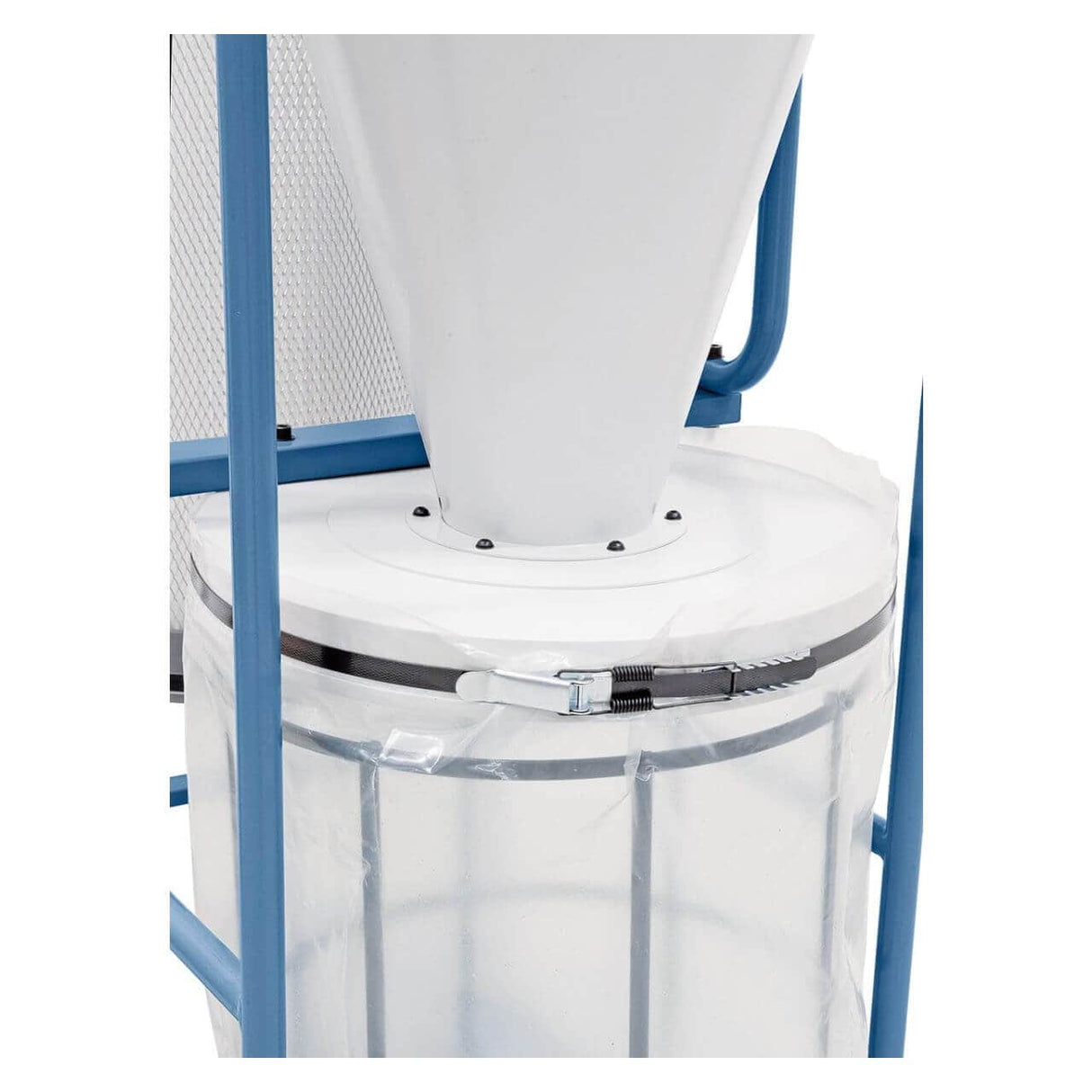

The cyclonic separator traps coarse chips and sawdust before they reach the main extractor filter: air enters tangentially into a conical cylinder, the circular motion causes heavy particles to fall into the tank below, while clean air rises towards the extractor. Result: the extractor filter clogs much more slowly — you empty the cyclonic tank instead of changing expensive filters.
What is the difference between FSG 1000, FSG 1100, and RLA series?
FSG 1000 and FSG 1100: compact cyclonic separators for extractors with 1.5–2.5 kW motors — benchtop or wheeled format. RLA 1500–3700: industrial cyclonic separators for large volumes of chips, with tank capacities from 150 to 370 liters — for centralized extraction systems in joineries and metalworking shops. The number indicates the tank capacity in liters.
Which Bernardo extractor is it compatible with?
FSG and RLA separators are compatible with the Bernardo DC, RV, FT, and ASA extractor range. Check the connection diameter (Ø 100, 120, or 150 mm) based on the model of the extractor in use. Contact Krollit for correct configuration. Customer support in Italian available.
Are spare parts available?
Original spare parts available with 3–5 business day shipping. Customer support in Italian available.
Is assistance available?
Customer support in Italian available.
