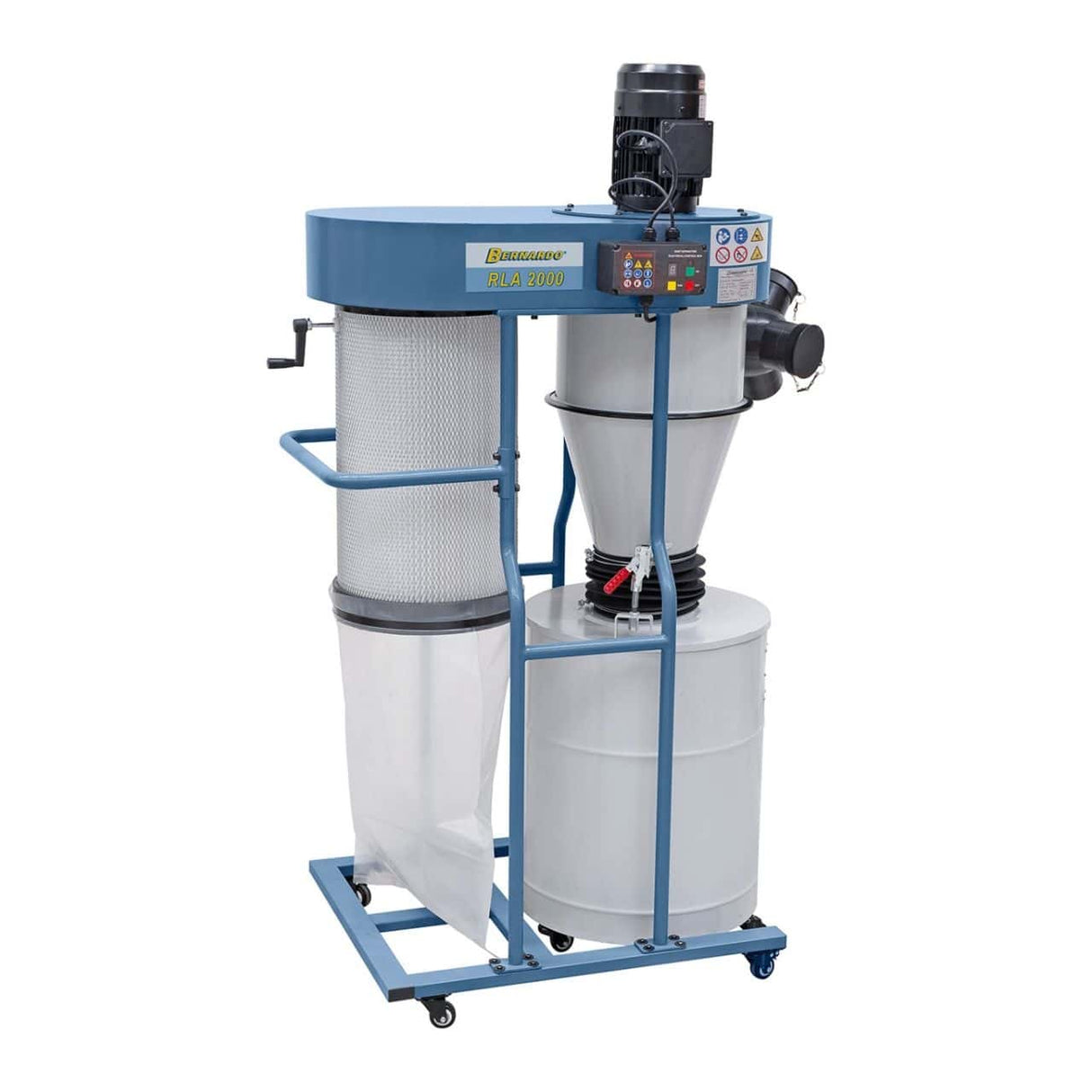

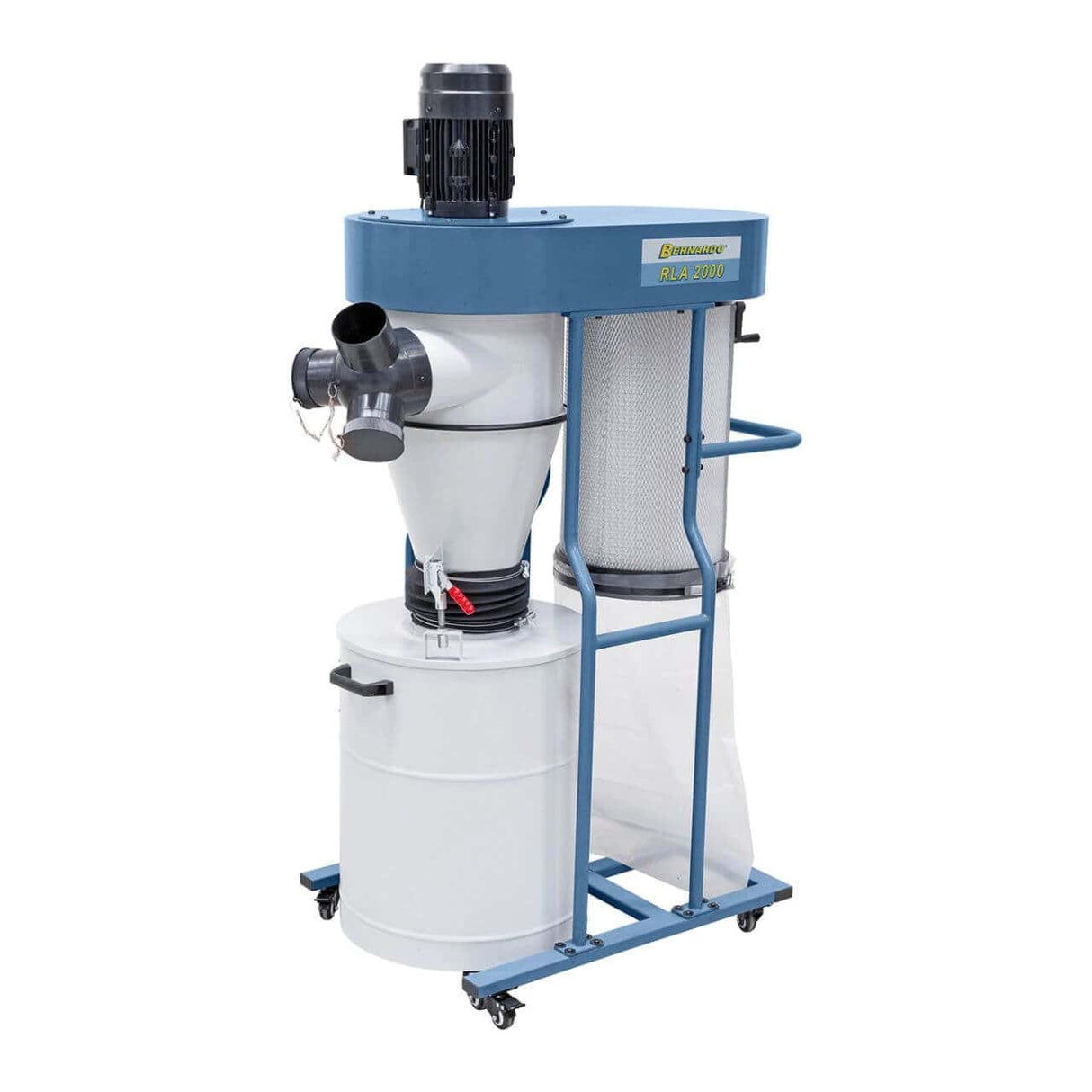

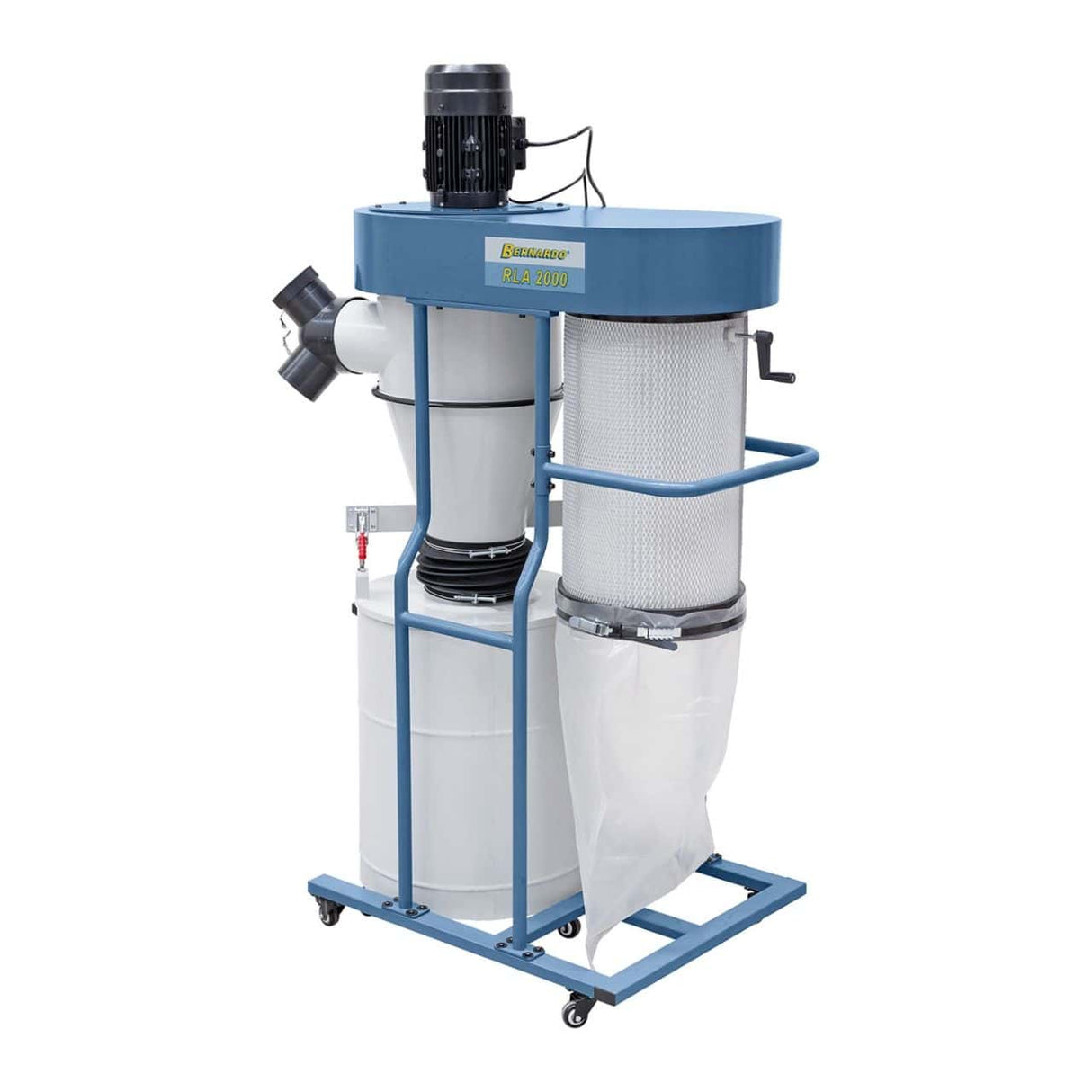

Bernardo RLA 2000 Cyclone Dust Collector – 400 V
The Bernardo RLA 2000 cyclone dust collector is a professional machine designed for workshops, carpentry shops, and artisan laboratories that require efficient and constant extraction. With an airflow of 1350 m³/h and a maximum pressure of 2000 Pa, it ensures high performance in a compact and mobile format. The polyester cartridge filter retains up to 99.9% of fine dust, with a dust residue of only 0.1 mg/m³, while the steel impeller is resistant to the aspiration of small chips and wood fragments. Equipped with a remote control, adjustable timer, and extendable 95-liter container, it allows for practical and automated use. The powder-coated steel structure guarantees durability and scratch resistance. It is the suitable choice for aspirating chips, sawdust, and fine dust from multiple machines simultaneously.
Main specifications
• Mobile cyclone dust collector for medium-sized laboratories and carpentry shops
• Airflow up to 1350 m³/h and pressure of 2000 Pa

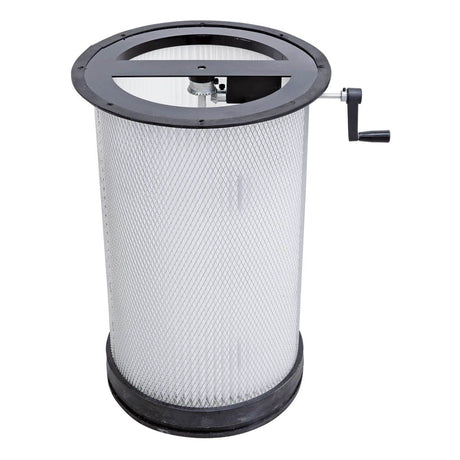

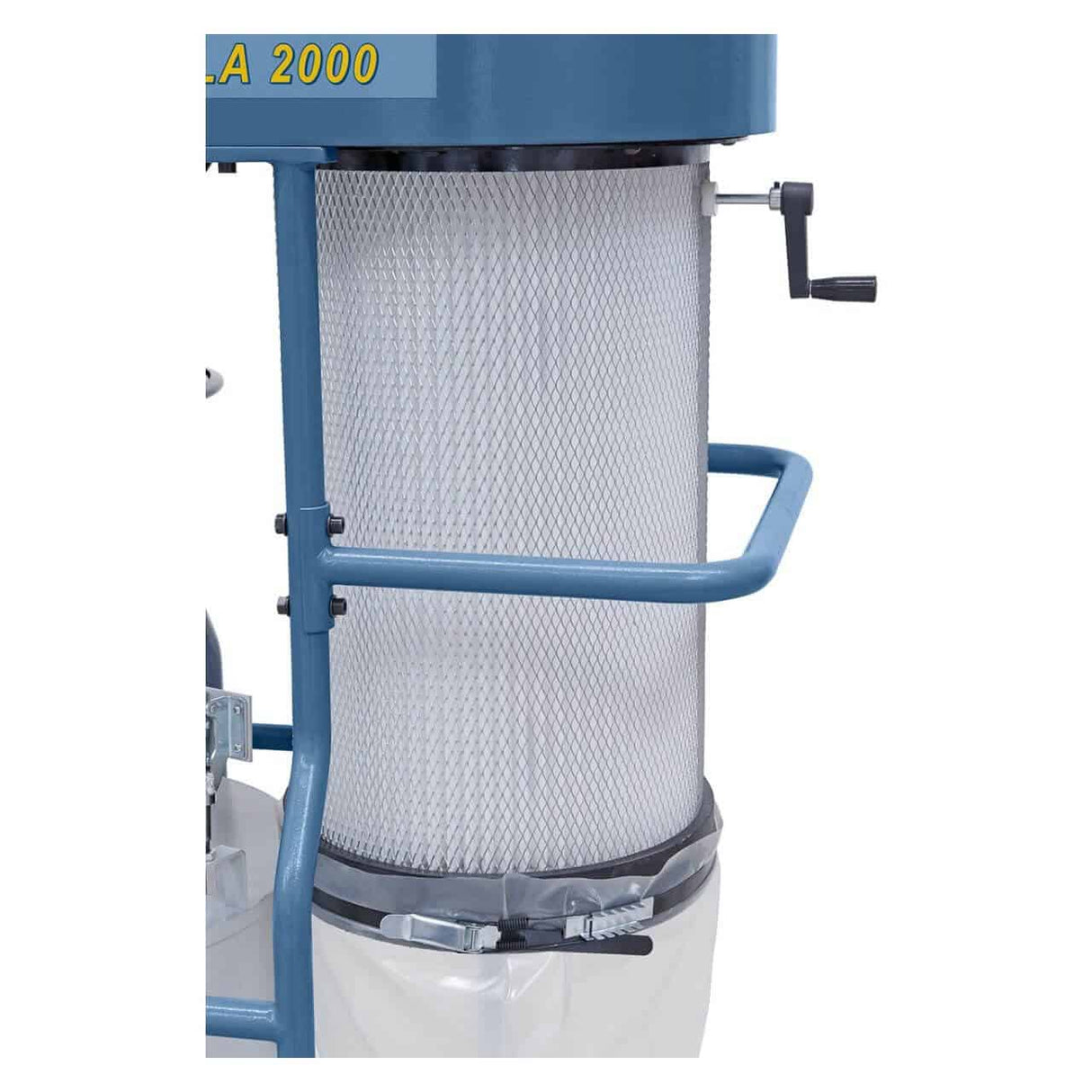

• Polyester cartridge filter with 0.1 mg/m³ dust residue
• Scratch-resistant powder-coated steel structure
• Steel impeller resistant to small pieces of wood

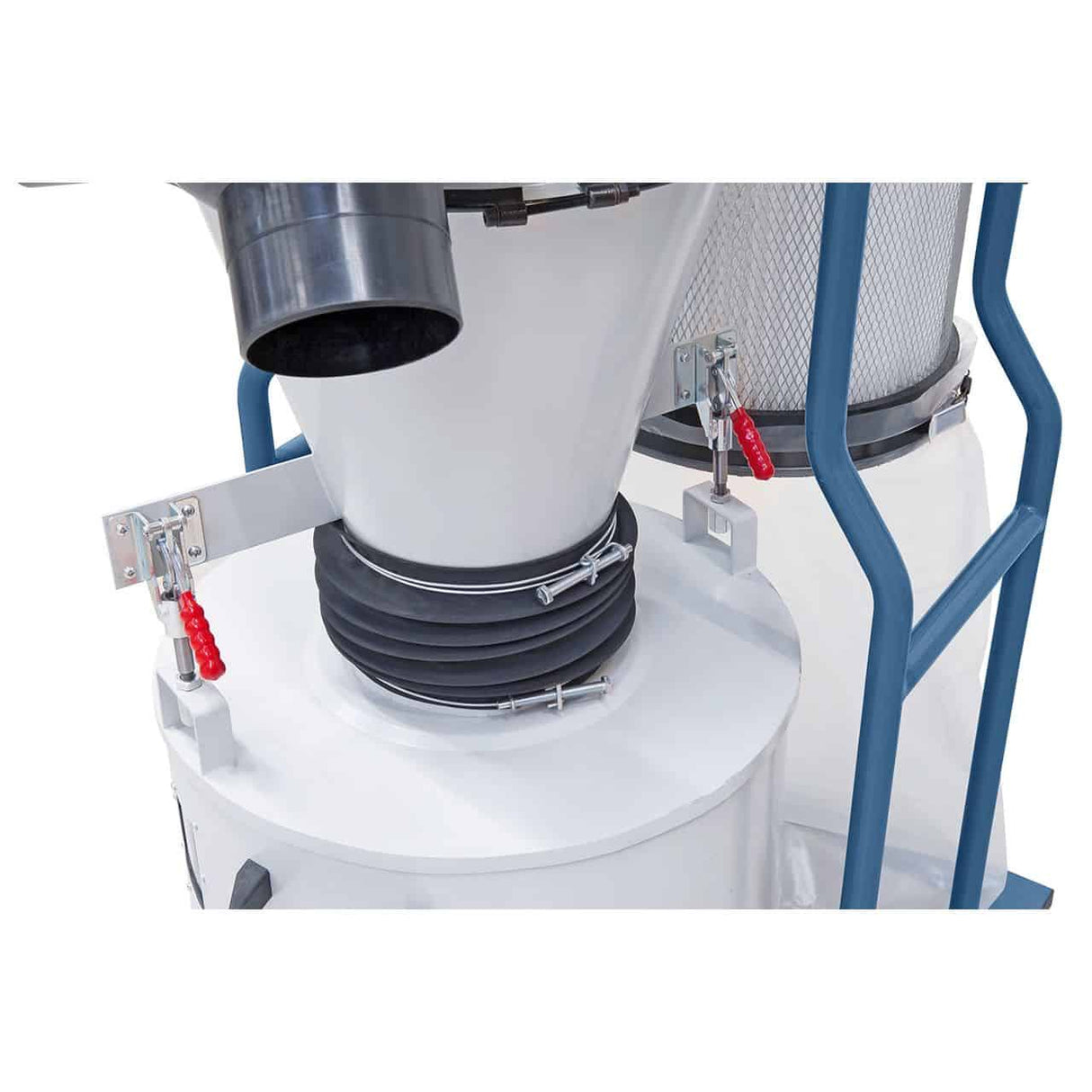

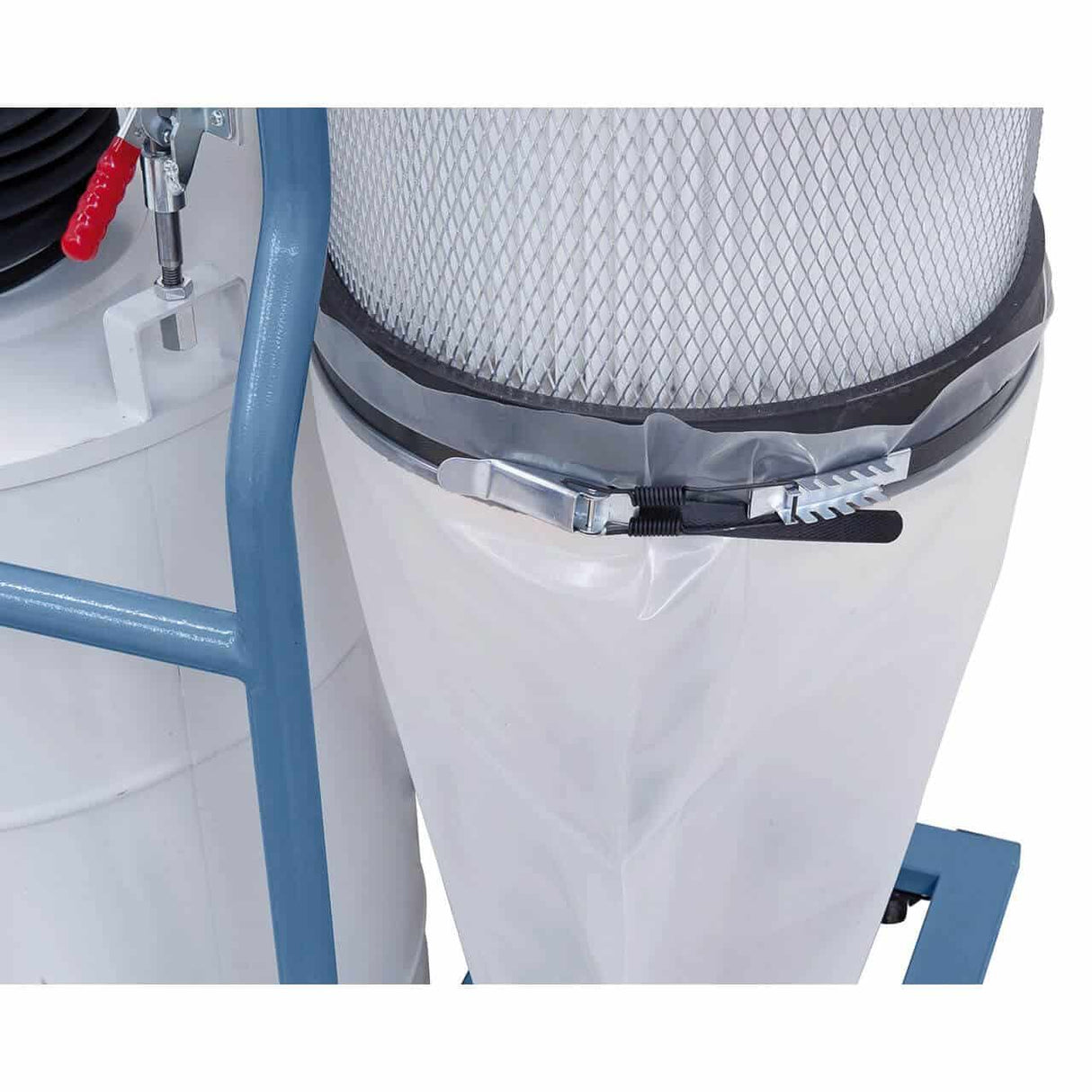

• Extendable 95-liter container and 65-liter collection bag

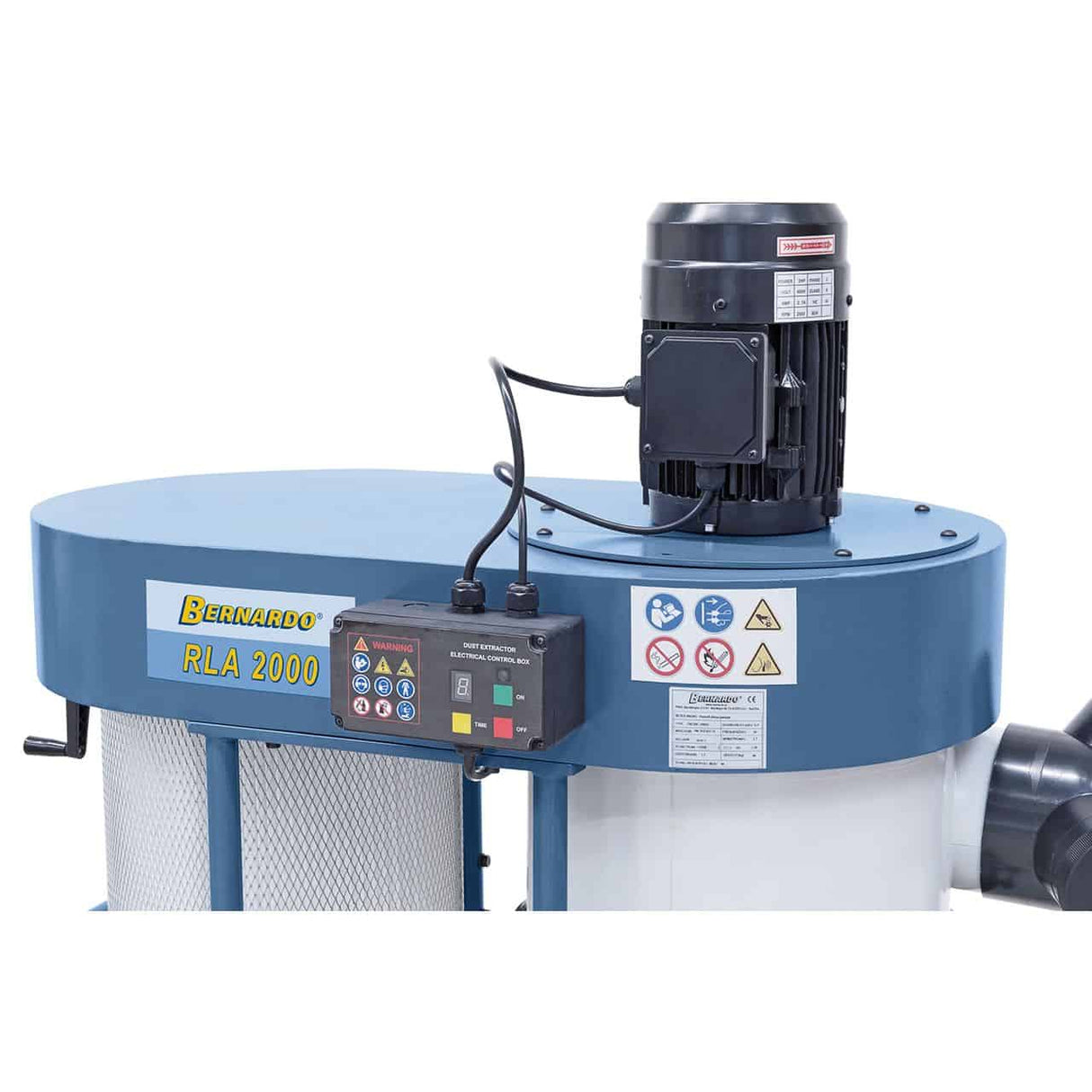

• Remote control included for remote on/off

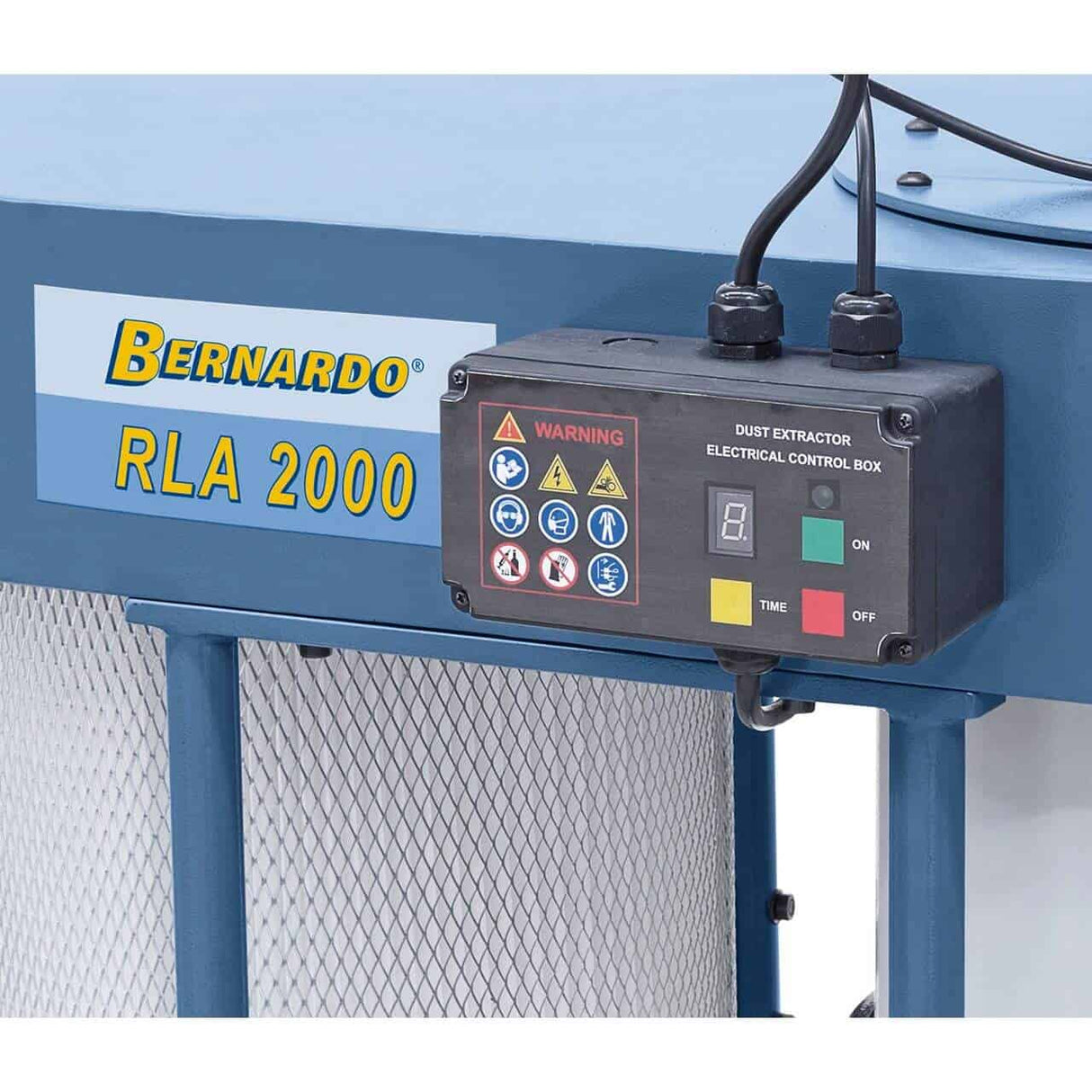

• Adjustable timer for automatic on/off

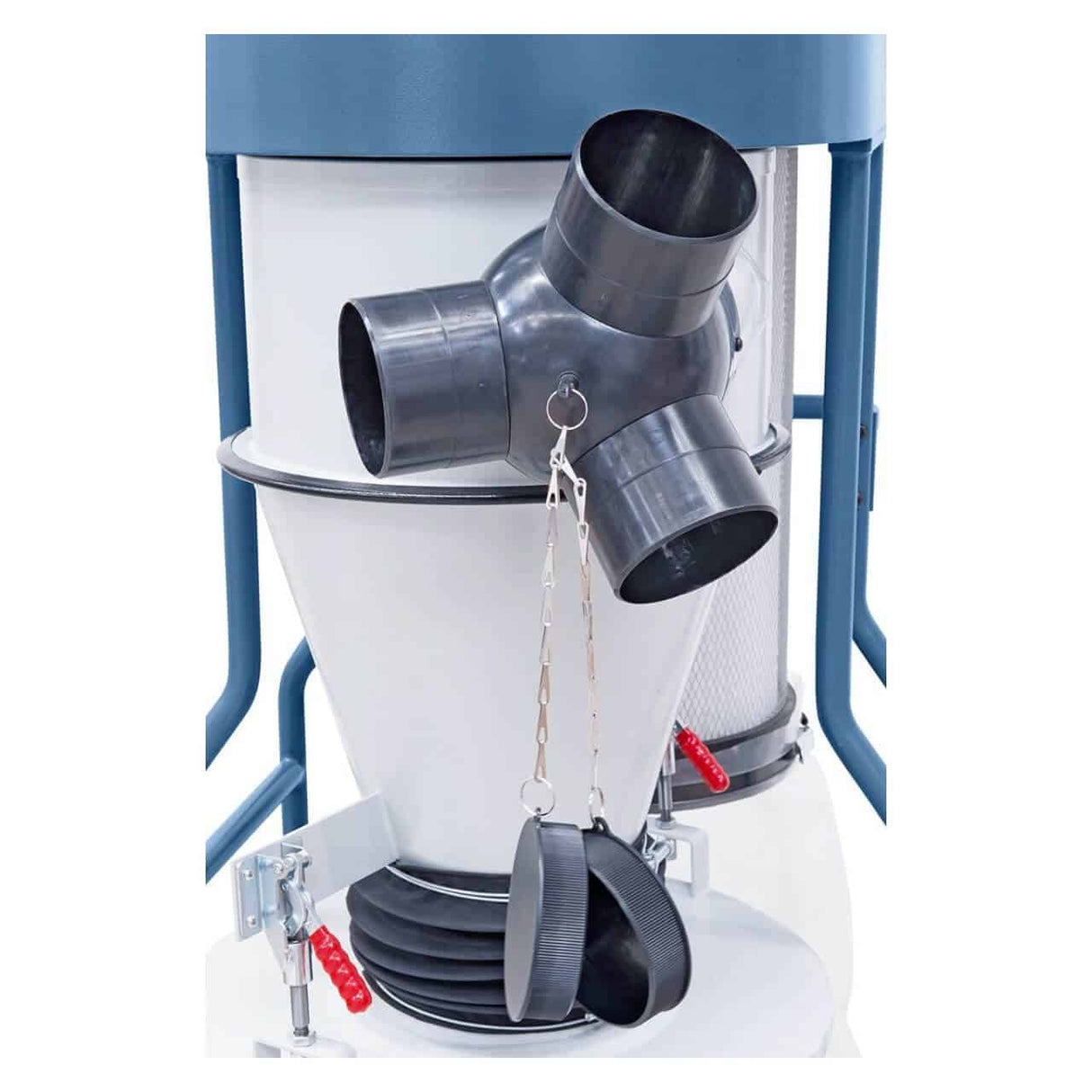

• Simultaneous connection of up to 3 machines via adapter
• Quiet and reliable operation on a mobile trolley
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
RLA 2000 |
| Suction capacity |
1350 m³/h |
| Filter surface |
2.6 m² |
| Maximum depression |
2000 Pa |
| Inlet diameter |
1 × 150 mm / 3 × 100 mm |
| Collection bag size |
Ø 360 × 700 mm |
| Collection bag volume |
65 liters |
| Container volume |
95 liters |
| No-load speed |
2850 rpm |
| Noise level |
84 dB |
| Motor power (S1 100%) |
1.5 kW (2.0 HP) / 400 V |
| Motor power (S6 40%) |
2.1 kW (2.8 HP) / 400 V |
| Dimensions (L × W × H) |
1120 × 650 × 1740 mm |
| Weight |
85 kg |
Package contents:
• Bernardo RLA 2000 cyclone dust collector
• Polyester cartridge filter
• Remote control for remote on/off
• Adjustable timer
• 65-liter collection bag
• Extendable 95-liter container
• Mobile trolley
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently asked questions
How does a cyclone dust collector work and why does it reduce maintenance?
The cyclone separator intercepts chips and coarse sawdust before they reach the main filter of the dust collector: air enters tangentially into a conical cylinder, the circular motion causes heavy particles to fall downwards into the tank, while clean air rises towards the dust collector. Result: the dust collector's filter clogs much slower — you empty the cyclone's tank instead of changing expensive filters.
What is the difference between FSG 1000, FSG 1100 and the RLA series?
FSG 1000 and FSG 1100: compact cyclone separators for dust collectors with 1.5–2.5 kW motor — benchtop or wheeled format. RLA 1500–3700: industrial cyclone separators for large volumes of chips, with a tank capacity of 150 to 370 liters — for centralized extraction systems in carpentry and metalworking workshops. The number indicates the tank capacity in liters.
Which Bernardo dust collector is it compatible with?
FSG and RLA separators are compatible with the Bernardo DC, RV, FT, and ASA dust collector range. Check the connection diameter (Ø 100, 120 or 150 mm) based on the dust collector model in use. Contact Krollit for the correct configuration. Customer support in Italian available.
Are spare parts available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Is assistance available?
Customer support in Italian available.
