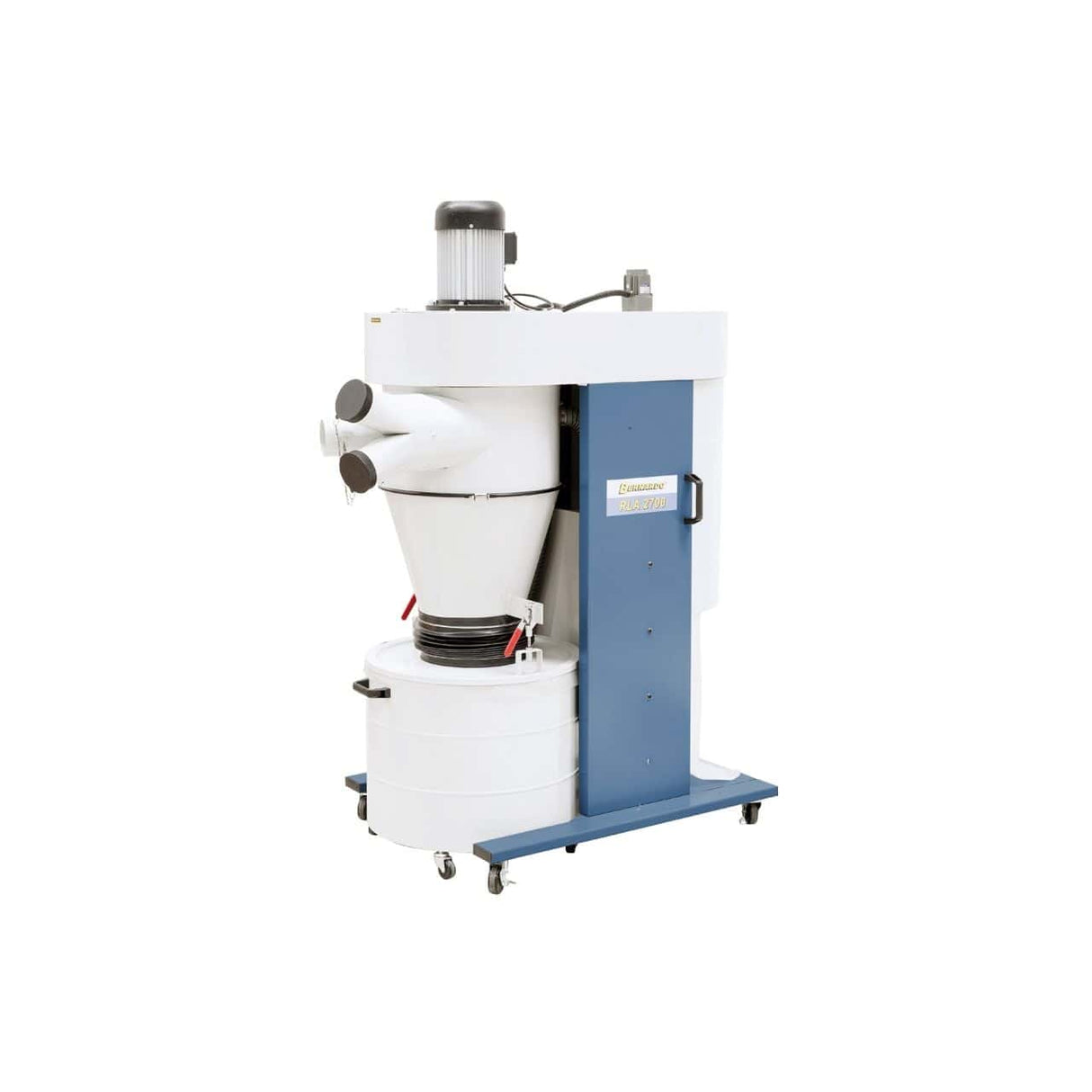

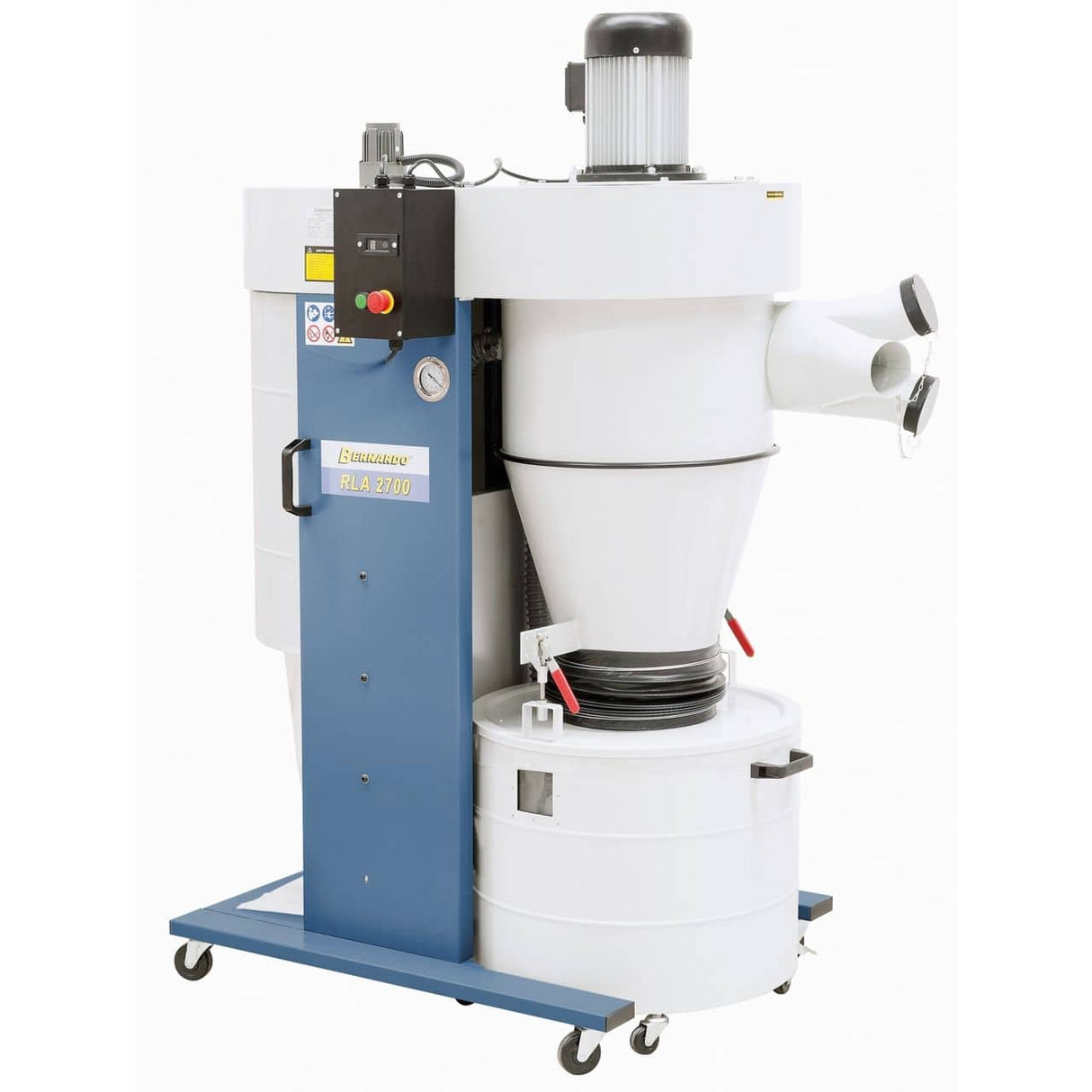

Bernardo RLA 2700 Cyclonic Extractor – 400 V
The Bernardo RLA 2700 cyclonic extractor is a high-performance professional machine suitable for small and medium-sized workshops and woodworking shops. Thanks to its mobile cyclonic system with an extraction capacity of up to 2700 m³/h and a maximum vacuum of 2800 Pa, it ensures constant airflow and high dust separation efficiency. The self-cleaning polyester cartridge filter (dust residue 0.1 mg/m³) ensures clean air and constant suction, while the integrated manometer allows easy monitoring of the minimum air volume. The 138-liter extendable container and the 190-liter bag ensure long working cycles, with quick and practical emptying. The machine is also equipped with a remote control, adjustable timer, and mobile trolley, for simple and safe use.
Main Specifications
• Mobile cyclonic extractor for small and medium-sized workshops
• Air flow up to 2700 m³/h and maximum vacuum of 2800 Pa

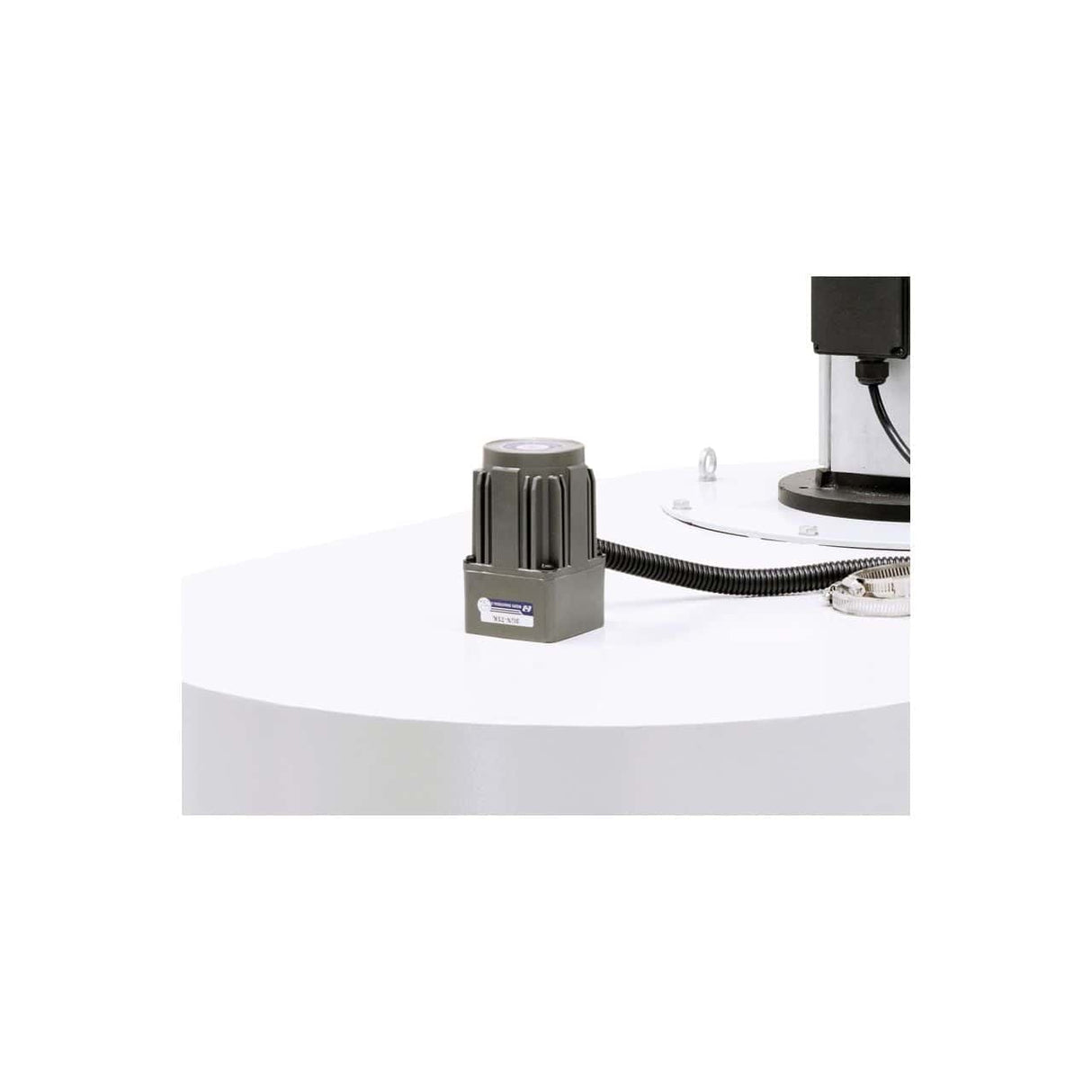

• Automatic filter cleaning system for consistent performance

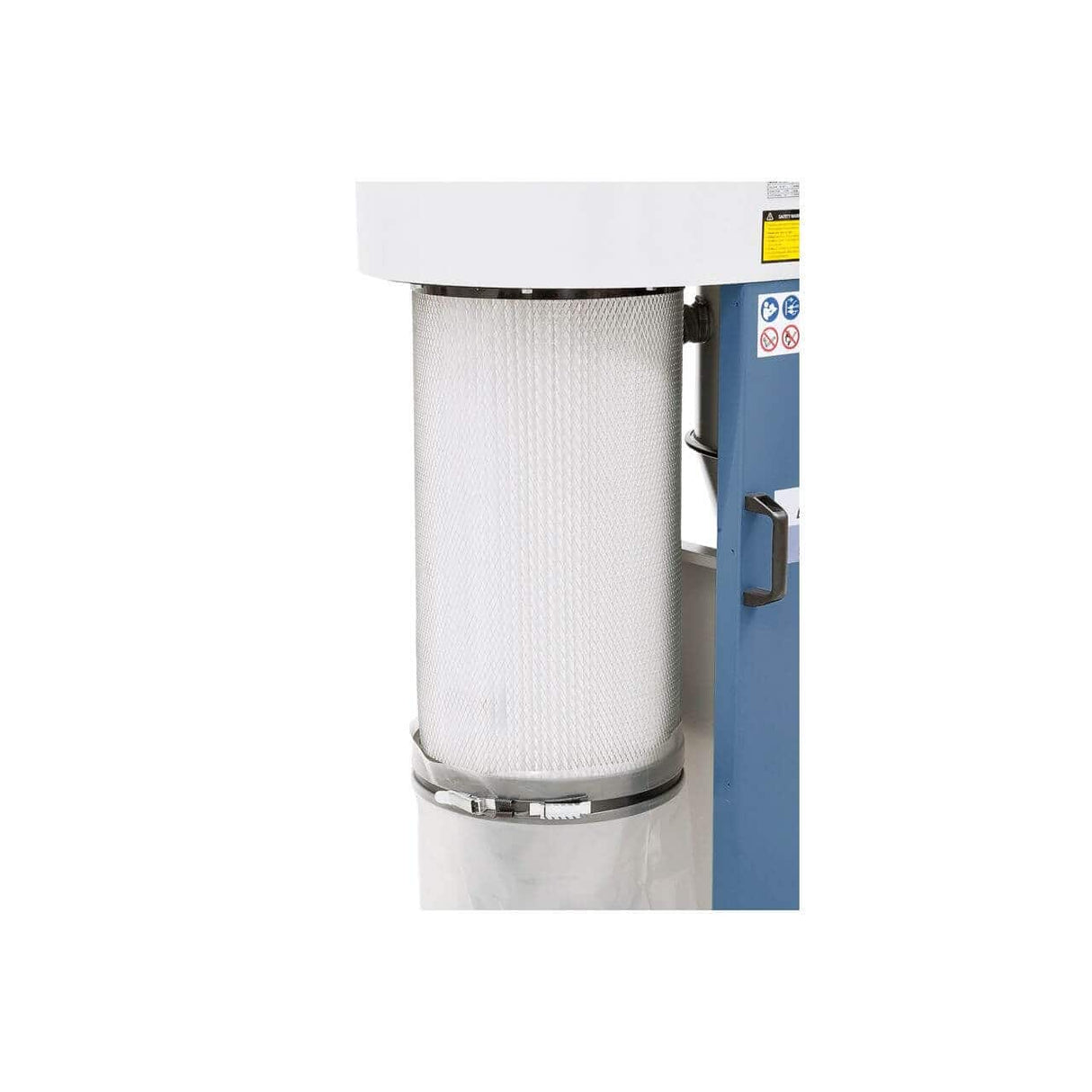

• Polyester cartridge filter with 0.1 mg/m³ dust residue
• Steel impeller resistant to suction of chips and small wood pieces

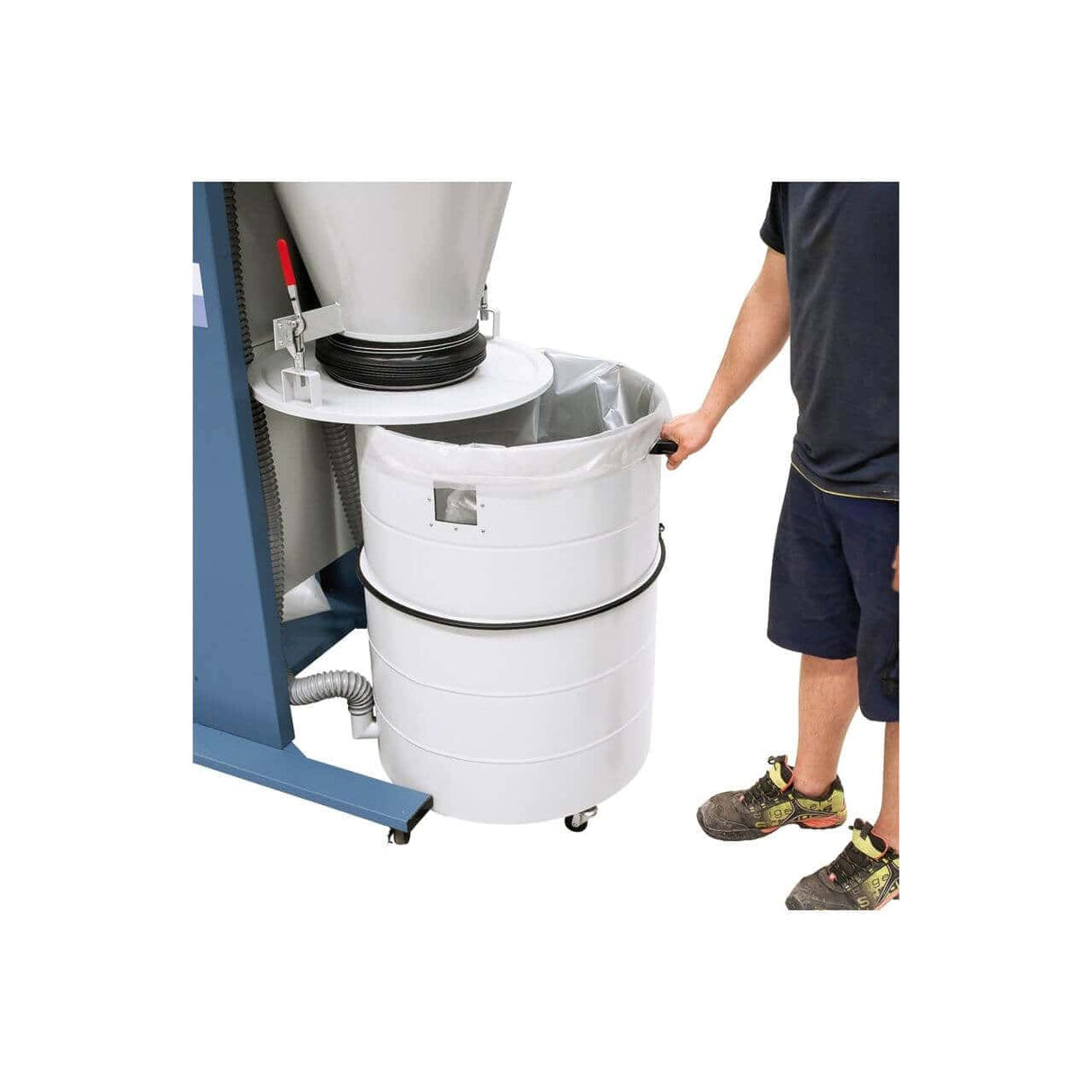

• 138-liter extendable container and 190-liter bag
• Integrated manometer for minimum flow control

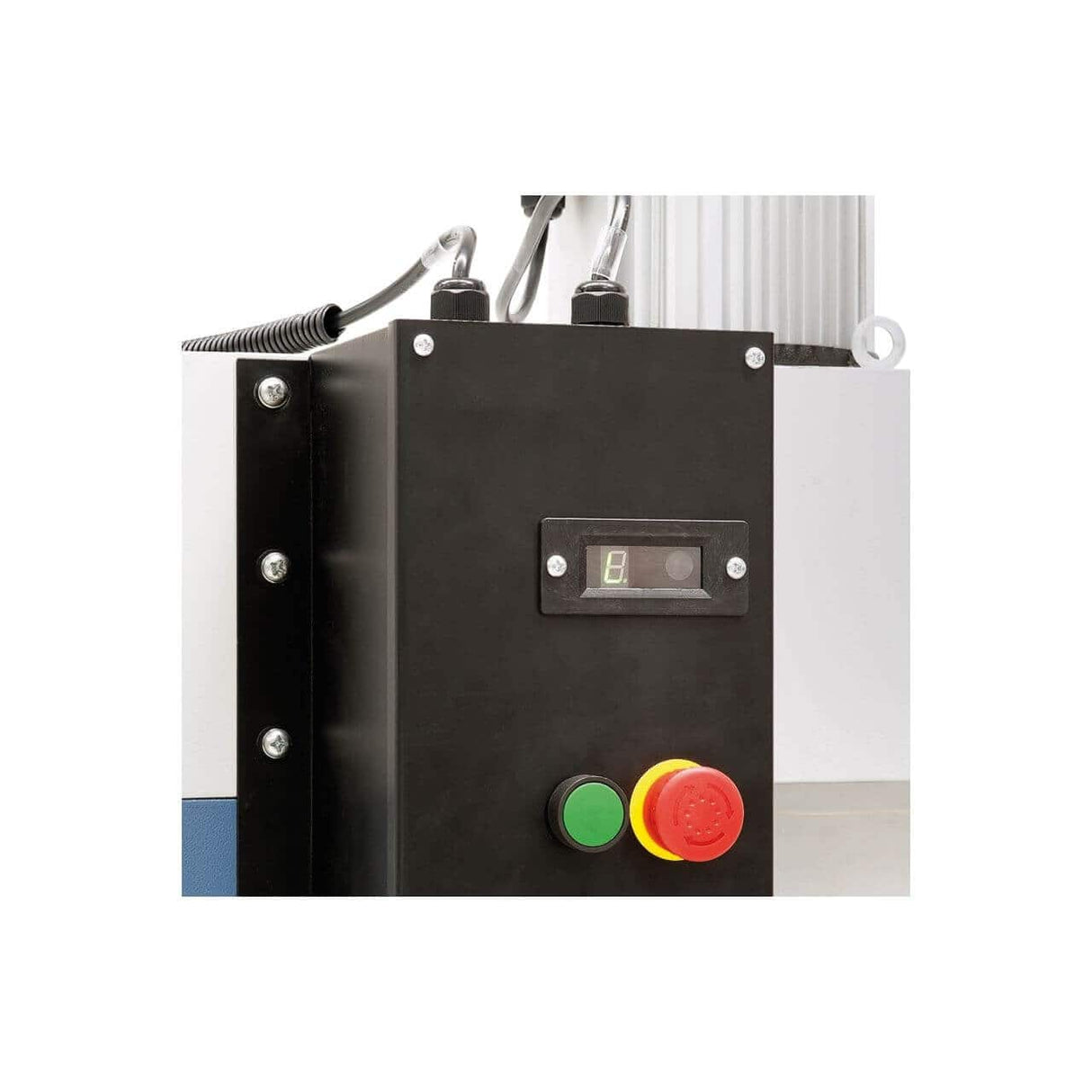

• Remote control and adjustable timer for automatic management
• Scratch-resistant powder-coated steel structure
• Quiet operation (74 dB) with integrated mobile trolley
Technical table:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
RLA 2700 |
| Suction capacity |
2700 m³/h |
| Filter surface |
2.84 m² |
| Maximum vacuum |
2800 Pa |
| Inlet diameter |

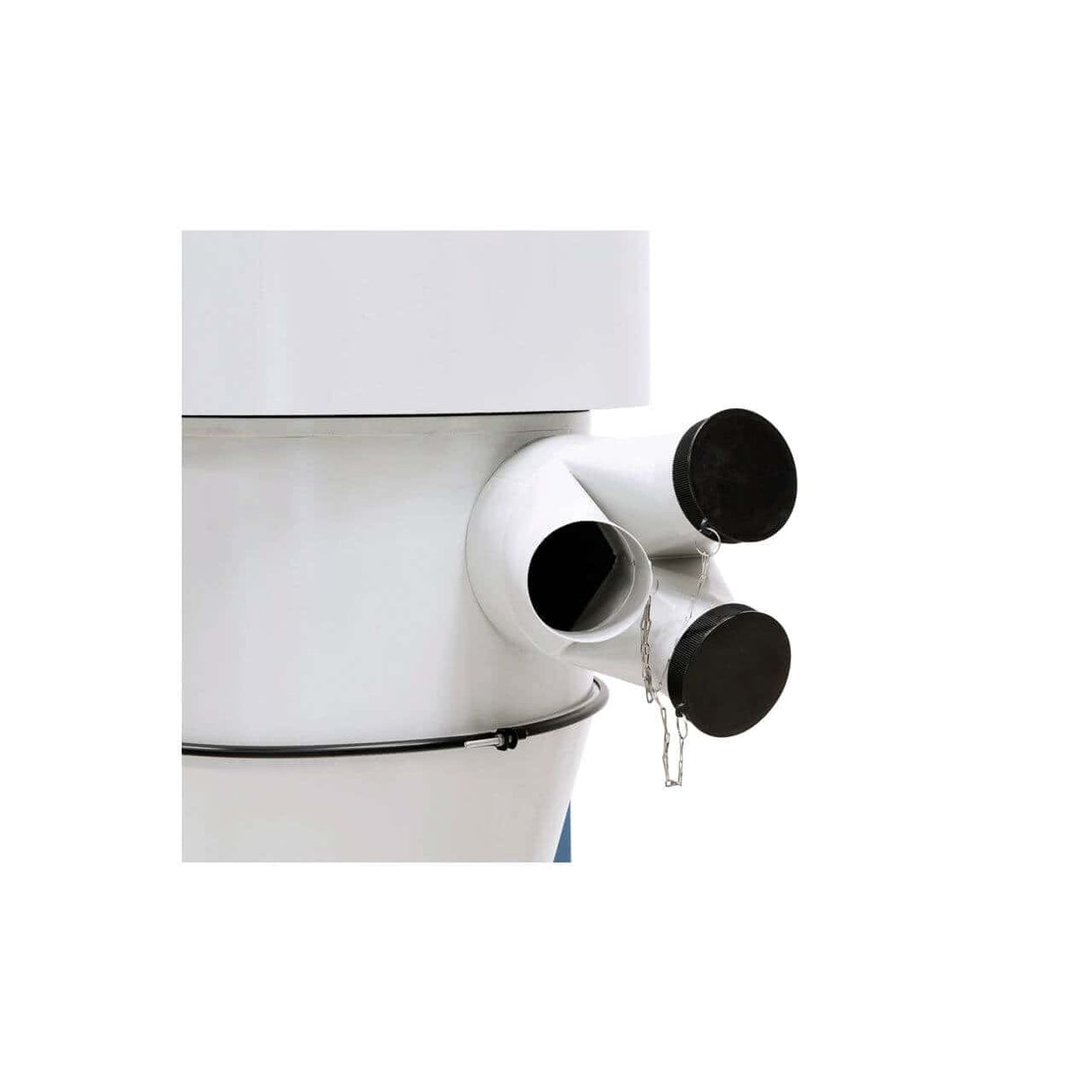

3 × 100 mm |
| Collection bag size |
Ø 621 × 650 mm |
| Collection bag volume |
190 liters |
| Container volume |
138 liters |
| No-load speed |
2850 rpm |
| Sound level |
74 dB |

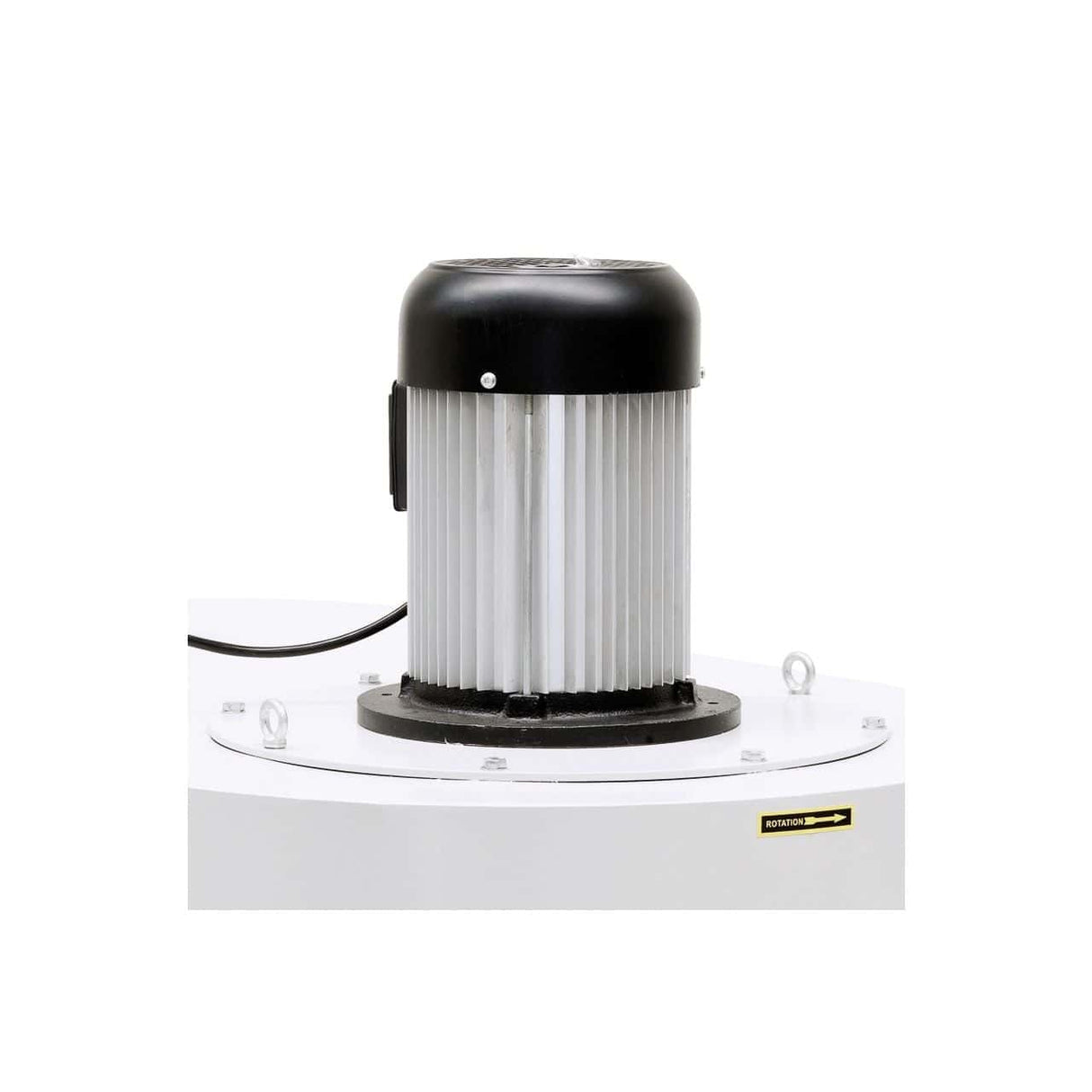

| Motor power (S1 100%) |
3.0 kW (4.0 HP) / 400 V |
| Motor power (S6 40%) |
4.2 kW (5.7 HP) / 400 V |
| Dimensions (L × W × H) |
1100 × 880 × 1800 mm |
| Weight |
150 kg |
Package contents:
• Bernardo RLA 2700 cyclonic extractor
• Self-cleaning polyester cartridge filter

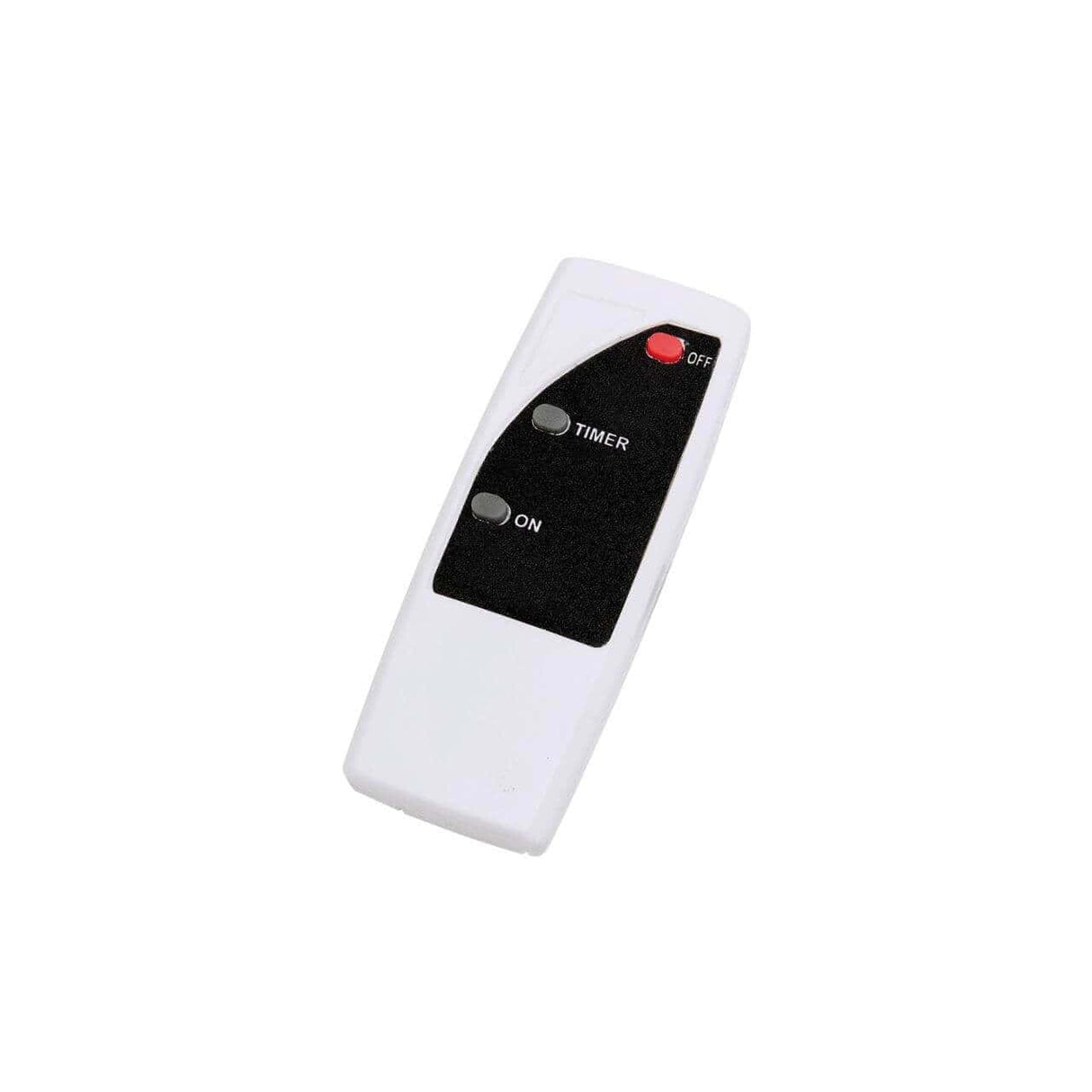

• Remote control for remote on/off
• Adjustable timer
• 190-liter collection bag
• 138-liter extendable container
• Mobile trolley
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business day shipping. Customer service in Italian available.
Frequently Asked Questions
How does a cyclonic extractor work and why does it reduce maintenance?
The cyclonic separator intercepts chips and coarse sawdust before they reach the main filter of the extractor: air enters tangentially into a conical cylinder, the circular motion causes heavy particles to fall downwards into the tank, while clean air rises towards the extractor. Result: the extractor filter clogs much more slowly — you empty the cyclonic tank instead of changing expensive filters.
What is the difference between FSG 1000, FSG 1100, and the RLA series?
FSG 1000 and FSG 1100: compact cyclonic separators for extractors with 1.5–2.5 kW motors — bench-mounted or on wheels. RLA 1500–3700: industrial cyclonic separators for large volumes of chips, with a tank capacity of 150 to 370 liters — for centralized extraction systems in woodworking shops and metal workshops. The number indicates the tank capacity in liters.
Which Bernardo extractor is it compatible with?
The FSG and RLA separators are compatible with the Bernardo DC, RV, FT, and ASA extractor range. Check the connection diameter (Ø 100, 120, or 150 mm) according to the extractor model in use. Contact Krollit for correct configuration. Customer service in Italian available.
Spare parts available?
Original spare parts available with 3–5 business day shipping. Customer service in Italian available.
Assistance available?
Customer service in Italian available.
