Bernardo KSE 200 Combined Grinder

Bernardo KSE 200 Combined Grinder – Grinding Wheel and Brush 200 mm

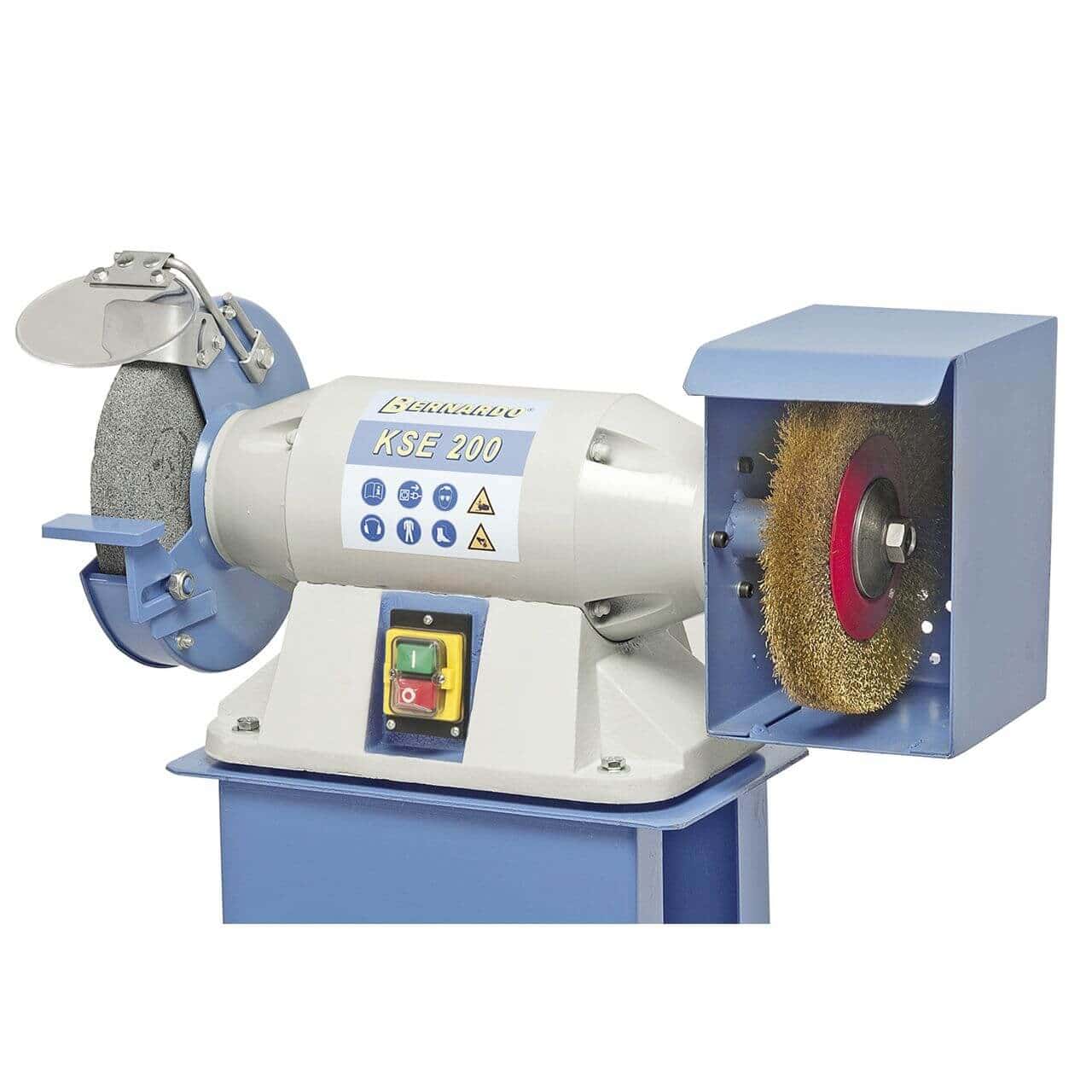

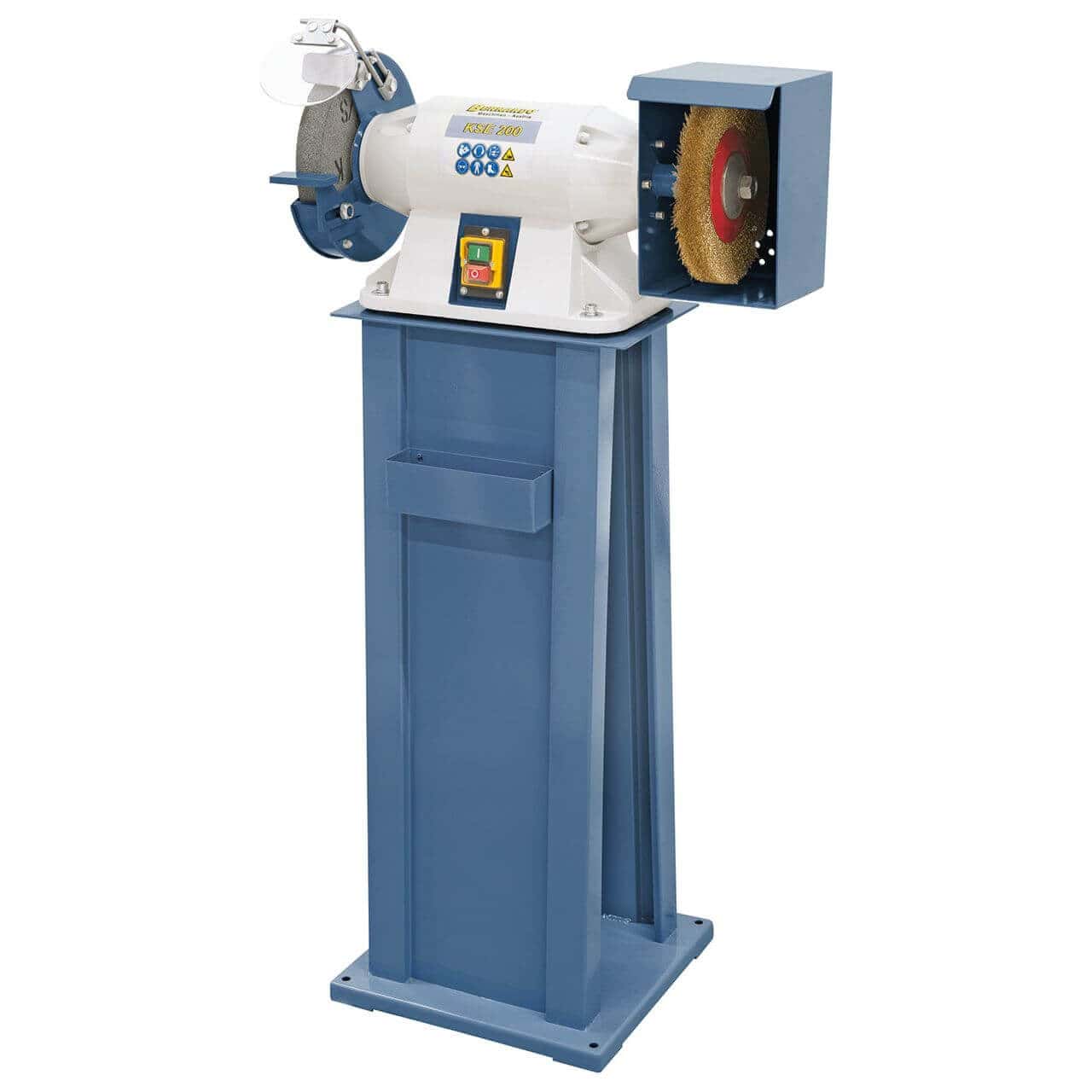

The Bernardo KSE 200 is a robust and versatile combined grinder, ideal for workshops and craft laboratories. Equipped with a Ø200 mm grinding wheel (grit K36) and a Ø200 mm round wire brush, it allows for sharpening, deburring, cleaning, and rust removal on various materials. The spark guards and adjustable workpiece support ensure safety and stability during processing. With a rotation speed of 2850 rpm and a 0.90 kW (S1) / 1.25 kW (S6) – 230 V motor, it ensures reliable performance even during continuous use. Compact and stable (570 × 270 × 300 mm, weight 26 kg), it is perfect as a multifunctional bench machine for professionals and advanced hobbyists.

---

Main features:
Grinding wheel Ø200 × 32 mm – grit K36
Wire brush Ø200 × 20 mm
Adjustable spark guard
Integrated workpiece support
Speed: 2850 rpm
Motor 0.90 kW (S1) / 1.25 kW (S6) – 230 V
Compact structure: 570 × 270 × 300 mm
Weight: 26 kg

---

---

Logistics

Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.

Technical specifications

Specification	Value
Brand	Bernardo
Model	KSE 200
Grinding wheel	Ø200 × 32 mm – grit K36
Grinding wheel bore	32 mm
Wire brush	Ø200 × 20 mm
Speed	2850 rpm
Motor power S1 (100%)	0.90 kW
Motor power S6 (40%)	1.25 kW
Voltage	230 V / 400V
Machine dimensions (L × W × H)	570 × 270 × 300 mm
Weight	approx. 26 kg

Standard equipment

Bernardo KSE 200 combined grinder
Grinding wheel Ø200 mm grit K36
Wire brush Ø200 mm
Spark guard
Workpiece support

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What does the Bernardo K Combined Grinder combine?

Bernardo combined grinders (KSA, MS series) integrate a belt grinder and a disc grinder into a single machine. The abrasive belt is suitable for roughing and shaping flat, curved surfaces and profiles. The abrasive disc is ideal for finishing flat surfaces and sharpening drills and tools. Two functions in one machine reduce the space occupied and the cost compared to two separate machines.

Can the work surface be tilted for bevels and angles?

Yes. The work surface of Bernardo combined grinders is angle-adjustable (typically 0°–45°) for processing bevels, chamfers, and angled surfaces. Check the maximum available angle in the technical table of the Bernardo K Combined Grinder.

Which abrasive belts are compatible?

Abrasive belts for Bernardo grinders are available in grits from 40 (roughing) to 240 (finishing) and in specific sizes for each model. Original Bernardo replacement abrasive belts and discs available with 3–5 business days shipping. Specify the model when ordering.

Is an external extractor needed?

Yes, highly recommended. Combined grinders produce fine abrasive dust. An extractor with a HEPA filter or equivalent is necessary for continuous professional use. Check the diameter of the extraction outlet with Krollit.

Are spare parts available?

Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
