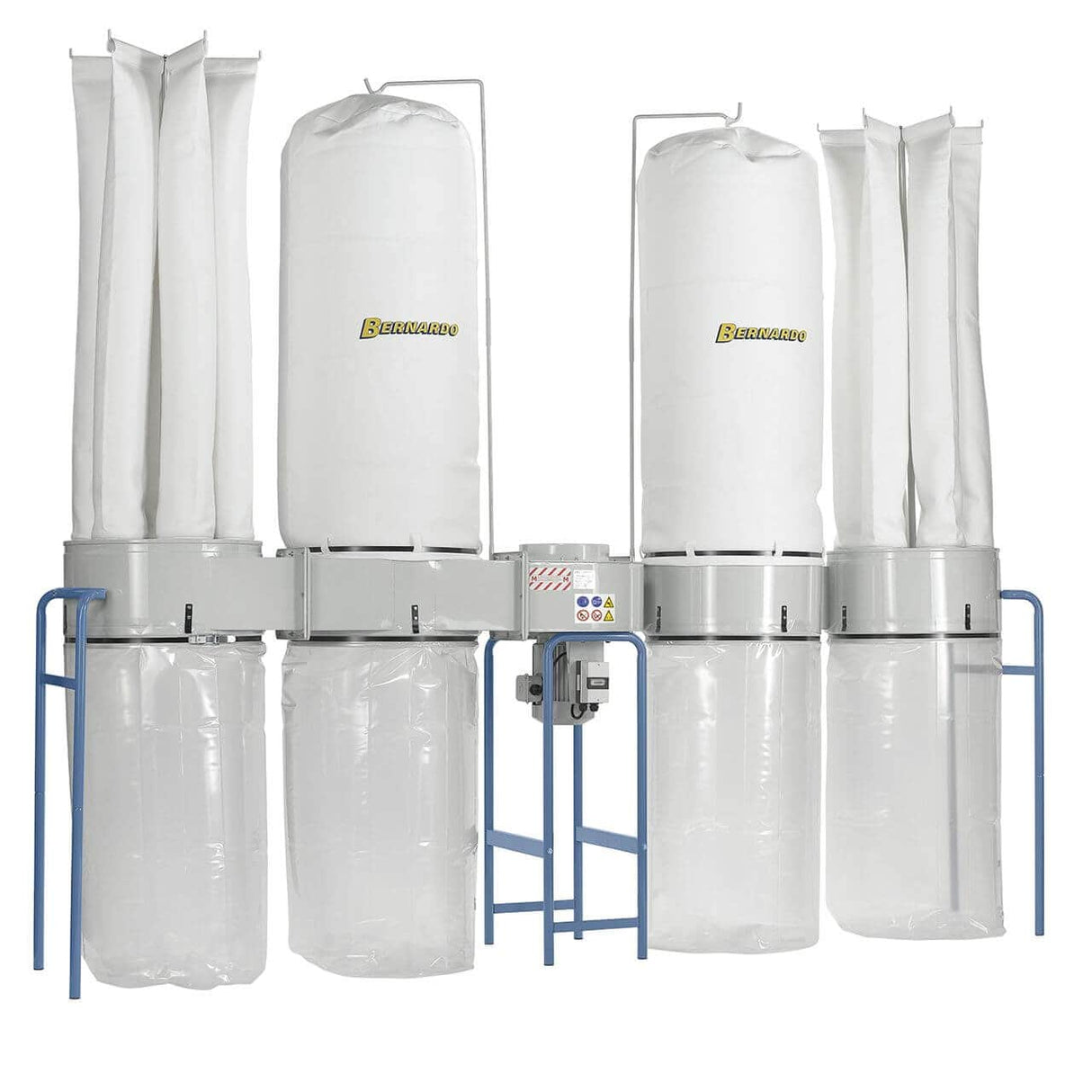

Bernardo FT 504 SF – Dust Collector 8900 m³/h, Bag Filter
The Bernardo FT 504 SF dust collector is a professional, high-performance solution for managing dust and chips in large woodworking shops and workshops. With a suction capacity of up to 8900 m³/h and a maximum vacuum pressure of 1900 Pa, it ensures powerful and consistent extraction even with machines that produce a high volume of waste. Equipped with a bag filter with a filtering surface area of 19 m² and chip collection bags with a capacity of 1130 liters, it guarantees long operational autonomy. The three-phase 3.75 kW (5.1 HP) continuous duty S1 and 5.25 kW (7.1 HP) S6 40% motor ensures robustness and efficiency. Quiet (82 dB), stable, and designed for intensive use, it is suitable for those seeking reliability and power in a single system.
Key Specifications
Bag filter with 19.0 m² filtering surface area
Chip bag capacity 1130 L
Suction power: 8900 m³/h
Maximum vacuum pressure: 1900 Pa
Extraction connection Ø 300 mm

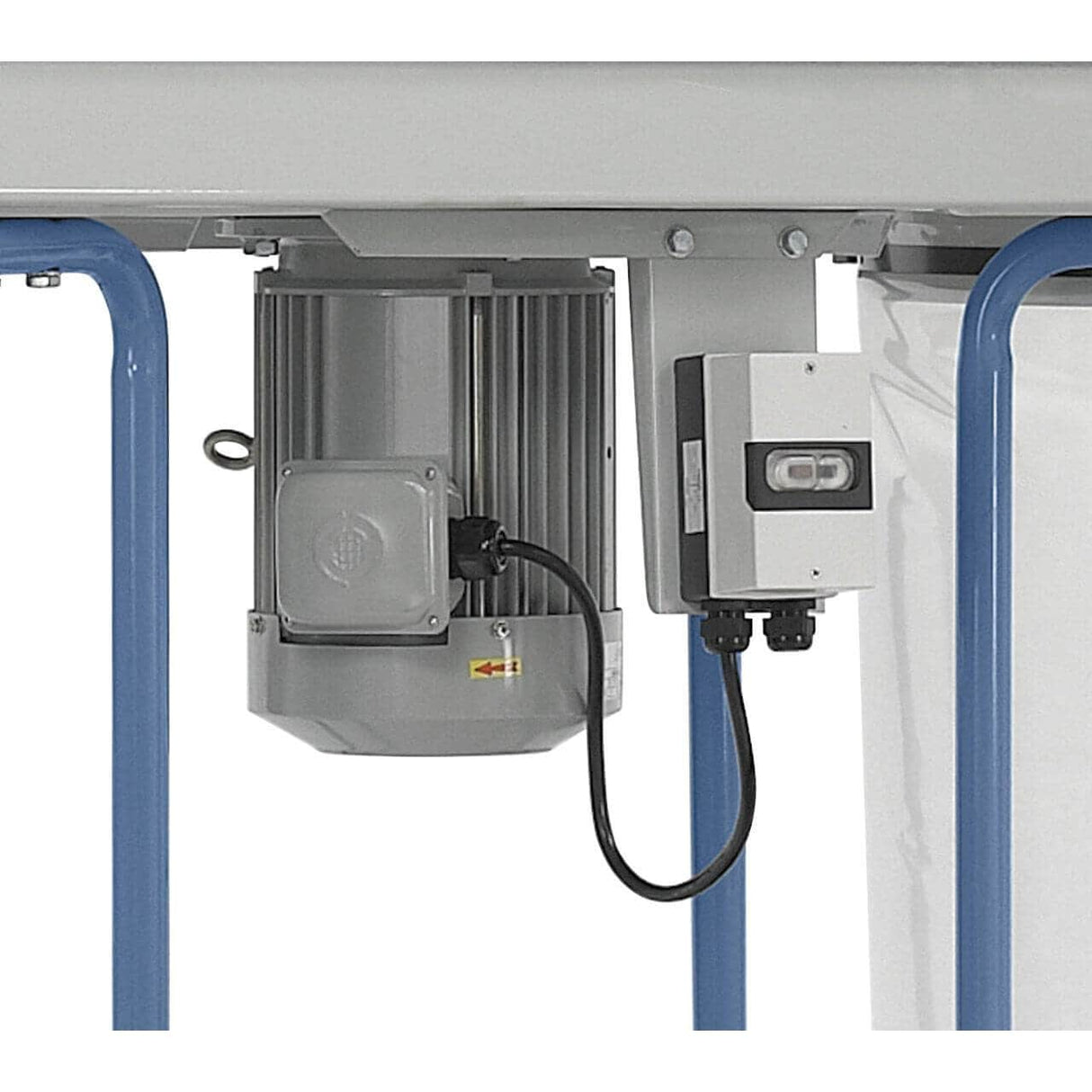

Three-phase motor 3.75 kW (S1) – 5.25 kW (S6 40%)
Low sound pressure: 82 dB
Robust construction for professional use
Dimensions: 2800 x 700 x 2700 mm
Weight: 105 kg
Technical data:
| Specification |
Value |
| Brand |
Bernardo |
| Model |
FT 504 SF |
| Airflow |
8900 m³/h |
| Filter surface |
19.0 m² |
| Max. vacuum pressure |
1900 Pa |
| Extraction connection |
Ø 300 mm |
| Chip bag capacity |
1130 liters |
| Min. rotation speed |
2850 rpm |
| Sound pressure |
82 dB |
| Motor input power (S1 100%) |
3.75 kW (5.1 HP) |
| Motor output power (S6 40%) |
5.25 kW (7.1 HP) |
| Voltage |
400 V / 50 Hz |
| Machine dimensions (L x W x H) |
2800 x 700 x 2700 mm |
| Weight |
105 kg |
Package contents:
Bernardo FT 504 SF dust collector

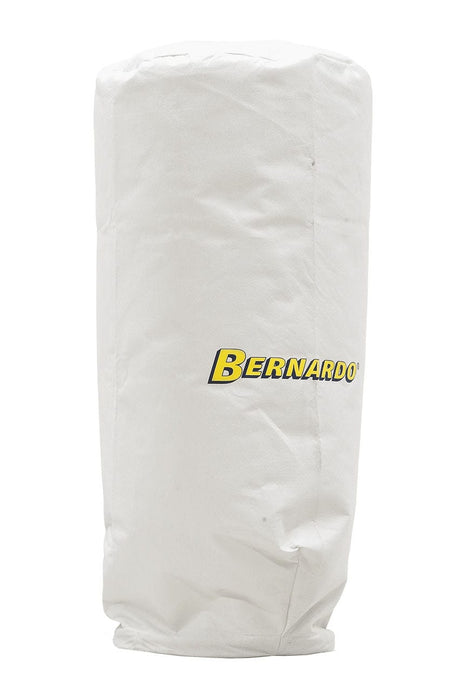

Chip collection bags (1130 L)

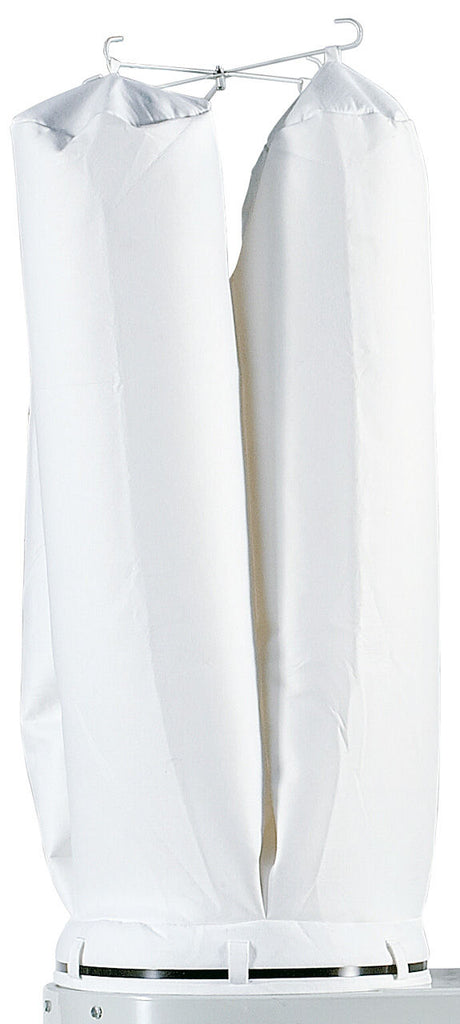

Bag filters (19 m²)
User manual
Logistics
Bernardo shipping: 5–9 business days (7 days to the South). Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
Frequently Asked Questions
The FT 502 SF / FT 504 SF system — what does SF mean and for what professional use is it certified?
SF stands for Sleeve Filter: a filtration system with cylindrical sleeves instead of traditional bags. The sleeves automatically shake via a pneumatic system to remove accumulated dust without stopping the machine — the filter remains clean during operation and the airflow remains constant. SF models are certified for Class M dust (IEC 60335-2-69) — mandatory for processing MDF, coated particleboard, and hardwoods in a professional environment.
Dust class M — which standards does it meet in Italy?
Class M (Medium hazard dust) corresponds to Machinery Directive 2006/42/EC and IEC 60335-2-69. In Italy, Legislative Decree 81/2008 (workplace safety) mandates the control of wood dust exposure — the maximum permissible concentration (OEL) is 2 mg/m³ for hardwood dust. A Class M certified system reduces fine dust (<5 μm) which is the most dangerous for health. For softwoods, Class L is sufficient; for hardwoods and MDF, Class M is necessary.
How should the system be sized relative to the machines?
The required airflow depends on the number and type of machines: circular saw 1,000–1,500 m³/h, planer 1,500–2,000 m³/h, sander 2,000–3,000 m³/h. The FT 504 SF with 8,900 m³/h can serve multiple machines simultaneously with adequate ducting. Coordinate with Krollit for correct sizing. Customer support in Italian available.
Spare parts and assistance available?
Original spare parts available with 3–5 business days shipping. Customer support in Italian available.
