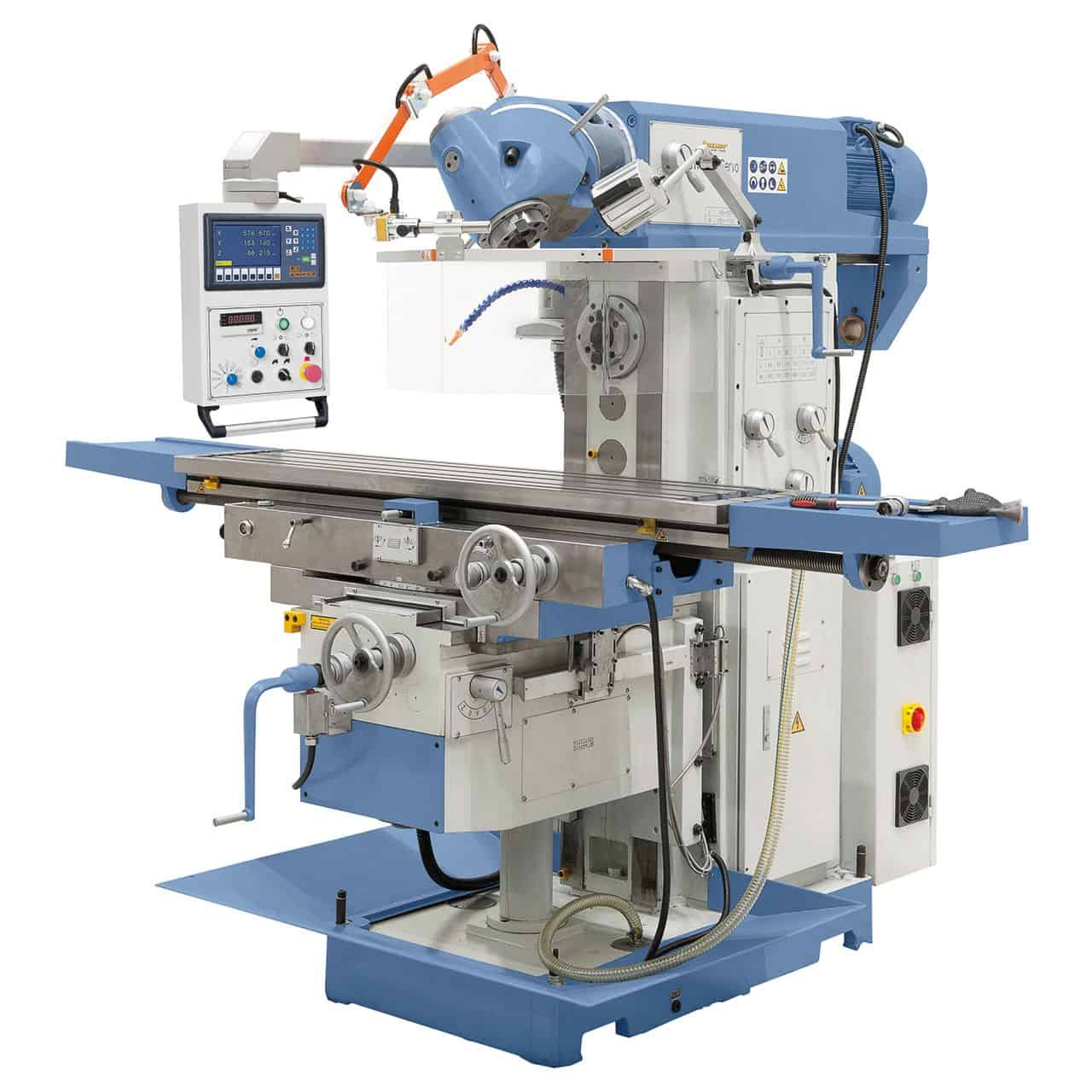

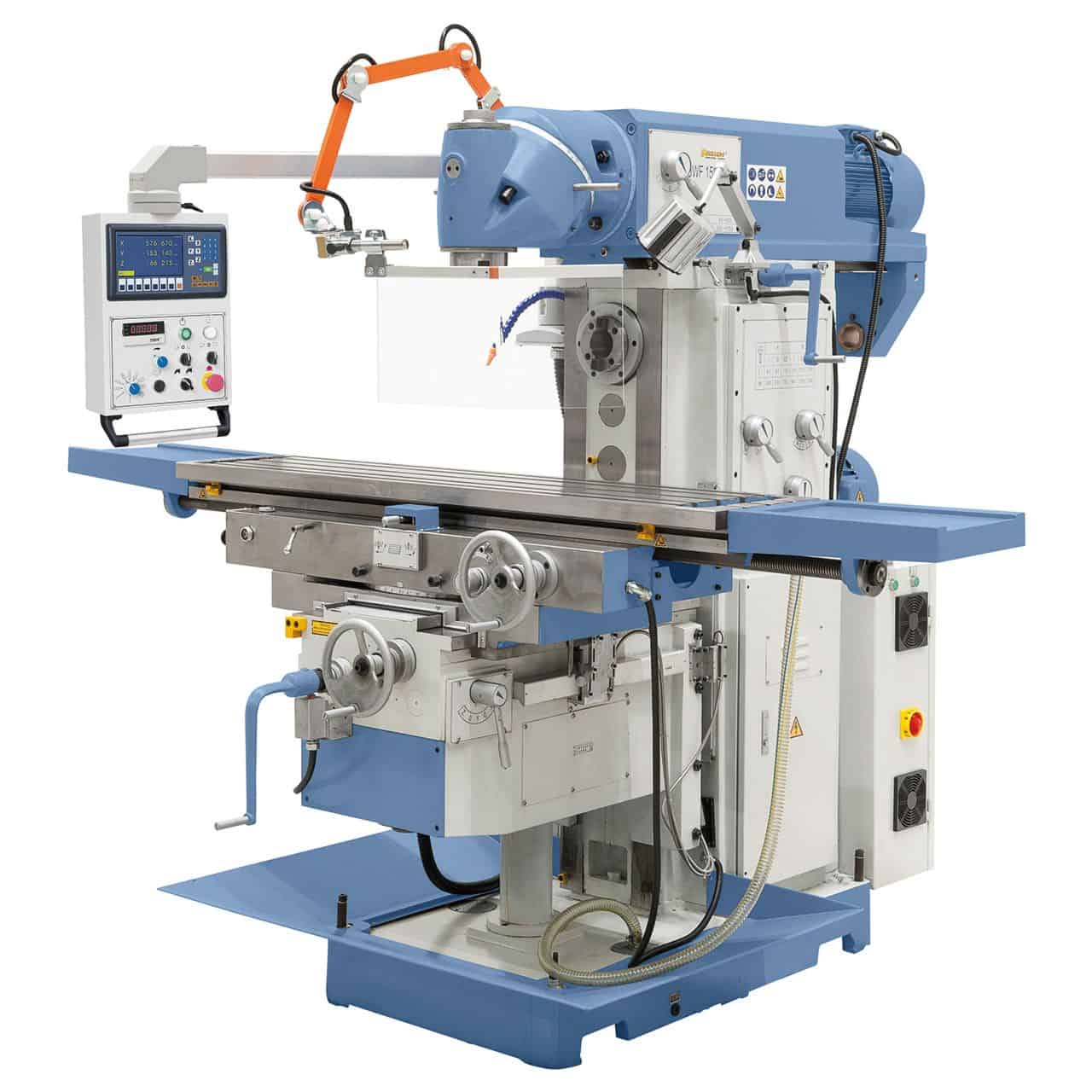

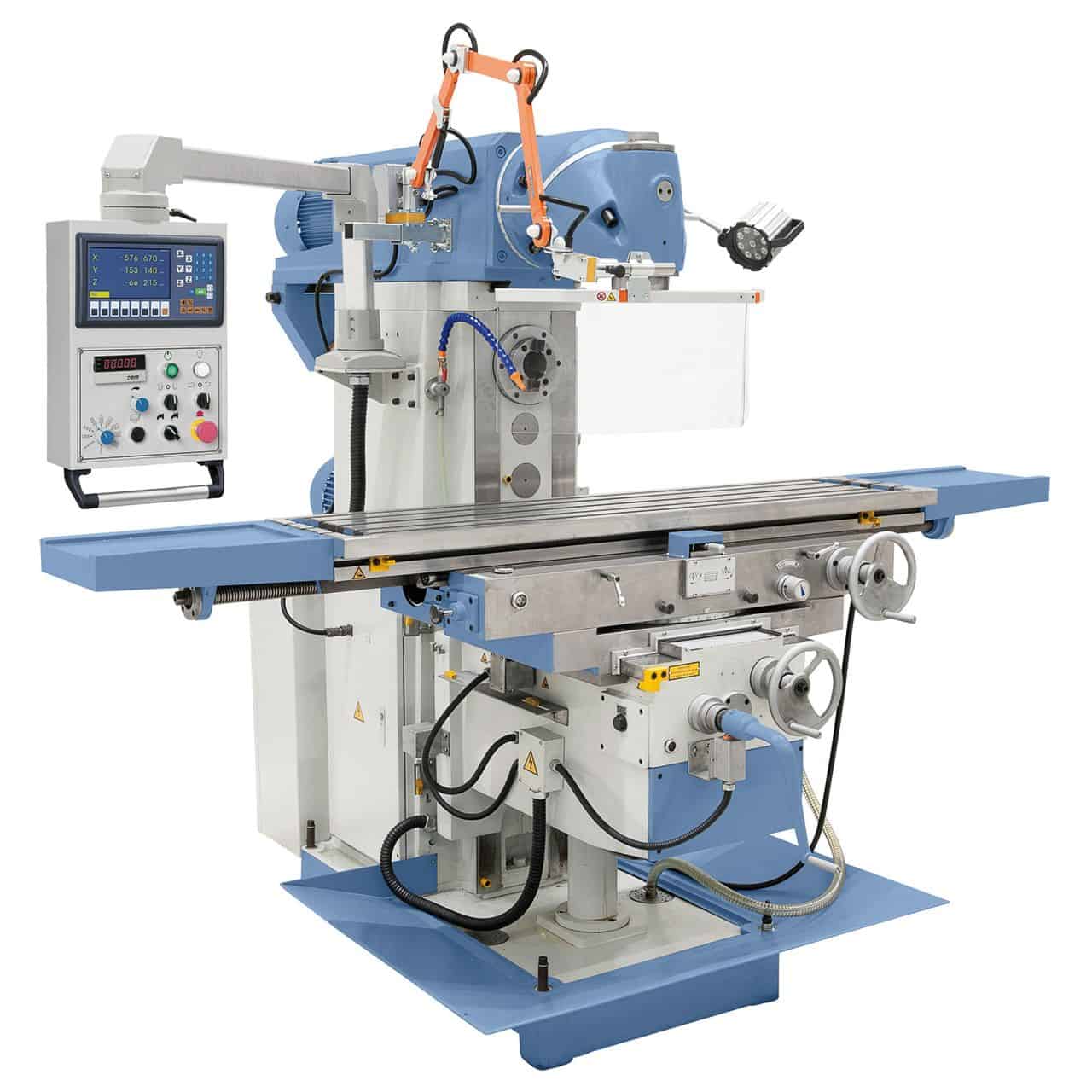

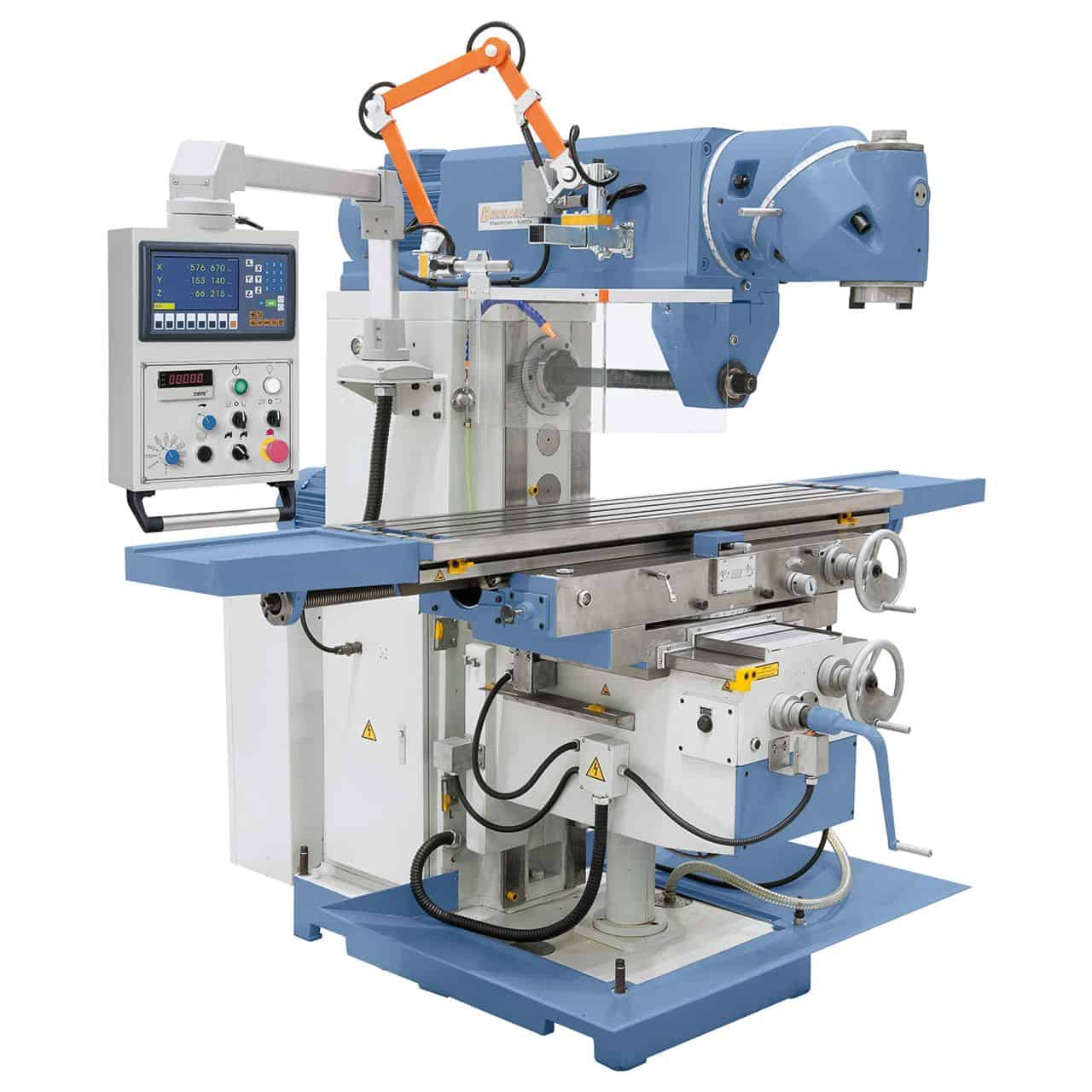

Bernardo Universal Milling Machine UWF 150 V Servo with 3-axis DRO

Bernardo UWF 150 V Servo Universal Milling Machine – Versatility and precision with Huron head and servomotors

The Bernardo UWF 150 V Servo universal milling machine is a robust and highly versatile machine, designed to meet the needs of workshops and mechanical companies. Thanks to the universal Huron type head, it can be adjusted at multiple angles, offering maximum flexibility for complex machining operations.

The vertical spindle speed adjustment is managed by a Siemens inverter, which ensures optimal torque and constant speed even under heavy loads. The hardened and ground guideways guarantee precision, while the servomotors with graduated and rapid feeds on the X, Y, and Z axes minimize downtime.

The 1600 x 360 mm table supports up to 300 kg, allowing for medium and large-sized machining. With centralized lubrication, integrated guards, ES-12 H digital display, and automatic feed on all axes, the UWF 150 V Servo is the suitable choice for professional quality universal milling.

---

Main Specifications

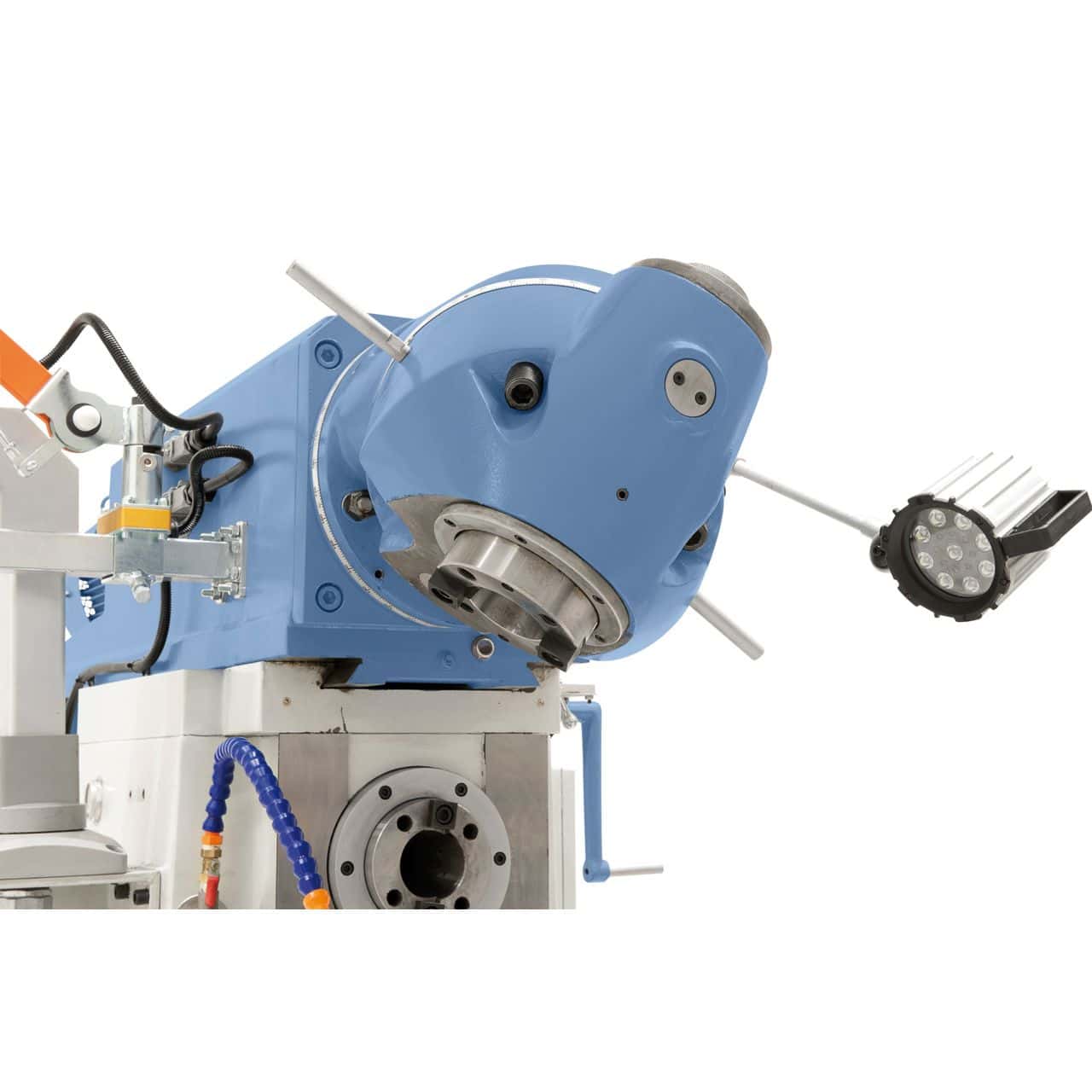

Huron universal head inclinable for complex angular machining
Continuous vertical spindle speed adjustment with Siemens inverter
Optimal torque and constant speed even under heavy loads
Graduated and rapid feeds on all axes via servomotors

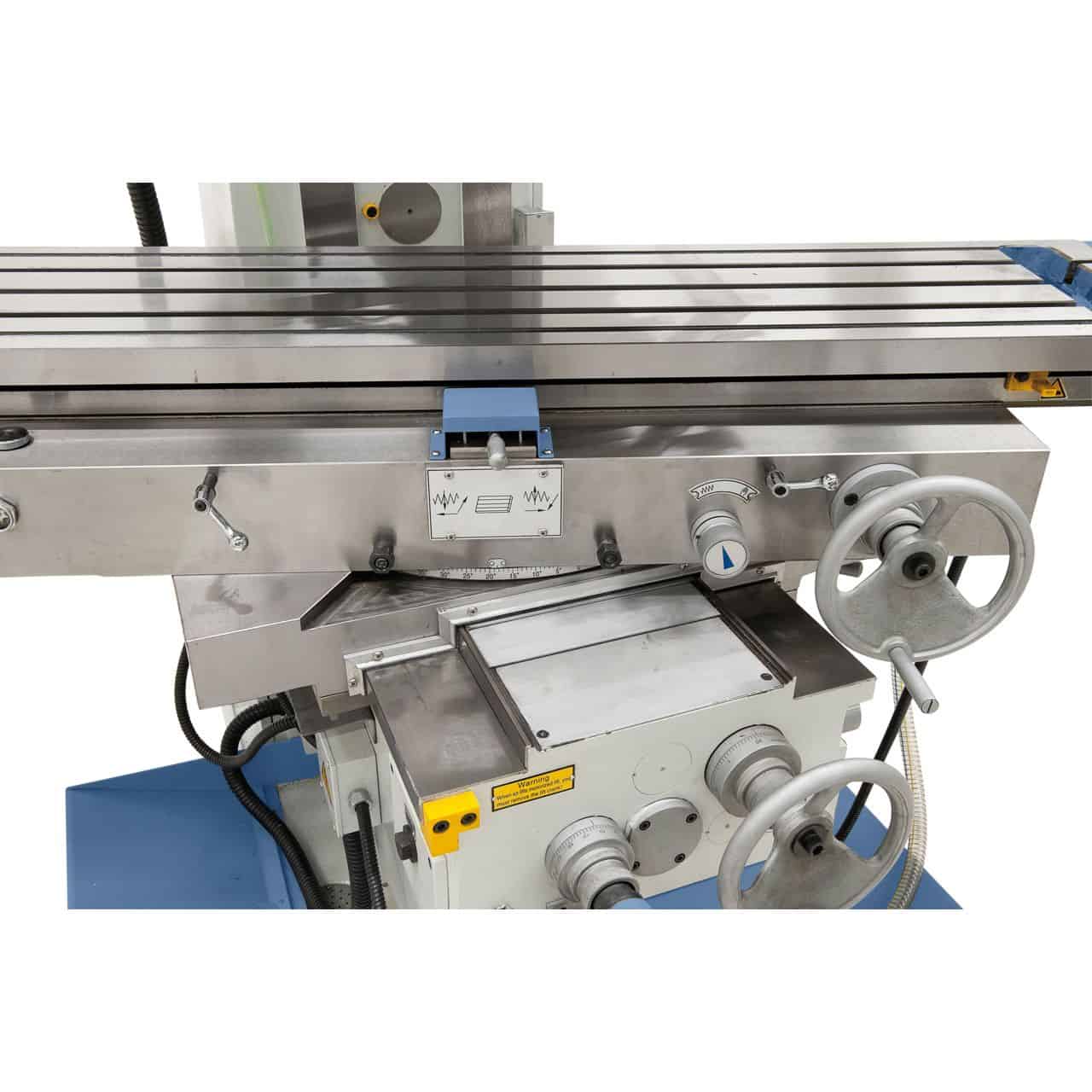

Work table 1600 x 360 mm with load capacity up to 300 kg
Hardened and ground guideways for high precision and durability

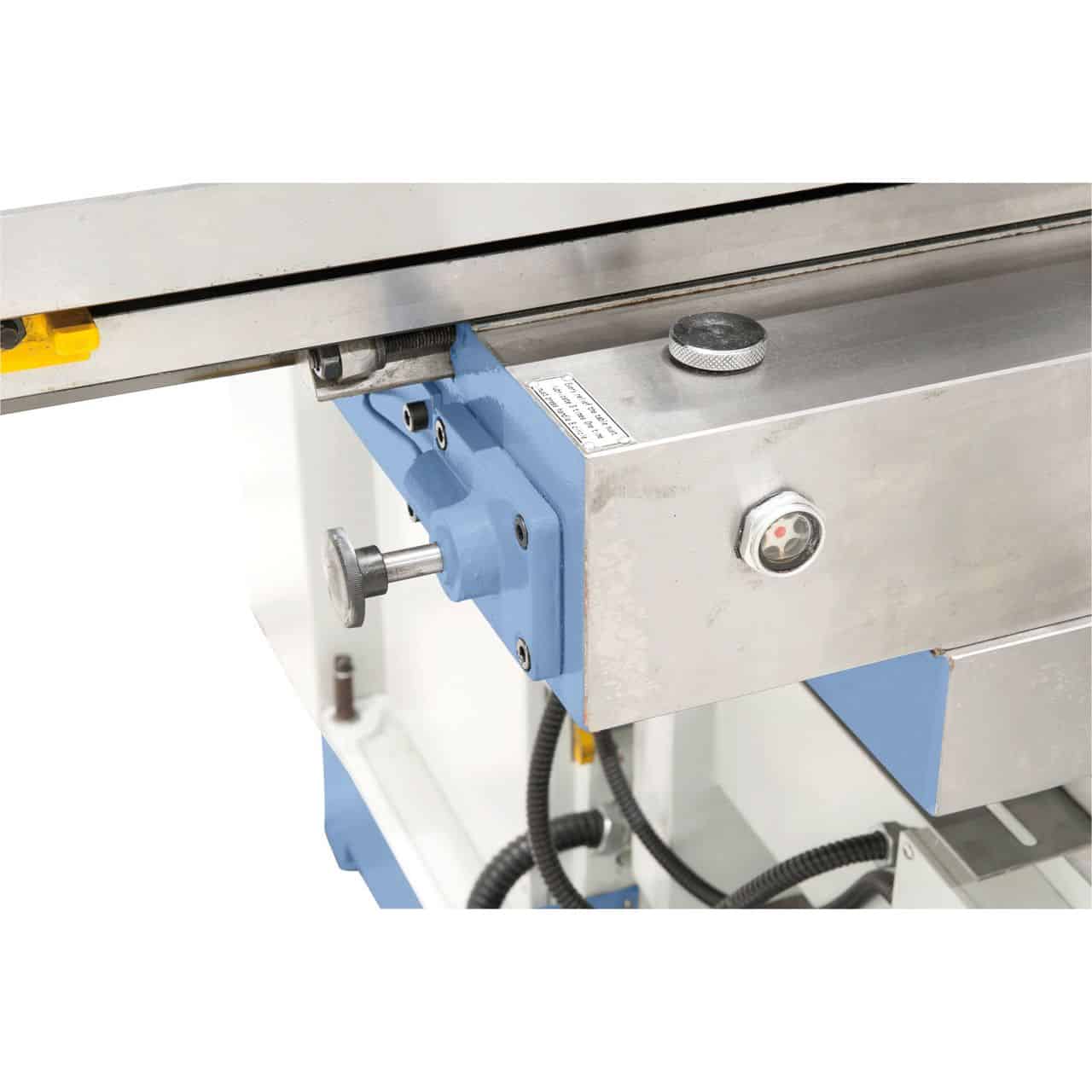

Centralized lubrication on X and Y axes as standard

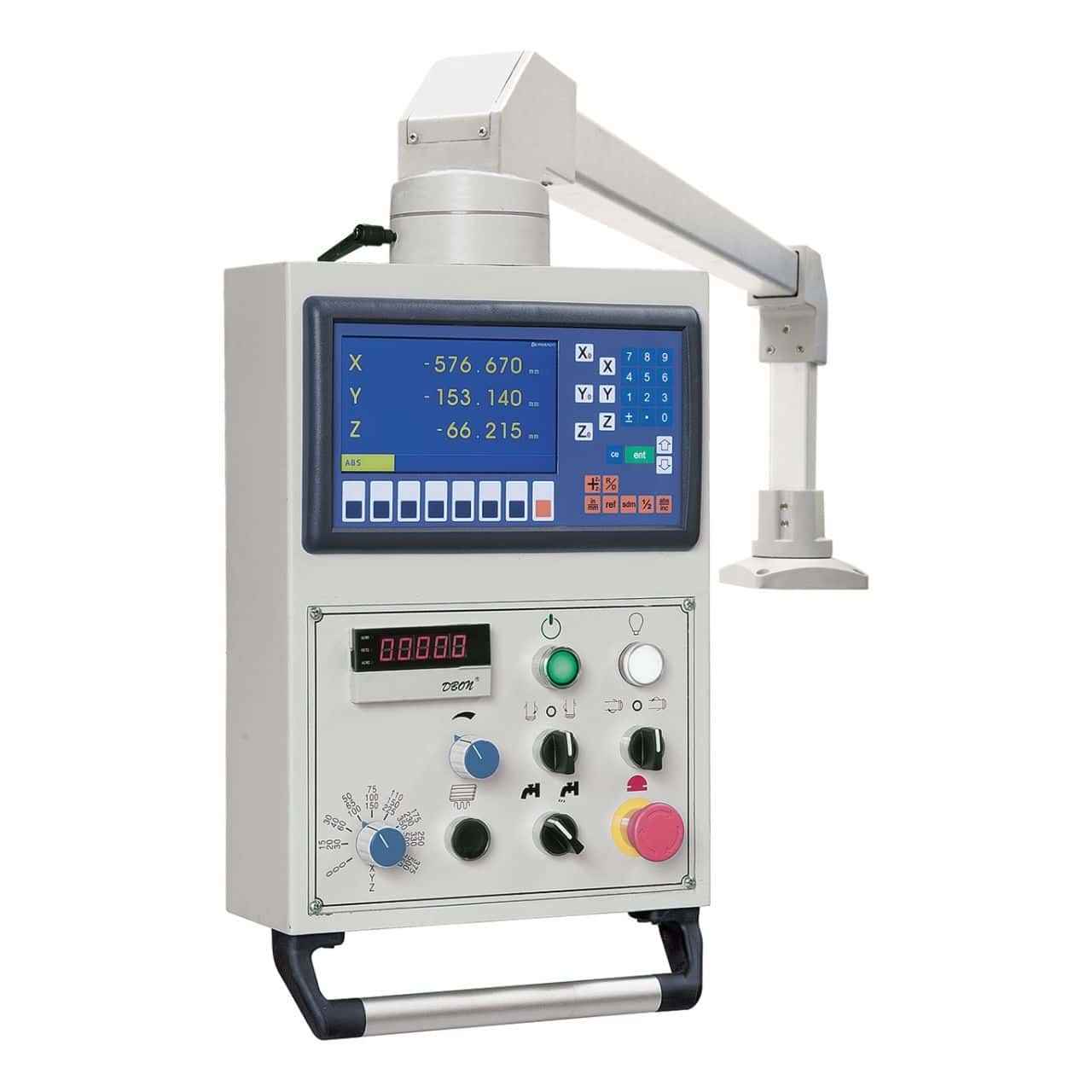

3-axis digital display ES-12 H with LCD screen

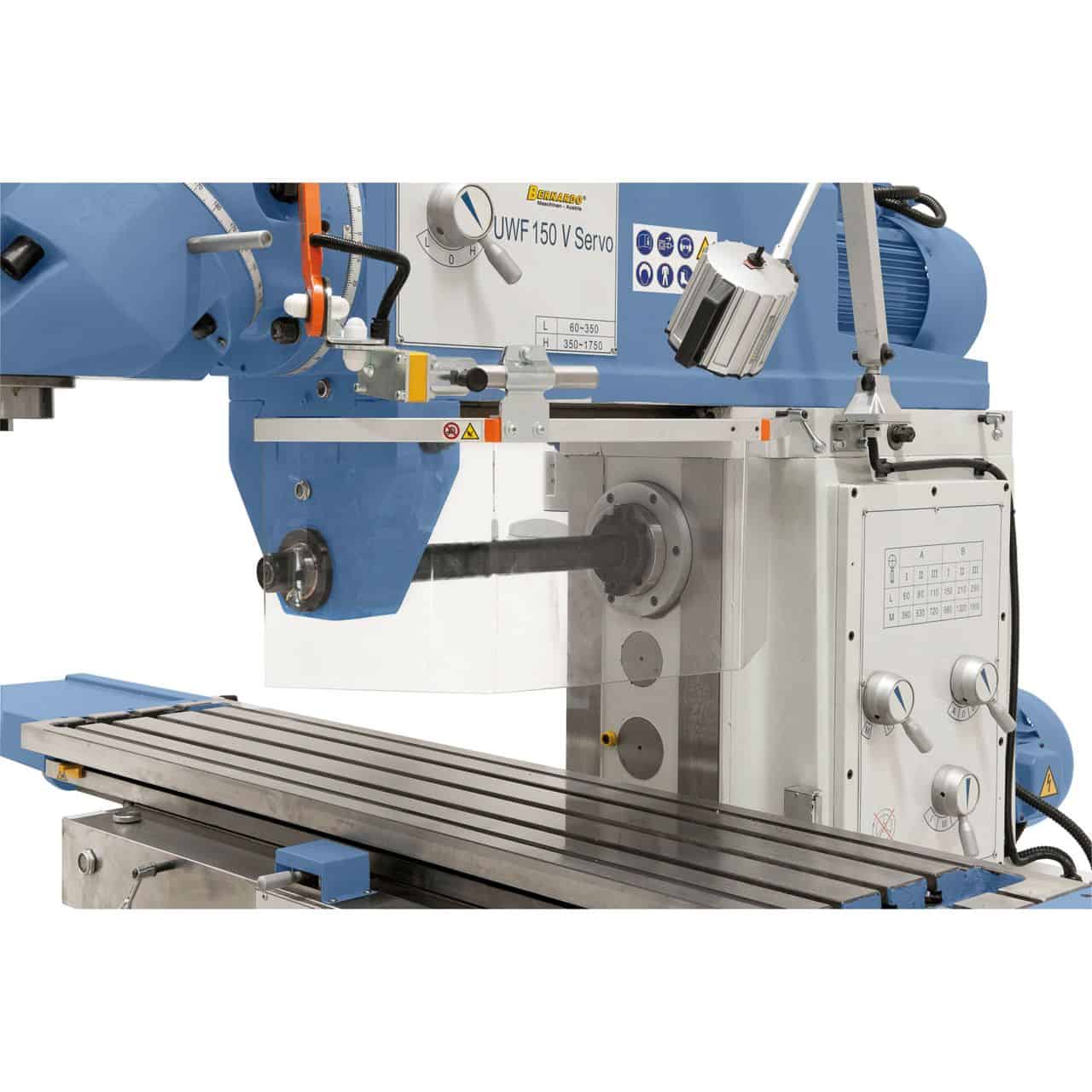

Wide range of speeds (horizontal 60–1800 rpm, vertical 60–1750 rpm)
Solid cast iron structure to eliminate vibrations and ensure stability
Cooling device and LED light included

---

Technical specifications

Specification	Value
Table dimensions	1600 x 360 mm
Horizontal spindle taper	ISO 50
Vertical spindle taper	ISO 50

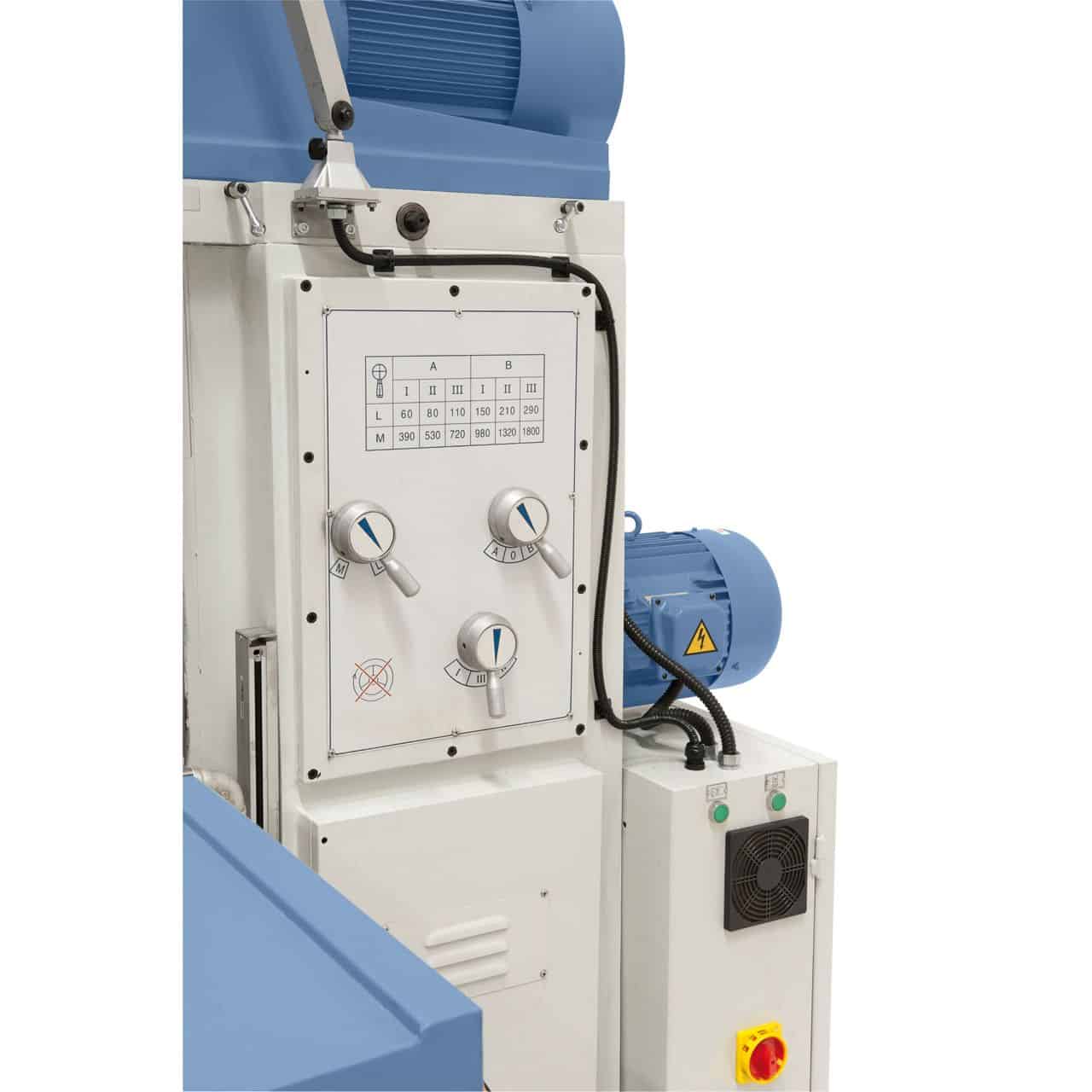

Horizontal spindle speed	(12) 60 – 1800 rpm
Vertical spindle speed	(2) 60 – 350 / 350 – 1750 rpm
Longitudinal travel (X)	1300 mm
Cross travel (Y)	300 mm
Vertical travel (Z)	400 mm
Distance spindle–horizontal table	15 – 415 mm
Distance spindle–vertical table	185 – 585 mm
Distance spindle–column	215 – 840 mm
Table inclination	-45° to +45°
Table load capacity	300 kg
Longitudinal feed	(8) 30 – 750 mm/min
Cross feed	(8) 20 – 500 mm/min
Vertical feed	(8) 15 – 375 mm/min
Rapid traverse X / Y / Z	1200 / 800 / 600 mm/min
T-slots (n° / width / pitch)	3 / 18 mm / 80 mm

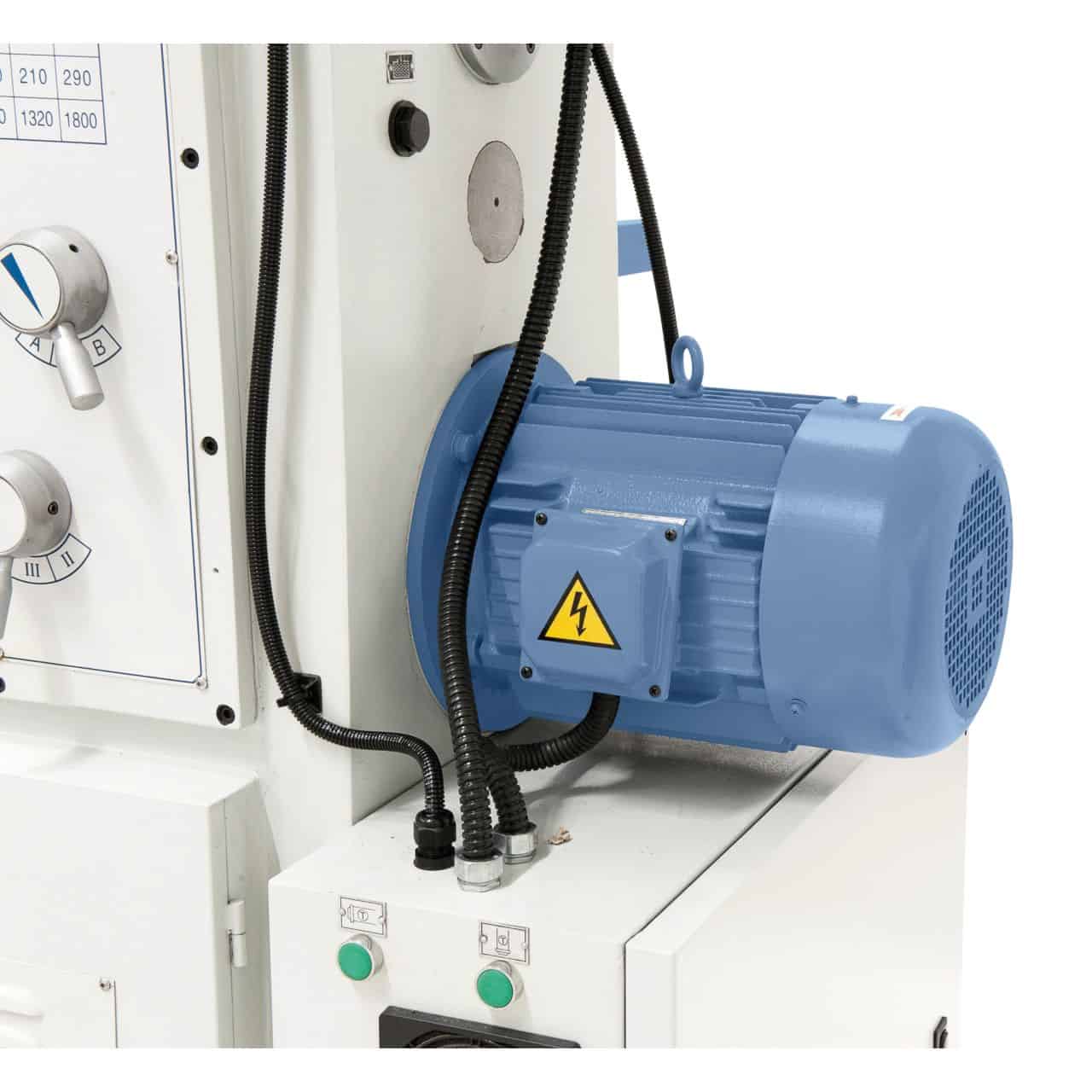

Main horizontal motor	5.5 kW
Main vertical motor	5.5 kW
Servomotor (Torque / Power)	10 Nm / 1.5 kW
Coolant pump	90 W – 25 l/min
Machine dimensions (L x W x H)	2530 x 2200 x 2300 mm
Weight	approx. 2695 kg

---

Standard equipment

3-axis digital display ES-12 H with LCD
Drawbar M24
LED work lamp
Coolant device and chip tray
Horizontal overarm

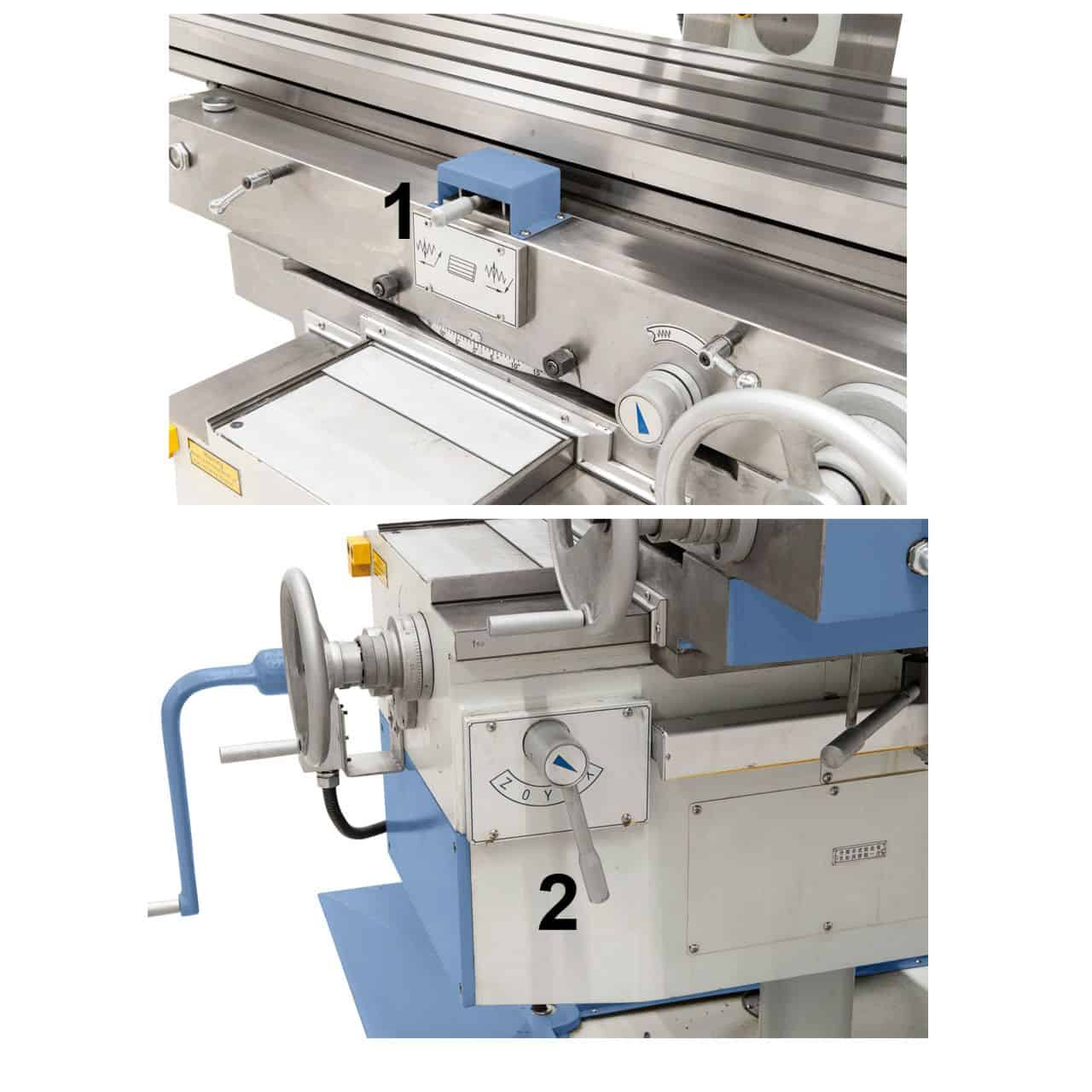

Automatic feed on X, Y, Z
Universal spindle guard
Long milling arbor ISO 50/27 mm and ISO 50/32 mm
Shank cutter holder ISO 50/32 mm
Morse taper sleeve ISO 50 / MT 4
Centralized lubrication for X and Y axes
Tool set

Logistics

Bernardo shipping: 5–9 business days (7 days in Southern Italy). Original spare parts available with 3–5 business day shipping. Customer support available in Italian.
