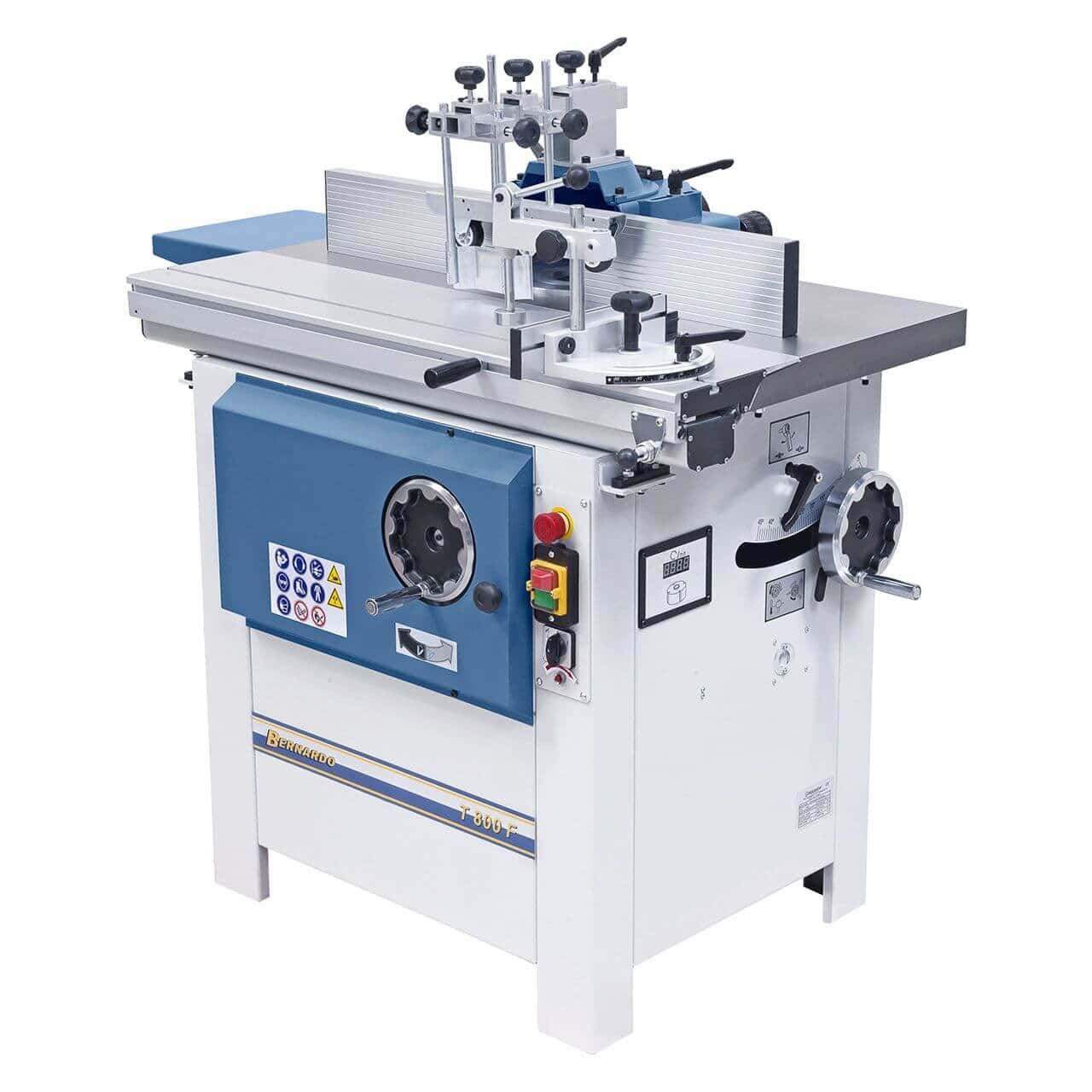

The Bernardo T 800 F – 230V spindle moulder offers a 1000 × 360 mm table, Ø 30 mm spindle, 1800 / 3000 / 6000 / 9000 rpm speed, 2.8 kW S1 / 3.9 kW S6 motor, 230V single-phase. Manufactured in Austria, distributed in Italy by Krollit as an official Bernardo distributor since 2007.
- Table size: 1000 × 360 mm
- Working height: 895 mm
- Spindle diameter: Ø 30 mm
- Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
- Spindle height adjustment: 100 mm
- Usable spindle length: 100 mm
- Max. tool Ø: 200 mm
- Spindle tilt: from +5° to −45°

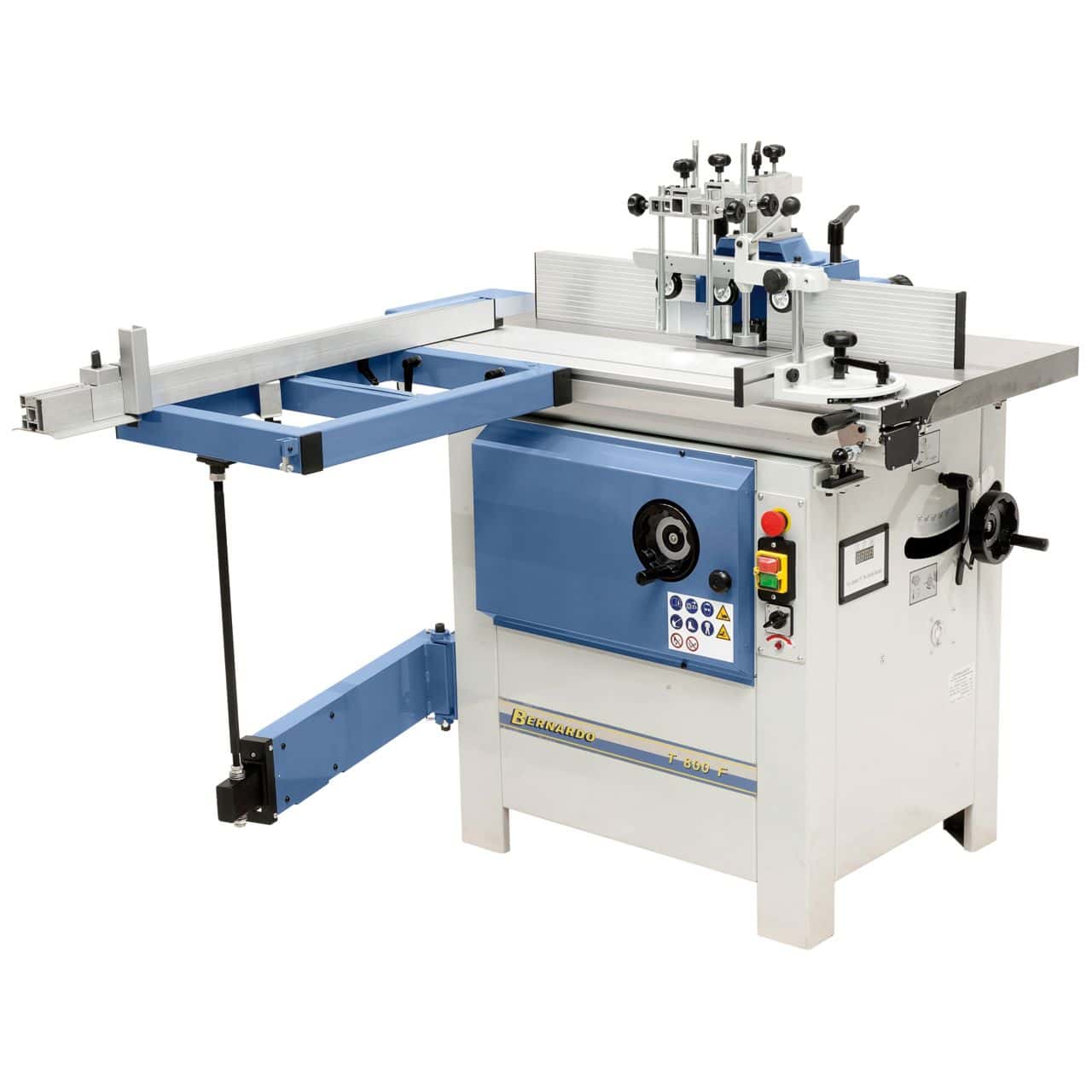

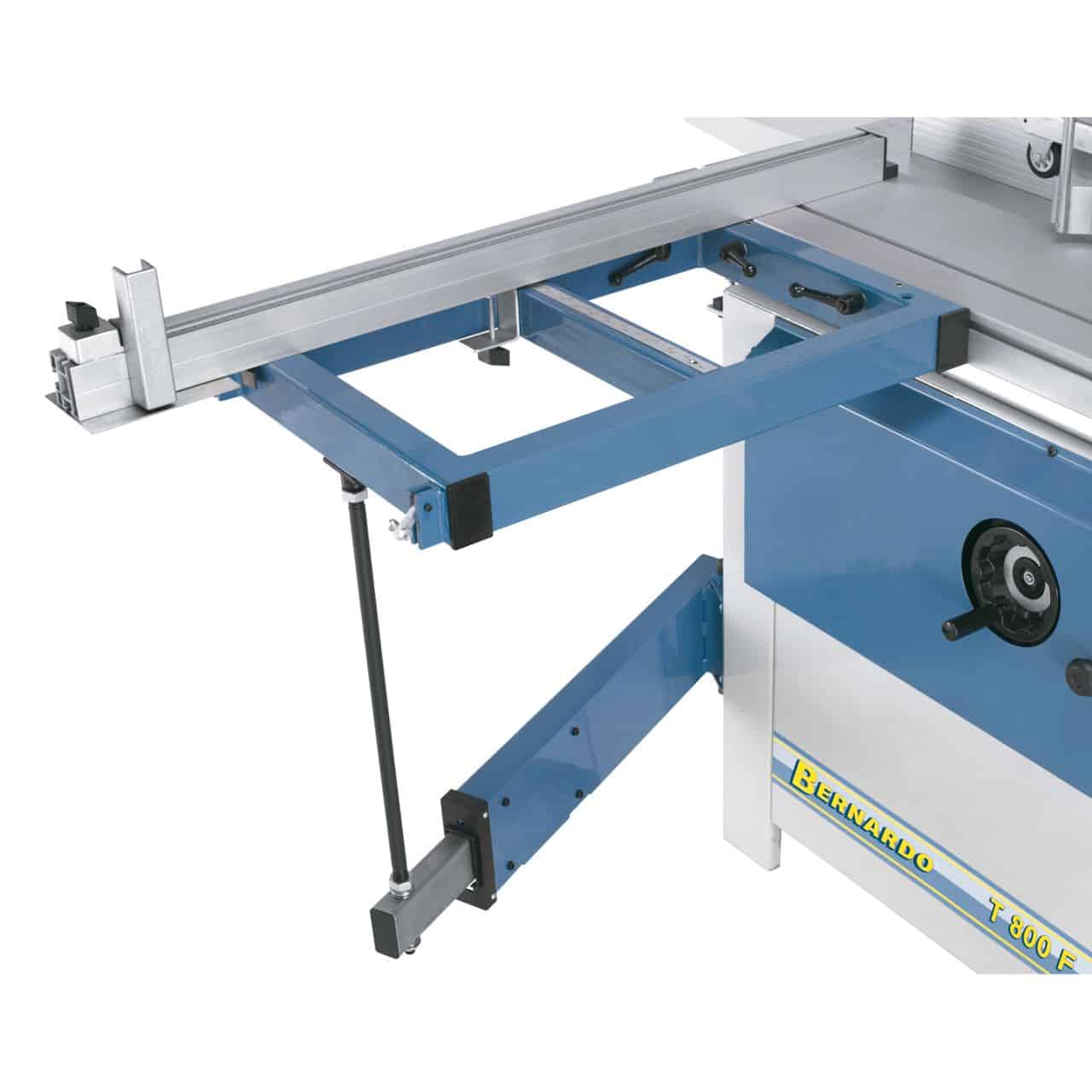

- Sliding table: 1000 × 240 mm
- Motor S1 / S6: 2.8 / 3.9 kW – 230V single-phase
Who uses the T 800 F – 230V and for what
The Bernardo T 800 F – 230V is a professional spindle moulder for wood profiling: mouldings, grooves, shapes on battens and panels, tongue and groove joints, door and window profiles. With a 1000 × 360 mm table, Ø 30 mm spindle, and 4 selectable speeds (1800 / 3000 / 6000 / 9000 rpm), it covers the complete range of profiling operations — from heavy routing with large diameter cutters (1800 rpm) to finishing on softwoods (9000 rpm). This is the 230V single-phase version of the T 800 F: same sliding table and same tilting spindle, without three-phase power. In Krollit customers' workshops, it is used by joineries producing windows, custom-made furniture, and solid wood frames.
Who is the Bernardo T 800 F – 230V for
| Profile | Compatibility | Reason |
|---|---|---|
| Passionate hobbyist | Suitable | 230V single-phase: also suitable for advanced hobbyists with a dedicated workshop. |
| Joinery / window maker | Ideal | 1000 × 360 mm table, 4 speeds, max. Ø 200 mm: for professional profiling in continuous operation. |
| Industrial production | Suitable | For very high volumes, consider spindle moulders with integrated automatic feed. |
Not suitable for: workshops requiring table sizes larger than 1000 × 360 mm; those without experience with high-speed woodworking machines.
Table and spindle
| Specification | Value |
|---|---|
| Table size | 1000 × 360 mm |
| Working height | 895 mm |
| Spindle diameter | Ø 30 mm |
| Spindle height adjustment | 100 mm |
| Usable spindle length | 100 mm |
| Max. tool Ø | 200 mm |
| Spindle tilt | from +5° to −45° |
| Table/sliding carriage | 1000 × 240 mm |
| Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
| Extraction outlet | Ø 100 mm |

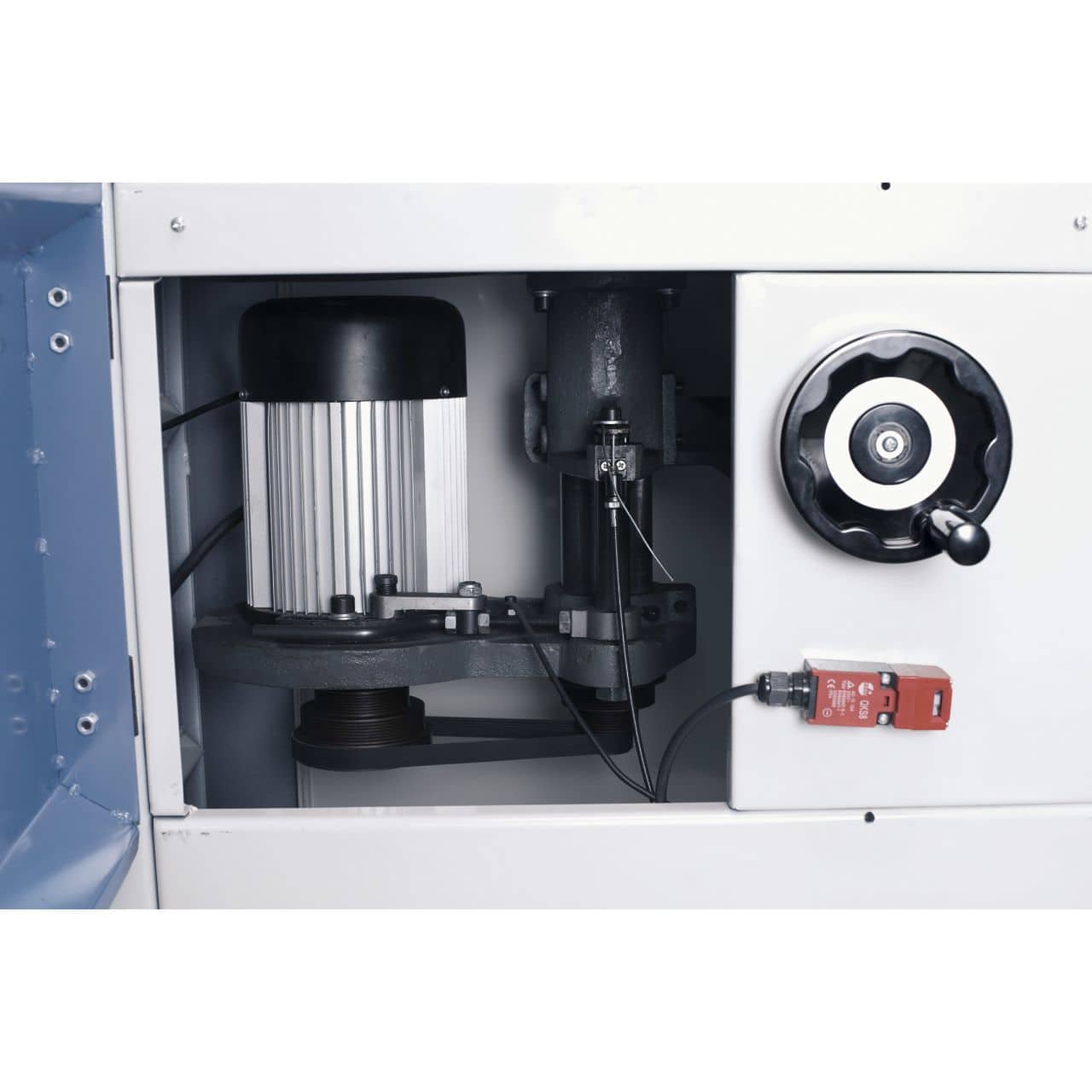

Motor and power supply
| Specification | Value |
|---|---|
| Motor power S1 (100%) | 2.8 kW |
| Motor power S6 (40%) | 3.9 kW |
| Power supply | 230V single-phase |
Compliance and safety
| Specification | Value |
|---|---|
| Marking | CE |
| Directive | Machinery 2006/42/EC |
Logistics
Bernardo shipping: 5–9 working days (7 days for Southern Italy). Original spare parts available with 3–5 working days shipping. Customer support available in Italian.
Frequently Asked Questions
How do you choose the correct speed for the type of wood and cutter?
Hardwoods (oak, ash) and large cutters (Ø 150–200 mm): 1800–3000 rpm. Medium woods and MDF with standard cutters (Ø 80–120 mm): 3000–6000 rpm. Softwoods and small cutters (Ø <60 mm): 9000 rpm. The optimal peripheral speed for most profiling cutters is 40–80 m/s.
What cutters are compatible with the Ø 30 mm spindle?
All tools with a standard European Ø 30 mm tapered shank: shank cutters, collet chucks, arbors for disc cutters. Always check the maximum permissible peripheral speed of the tool before use.
Is a fence needed for straight line work?
Yes. The parallel fence for straight-line work is available as a Bernardo accessory. For working on templates or curves, the pilot bearing integrated into the cutter is used.
What dust extractor is needed for this spindle moulder?
A dust extractor with a minimum flow rate of 600–800 m³/h and a Ø 100 mm connection. Profiling produces fine chips, especially on MDF: a dust extractor with an adequate filter is essential.
Are spare parts available?
Original Bernardo spare parts available with 3–5 working days shipping. Customer support available in Italian.
