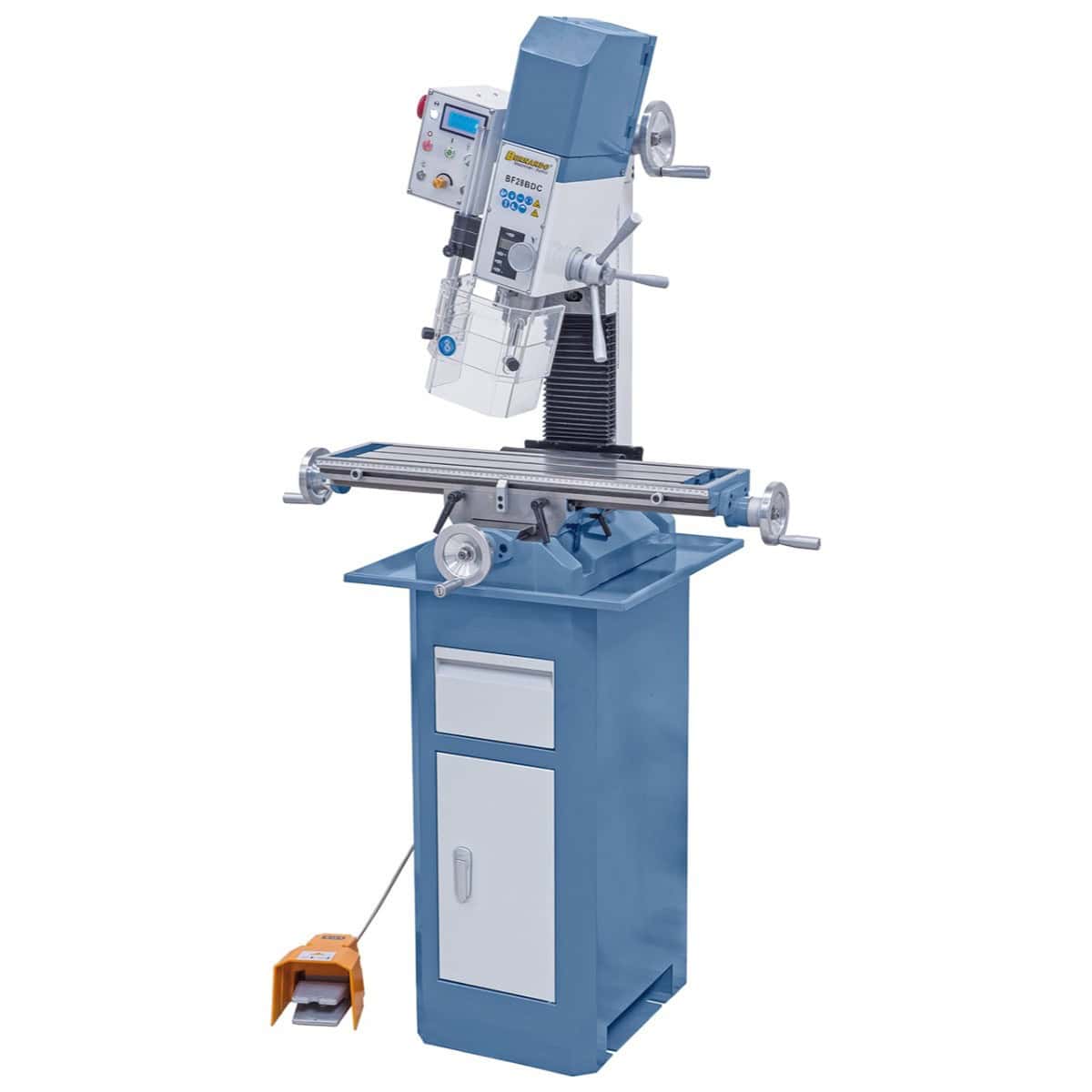

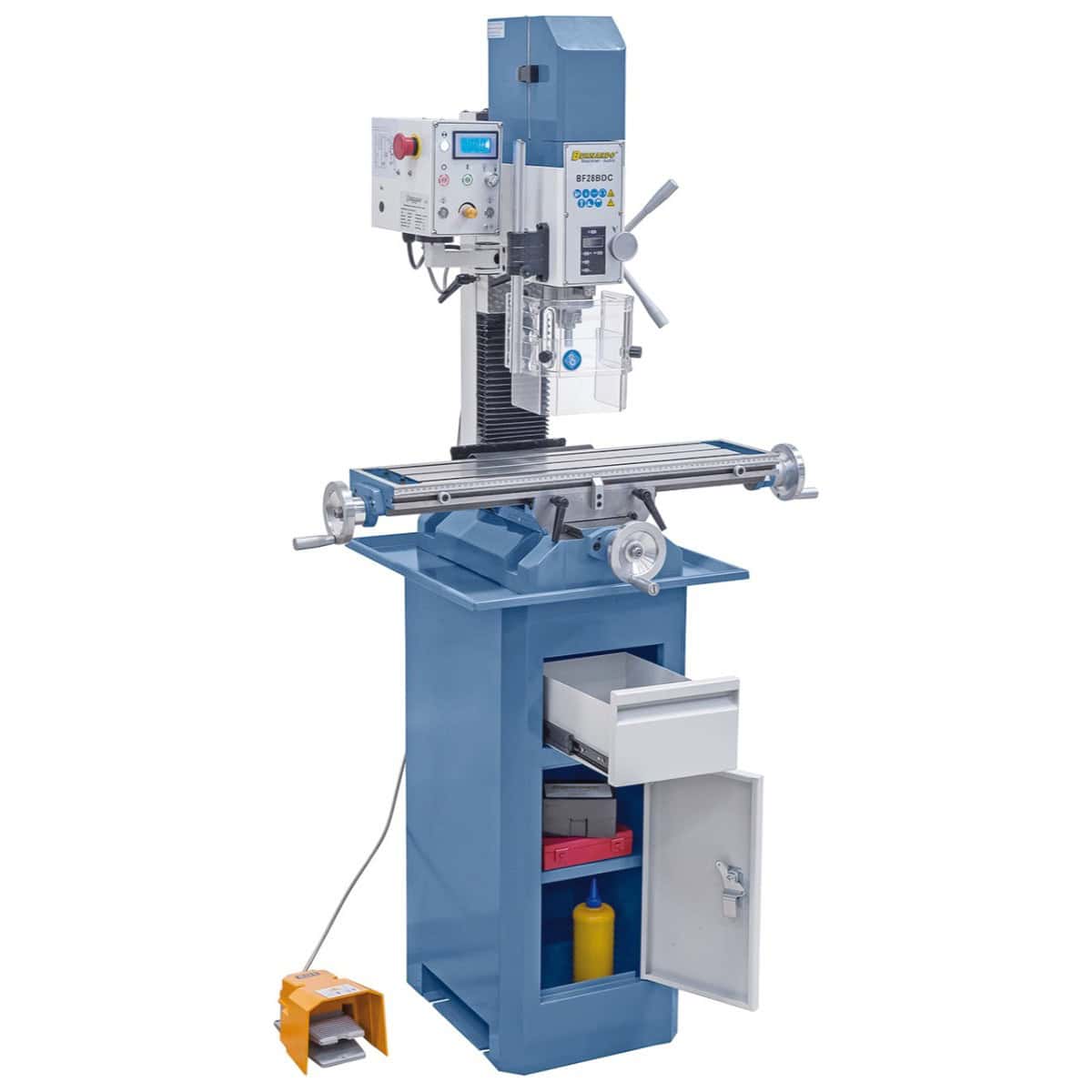

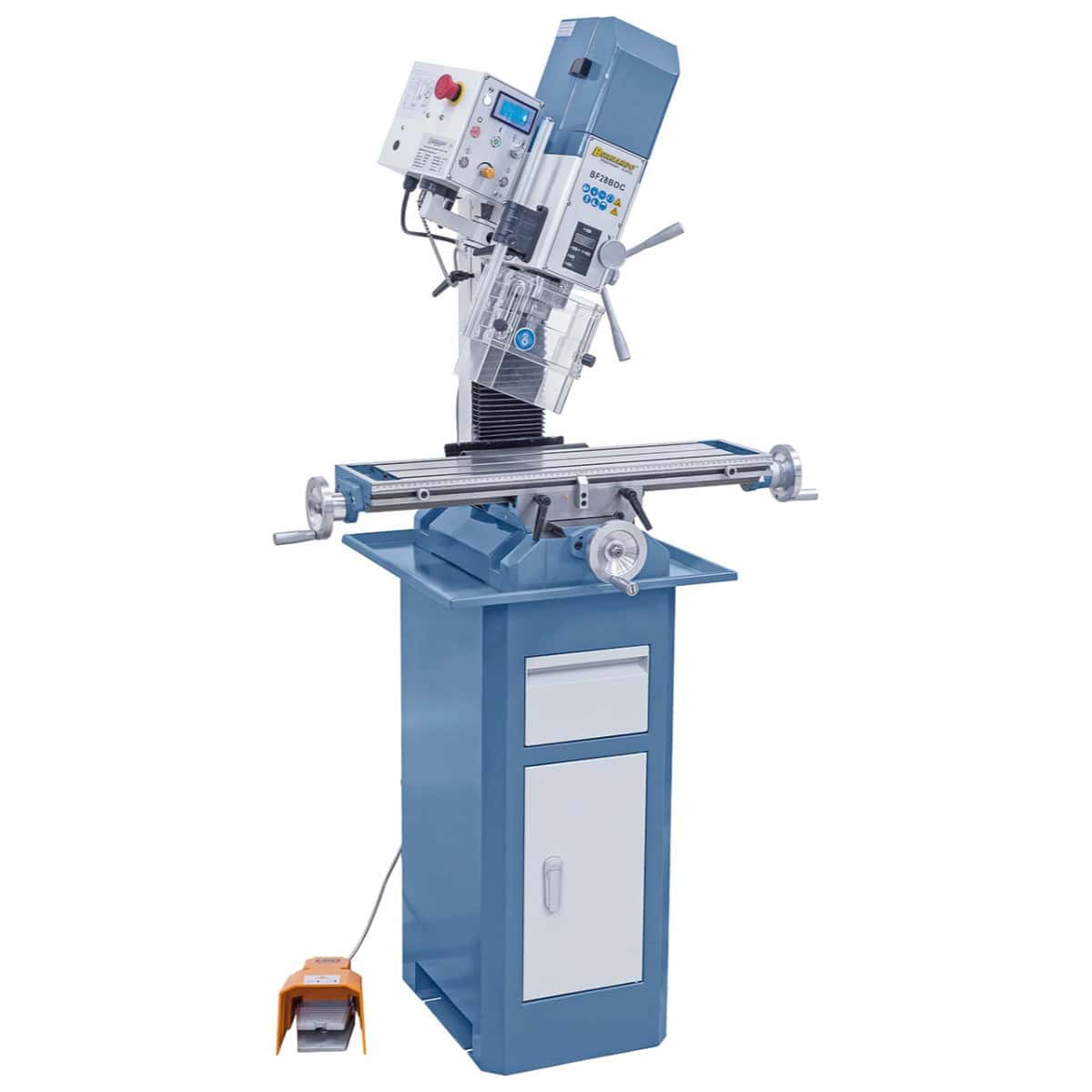

The Bernardo BF 28 BDC is a professional drilling and milling machine for mechanical workshops, with a steel drilling capacity of Ø28 mm, face milling capacity of Ø63 mm, tapping capacity of M12, Vario speed of 100–1,500 / 200–3,000 rpm, 1.1 kW motor, and MT 3 taper. Weight 130 kg. Krollit, official Bernardo distributor since 2007.
- Steel drilling Ø28 mm
- Max face milling Ø63 mm
- Max end milling Ø20 mm
- Tapping up to M12
- Spindle speed 100–1,500 / 200–3,000 rpm (Vario)
- Spindle taper MT 3, travel 67 mm
- Cross table 700 x 180 mm, X/Y travel 500 / 215 mm
- Motor 0.75 kW (S1) / 1.1 kW (S6) 230 V
- Weight 130 kg
Who uses the BF 28 BDC and for what
Light metalworking workshops, repair shops, and mechanical laboratories use this drilling and milling machine for small series production: drilling flanges and supports up to Ø28 mm, milling keyways on brackets, tapping up to M12 with a reverse pedal. On this machine, the digital indicators for speed and spindle travel aid in machining references.
Its place in the Bernardo range
The Bernardo BF 28 BDC with digital speed and travel indicators (basic version) is positioned in the mid-to-high range of Bernardo drilling and milling machines. Above this machine, the range offers the BF 30 G with a 12-speed mechanical gearbox and the large BF 45 HSV / FM 45 HSV / FM 50 HSV for intensive machining. Below the BF 28 BDC, the range includes the KF 25/26 and BF 25 Super models with reduced drilling capacities (20-25 mm).
Krollit logistics and support
Bernardo shipping in 5-9 working days (7 days to the South). For original Bernardo spare parts, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official Bernardo distributor since 2007.
Who is the BF 28 BDC for?
| Profile |
Compatibility |
Reason |
| Light metalworking and mechanical workshops |
Suitable |
Drilling Ø28 mm, milling Ø63 mm, tapping M12 with reverse pedal |
| Small series prototyping laboratories |
Suitable |
Table 700 x 180 mm, Vario speed 100–1,500 / 200–3,000 rpm, MT 3 taper |
| Machining with repeatable positioning on 3 axes |
To be evaluated |
Version with digital indicators; for greater precision, evaluate versions with DRO ES-12 V |
Not suitable for: intensive multi-shift production, machining of high-strength hardened steels, continuous cycles in industrial workshops (for these uses, consider the BF 30 G with mechanical gearbox or the HSV range).
Machining capacity
| Steel drilling |
Ø28 mm |
| Max face milling |
Ø63 mm |
| Max end milling |
Ø20 mm |
| Max tapping |
M12 |
Spindle and speed
| Spindle taper |
MT 3 |
| Spindle travel |
67 mm |
| Spindle speed (Vario) |
100–1,500 / 200–3,000 rpm |
| Right/left rotation |
Yes, standard for tapping |
Table and head

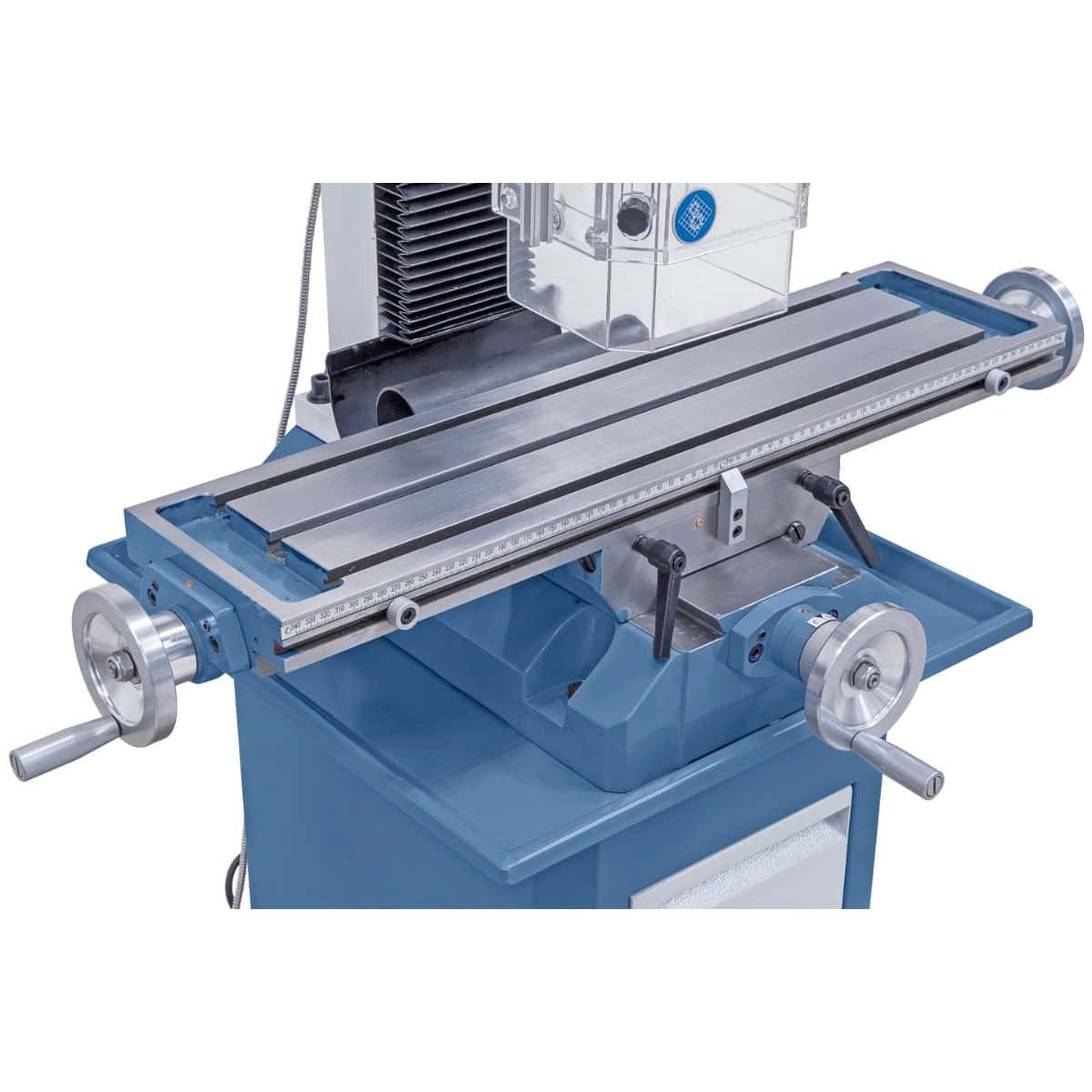

| Table dimensions |
700 x 180 mm |
| Table travel (X / Y) |
500 / 215 mm |
| T-slots |
12 mm |

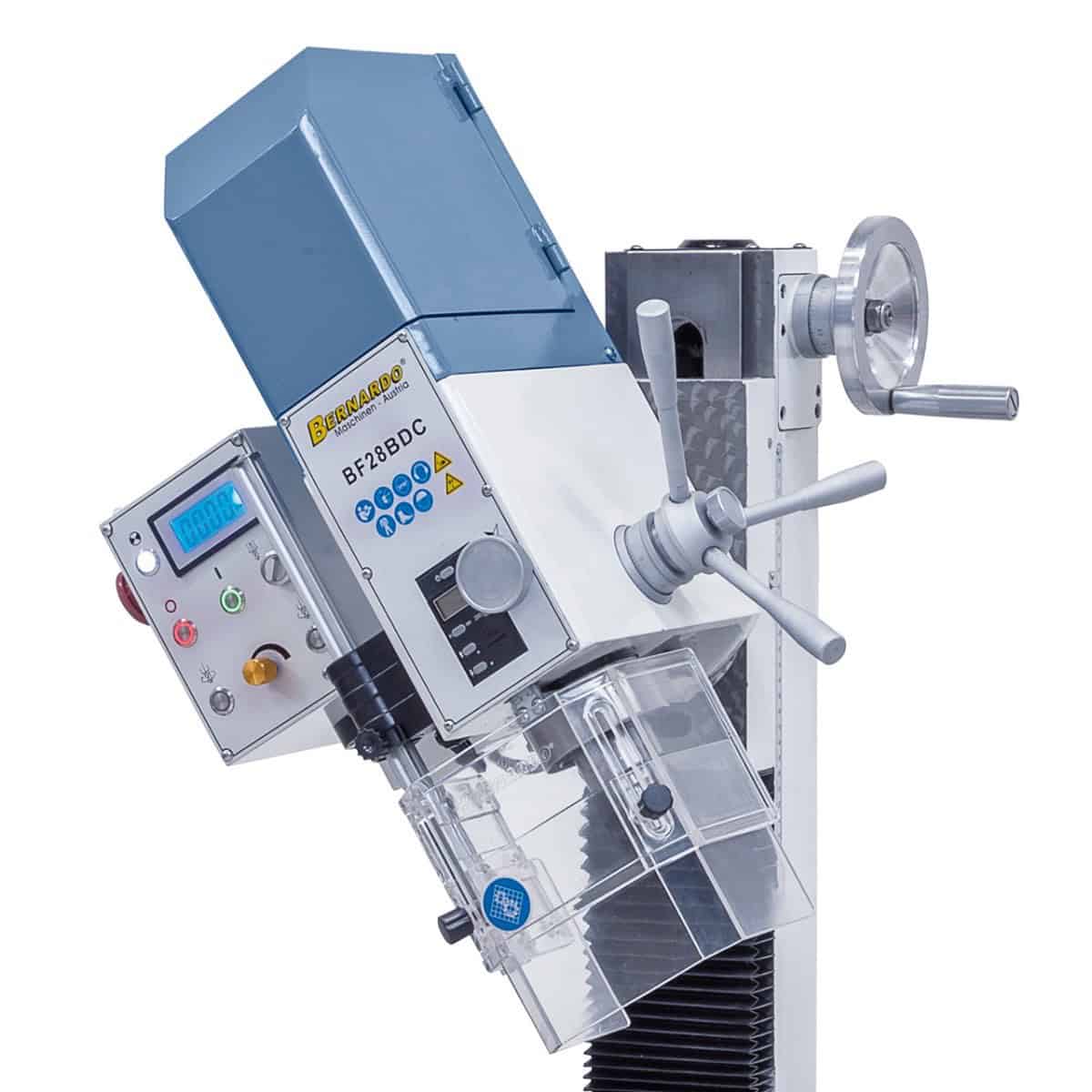

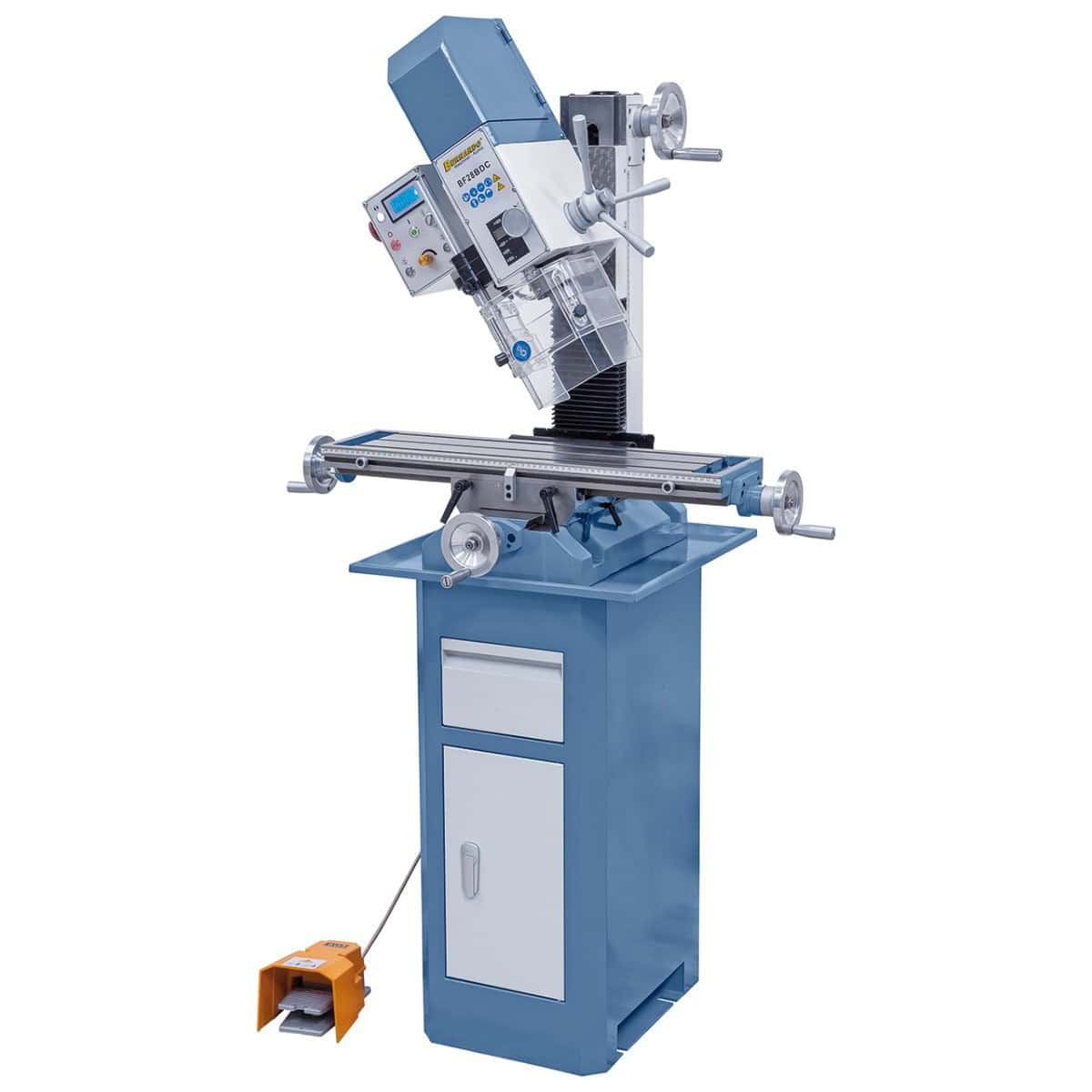

| Head tilt |
±90° |
| Head height adjustment |
290 mm |
| Spindle-column distance |
175 mm |
| Spindle-table distance |
75–365 mm |
Motor and dimensions
| Motor power S1 100% |
0.75 kW |
| Motor power S6 40% |
1.1 kW |
| Voltage |
230 V |
| Machine dimensions (L x W x H) |
970 x 605 x 1,040 mm |
| Weight |
130 kg |
Standard equipment
- Chuck 3-16 mm / B16
- Spindle arbor MT 3 / B16
- Drawbar M12

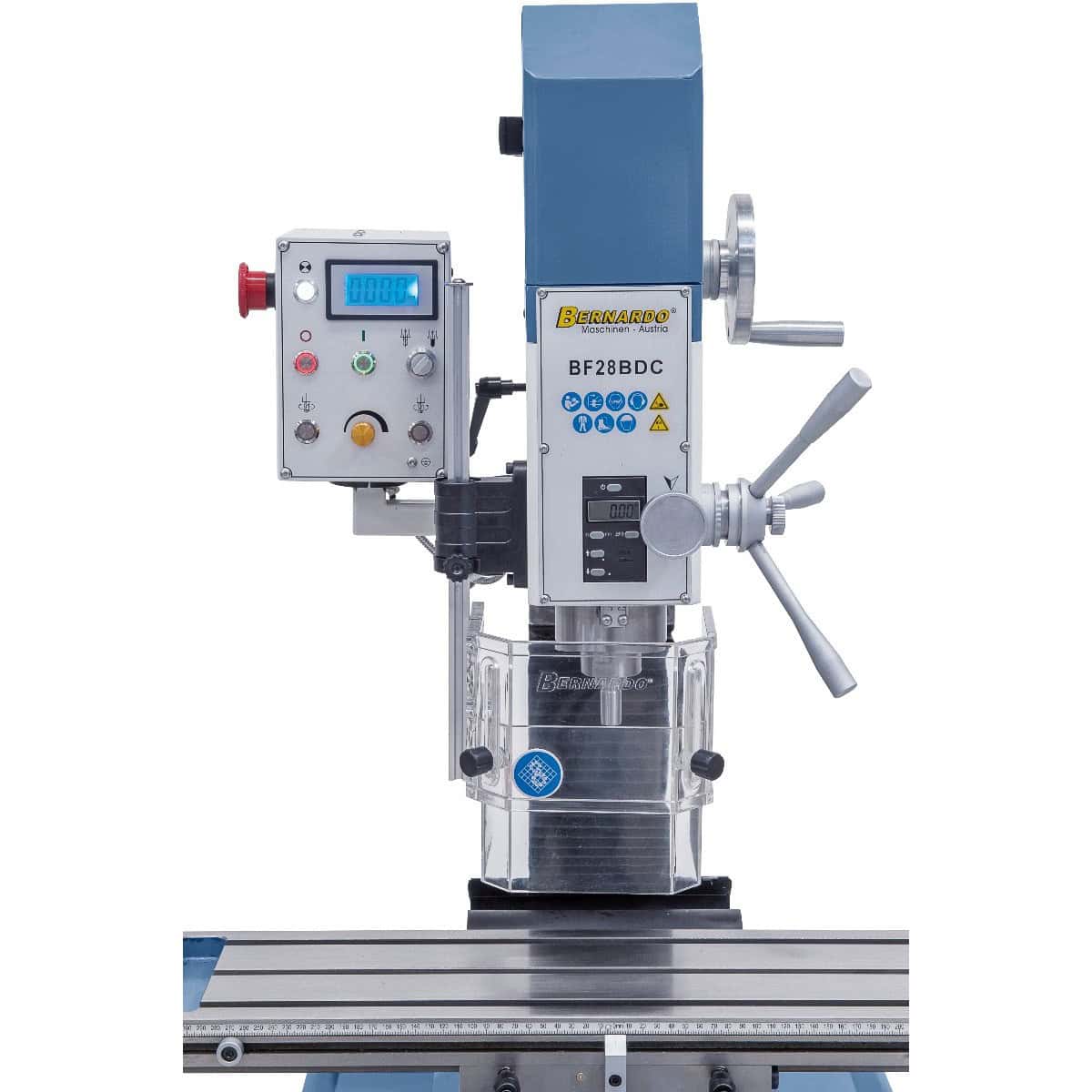

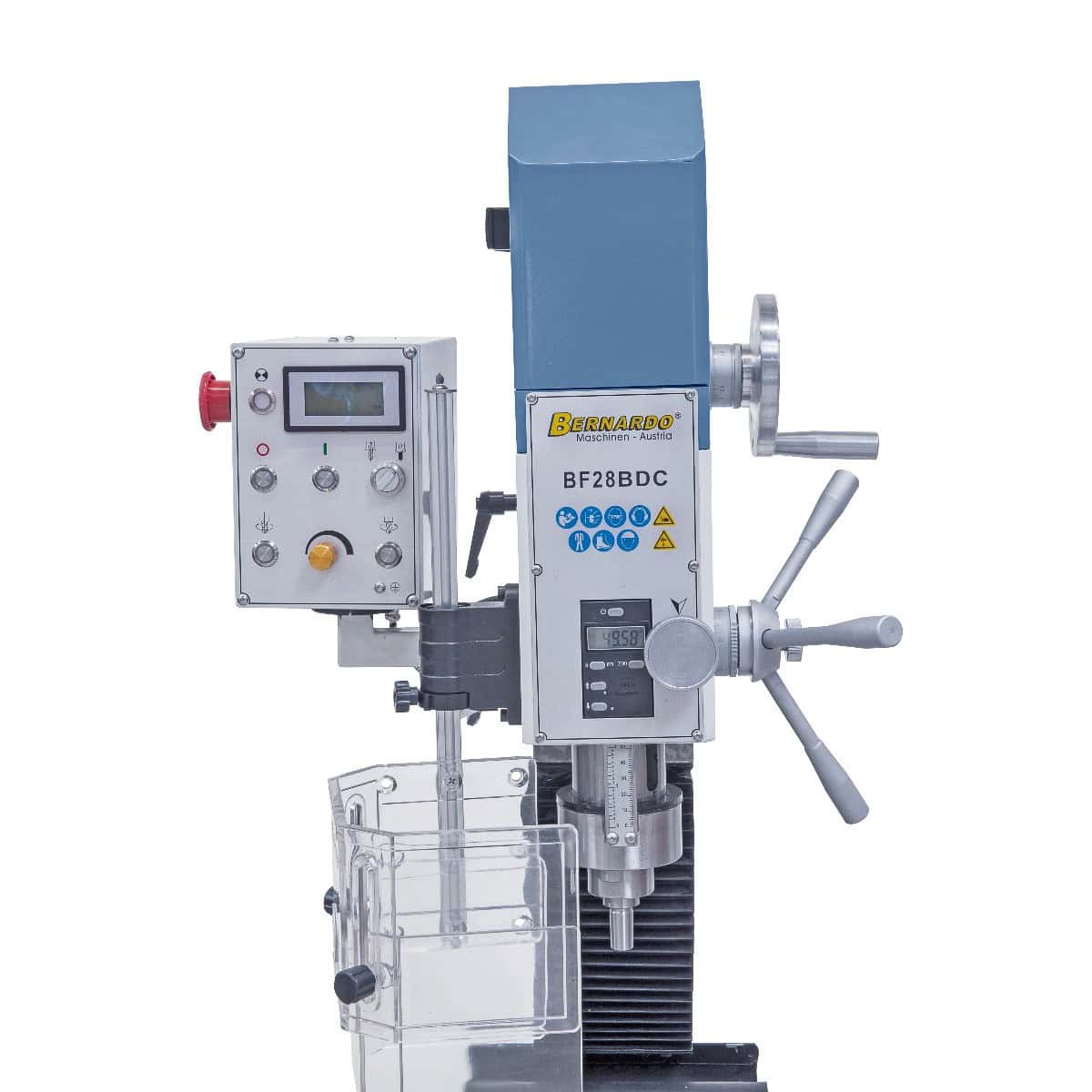

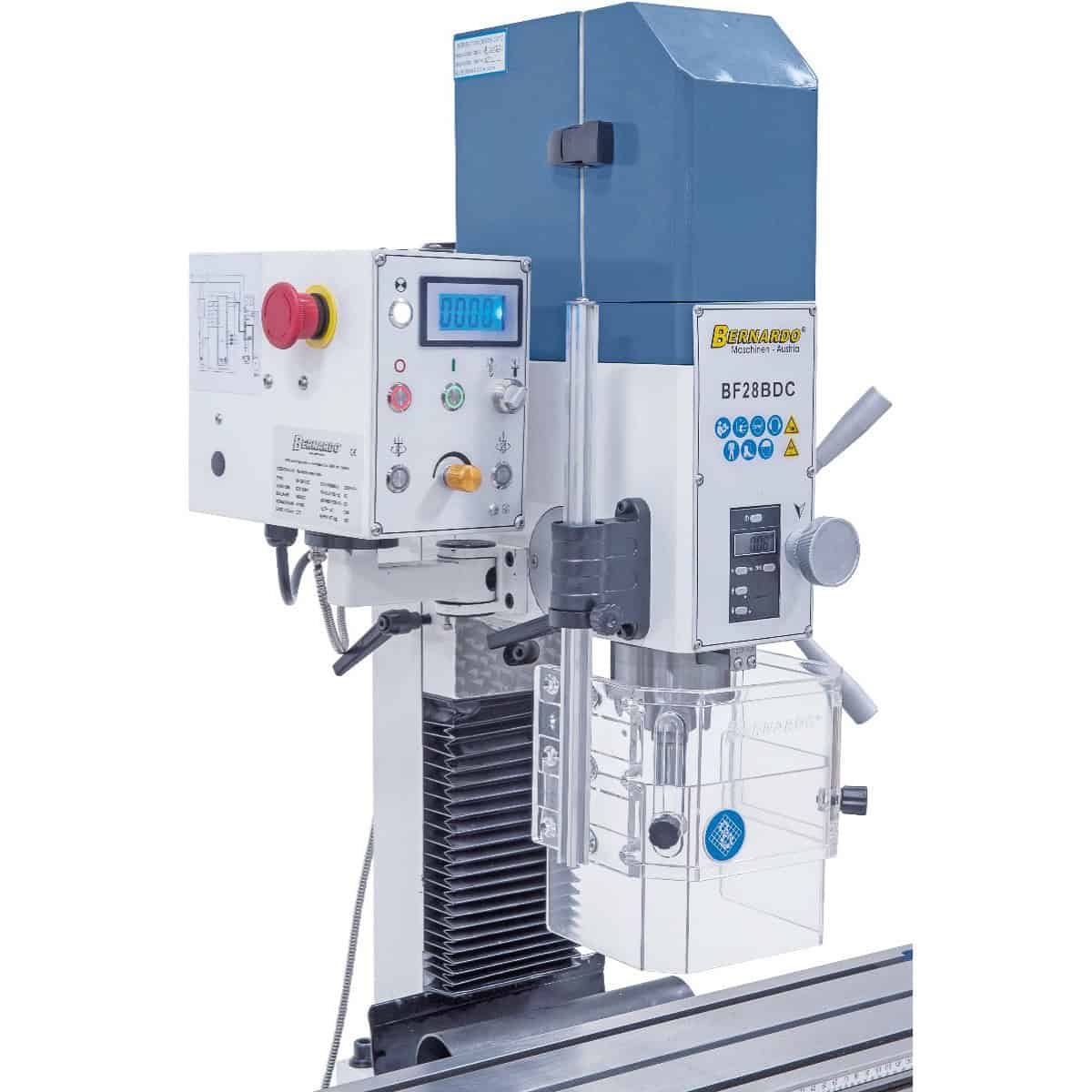

- Digital speed indicator
- Digital spindle travel indicator
- Pedal for direction reversal
- Integrated tapping device
- EMC filter compliant with CE regulations
- Height-adjustable protection with microswitch
- Tool set
Frequently Asked Questions
What are the drilling and milling capacities of the BF 28 BDC?
Steel drilling up to Ø28 mm, face milling up to Ø63 mm, end milling up to Ø20 mm.
The declared capacities refer to standard unhardened steels (e.g., C40, S235). For harder materials or alloyed steels, the actual capacity may be lower: in this case, it is advisable to reduce the rotation speed and feed rate to avoid stressing the spindle and tools.
How is the spindle speed adjusted on the BF 28 BDC?
The machine features continuously variable Vario speed in the range of 100–1,500 / 200–3,000 rpm.
The Vario adjustment allows the speed to be finely adapted to the material and tool diameter, without having to change belts or gears. For face milling of mild steels, work is typically done in the lower range, while for small diameter holes in aluminum, the upper range is used.
What power supply and motor does the BF 28 BDC have?
0.75 kW motor (S1 continuous) / 1.1 kW (S6 intermittent) with 230 V power supply.
The motor operates with a standard 230 V single-phase power supply, found in all workshop and laboratory environments. The S6 40% rating indicates that the motor can deliver maximum power for intermittent cycles, while the S1 100% rating indicates the nominal power for continuous use.
What are the table dimensions, travel, and spindle taper of the BF 28 BDC?
Cross table 700 x 180 mm with X/Y travel of 500 / 215 mm, MT 3 spindle taper, spindle travel 67 mm.
The MT 3 spindle taper is an international standard: accessories (self-tightening chucks, milling chucks, reduction arbors) are commonly available. The table travels allow working on parts that fall within the effective useful dimensions (X/Y travels net of clamping obstructions).
How much does the BF 28 BDC weigh and what type of installation does it require?
The machine weighs approximately 130 kg and is designed for installation on a rigid base (optional) or a sturdy workbench, with a 230 V electrical connection.
For transporting and positioning a 130 kg machine, it is recommended to use a pallet truck or a light crane. The support bench must be sized for the weight of the machine plus the workpiece, ensuring flatness to avoid compromising accuracy.
