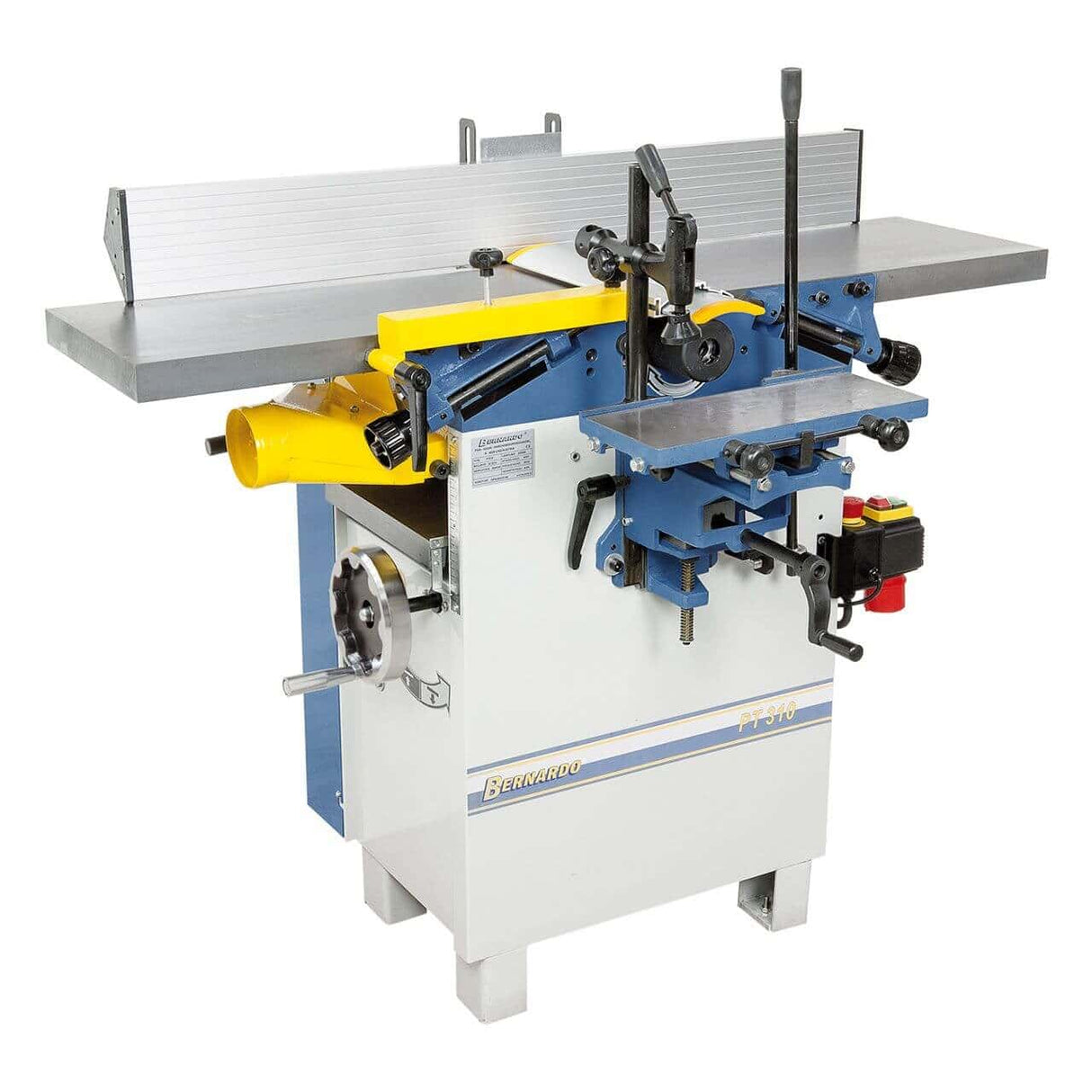

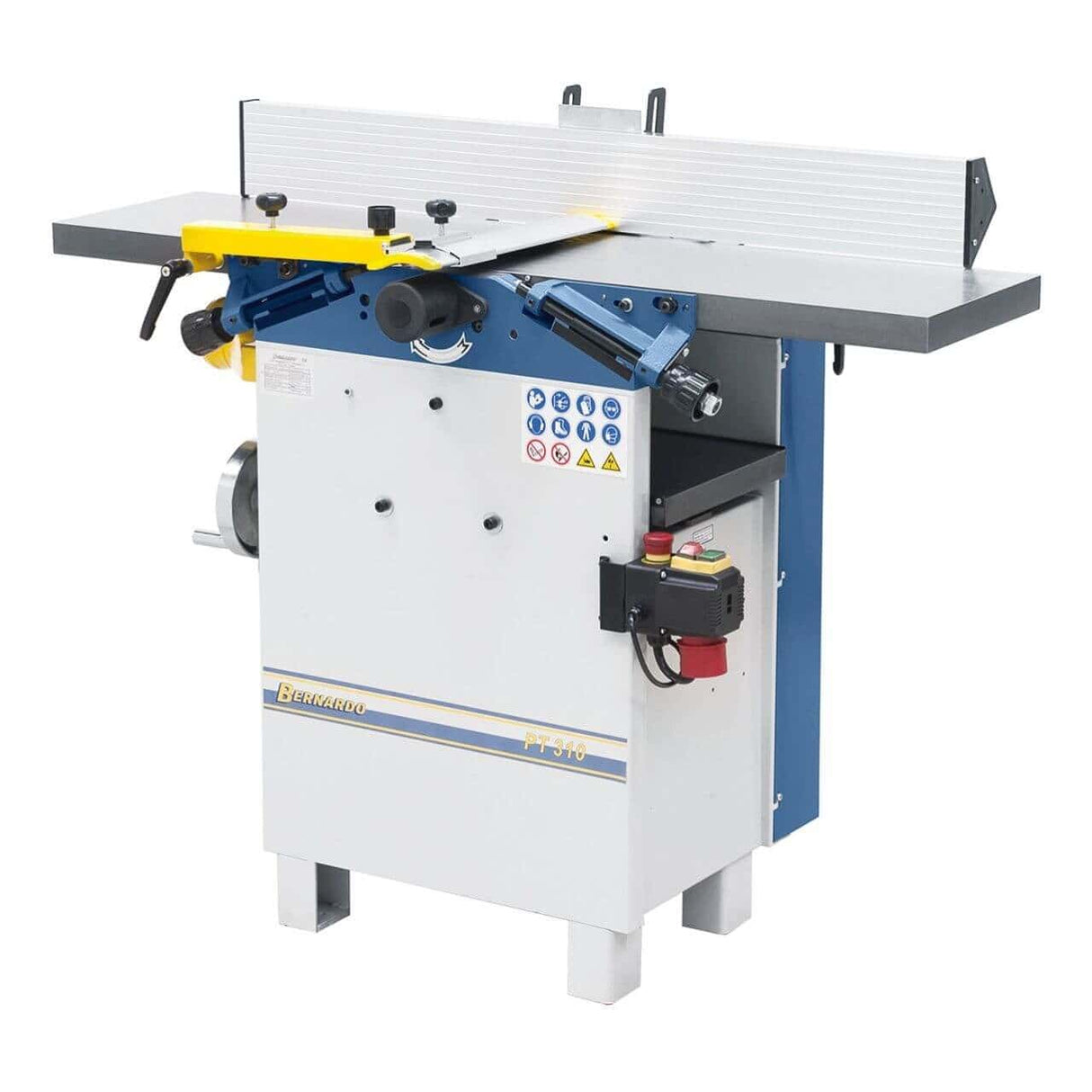

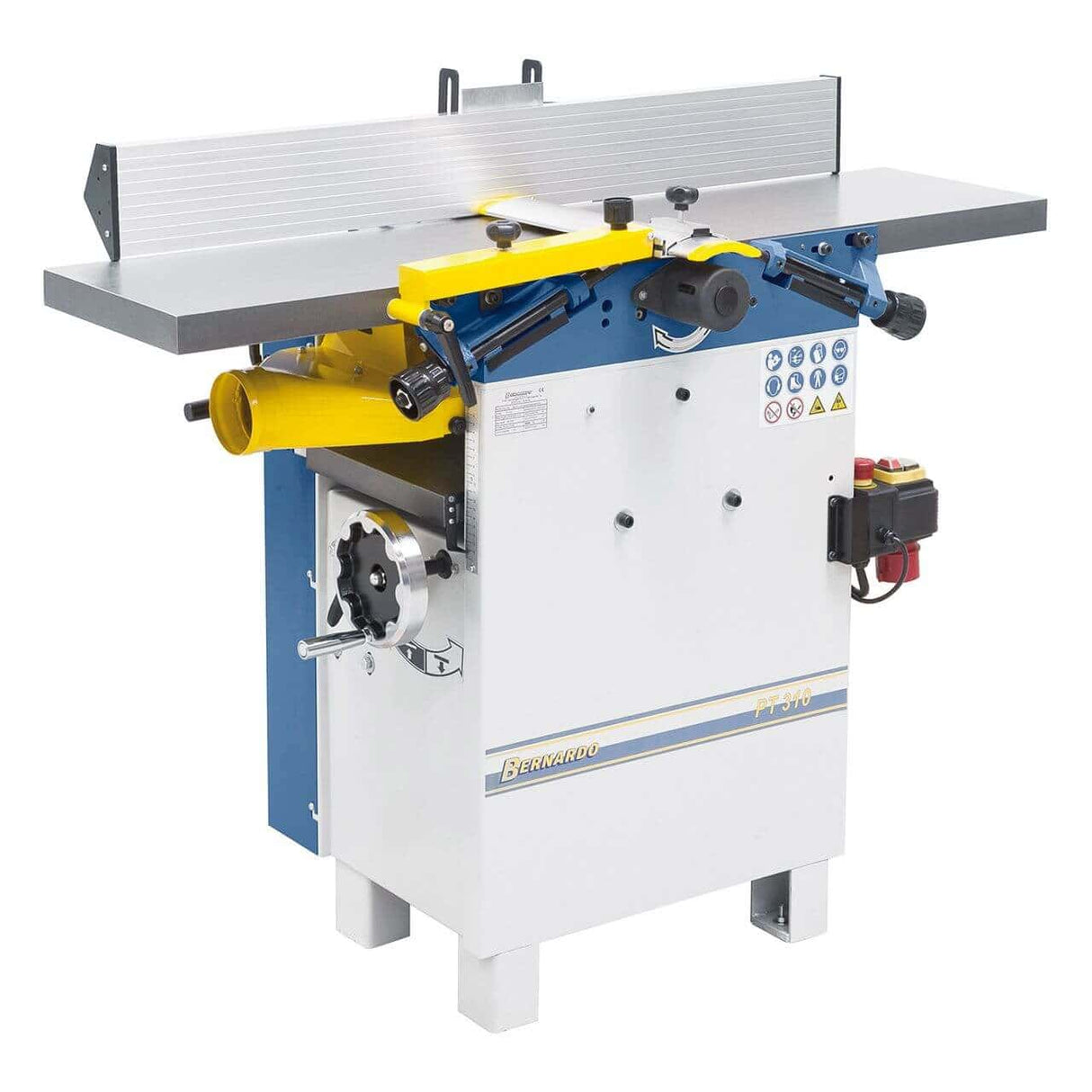

The Bernardo PT 310 planer and thicknesser offers a planing width of 310 mm, a 1,300 mm surface planer table, a Ø 75 mm cutter block with 3 HSS knives rotating at 4,000 rpm, a maximum thicknessing height of 180 mm, a feed rate of 8 m/min, and a 2.2 kW three-phase 400V motor. Produced in Austria, it is distributed in Italy by Krollit as an official Bernardo distributor since 2007.
-
Planing width (surface): 310 mm
-
Surface planer table (length): 1,300 mm
-
Thicknessing height: 5 – 180 mm
-
Cutter block: Ø 75 mm – 3 HSS knives – 4,000 rpm
-
Thicknesser feed rate: 8 m/min
-
Motor: 2.2 kW S1 / 3.0 kW S6 – 400V three-phase
-
Weight: approx. 180 kg
Who uses the PT 310 and for what
The Bernardo PT 310 – 400V is the 310 mm combination planer/thicknesser in the compact and lightweight version of the PT range: at 180 kg, it is significantly more manageable than the AD 310 (295 kg) and the ADM 300 (280 kg), though it has a shorter surface planer table (1,300 mm vs 1,500-1,610 mm) and a smaller motor (2.2 kW vs 3.0 kW). It is the choice for those who need 310 mm width but work in tight spaces or need to move the machine, or for those with less intensive planing needs. Its 8 m/min feed rate, higher than the AD 310 (6 m/min), makes it more productive for roughing operations on softwoods.
Its place in the Bernardo range
In the PT range, the PT 310 is positioned as the 310 mm entry-level model: above the PT 260 (260 mm, 2.2 kW motor) and below the PT 305 D (305 mm, more powerful motor, digital display). The main limitation compared to the AD 310 is the reduced thicknessing height of 180 mm (vs 225 mm): for those who frequently work with pieces between 180 and 225 mm high, the AD 310 is necessary, for everyone else, the PT 310 is sufficient at a lower cost.
Krollit logistics and support
Bernardo shipping in 5-9 business days (7 days to Southern Italy). Original Bernardo spare parts available from stock with 3-5 business day shipping. Customer support available in Italian.
Who is the Bernardo PT 310 – 400V for
| Profile |
Compatibility |
Reason |
| Passionate hobbyist |
Suitable |
Requires three-phase 400V. For hobby use with single-phase outlets, consider 230V versions in the PT range. The 180 kg is manageable with a pallet jack. |
| Small joinery / craftsman (1-5 employees) |
Recommended |
310 mm width with compact structure (180 kg, 1,300 × 900 mm footprint). Suitable for workshops with limited space working with pieces up to 180 mm high. |
| Continuous / industrial production |
Not suitable |
The 2.2 kW S1 motor and 1,300 mm table are not sized for intensive industrial cycles. Consider the AD 310 or ADM 300. |
Not suitable for: pieces with a height exceeding 180 mm in thicknessing (consider AD 310 with a pass-through of up to 225 mm); workshops without a three-phase 400V system; intensive production on hardwoods for more than 4 hours/day.

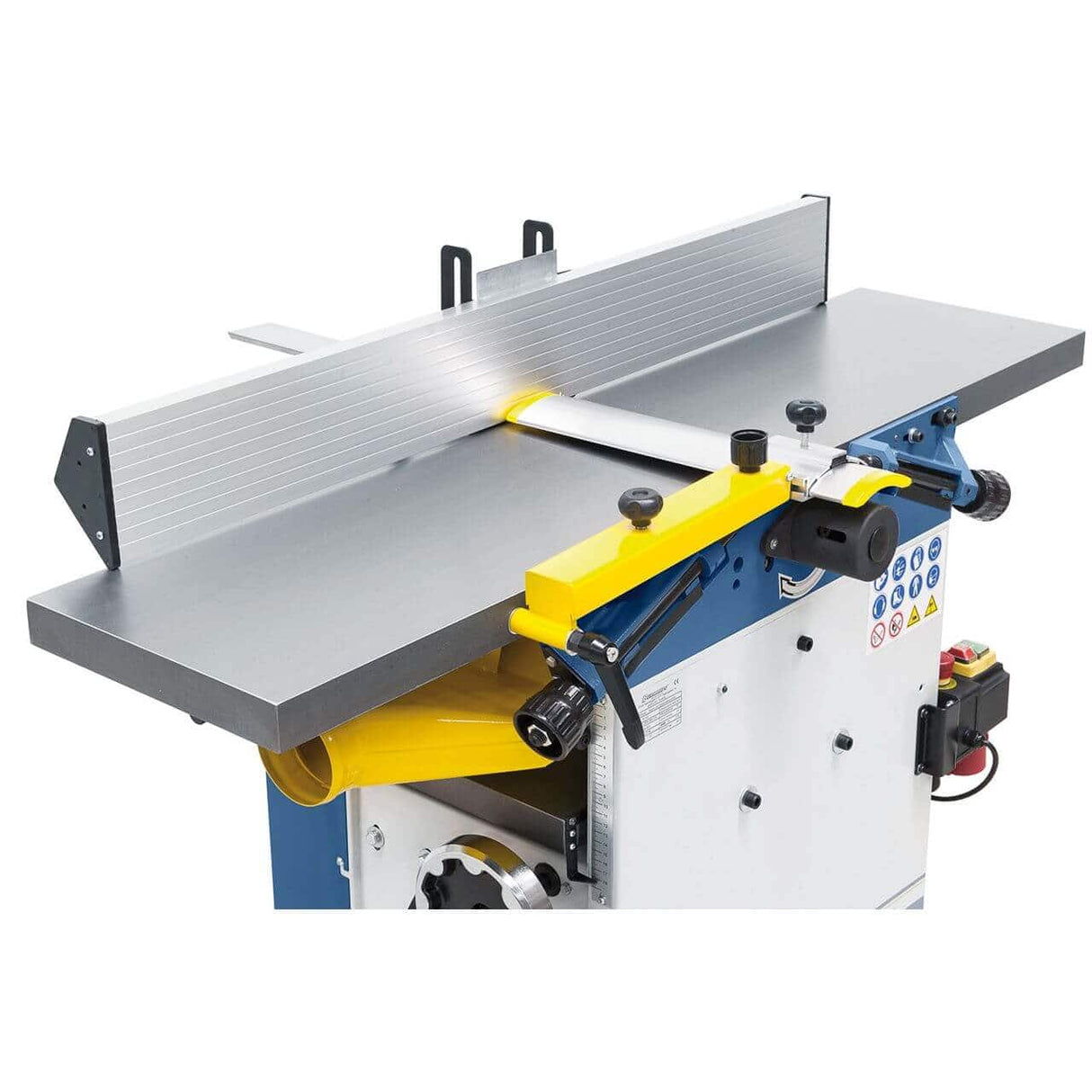

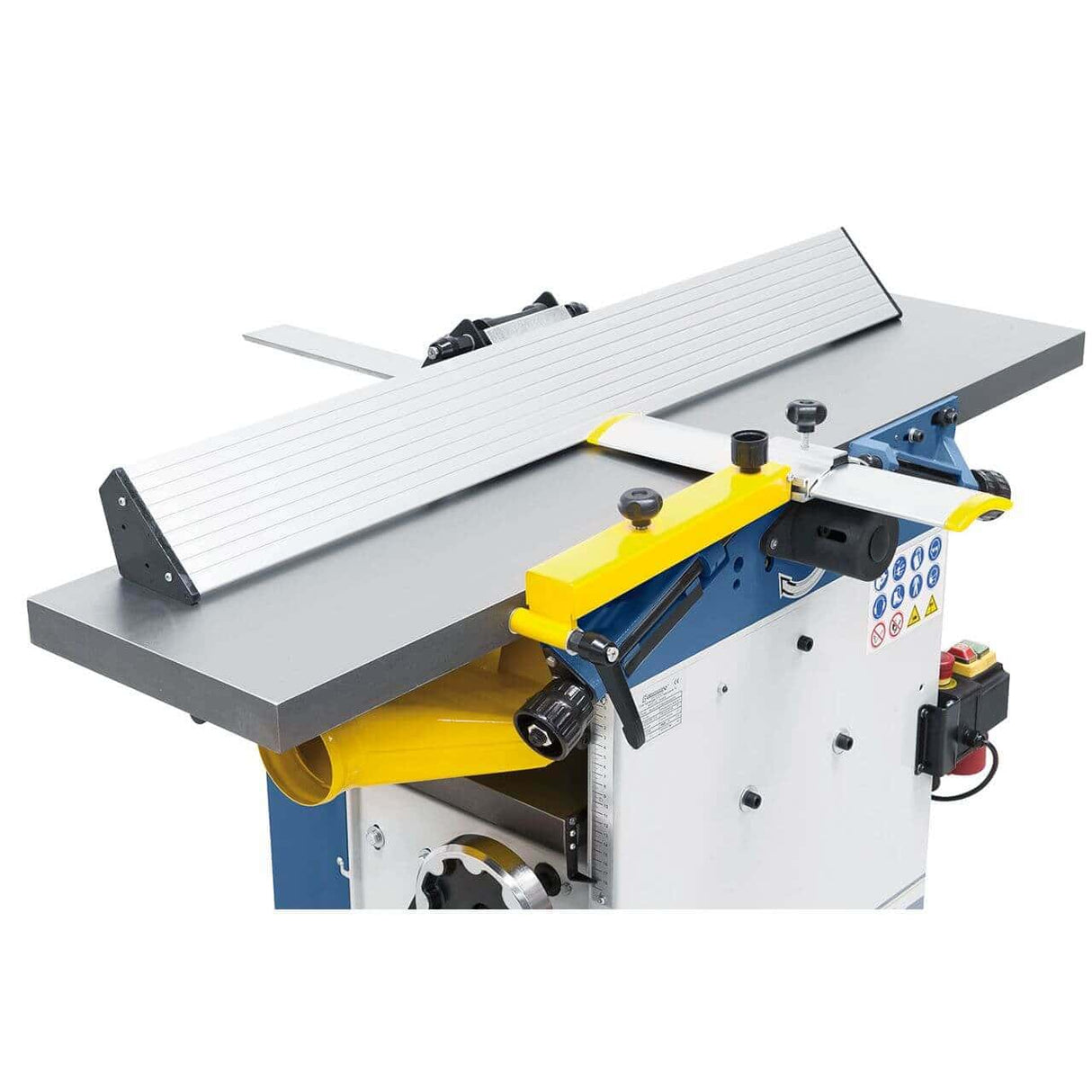

Surface Planer
| Specification |
Value |
| Planing width |
310 mm |
| Table length |
1,300 mm |
| Table height |
990 mm |
| Cutter block – diameter |
Ø 75 mm |
| Knives |
3 pcs HSS |
| Cutter block speed |
4,000 rpm |

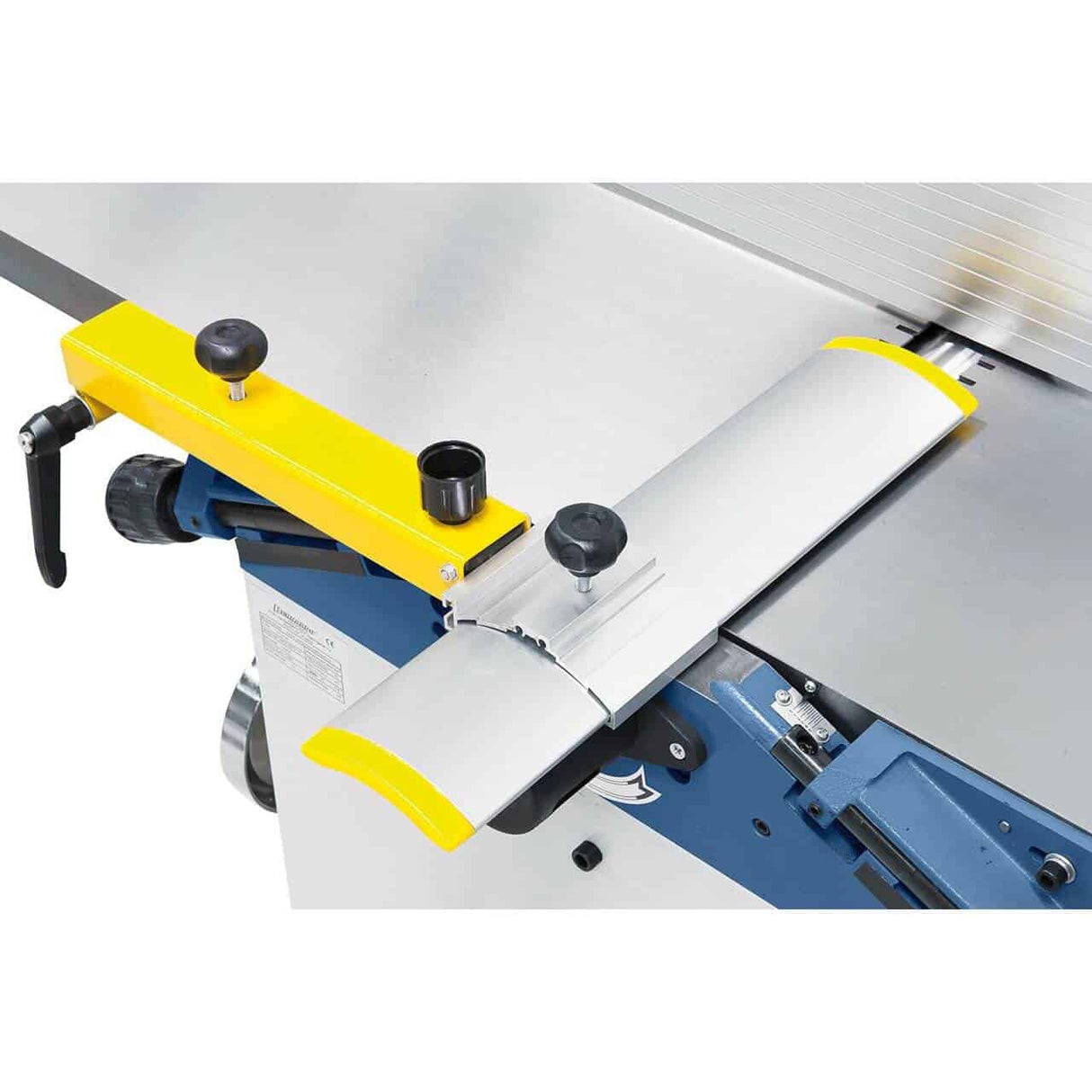

| Fence |
1,110 × 130 mm |
| Fence tilt |
90° – 45° |
| Max. stock removal |
5 mm |

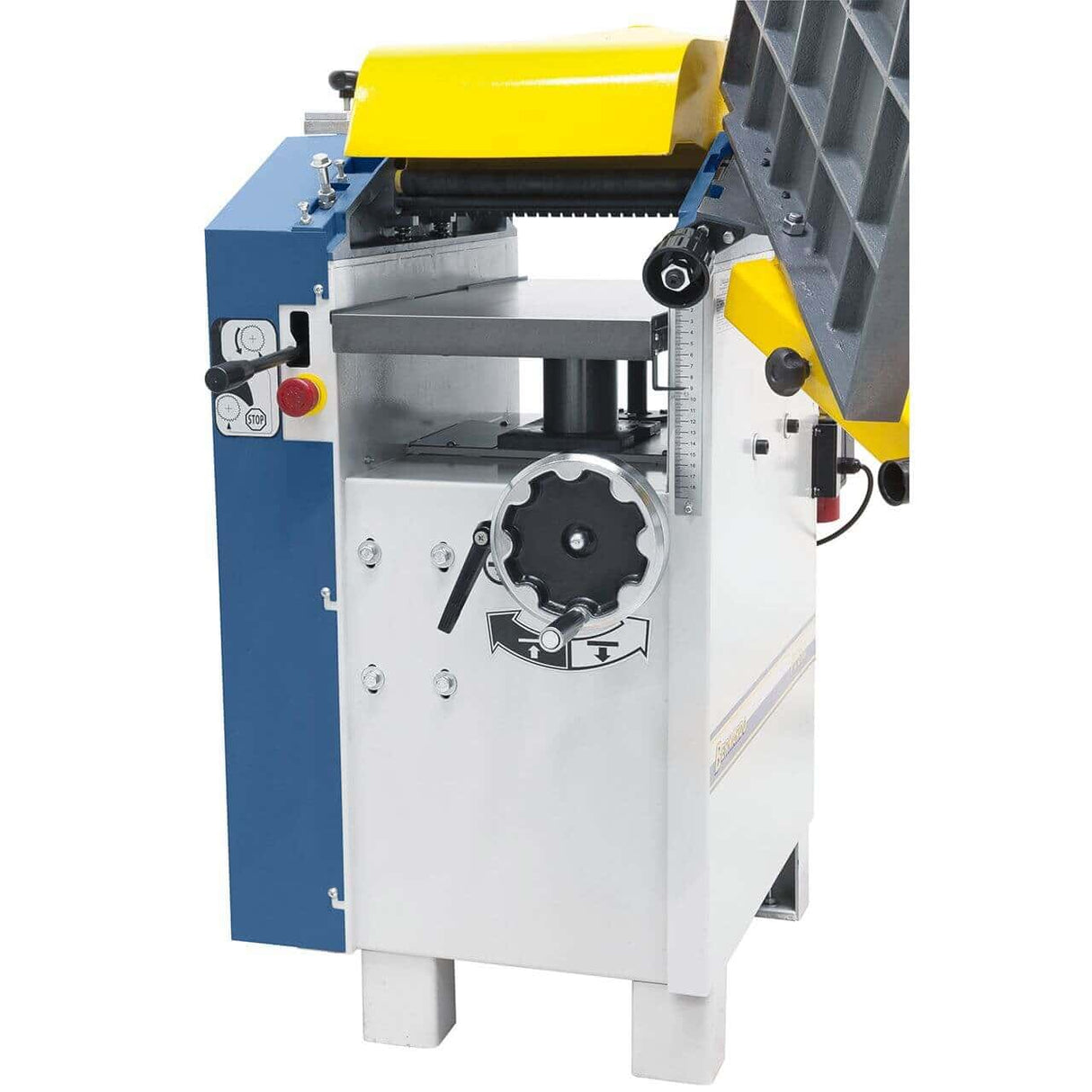

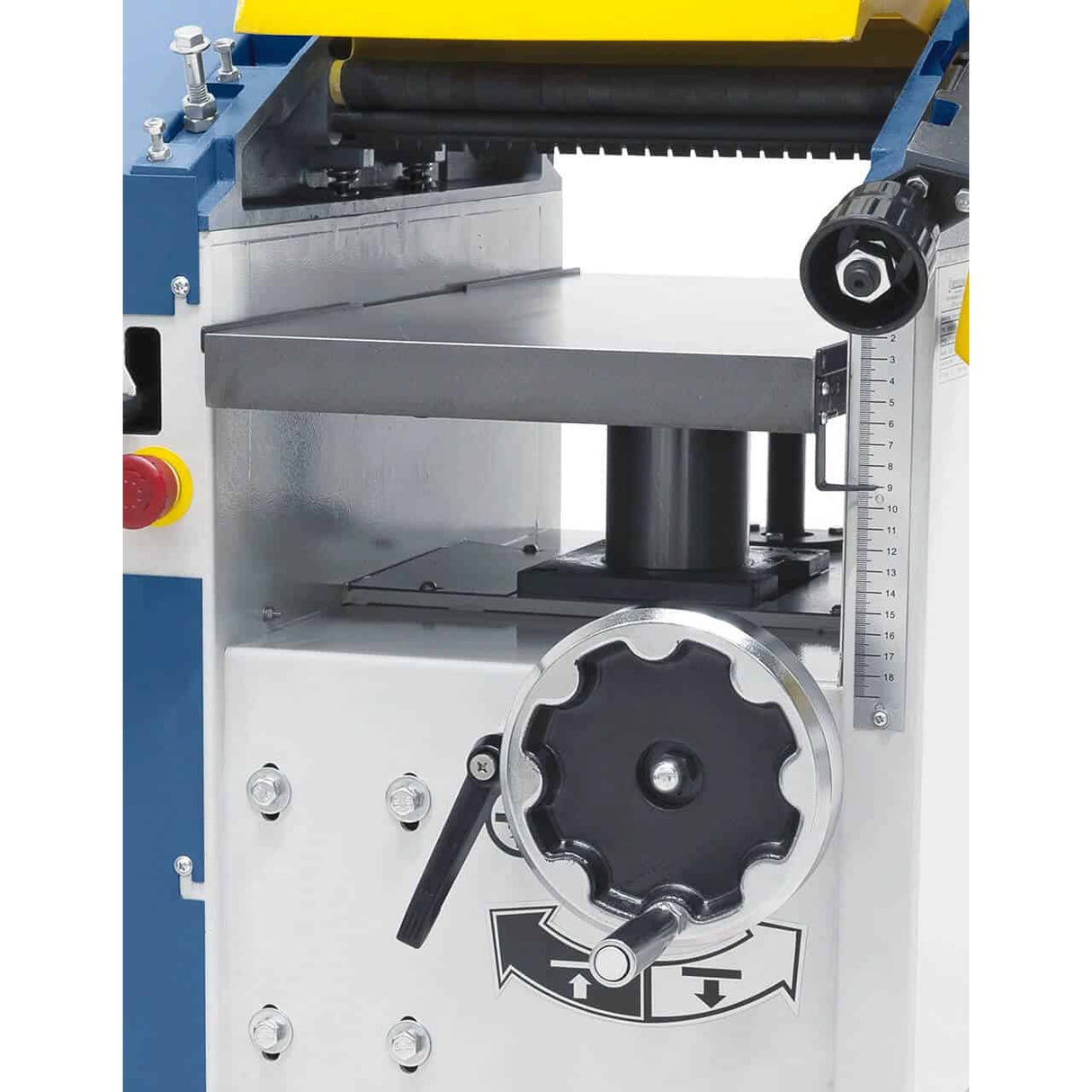

Thicknesser
| Specification |
Value |
| Working width |
305 mm |
| Pass-through height (min–max) |
5 – 180 mm |
| Thicknesser table length |
600 mm |
| Max. stock removal |
2.5 mm |
| Feed rate |
8 m/min |
Motor and Power Supply
| Specification |
Value |
| Motor power S1 (100%) |
2.2 kW (3.0 HP) |
| Motor power S6 (40%) |
3.0 kW (4.0 HP) |
| Power supply |
400V – three-phase |
| Dust extraction connection |
Ø 100 mm |
Dimensions and Weight
| Specification |
Value |
| Machine dimensions (L × W × H) |
1,300 × 900 × 1,180 mm |
| Net weight |
approx. 180 kg |
Compliance and Safety
| Specification |
Value |
| Marking |
CE |
| Directive |
Machinery Directive 2006/42/EC |
| Safety devices |
ON/OFF switch with undervoltage release, cutter block guard |
Standard equipment
- 3 mounted HSS knives
- Knife setting gauge
- Switch-plug combination
- Push stick
Frequently Asked Questions
What is the difference between PT 310 and AD 310?
The PT 310 weighs 180 kg (vs 295 kg for the AD 310), has a shorter surface planer table (1,300 vs 1,610 mm), a smaller motor (2.2 kW vs 3.0 kW), and reduced thicknessing height (180 vs 225 mm). However, the feed rate is faster (8 vs 6 m/min). The PT 310 is suitable for those seeking 310 mm width in a compact and lightweight format; the AD 310 is superior for intensive use, tall workpieces, and structural stability.
Can I thickness plane pieces up to 200 mm high?
No. The maximum thicknessing height for the PT 310 is 180 mm. For pieces between 180 and 225 mm high, you need to consider the AD 310 (pass-through up to 225 mm) or the ADM 300 (up to 220 mm). For pieces up to 180 mm, the PT 310 is perfectly adequate.
Is the 8 m/min feed rate also suitable for hardwoods?
On hardwoods (oak, ash) with an 8 m/min feed rate, it is advisable to reduce the depth of cut to 1-1.5 mm to avoid tear-out and motor overload. On softwoods (pine, spruce), the full 8 m/min feed rate with 2-2.5 mm passes is perfectly feasible.

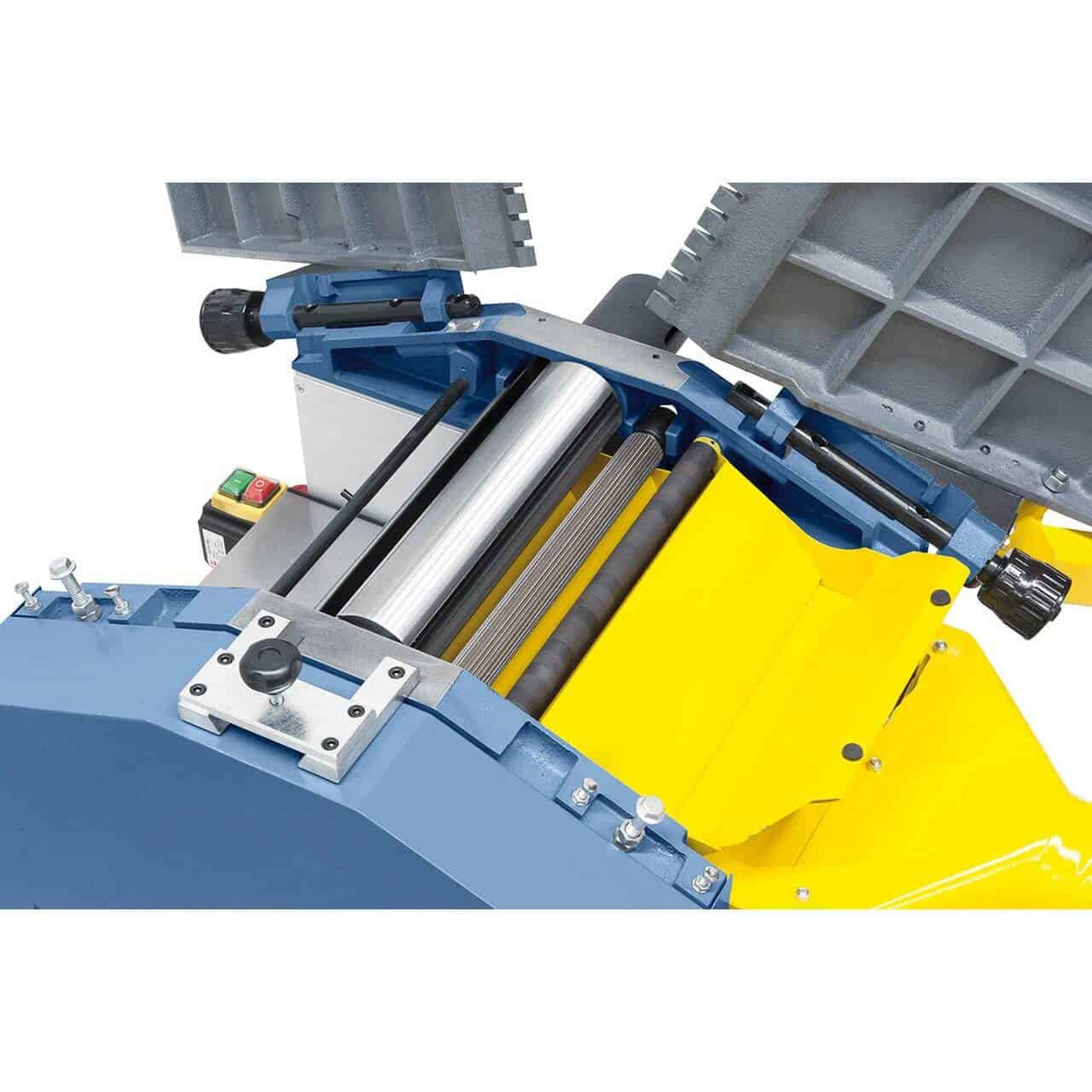

How does the changeover from surface planer to thicknesser work?
The surfacing tables open with a hinge to expose the thicknesser bed: the operation takes approximately 30-60 seconds without tools. The dust hood is integrated and automatically adjusts to both modes. It is not necessary to disconnect the dust collector during mode change.
How much space does the PT 310 need in the workshop?
The machine footprint is 1,300 × 900 × 1,180 mm: among the most compact 310 mm planers available. For moving workpieces, a clear space of at least 2 m in front and behind is needed. At 180 kg, it can be moved with a manual pallet truck on a level floor.
