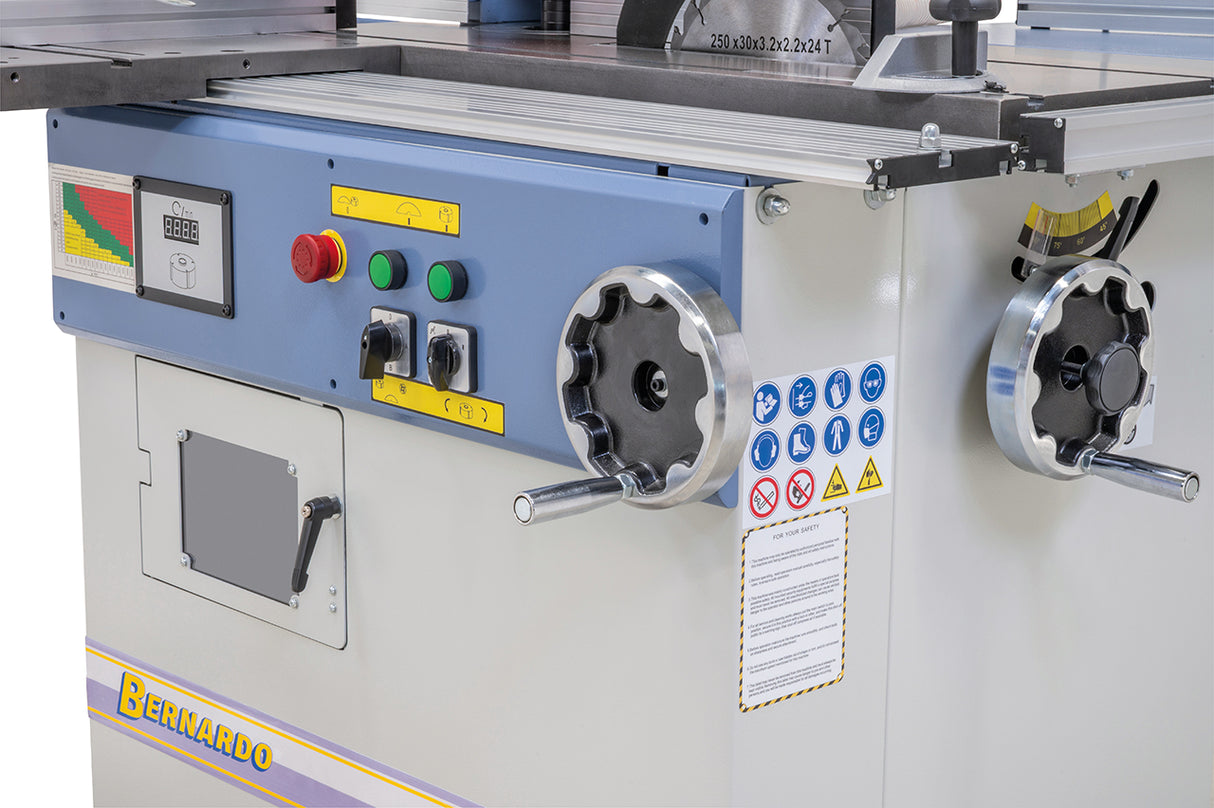

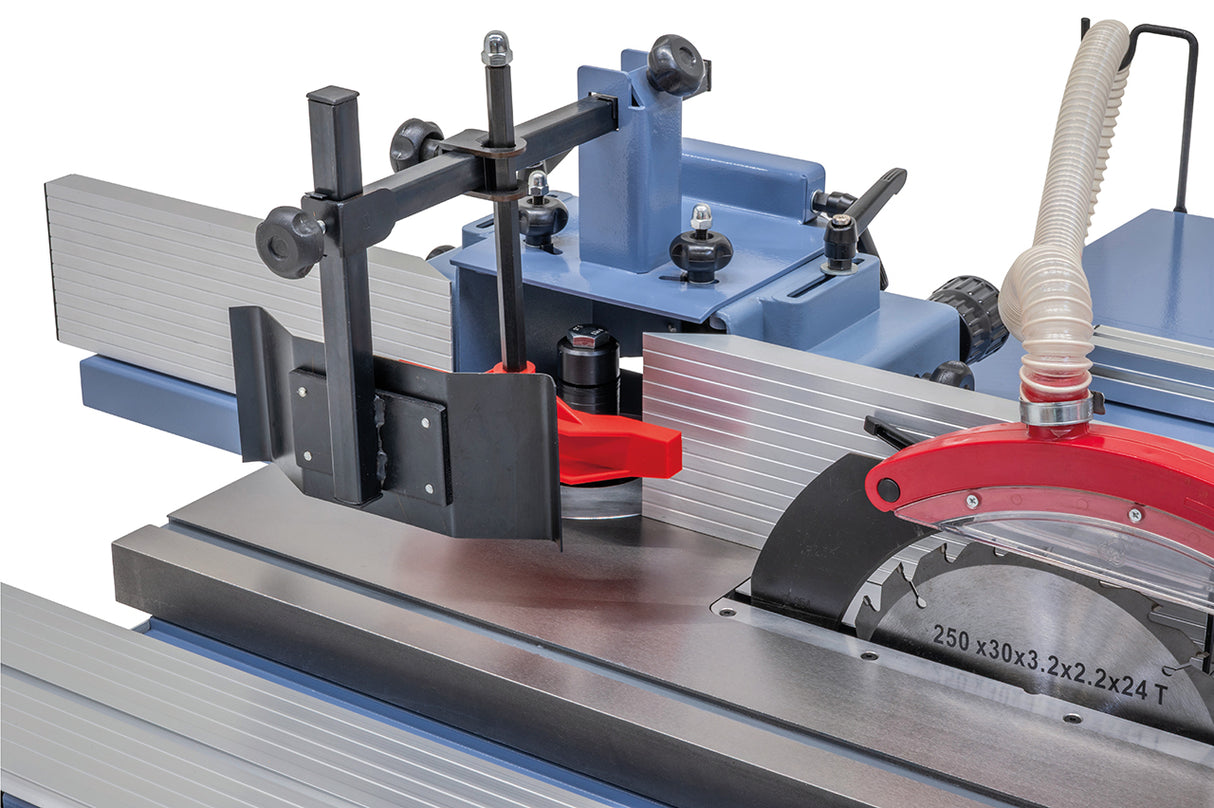

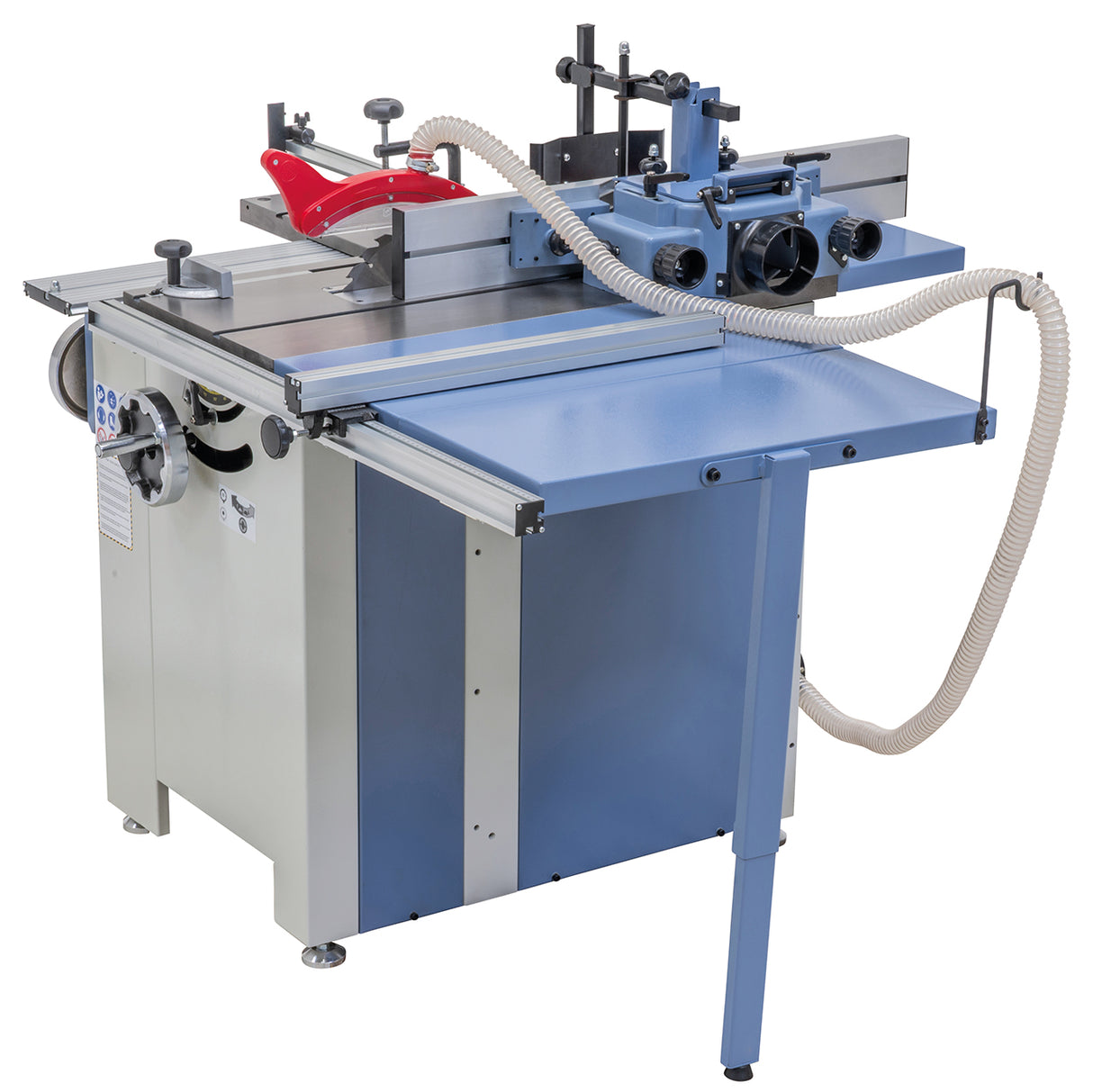

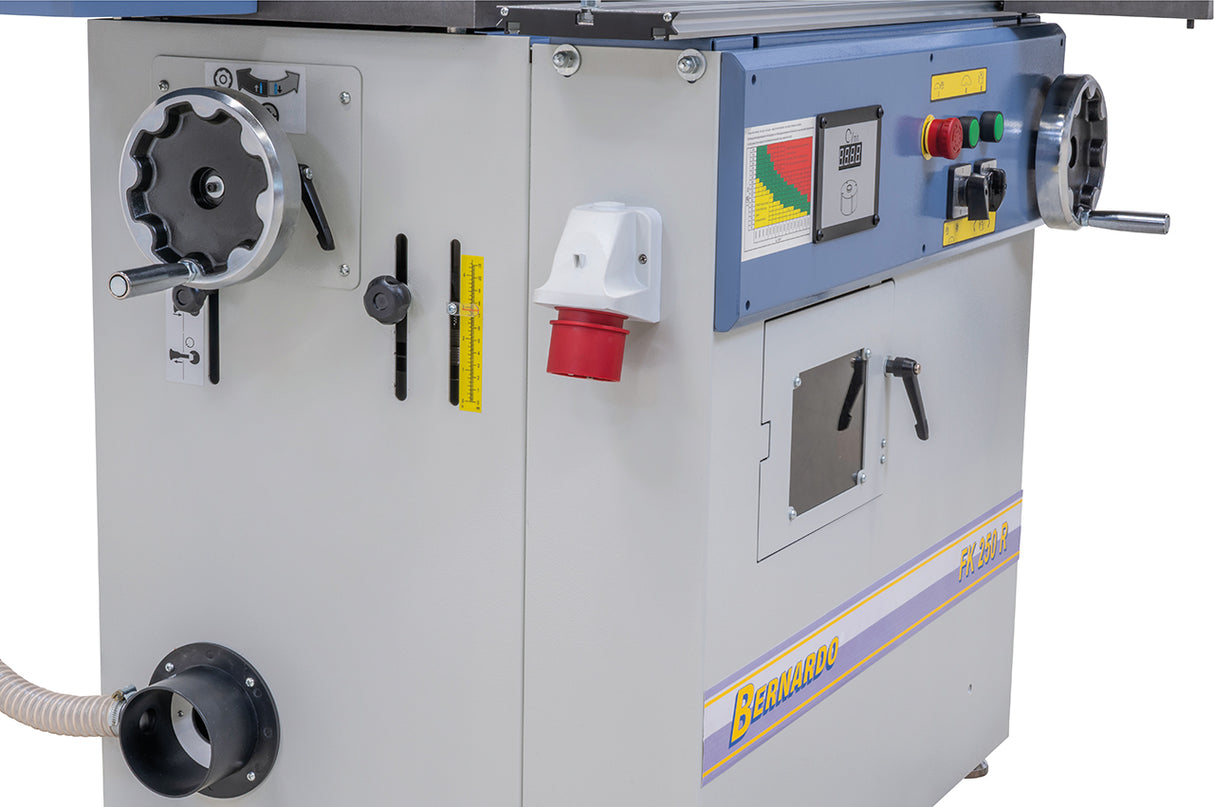

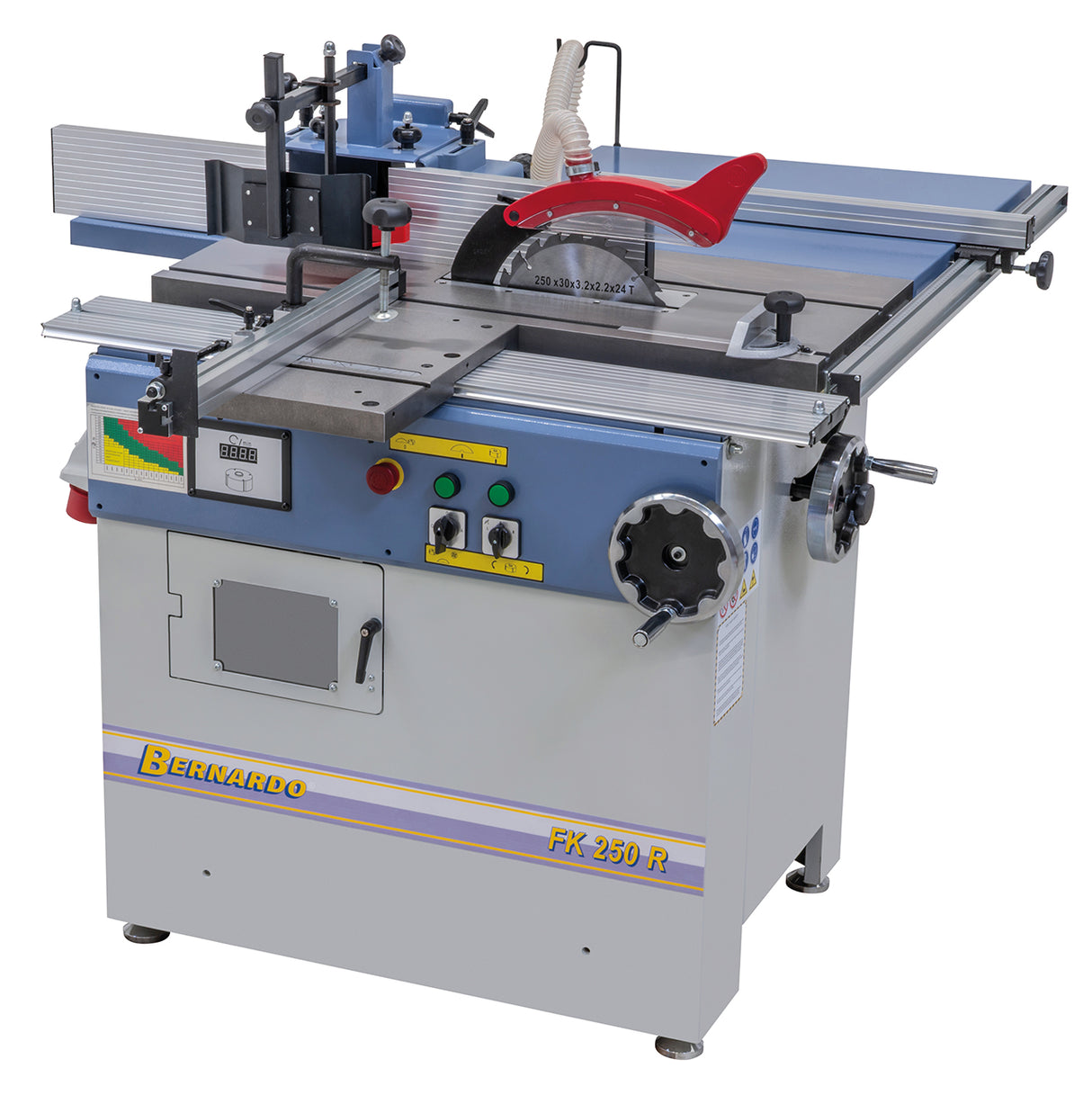

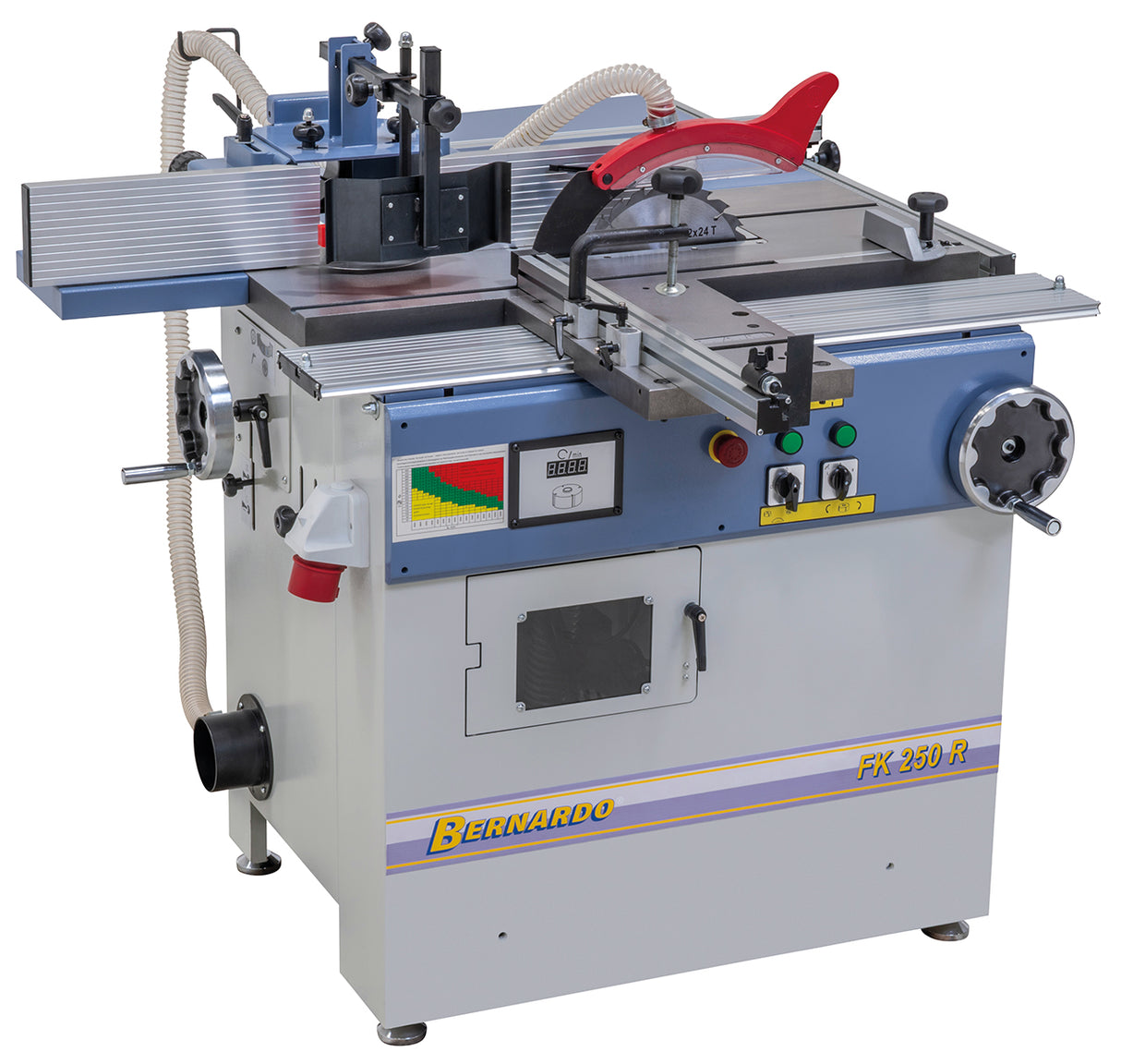

The Bernardo combined milling machine FK 250 R 400V is a combined woodworking machine for professional use, with a 2.2 kW (1.5 HP) motor, weighing approx. 179 kg. Krollit, official Bernardo distributor since 2007.
- Table dimensions: 900 × 410 mm
- Table height: 865 mm
- Table extensions: 2 × 235 × 210 mm
- Table widening: 670 × 300 mm
- Sliding table: 400 × 250 mm
- Cutting length: 710 mm
Who uses the FK 250 R 400V combined milling machine and for what
The FK 250 R 400V combined milling machine is a combined woodworking machine for professional use distributed by Krollit.
Its place in the Bernardo range
The Bernardo combined milling machine FK 250 R 400V is part of the Bernardo range of combined woodworking machines, distributed in Italy by Krollit since 2007. The Bernardo range includes models of various categories and performance levels: to choose the right machine for your use case, you can consult the Bernardo catalog on Krollit or contact customer support for selection assistance.
Krollit logistics and support
Machine shipping in 5-9 working days (7 days to the South). For spare parts and accessories, shipping in 3-5 working days from Krollit warehouse. Customer support in Italian available for technical documentation, product sheets, and spare parts order management. Krollit has been an official distributor since 2007.
Who is the FK 250 R 400V combined milling machine for
The FK 250 R 400V combined milling machine is recommended for the following professional profiles:
-
Artisan joineries with limited space: multiple woodworking functions (saw, milling, planing, drilling) integrated into a single machine to optimize footprint.
-
Restoration workshops and niche productions: versatility for mixed operations with a single investment and simplified training.
Not suitable for: high-intensity industrial series production (for intensive cycles and continuous production, consider dedicated machines for each function).
Processing capacity
| Cutting length |
710 mm |
| Cutting height 90° / 45° |
80 / 60 mm |
| Cutting width at rip fence |
820 mm |
| Vertical stroke |
110 mm |

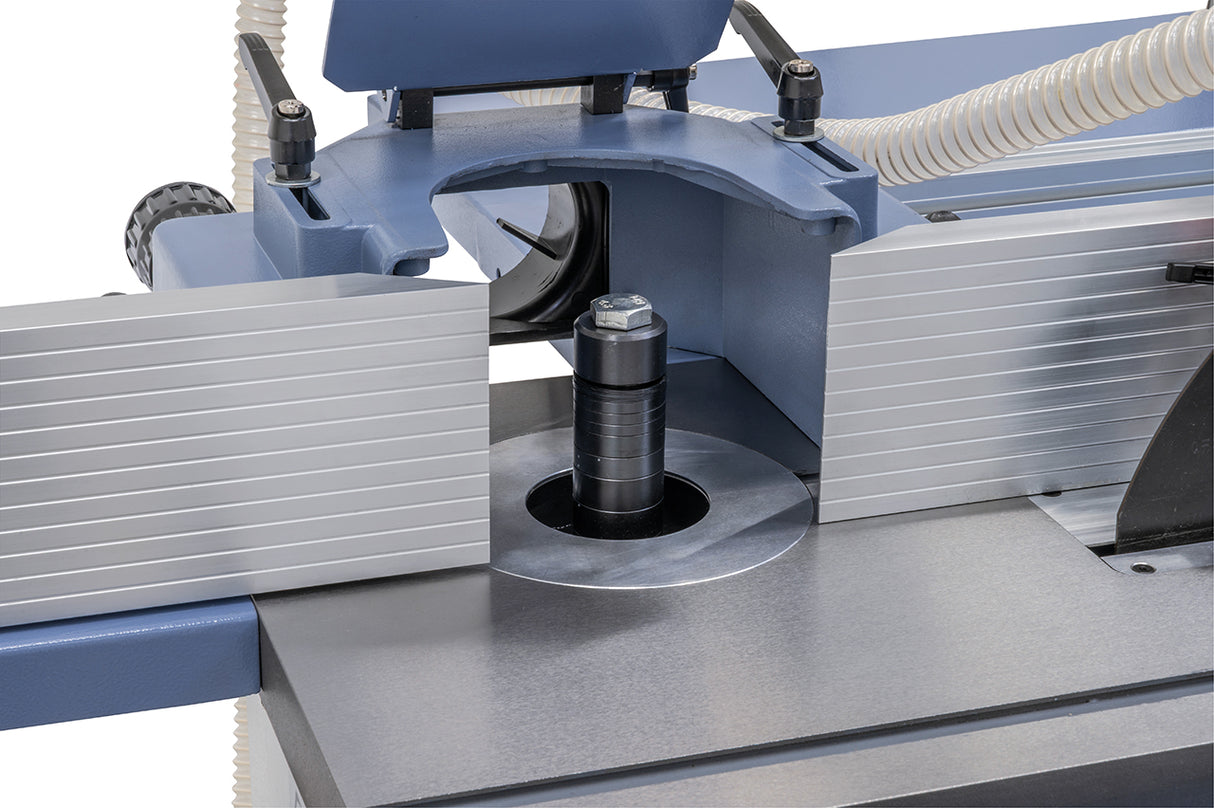

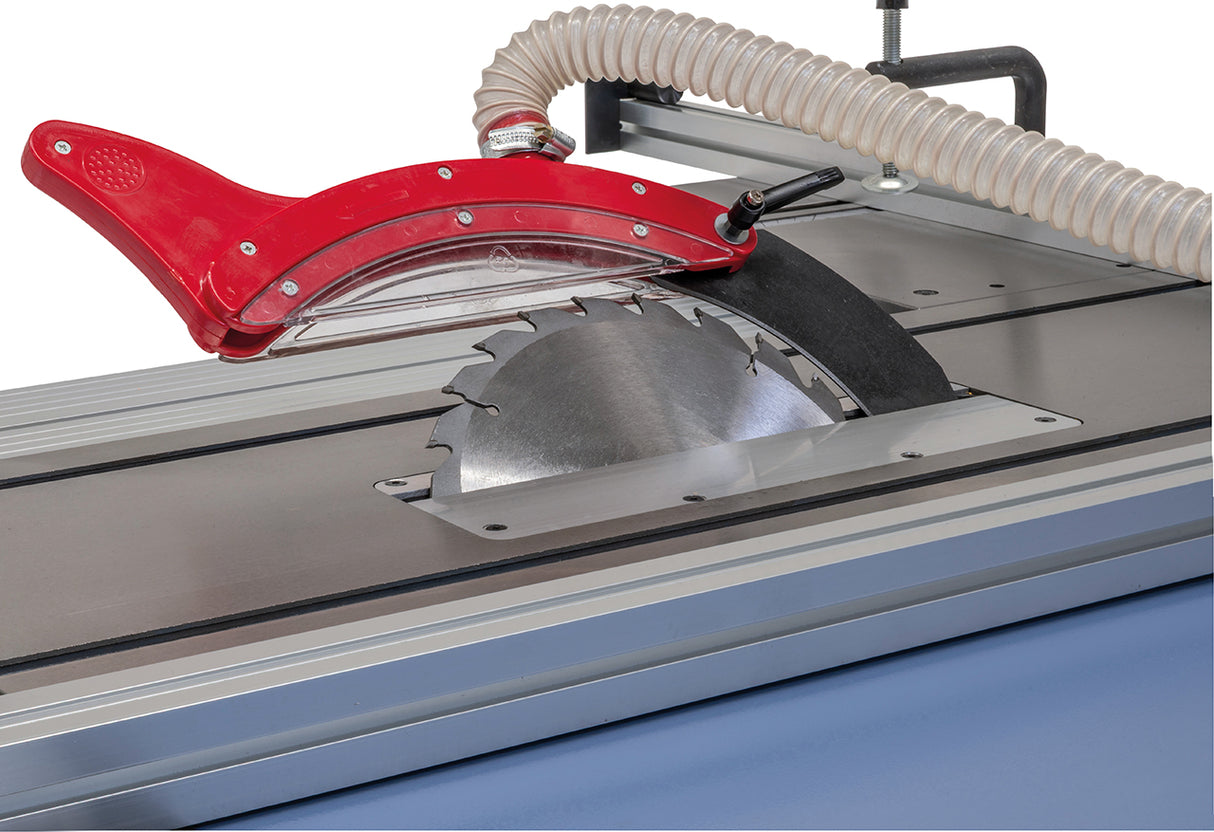

Spindle, tools and speed

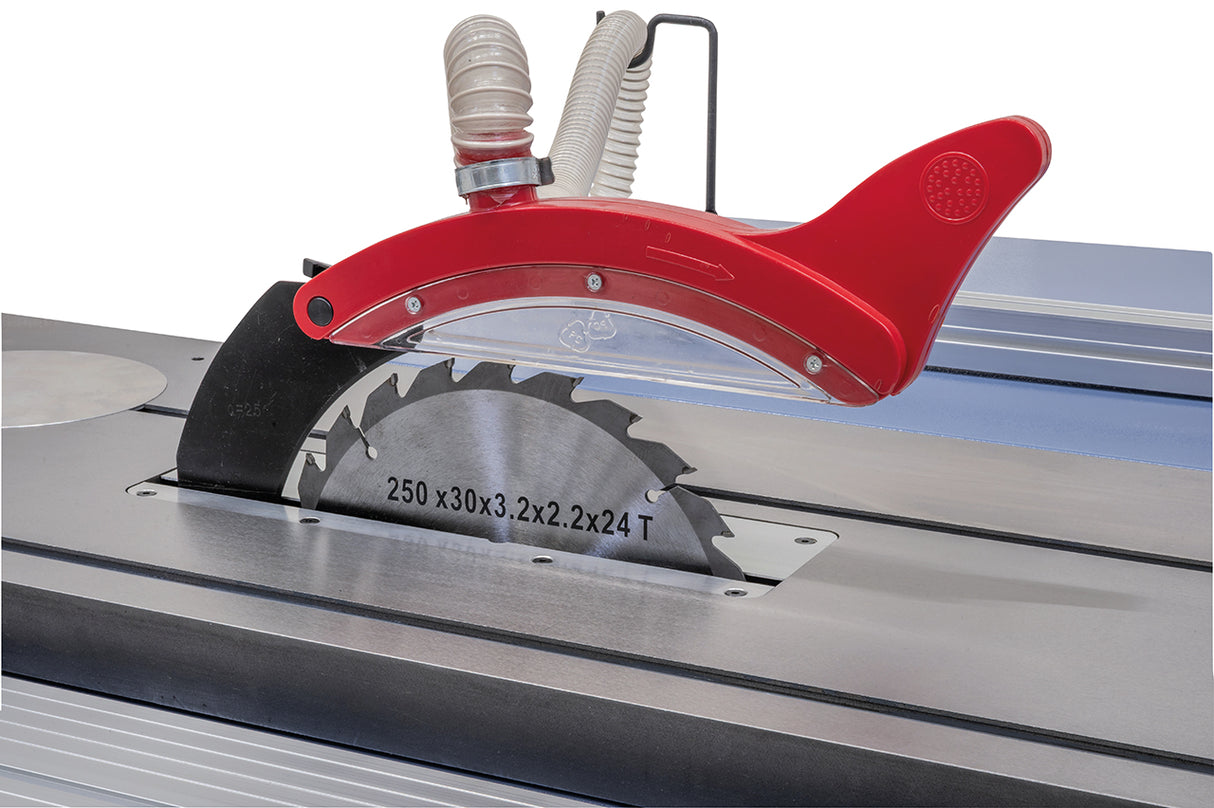

| Max blade Ø |
250 × 30 mm |
| Blade speed |
4750 rpm |
| Dust extraction port |
Ø 100 mm |
| Spindle speed |
1400 / 4000 / 6000 / 8000 rpm |
Table, dimensions and geometry
| Table dimensions |
900 × 410 mm |
| Table height |
865 mm |
| Useful clamping length |
90 mm |
| Machine dimensions (L × W × H) |
1240 × 1620 × 1150 mm |
| Weight |
approx. 179 kg |
Motor and power supply
| Motor power (S1) |
2.2 kW (1.5 HP) |
| Motor power (S6) |
3.0 kW (4.0 HP) |
| Motor power (S1) |
1.5 kW (2.0 HP) |
| Motor power (S6) |
2.1 kW (2.8 HP) |
| Voltage |
400 V |
Other specifications
| Table extensions |
2 × 235 × 210 mm |
| Table widening |
670 × 300 mm |

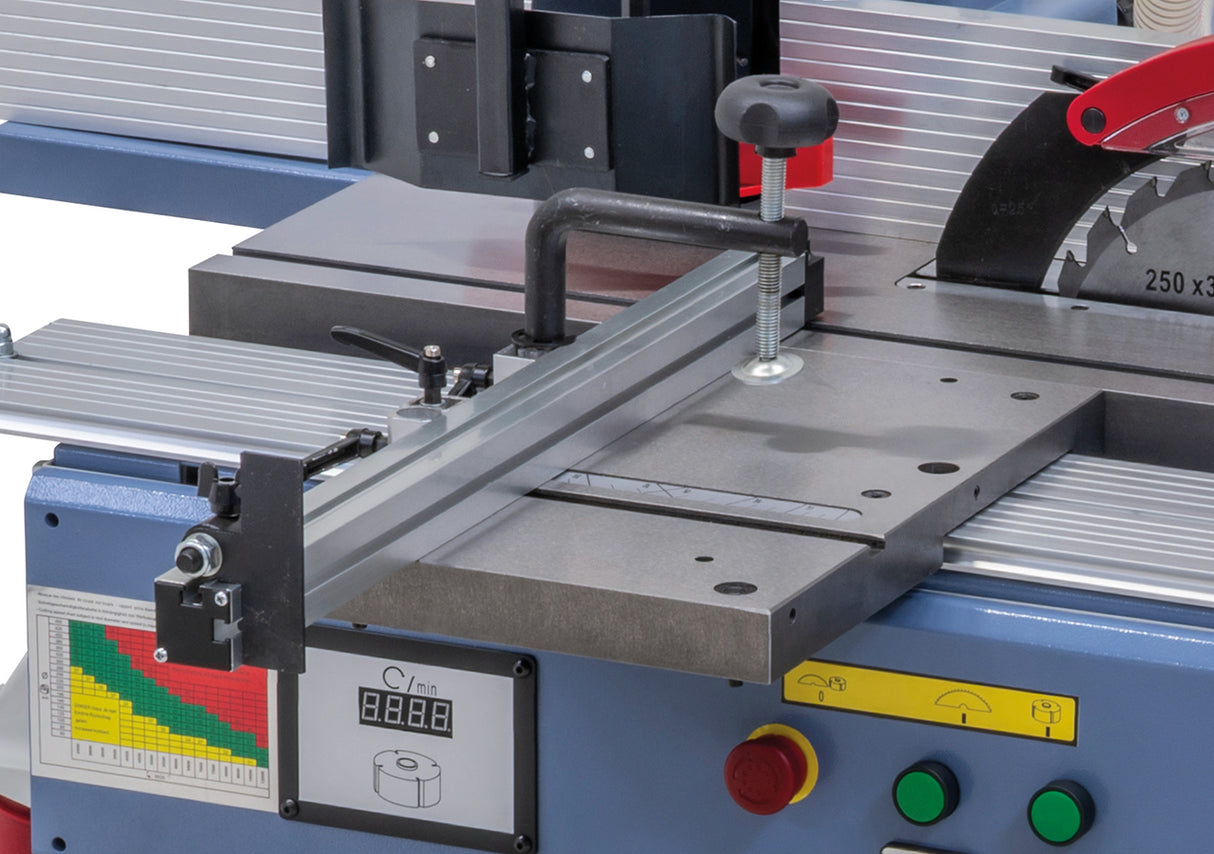

| Sliding table |
400 × 250 mm |
| Router spindle Ø |
30 mm |
| Table opening |
170 mm |
| Max tool Ø (profiling / tenoning) |
150 mm |
Frequently Asked Questions
What functions does the FK 250 R 400V combined milling machine offer?
Combined machine: integrates multiple woodworking operations (squaring, milling, planing, drilling) into a single machine.
Combined machines reduce footprint and costs compared to separate machines; switching between functions takes only a few minutes.
What is the working width/length?
See "Planer width" and "Carriage length" in the technical table.
CU/FK models typically have a 1,600-2,500 mm carriage and 250-310 mm planer width.
What power supply does it require?
See "Voltage" in the table: typically 400 V three-phase for professional combined machines.
Models with motors over 3 kW require a three-phase line. Check availability in the workshop before purchase.
Fast function change?
Professional models allow function changes in a few minutes by tilting or replacing tables.
For series production with frequent function changes, consider dedicated squaring machines/milling machines to reduce setup times.
Spare parts and assistance available?
Yes, original Bernardo spare parts available with 3-5 day shipping. Customer support available in Italian.
Krollit has been an official Bernardo distributor since 2007.
