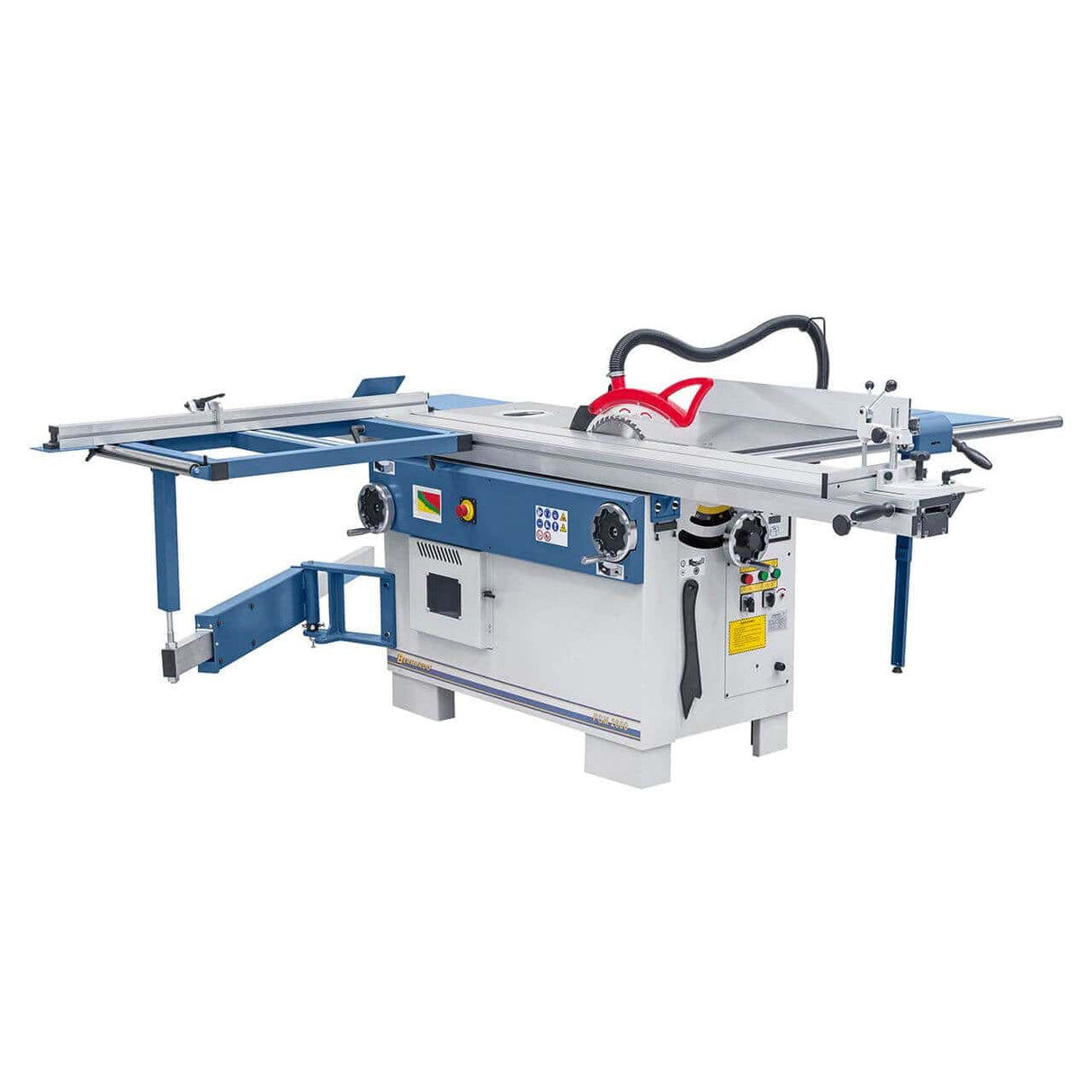

Sliding table saw with spindle moulder PSM 2600 / 400 V
The PSM 2600 combination machine brings together a circular saw with a scoring blade and an inclinable spindle moulder in a single industrial cast iron and steel frame, designed for stability, power, and versatility. Thanks to its 2600 mm sliding table and extensive standard equipment, it is the perfect choice for joinery workshops seeking precision and flexibility in professional processing of coated panels and solid wood.
Main specifications
2600 mm sliding table with hardened guides and smooth movement
Spindle moulder inclinable from 0° to -45° with speed displayed on a digital screen

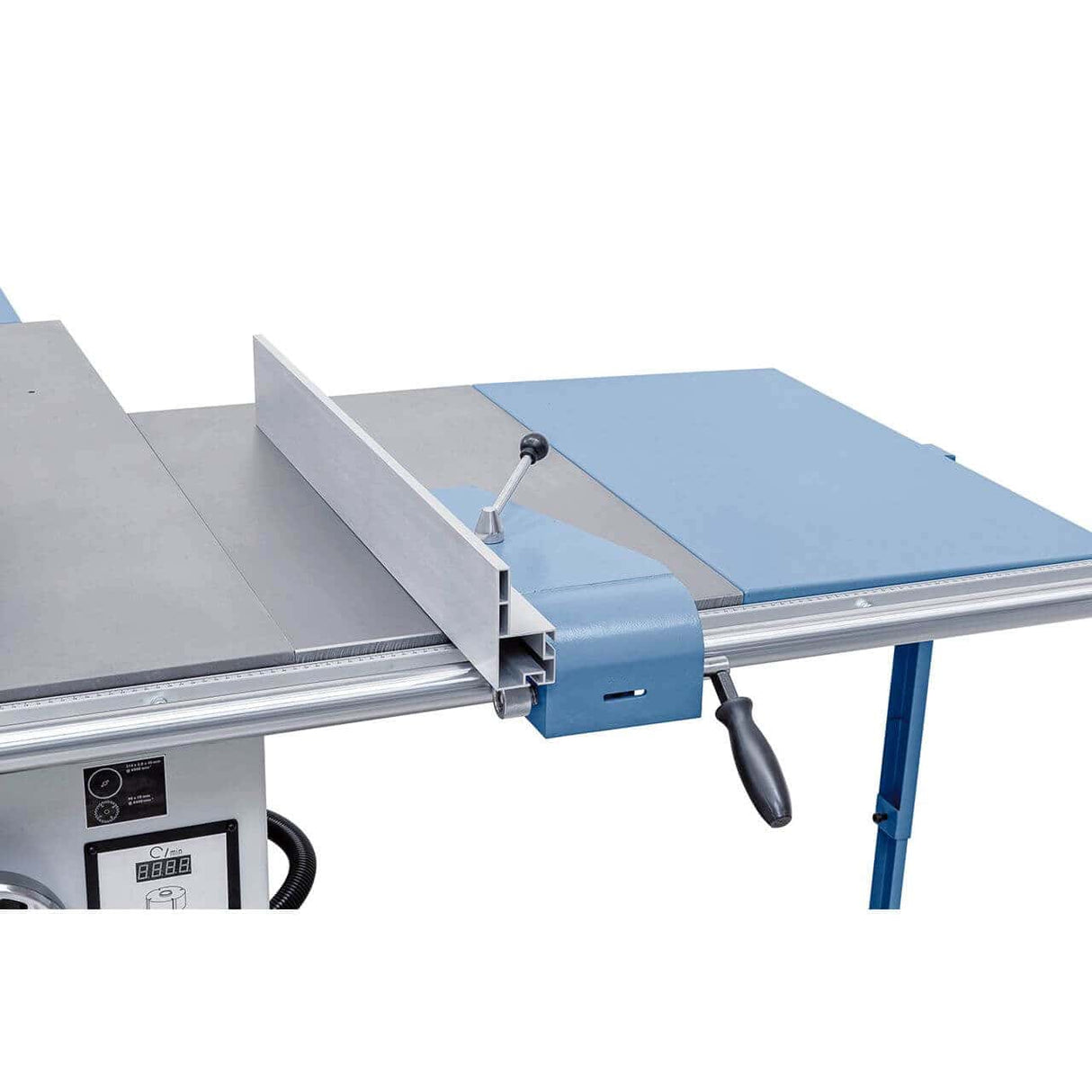

Parallel fence with micrometric adjustment and end stop
Anti-torsion cast iron and steel frame for vibration absence
315 mm blade also compatible with scoring blade installed

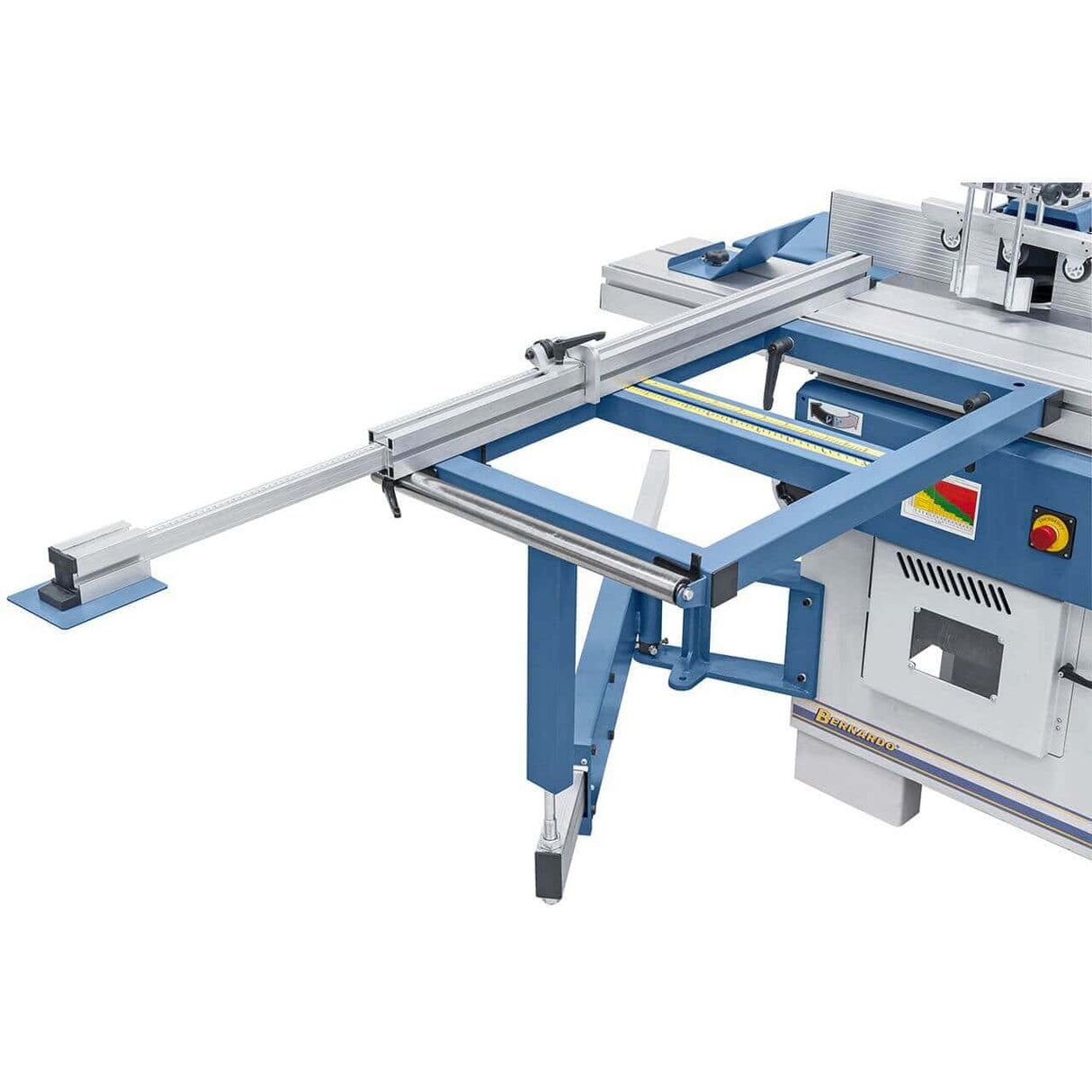

Large squaring table with roller for heavy panel handling

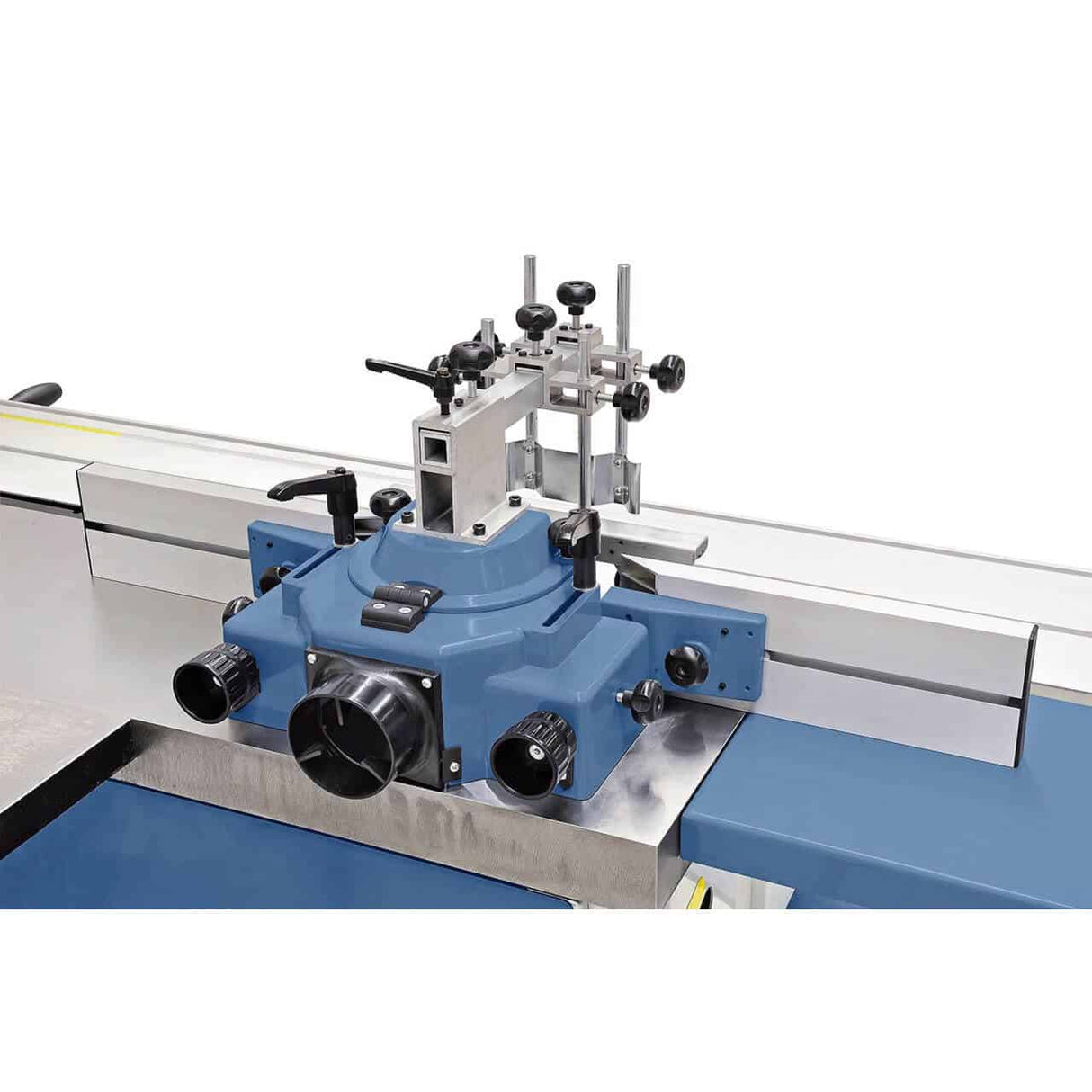

Spindle moulder guard with adjustable aluminium guides
Separate motors for saw and spindle moulder, optimised for intensive use
Technical table
| Function |
Feature |
| CIRCULAR SAW |
|
| Table dimensions |
1300 x 380 mm |
| Table height |
970 mm |
| Table extension |
350 x 310 mm |
| Table enlargement |
800 x 880 mm |
| Squaring table with roller |
940 x 580 mm |
| Sliding table |
2600 x 270 mm |
| Cutting length |
2600 mm |
| Blade diameter |
315 x 30 mm |
| Cutting height 90° / 45° |
100 / 80 mm |
| Cutting width on fence |
1220 mm |
| Main blade speed |
4500 rpm |
| Scoring blade speed |
8500 rpm |
| Scoring blade |
90 x 20 mm |
| Dust extraction outlet |
Ø 95 mm |
| Motor power S1 |
3.0 kW (4.0 HP) |
| Motor power S6 |
4.2 kW (5.7 HP) |
| SPINDLE MOULDER |
|
| Shaft diameter |
30 mm |
| Vertical stroke |
140 mm |
| Tilt |
0° to -45° |
| Table opening |
200 mm |
| Useful shaft length |
110 mm |
| Max tool diameter |
180 mm |
| Rotation speed |
1800 / 3000 / 6000 / 9000 rpm |
| Motor power S1 |
2.8 kW (3.8 HP) |
| Motor power S6 |
3.9 kW (5.3 HP) |
| GENERAL DATA |
|
| Voltage |
400 V |
| Machine dimensions |
2600 x 2900 x 1260 mm |
| Weight |
440 kg |
Package contents
Carbide saw blade 315 x 3.0 x 30 mm / 40 teeth
Scoring blade 90 x 20 x 3 mm / 13 teeth

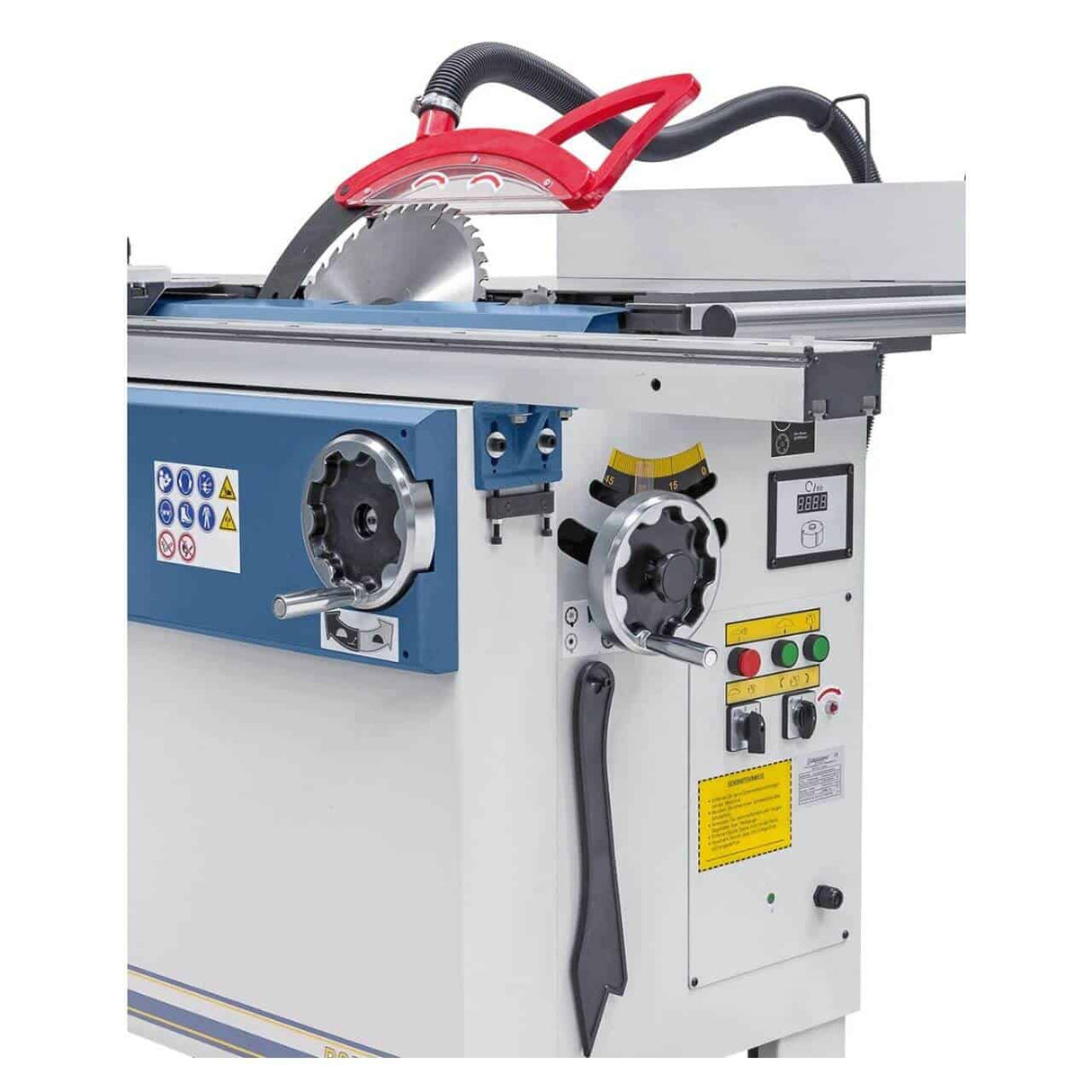

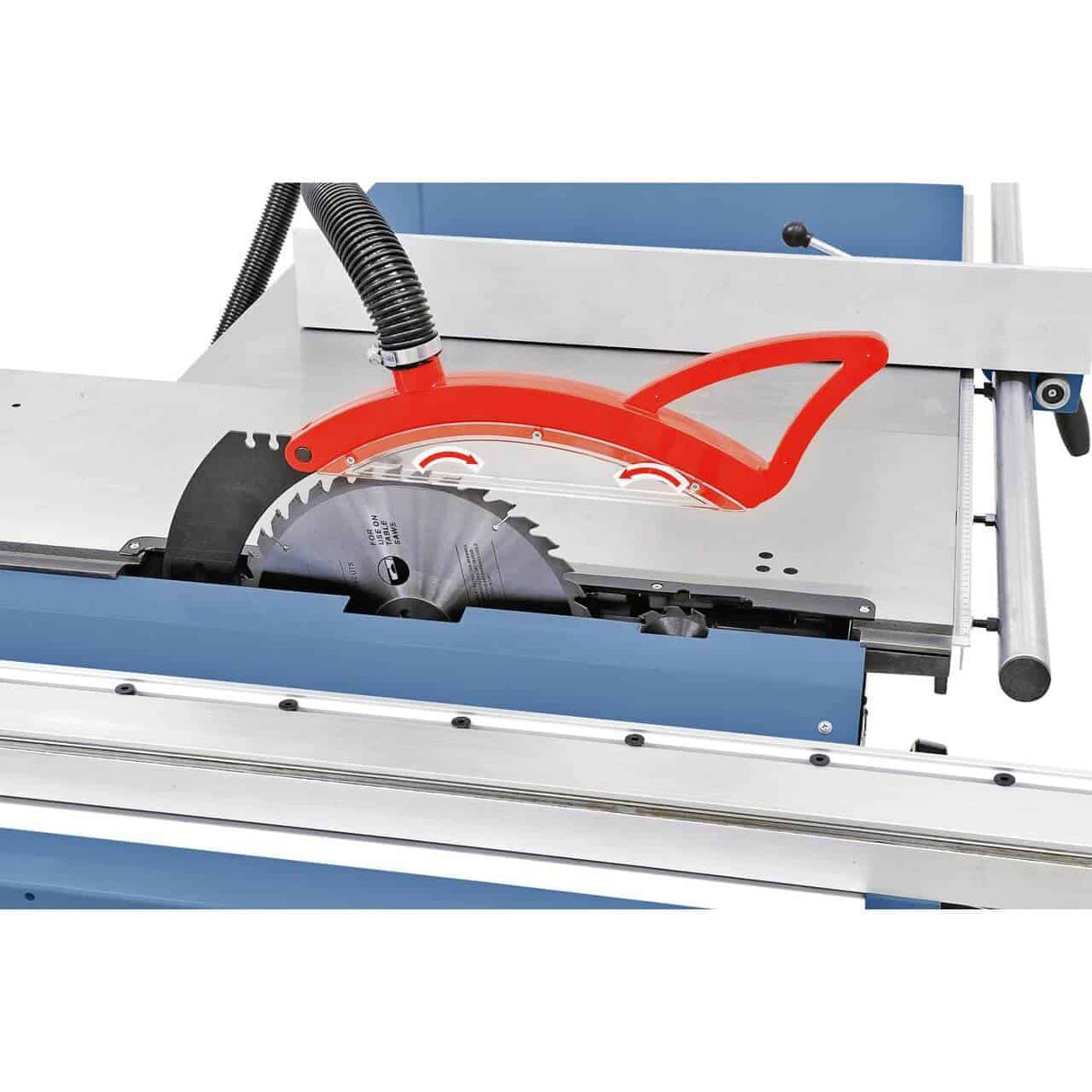

Protective hood with pipe and dust extraction outlet
Stop with fine adjustment

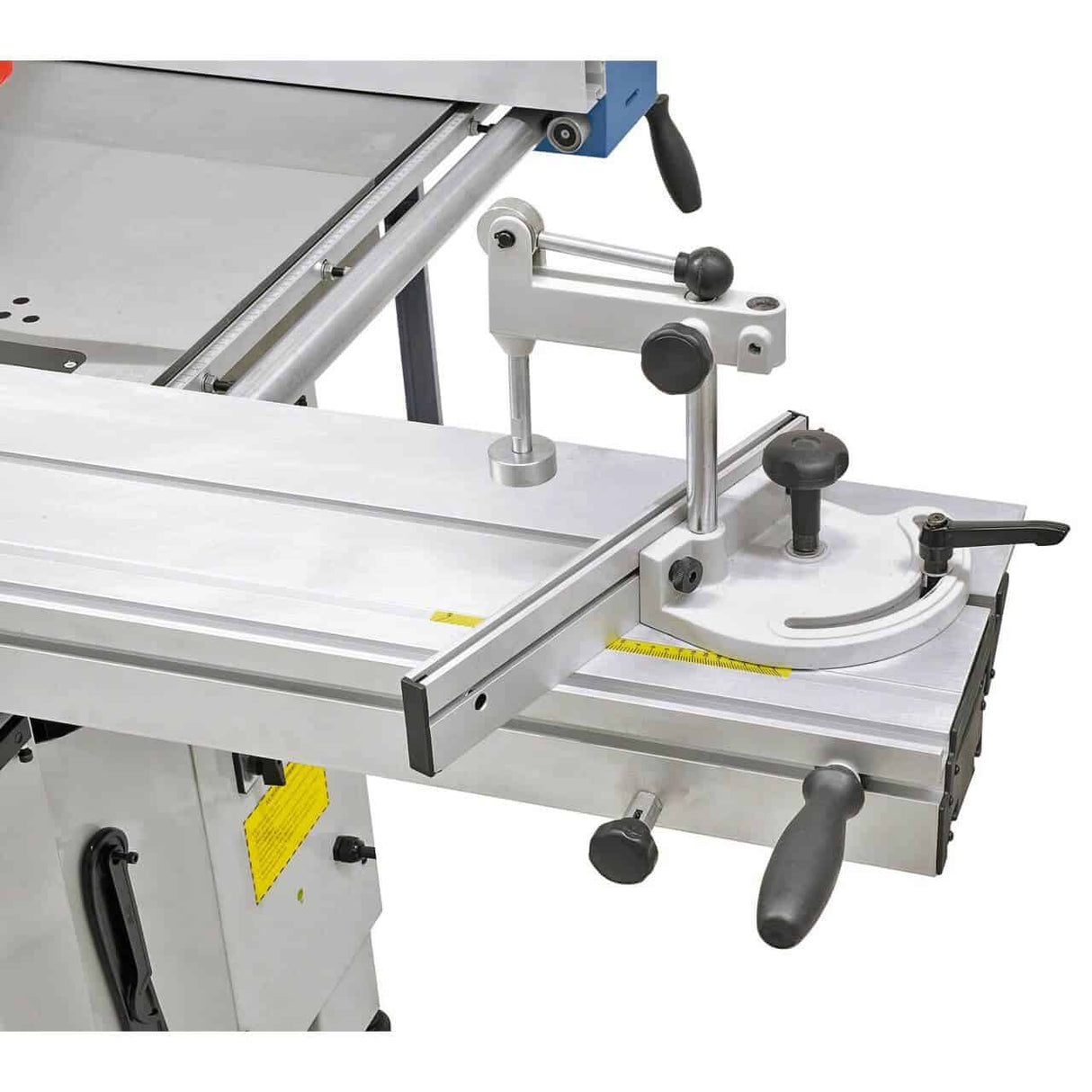

Angle fence with eccentric clamp
Squaring table with roller
Table extension and enlargement
Extendable telescopic fence

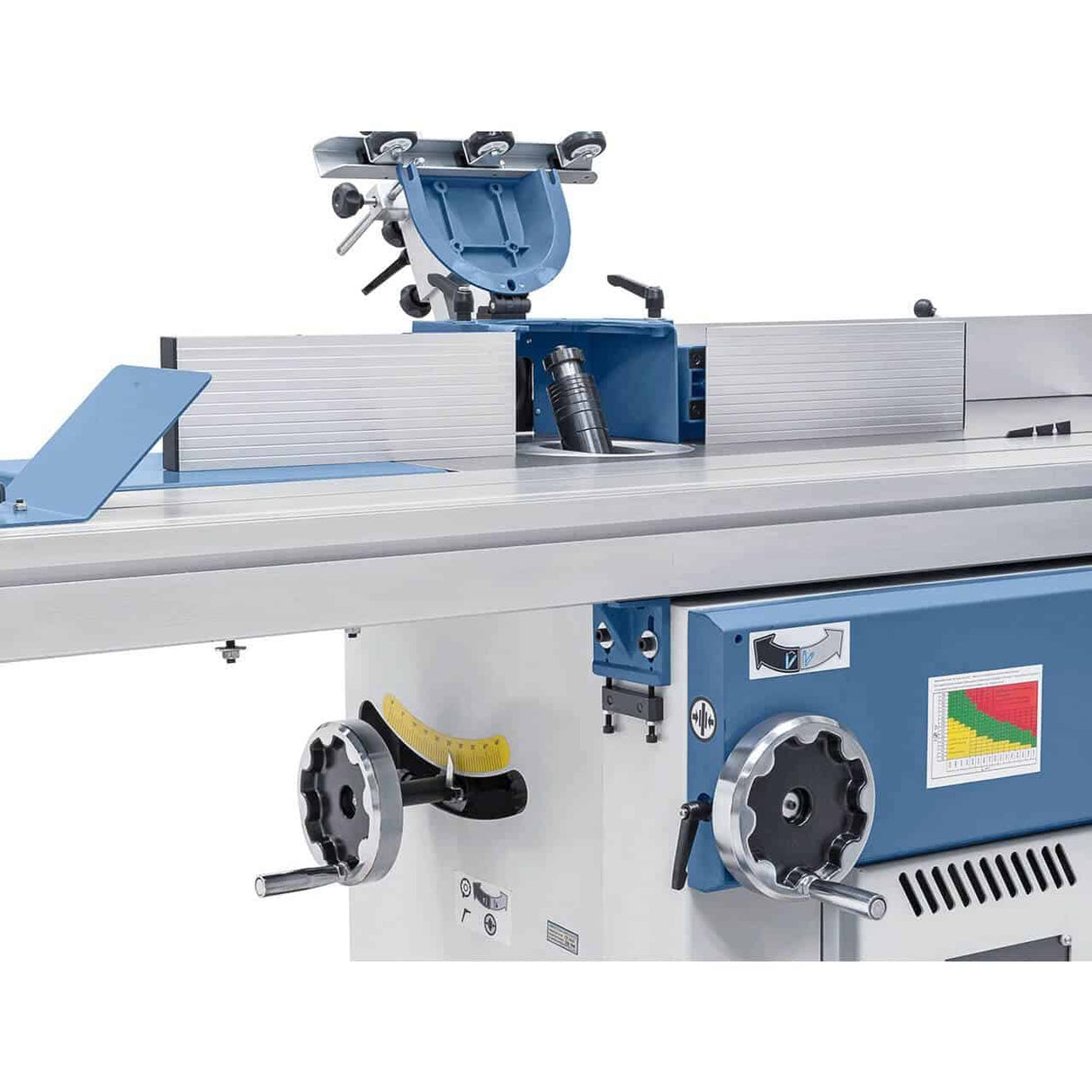

Spindle moulder fence with adjustable aluminium guides

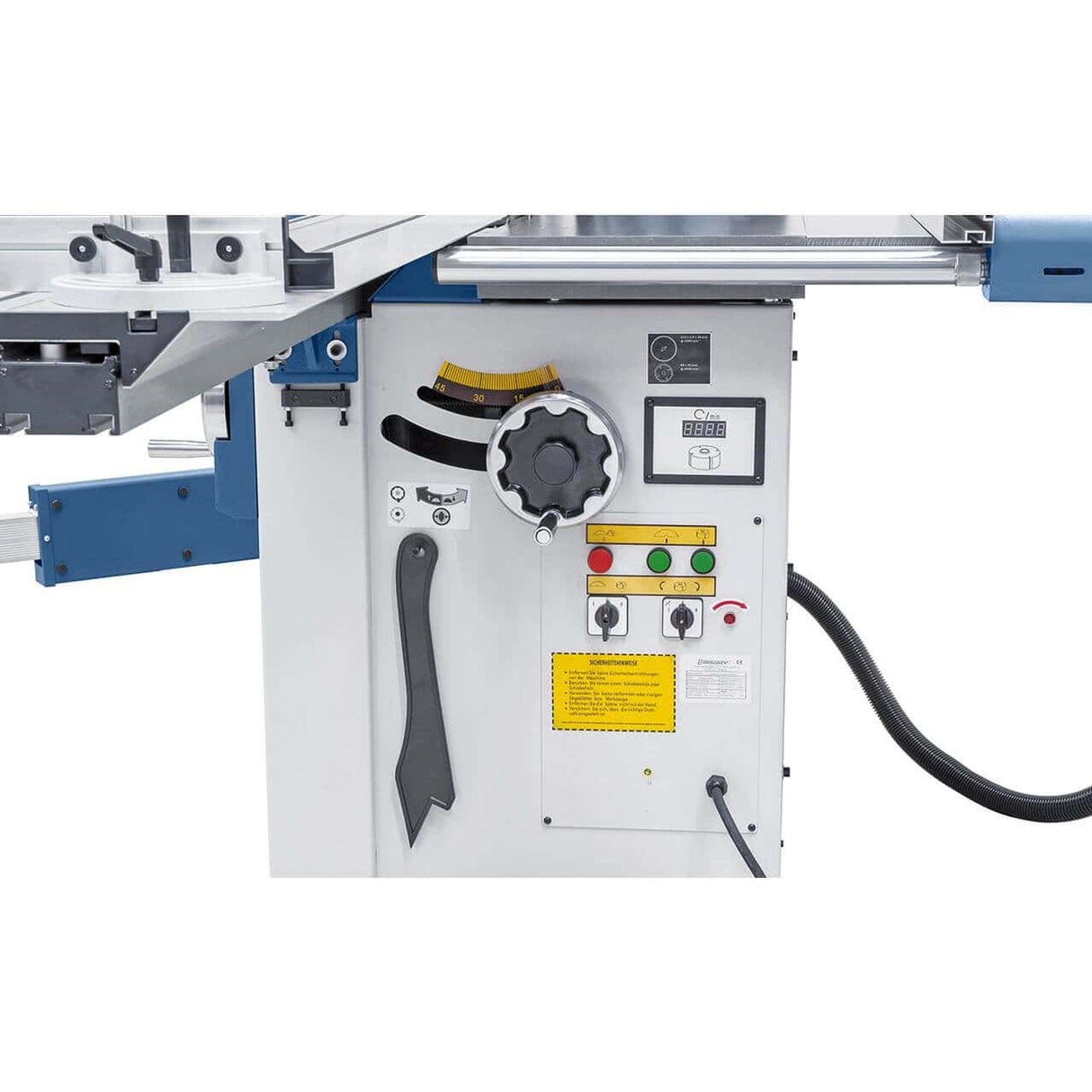

Digital display of spindle moulder speed
Spindle with right and left rotation

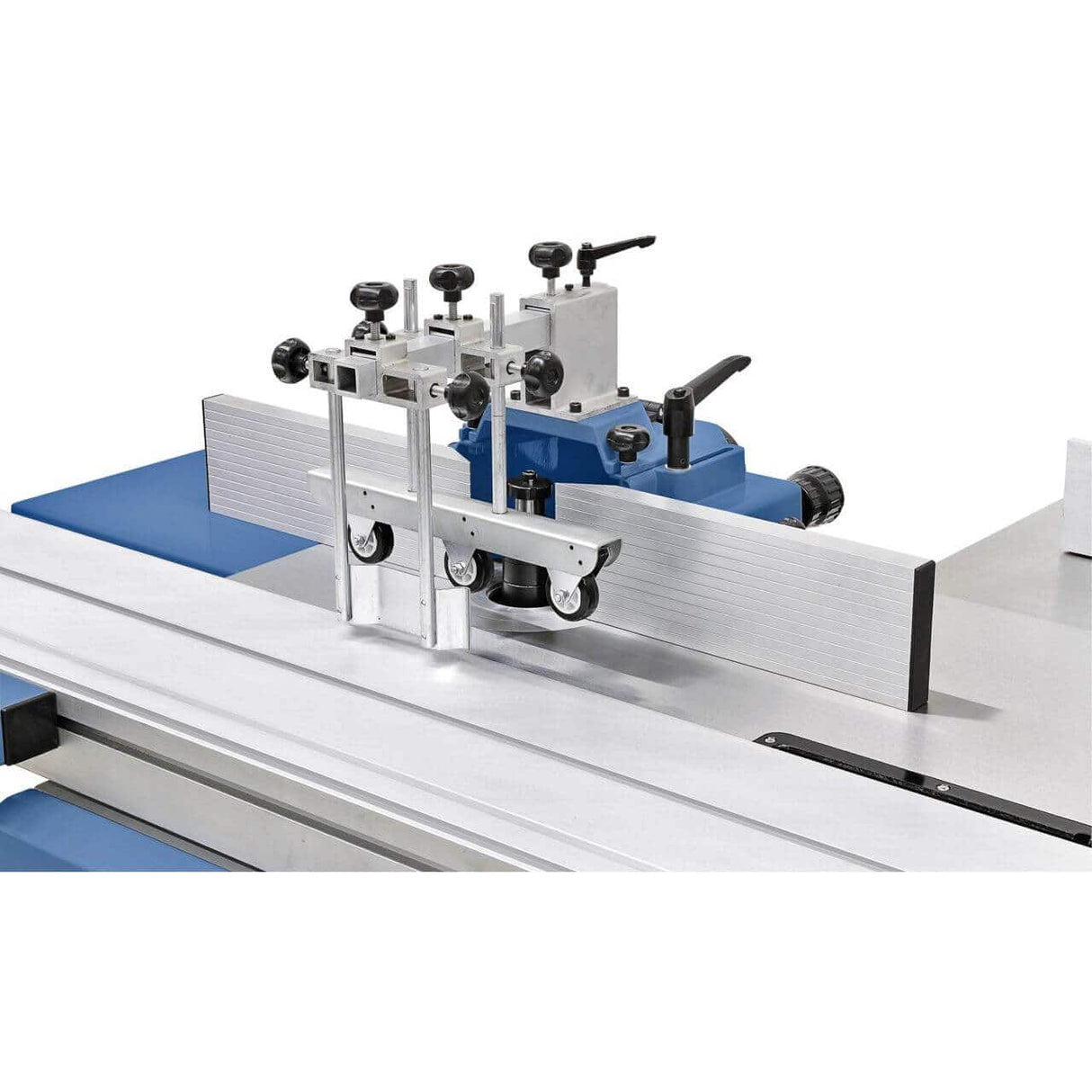

Safety hold-down clamp
Push handle
Tool set
