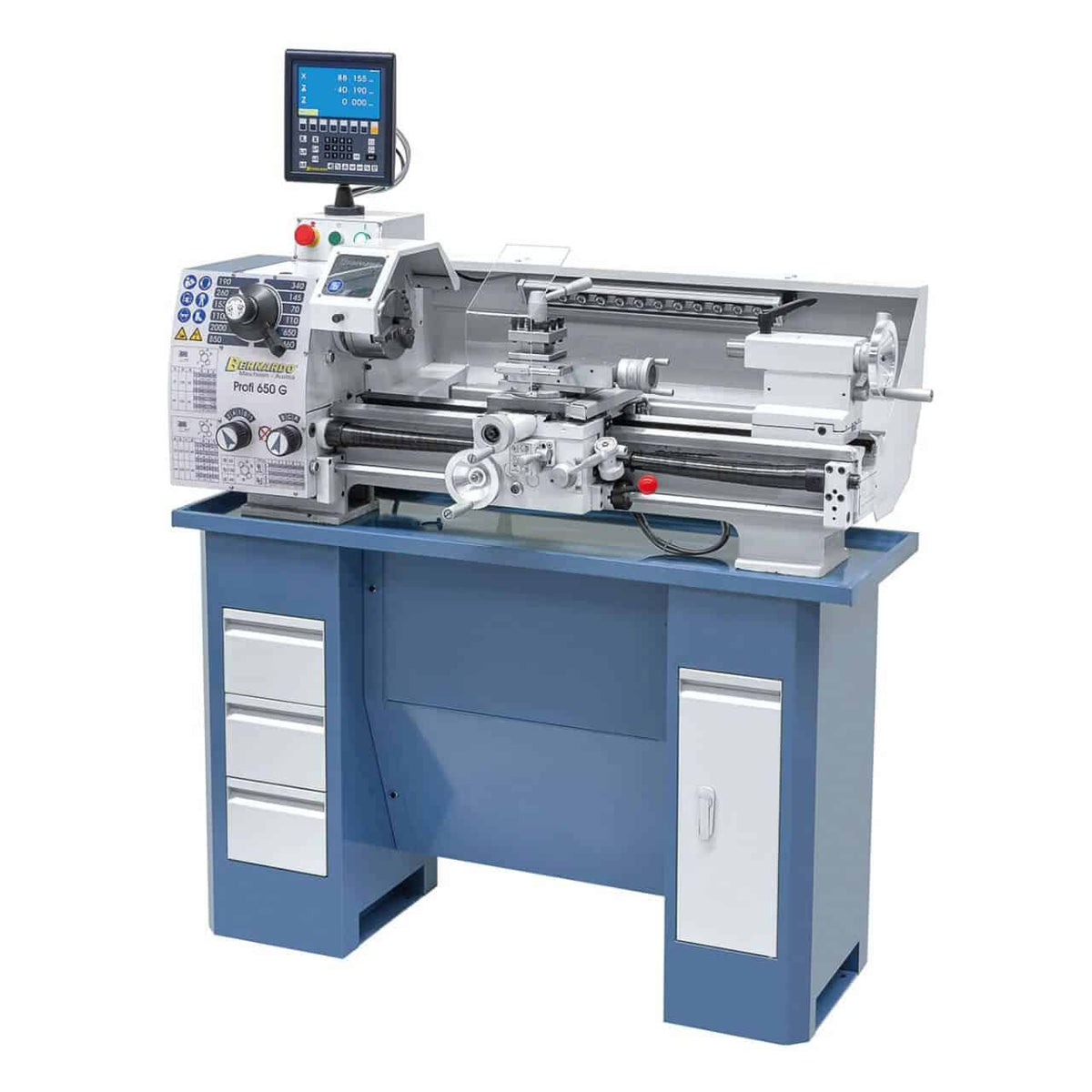

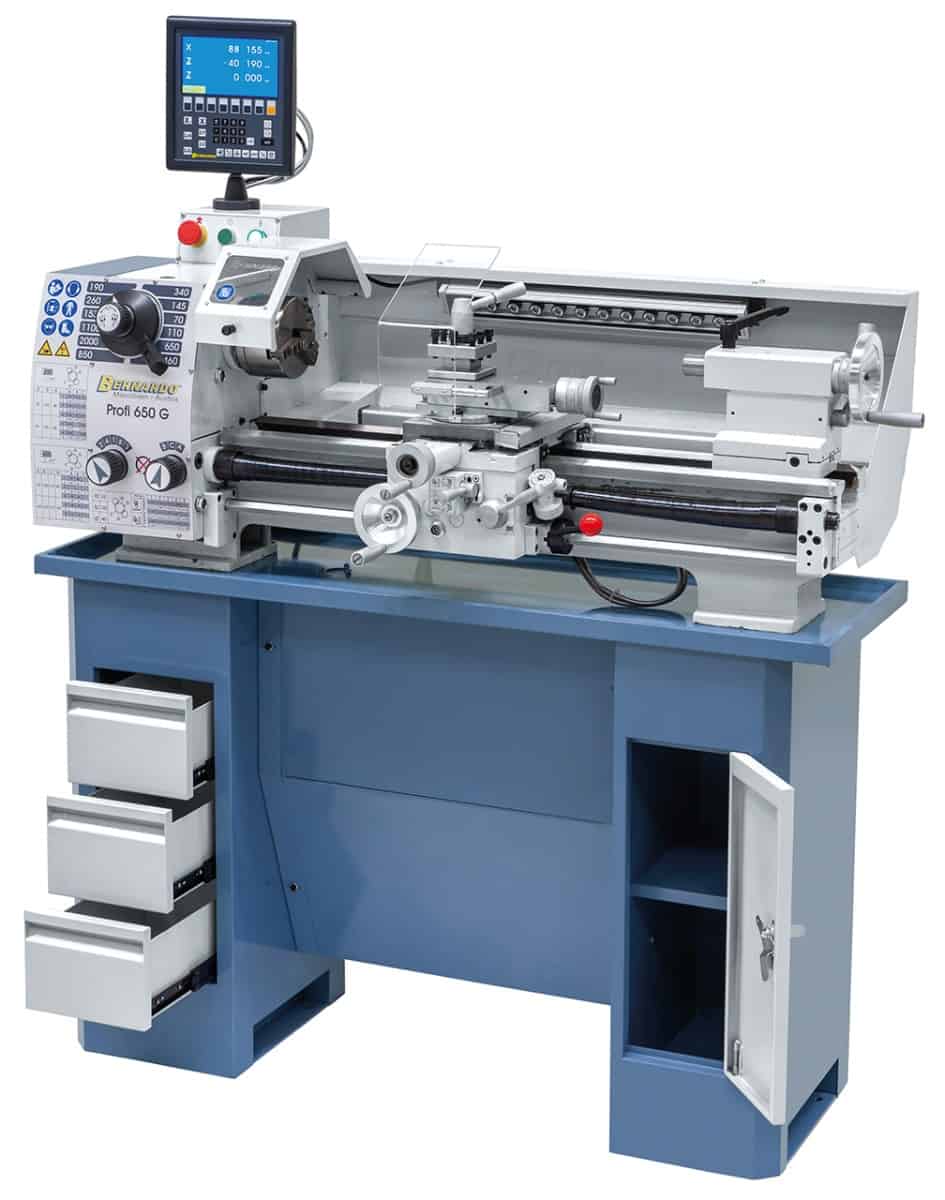

Bernardo Geared Lathe with Gap Bed Profi 650 G / 400 V with Digital Readout ES-12 V
The Bernardo Profi 650 G / 400 V lathe with 2-axis ES-12 V digital readout is designed for professional machining of steel, non-ferrous metals, and plastic. With a 26 mm spindle bore, a 160 mm wide induction-hardened bed, and a solid geared design, it guarantees precision and durability. The transmission with 12 mechanical speeds (70–2000 rpm) allows it to adapt to different materials and processes. The spindle, supported by precision tapered roller bearings, ensures high concentricity, while the ES-12 V digital readout facilitates accurate and repetitive machining. With automatic feeds, metric and inch thread cutting capabilities, and a complete set of accessories, it is the ideal choice for machine shops and laboratories.
Key Specifications
26 mm spindle bore with MT4 taper
160 mm induction-hardened and ground bed
12 mechanical speeds, 70–2000 rpm

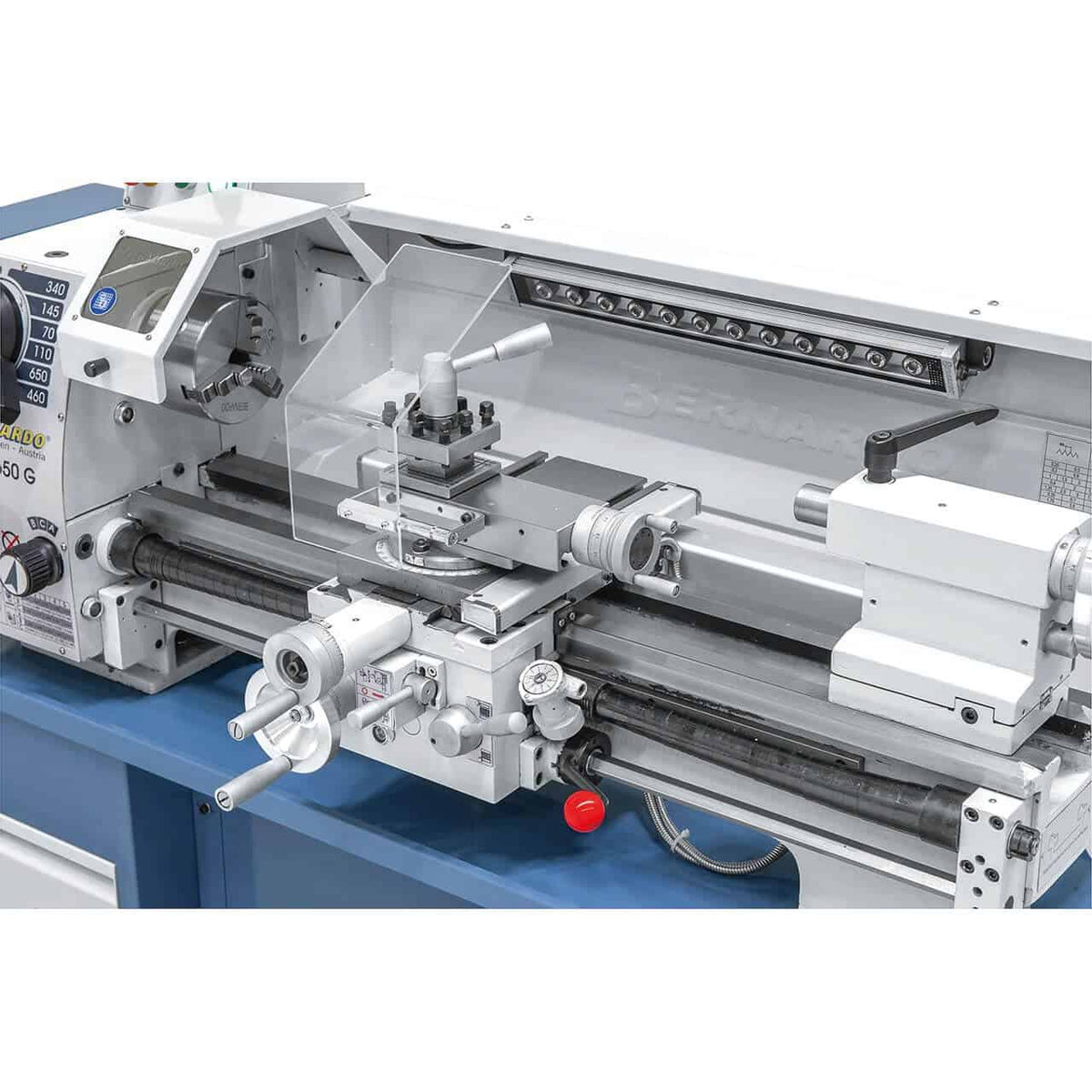

Automatic longitudinal and cross feeds
Metric threads (0.25–5 mm) and inch threads (6–96 TPI)
2-axis ES-12 V digital readout with LCD

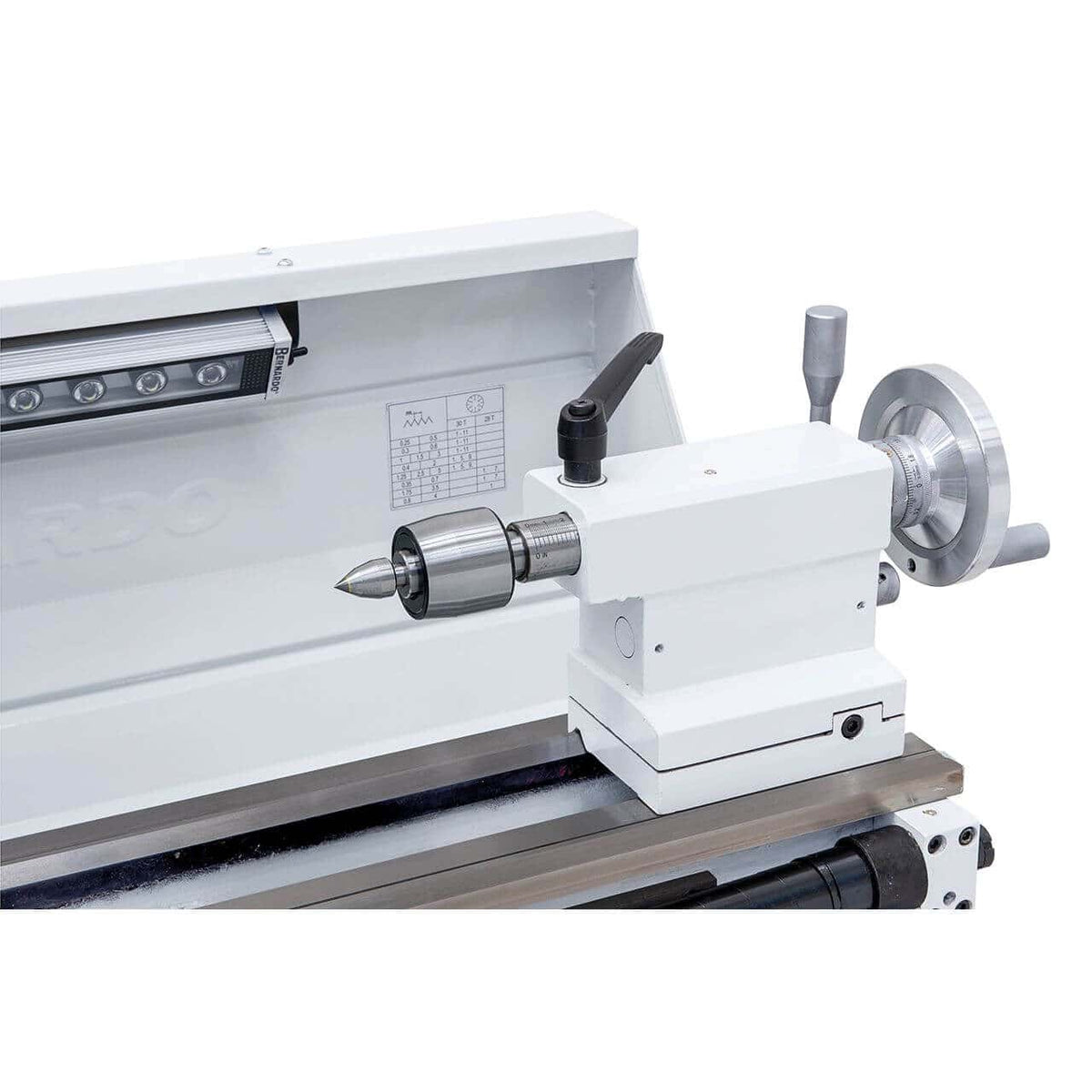

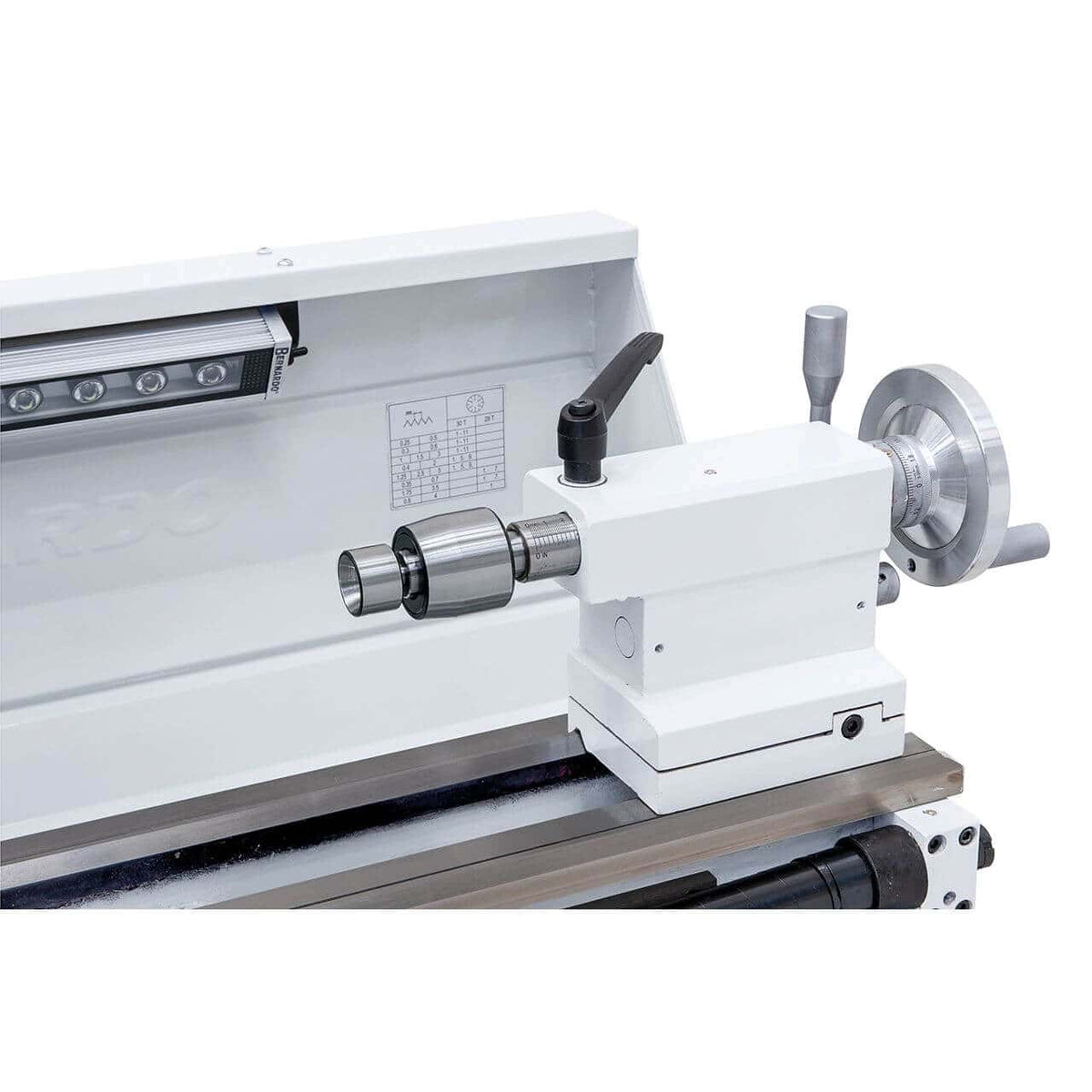

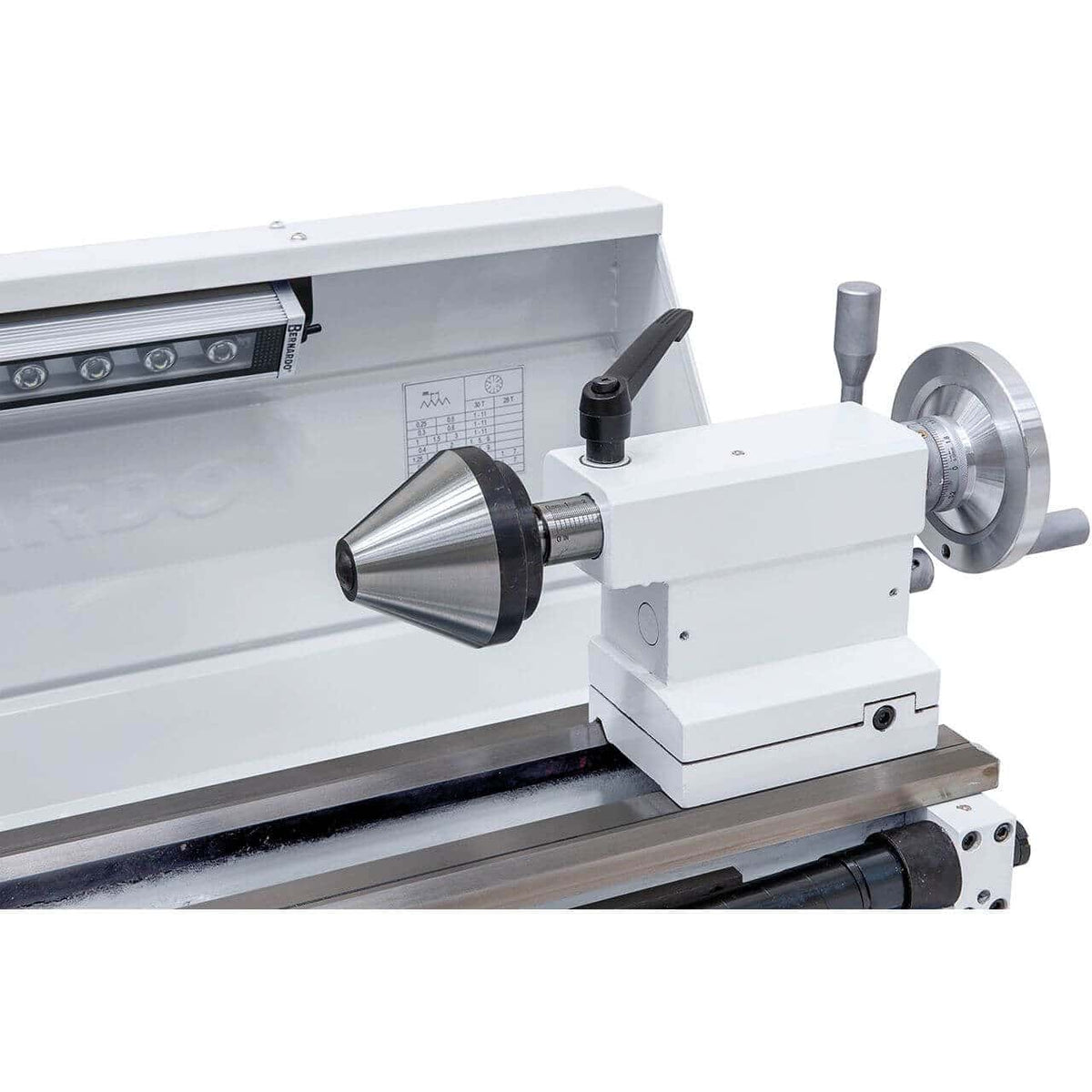

MT3 tailstock with 105 mm travel

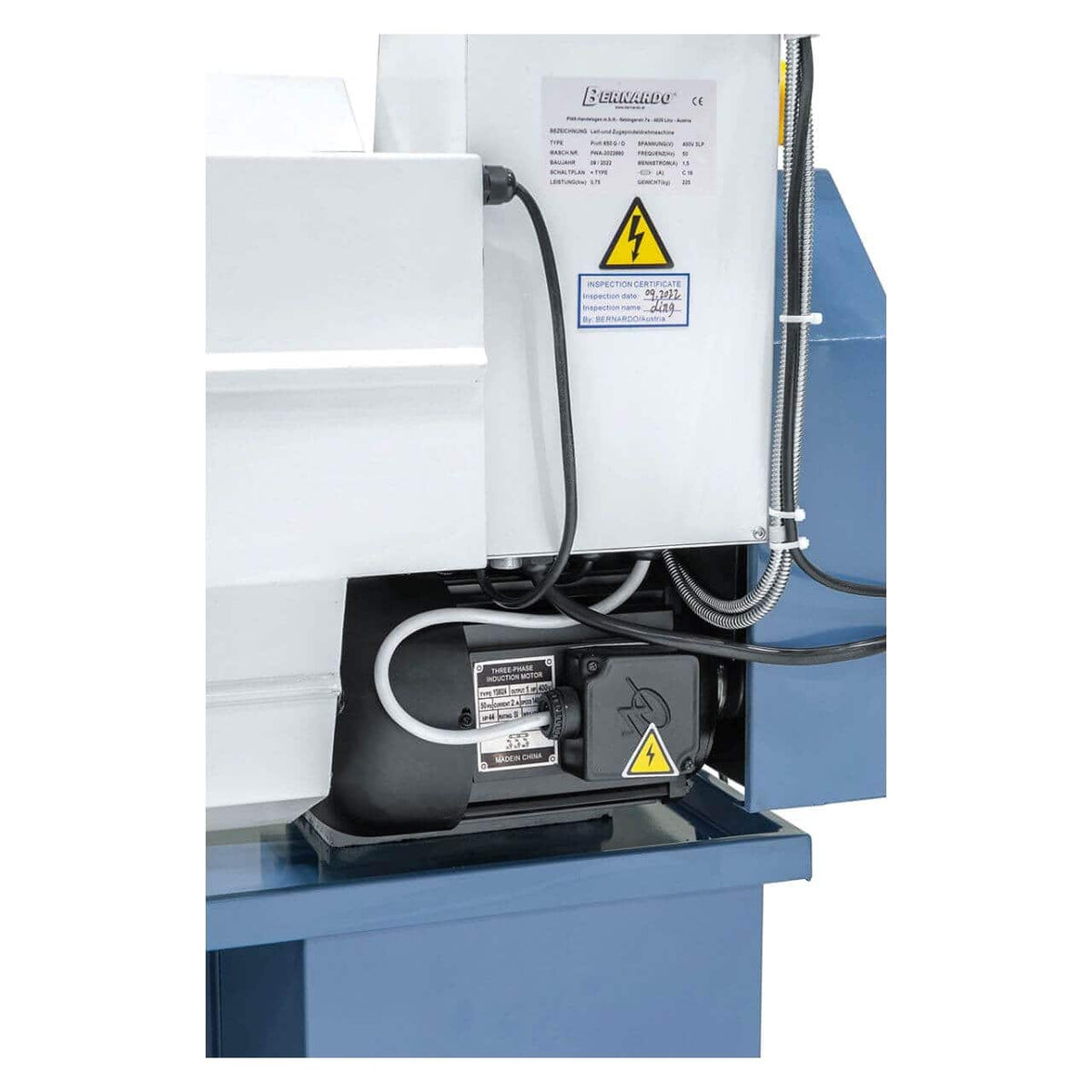

Powerful 0.75 kW (S1) – 1.0 kW (S6) three-phase motor at 400 V
Weight 202 kg for high stability
Technical Specifications
| Specification |
Value |
| Brand |
Bernardo |
| Model |
Profi 650 G |
| Distance between centers |
650 mm |
| Center height |
140 mm |
| Swing over bed |
280 mm |
| Bed width |
160 mm |
| Spindle bore |
26 mm |
| Spindle taper |
MT4 |
| Speeds |
12 ranges, 70–2000 rpm |
| Longitudinal feed |
0.036 – 0.364 mm/rev (15 steps) |
| Cross feed |
0.019 – 0.188 mm/rev (15 steps) |
| Metric threads |
0.25 – 5 mm (27 steps) |
| Inch threads |
6 – 96 TPI (20 steps) |
| Tailstock quill travel |
105 mm |
| Tailstock taper |
MT3 |
| Motor power S1 |
0.75 kW / 400 V |
| Motor power S6 |
1.0 kW / 400 V |
| Machine dimensions |
1400 x 720 x 520 mm |
| Weight |
202 kg (without base) |
Standard Equipment
2-axis ES-12 V digital readout with LCD display

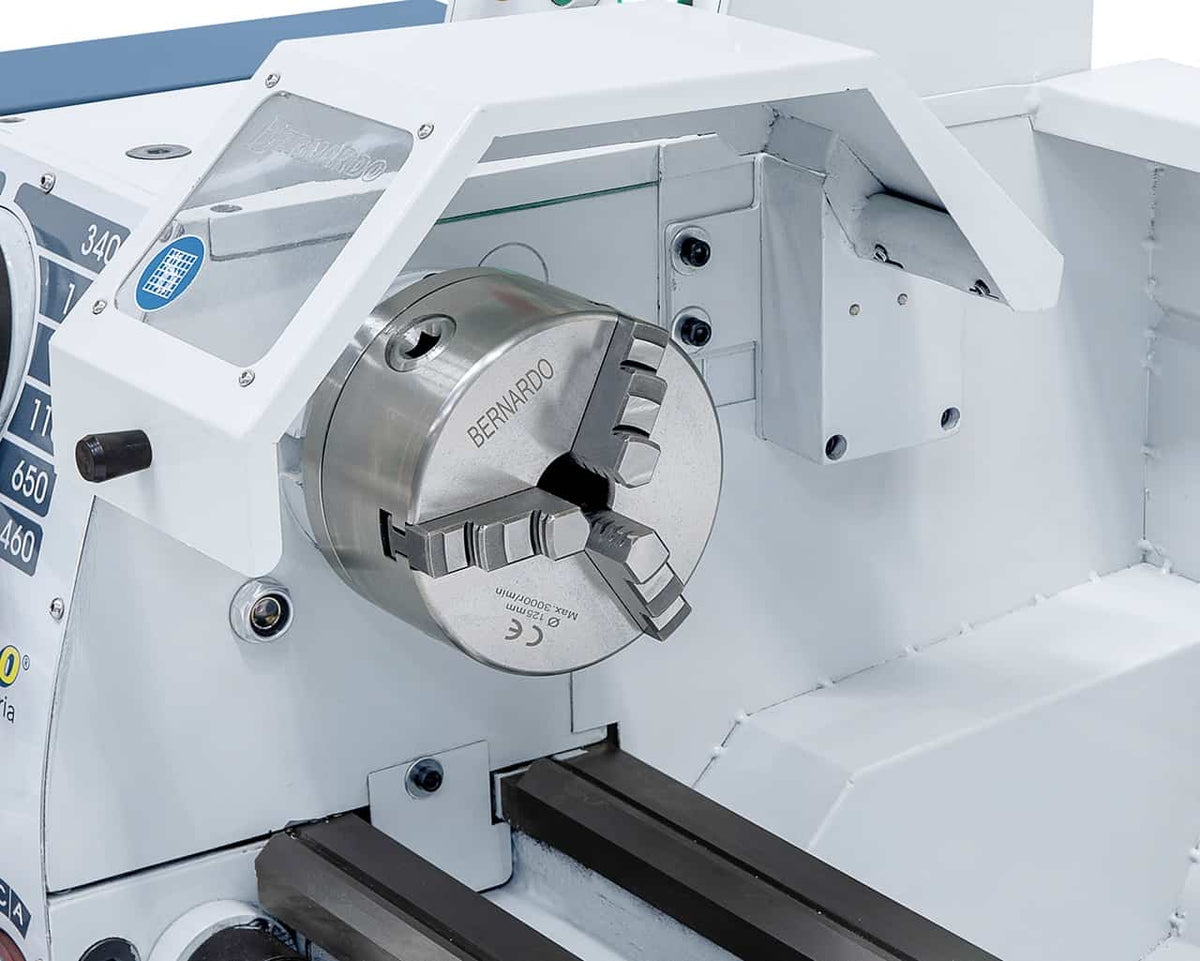

3-jaw self-centering chuck Ø125 mm with flange

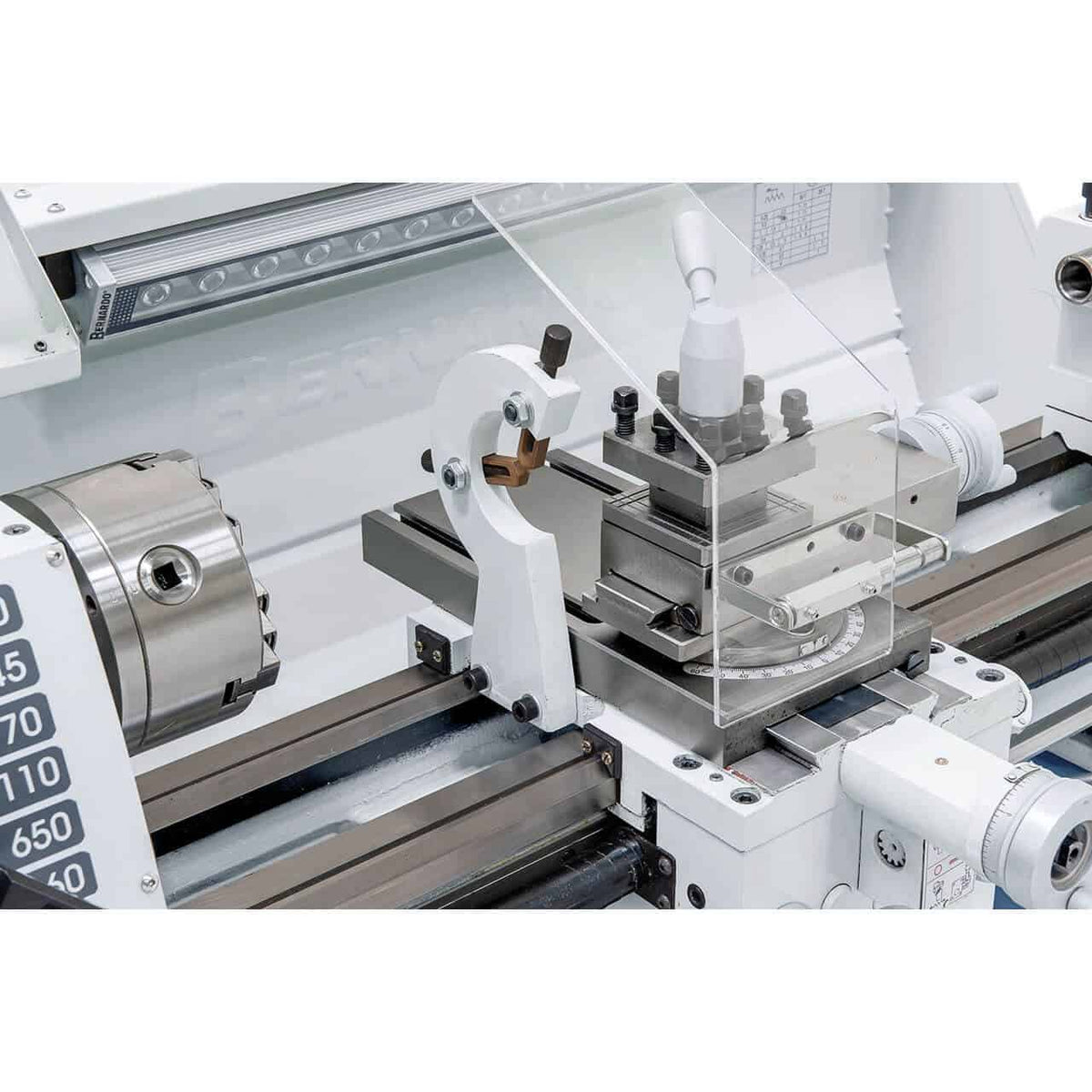

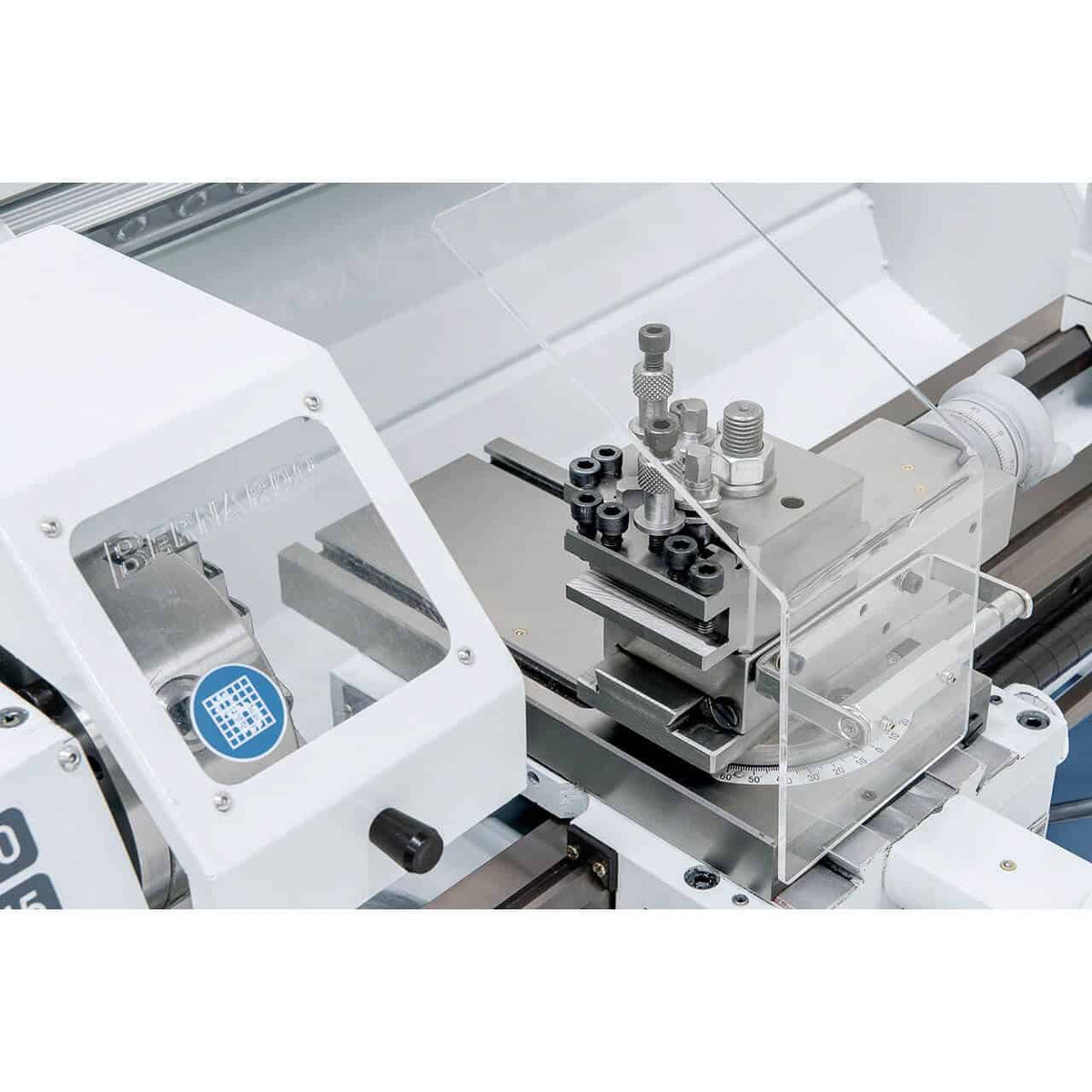

4-way tool post
Cross slide with swivel support

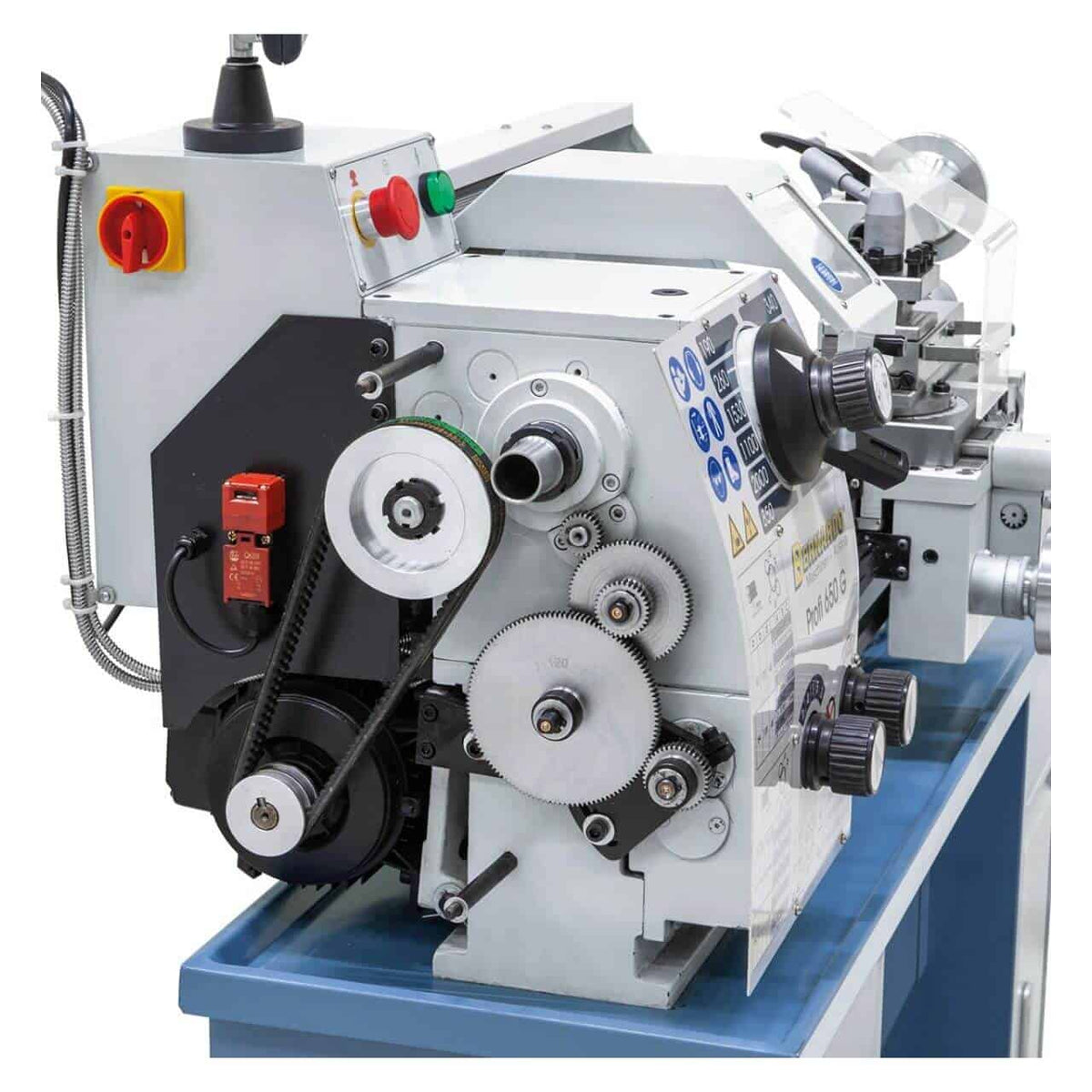

Change gears
Fixed centers
Micrometer stop
Thread dial

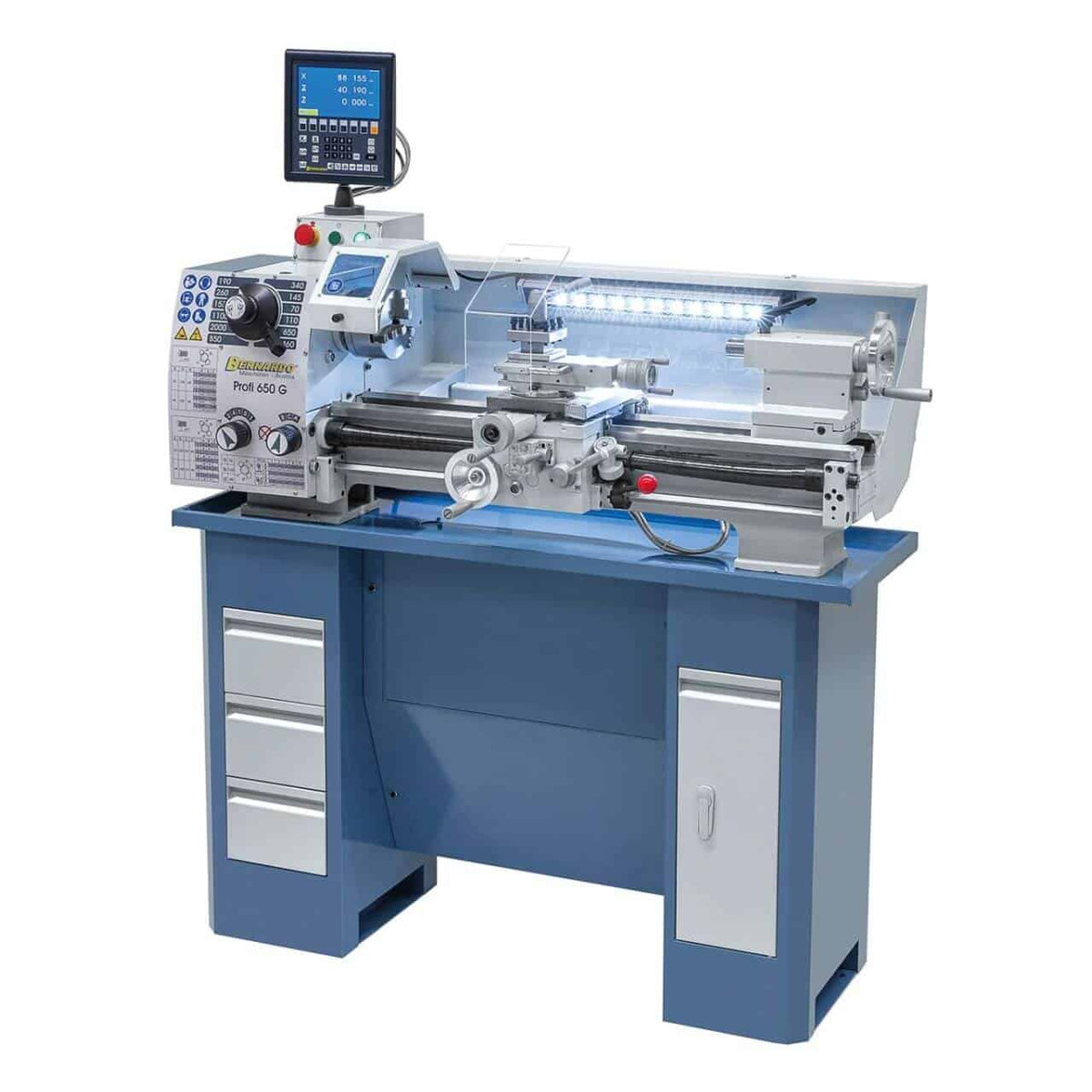

LED work light

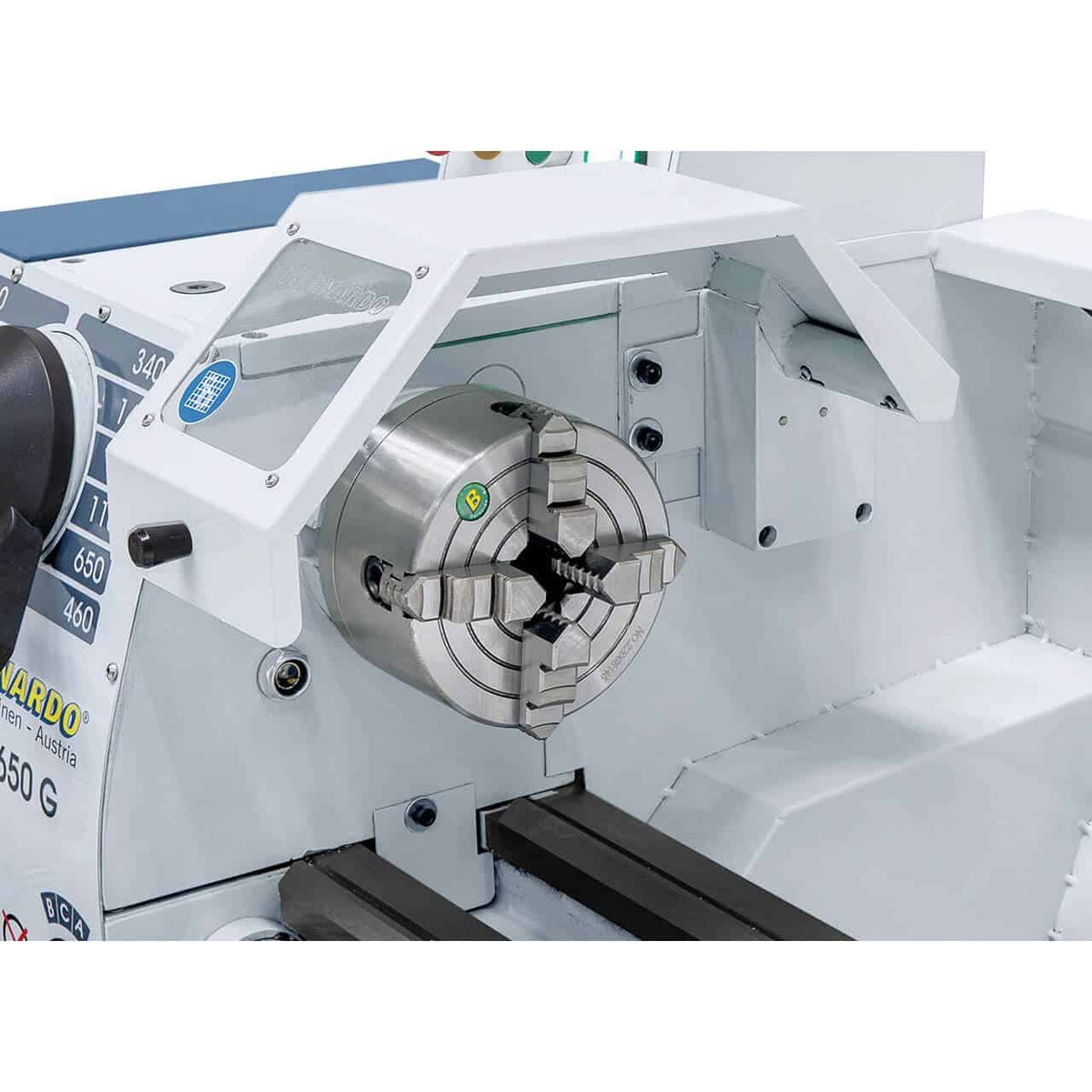

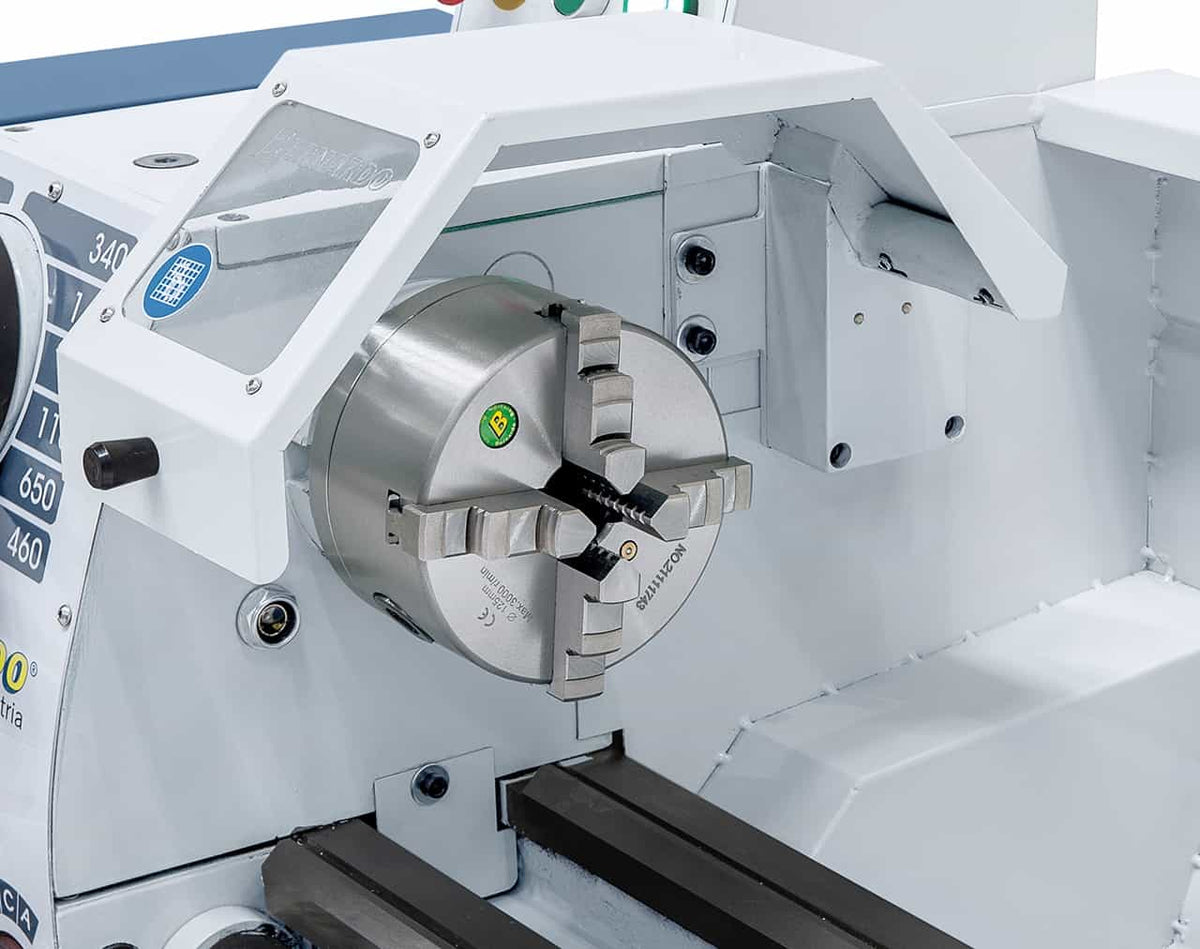

Spindle guard and splash guard
Leadscrew cover
Set of tools and wrenches
Logistics
Bernardo shipping: 5–9 working days (7 days to the South). Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
Frequently Asked Questions
What is the difference between the Profi 650 and the Profi 550/700 models in the same series?
The number in the name indicates the distance between centers in mm — the maximum length of the workpiece that can be turned. Profi 550 mm. The 26 mm spindle bore indicates the maximum diameter of the bar that can pass through the spindle hole without turning. The geared (G) gearbox provides more torque at low speeds compared to belt-driven versions.
How does the geared (G) gearbox work?
The Profi 650 uses a geared (G) gearbox for speed variation: more torque at low speeds compared to belt-driven variable speed drives, suitable for hard steels and large sections. Shifting occurs from a standstill with the external lever — no belt disassembly is required.

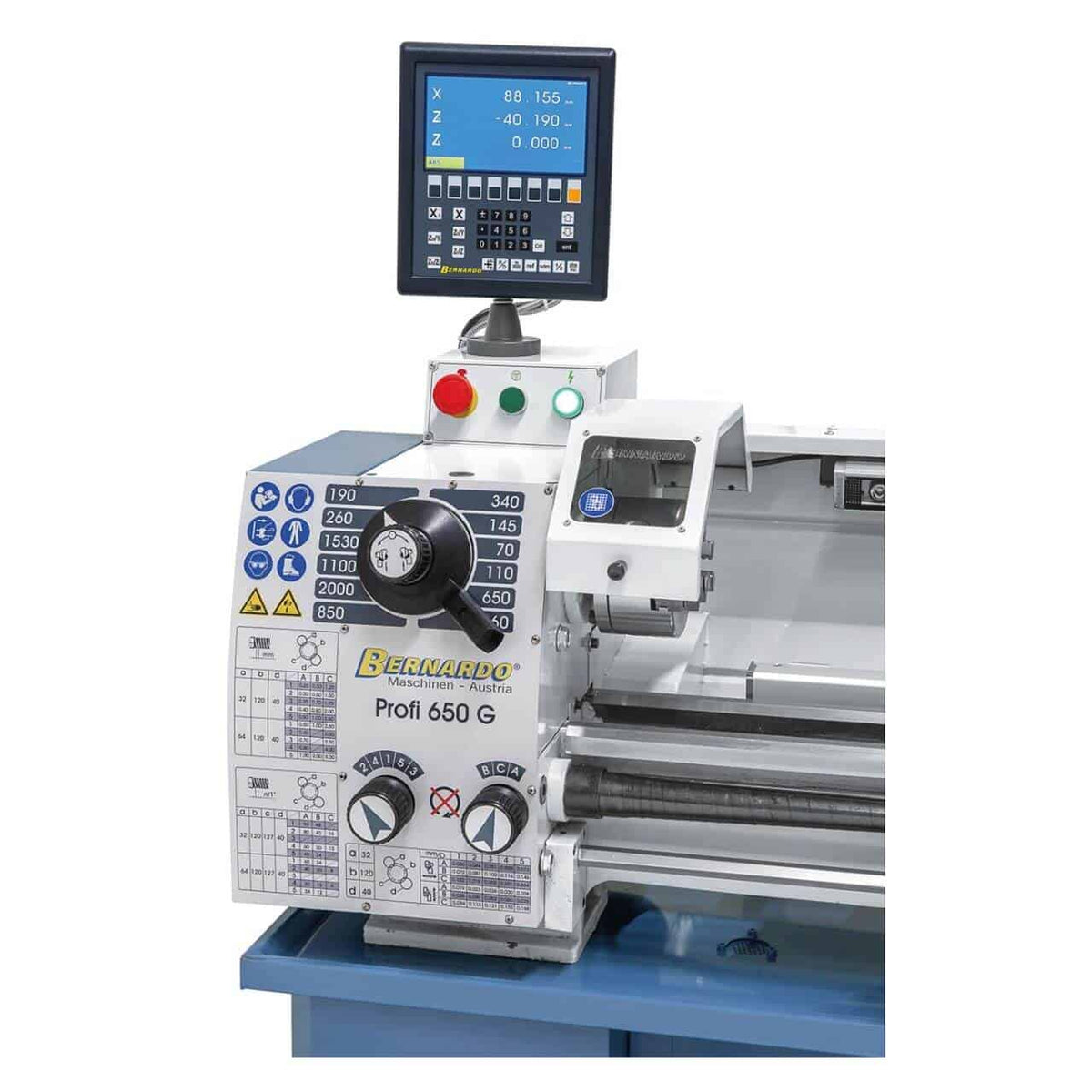

The included DRO ES-12 V — how does it improve machining?
The included 2-axis ES-12 V DRO shows the actual position of the longitudinal and cross slide with a resolution of 0.01 mm — eliminating reading graduated verniers and reducing dimensional errors. Zero preset and calculation of the turned diameter are immediately operational without programming.
400 V power supply: is a transformer needed for the Profi 650?
400 V three-phase — requires a three-phase electrical system (not available in standard private homes). Before purchasing, verify the presence of a three-phase system and the power of the electrical panel.
Are spare parts and assistance available?
Original spare parts available with 3–5 working days shipping. Customer support in Italian available.
