Bernardo Radial Drilling Machine RD 2000 x 63

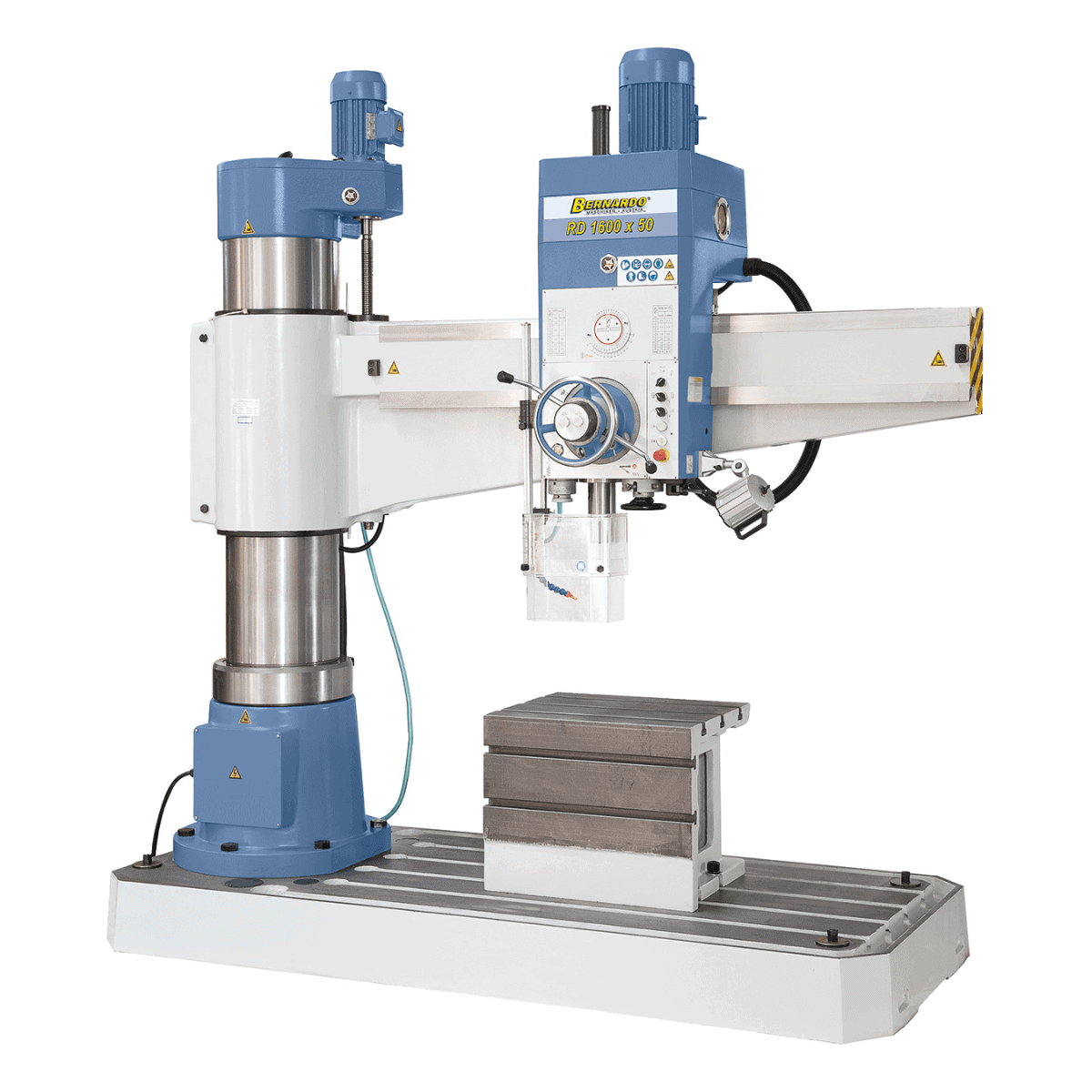

Bernardo RD 2000 x 63 Radial Drill – Powerful and Industrial

The Bernardo RD 2000 x 63 radial drill is designed for professional large-scale operations such as drilling, counterboring, reaming, and tapping up to M56. With a drilling capacity of up to Ø 63 mm and a radial arm with a horizontal travel of 1580 mm, it ensures maximum flexibility and reliable performance in industrial environments.

The solid, torsion-free ground column and independent hydraulic clamps for the arm and head ensure rigidity and stability during machining. The oversized base (1980 x 1240 mm) and the 940 x 625 mm box table allow for clamping of bulky workpieces.

The 16-speed gearbox (20–1600 rpm) and 16 automatic spindle feeds (0.04–3.2 mm/rev) offer the right adjustment for every material and application. Standard features include: lifting motor, hydraulic motor, coolant pump, adjustable guard, LED light, and professional accessories.

---

Main Specifications

Drilling up to Ø 63 mm and tapping up to M56
Radial arm with 1580 mm horizontal travel
Vertical headstock travel 800 mm and spindle travel 405 mm
Spindle speed with 16 ranges (20–1600 rpm)
Automatic spindle feeds (16 steps, 0.04–3.2 mm/rev)
Ground, torsion-free column for maximum stability
Independent hydraulic clamps for arm and head
Oversized base 1980 x 1240 mm and box table 940 x 625 x 505 mm
5.5 kW main motor for heavy-duty machining
Heavy cast iron construction (weight 6500 kg) for vibration-free machining
Coolant pump, LED, and adjustable guard compliant with CE

---

Package contents:
Box table 940 x 625 x 505 mm
Morse sleeves MT 5/4, MT 4/3, MT 3/2
LED work light
Initial filling Shell Tellus 46
Coolant device
Lifting motor

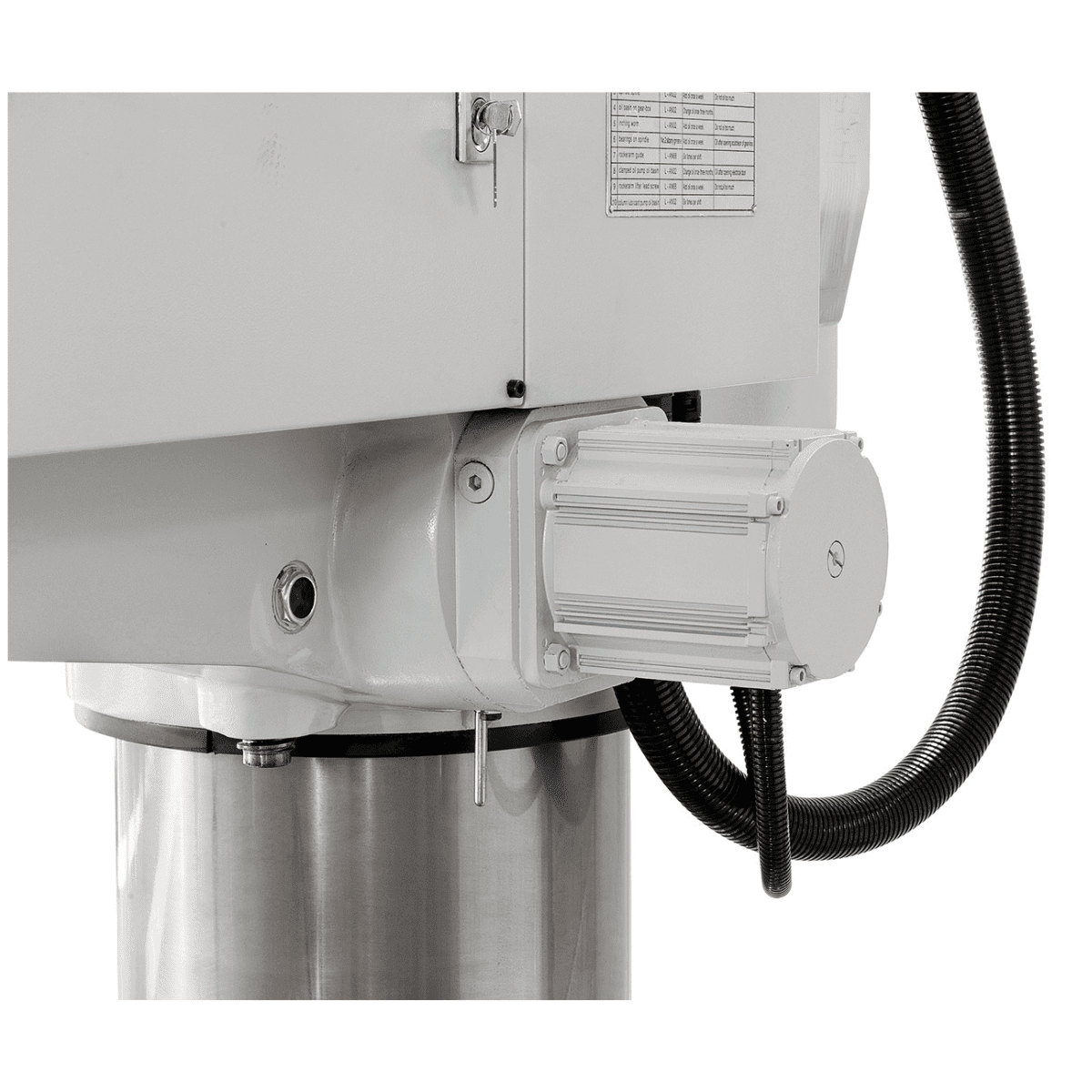

Hydraulic motor

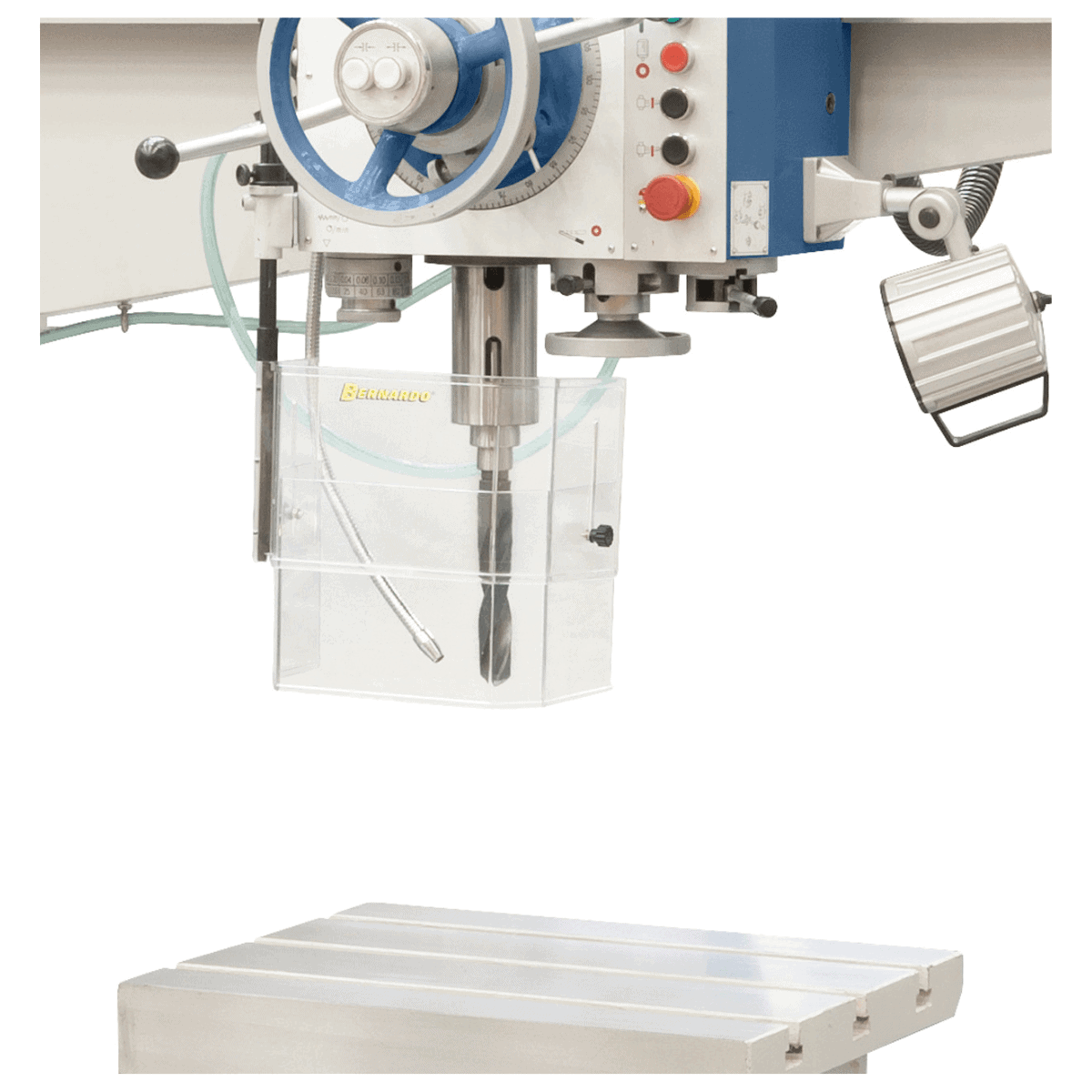

Height-adjustable guard
Tool set

Why buy Radial Drill RD 2000 x 63 from Krollit

Purchasing the Radial Drill RD 2000 x 63 from Krollit means choosing not only a professional metalworking machine, but also tangible support before and after the purchase.
Krollit assists professionals, artisans, and workshops in selecting the most suitable machine, offering assistance, technical support, and spare parts management.

Logistics

Bernardo shipping: 5–9 working days (7 days to Southern Italy). Original spare parts available with 3–5 working day shipping. Customer service available in Italian.

---

Technical Table:

Specification	Value
Max. drilling capacity	63 mm
Max. tapping capacity	M56
Spindle–column distance min./max.	420 – 2000 mm
Vertical headstock movement	800 mm
Horizontal head travel	1580 mm
Spindle travel	405 mm
Spindle taper	MT 5
Spindle speed	(16) 20 – 1600 rpm
Automatic feeds	(16) 0.04 – 3.2 mm/rev
Spindle–box table distance	290 – 1075 mm
Spindle–base distance	795 – 1580 mm
Clamping area base	1980 x 1240 mm
Box table dimensions	940 x 625 x 505 mm
Motor power	5.5 kW
Machine dimensions (L x W x H)	3100 x 1240 x 3370 mm
Weight	approx. 6500 kg

Warranty terms and support procedures are available on the dedicated Krollit page.

View Krollit warranty terms

Frequently Asked Questions

What is a radial drill and when is it needed compared to a pillar drill?

In a pillar drill, the workpiece moves to center the drill bit over the hole. In a radial drill, the spindle moves: the radial arm slides along the column (height) and rotates around it (angle), positioning the spindle exactly above the drilling point on fixed, heavy workpieces that cannot be easily moved. It is the choice for large workpieces, metal fabrication, and operations on already assembled machines.

Is the radial arm motorized or manual?

It depends on the model. Basic versions of the RD series have manual arm movement with a screw lock. NC or Vario versions may have motorized Z-axis. Check the model specifications in the technical table.

What is the purpose of the spindle's right/left (R/L) rotation?

Left rotation (L) allows the use of left-hand milling cutters and loosening of left-hand threaded screws. It is also useful for manual tapping operations where forward (right) and backward (left) movements are alternated to break the chip.

Are spare parts and assistance available?

Original Bernardo spare parts available with 3–5 working day shipping. Customer service available in Italian.

How much space is needed for installation?

The arm's rotation radius determines the minimum operating area. Leave clear space equal to the arm's radius on all sides of the column. For machines over 500 kg, coordinate with Krollit for the necessary unloading equipment.
